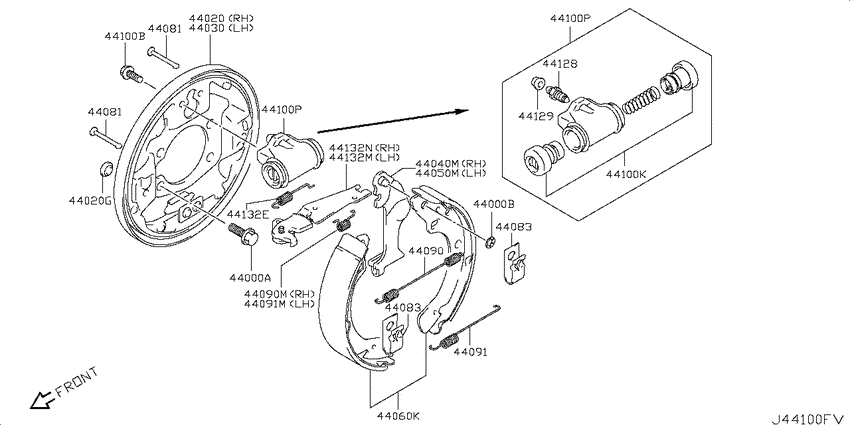

Rear brake (2007-01-01 ~ ; K6A) Diagram Nissan PINO
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- 3AT
- grade
- S
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44000A
|
44000A
43083-4A00B Bolt0801--01 ~ ; K6A |
43083-4A00B |
US $1.44 |
||
|
44000A
|
44000A
43083-4A0A1 Bolt0701--01 ~ 0801--01; K6A |
43083-4A0A1 |
US $1.15 |
||
|
44000B
|
44000B
48366-4A0A7 Nut0701--01 ~ ; K6A |
48366-4A0A7 |
US $1.44 |
||
|
44020
|
44020
44020-4A0A0 Plate Assy-Back, Rear Brake Rh0701--01 ~ ; K6A |
44020-4A0A0 |
US $46.66 |
||
|
44020
|
44020
41098-4A0A0 Plug0701--01 ~ ; K6A |
41098-4A0A0 |
US $1.44 |
||
|
44020G
|
44020G
41098-4A0A0 Plug0701--01 ~ ; K6A |
41098-4A0A0 |
US $1.44 |
||
|
44030
|
44030
44030-4A0A0 Plate Assy-Back, Rear Brake Lh0701--01 ~ ; K6A |
44030-4A0A0 |
US $45.07 |
||
|
44040M
|
44040M
44040-4A0A0 Lever Assy-Toggle, Rh0701--01 ~ ; K6A |
44040-4A0A0 |
US $9.94 |
||
|
44050M
|
44050M
44050-4A0A0 Lever Assy-Toggle, Lh0701--01 ~ ; K6A |
44050-4A0A0 |
US $9.94 |
||
|
44060K
|
44060K
440604A00B Shoe Set-Rear Brake0701--01 ~ ; K6A |
440604A00B |
US $48.53 |
||
|
44081
|
44081
44081-4A0A0 Pin-Anti Shoe Rattle0701--01 ~ ; K6A |
44081-4A0A0 |
US $1.87 |
||
|
44081
|
44081
44081-4A0A0 Pin-Anti Shoe Rattle0701--01 ~ ; K6A |
44081-4A0A0 |
US $1.87 |
||
|
44083
|
44083
44083-4A0A1 Spring-Anti Shoe Rattle0701--01 ~ ; K6A |
44083-4A0A1 |
US $1.87 |
||
|
44083
|
44083
44083-4A0A1 Spring-Anti Shoe Rattle0701--01 ~ ; K6A |
44083-4A0A1 |
US $1.87 |
||
|
44090
|
44090
440904A0A1 Spring-Return, Rear Brake Shoe0701--01 ~ ; K6A |
440904A0A1 |
US $2.59 |
||
|
44090
|
44090
44090-4A0A2 Spring-Return, Rh0701--01 ~ ; K6A |
44090-4A0A2 |
US $2.02 |
||
|
44090M
|
44090M
44090-4A0A2 Spring-Return, Rh0701--01 ~ ; K6A |
44090-4A0A2 |
US $2.02 |
||
|
44091
|
44091
273194A0A1 Spring-Return, Rear Brake Shoe0701--01 ~ ; K6A |
273194A0A1 |
US $2.30 |
||
|
44091
|
44091
44091-4A0A0 Spring-Return, Lh0701--01 ~ ; K6A |
44091-4A0A0 |
US $2.02 |
||
|
44091M
|
44091M
44091-4A0A0 Spring-Return, Lh0701--01 ~ ; K6A |
44091-4A0A0 |
US $2.02 |
||
|
44100B
|
44100B
01111-4A00D Bolt0701--01 ~ ; K6A |
01111-4A00D |
US $0.72 |
||
|
44100K
|
44100K
D41004A0A0 Cup Kit-Brake Wheel Cylinder, Rear0701--01 ~ ; K6A |
D41004A0A0 |
US $30.82 |
||
|
44100P
|
44100P
44100-4A0A1 Cylinder Assy-Rear Wheel0701--01 ~ ; K6A |
44100-4A0A1 |
US $72.14 |
||
|
44100P
|
44100P
44100-4A0A1 Cylinder Assy-Rear Wheel0701--01 ~ ; K6A |
44100-4A0A1 |
US $72.14 |
||
|
44128
|
44128
41128-4A0A0 Screw-Bleeder0701--01 ~ ; K6A |
41128-4A0A0 |
US $4.61 |
||
|
44129
|
44129
41129-4A0A5 Cap-Bleeder Screw0701--01 ~ ; K6A |
41129-4A0A5 |
US $1.87 |
||
|
44132E
|
44132E
44039-4A0A2 Spring-Return, Strut0701--01 ~ ; K6A |
44039-4A0A2 |
US $2.16 |
||
|
44132M
|
44132M
440484A0A1 Strut, Lh0701--01 ~ ; K6A |
440484A0A1 |
US $23.33 |
||
|
44132N
|
44132N
44038-4A0A1 Strut, Rh0701--01 ~ ; K6A |
44038-4A0A1 |
US $23.33 |
