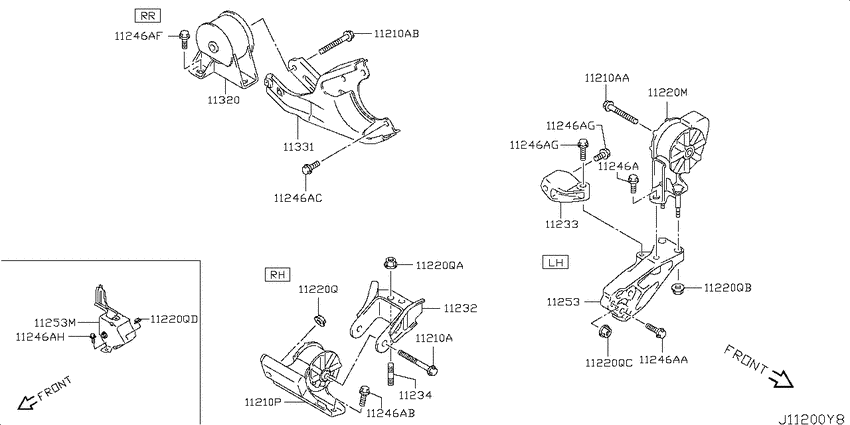

Engine & transmission mounting (2007-01-01 ~ ; 2WD.K6A.5MT) Diagram Nissan PINO
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- 5MT
- grade
- S
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11210A
|
11210A
011114A00F Bolt0701--01 ~ ; K6A.5MT |
011114A00F |
US $1.73 |
||
|
11210A
|
11210A
011114A00F Bolt0701--01 ~ ; K6A.5MT |
011114A00F |
US $1.73 |
||
|
11210A
|
11210A
011114A00F Bolt0701--01 ~ ; 2WD.K6A.5MT |
011114A00F |
US $1.73 |
||
|
11210AA
|
11210AA
011114A00F Bolt0701--01 ~ ; K6A.5MT |
011114A00F |
US $1.73 |
||
|
11210AB
|
11210AB
011114A00F Bolt0701--01 ~ ; 2WD.K6A.5MT |
011114A00F |
US $1.73 |
||
|
11210P
|
11210P
112104A00A
ｲﾝｼﾕﾚ-ﾀ- ｱﾂｼｰ
0701--01 ~ ; K6A.5MT |
112104A00A |
— | ||
|
11220M
|
11220M
112214A00A
ｲﾝｼﾕﾚ-ﾀ- assy
0701--01 ~ ; K6A.5MT |
112214A00A |
— | ||
|
11220Q
|
11220Q
01225-4A00C Nut0701--01 ~ ; K6A.5MT |
01225-4A00C |
US $0.72 |
||
|
11220Q
|
11220Q
01225-4A00C Nut0701--01 ~ ; K6A.5MT |
01225-4A00C |
US $0.72 |
||
|
11220Q
|
11220Q
01225-4A00C Nut0701--01 ~ ; K6A.5MT |
01225-4A00C |
US $0.72 |
||
|
11220Q
|
11220Q
01225-4A00C Nut0701--01 ~ ; K6A.5MT |
01225-4A00C |
US $0.72 |
||
|
11220Q
|
11220Q
01225-4A00C Nut0701--01 ~ ; K6A.5MT |
01225-4A00C |
US $0.72 |
||
|
11220QA
|
11220QA
01225-4A00C Nut0701--01 ~ ; K6A.5MT |
01225-4A00C |
US $0.72 |
||
|
11220QB
|
11220QB
01225-4A00C Nut0701--01 ~ ; K6A.5MT |
01225-4A00C |
US $0.72 |
||
|
11220QC
|
11220QC
01225-4A00C Nut0701--01 ~ ; K6A.5MT |
01225-4A00C |
US $0.72 |
||
|
11220QD
|
11220QD
01225-4A00C Nut0701--01 ~ ; K6A.5MT |
01225-4A00C |
US $0.72 |
||
|
11232
|
11232
112324A00A
Bracket
0701--01 ~ ; K6A.5MT |
112324A00A |
— | ||
|
11233
|
11233
11233-4A00A
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ lh
0701--01 ~ ; 2WD.K6A.5MT |
11233-4A00A |
— | ||
|
11234
|
11234
11234-4A00A Stud-Engine Mounting0701--01 ~ ; K6A.5MT |
11234-4A00A |
US $1.44 |
||
|
11246A
|
11246A
011254A00D Bolt0701--01 ~ ; K6A.5MT |
011254A00D |
US $1.01 |
||
|
11246A
|
11246A
01125-4A00E Bolt0701--01 ~ ; K6A.5MT |
01125-4A00E |
US $1.01 |
||
|
11246A
|
11246A
011254A00G Bolt0701--01 ~ ; K6A.5MT |
011254A00G |
US $1.01 |
||
|
11246A
|
11246A
011254A00D Bolt0701--01 ~ ; 2WD.K6A.5MT |
011254A00D |
US $1.01 |
||
|
11246A
|
11246A
011254A00G Bolt0701--01 ~ ; K6A.5MT |
011254A00G |
US $1.01 |
||
|
11246A
|
11246A
01125-4A01D ﾎﾞﾙﾄ0701--01 ~ ; K6A.5MT |
01125-4A01D |
US $1.15 |
||
|
11246A
|
11246A
011254A00G Bolt0701--01 ~ ; K6A.5MT |
011254A00G |
US $1.01 |
||
|
11246AA
|
11246AA
01125-4A00E Bolt0701--01 ~ ; K6A.5MT |
01125-4A00E |
US $1.01 |
||
|
11246AB
|
11246AB
011254A00G Bolt0701--01 ~ ; K6A.5MT |
011254A00G |
US $1.01 |
||
|
11246AC
|
11246AC
011254A00D Bolt0701--01 ~ ; 2WD.K6A.5MT |
011254A00D |
US $1.01 |
||
|
11246AF
|
11246AF
011254A00G Bolt0701--01 ~ ; K6A.5MT |
011254A00G |
US $1.01 |
||
|
11246AG
|
11246AG
01125-4A01D ﾎﾞﾙﾄ0701--01 ~ ; K6A.5MT |
01125-4A01D |
US $1.15 |
||
|
11246AG
|
11246AG
01125-4A01D ﾎﾞﾙﾄ0701--01 ~ ; K6A.5MT |
01125-4A01D |
US $1.15 |
||
|
11246AH
|
11246AH
011254A00G Bolt0701--01 ~ ; K6A.5MT |
011254A00G |
US $1.01 |
||
|
11253
|
11253
11247-4A00B
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾌﾛﾝﾄ lh
0701--01 ~ ; K6A.5MT |
11247-4A00B |
— | ||
|
11253
|
11253
112534A00A Bracket-Engine Mounting, Lh0701--01 ~ ; K6A.5MT |
112534A00A |
US $30.10 |
||
|
11253M
|
11253M
112534A00A Bracket-Engine Mounting, Lh0701--01 ~ ; K6A.5MT |
112534A00A |
US $30.10 |
||
|
11320
|
11320
11320-4A00B
ｲﾝｼﾕﾚ-ﾀ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘﾔ
0701--01 ~ ; K6A.5MT |
11320-4A00B |
— | ||
|
11331
|
11331
11331-4A00B
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘﾔ
0701--01 ~ ; 2WD.K6A.5MT |
11331-4A00B |
— |
