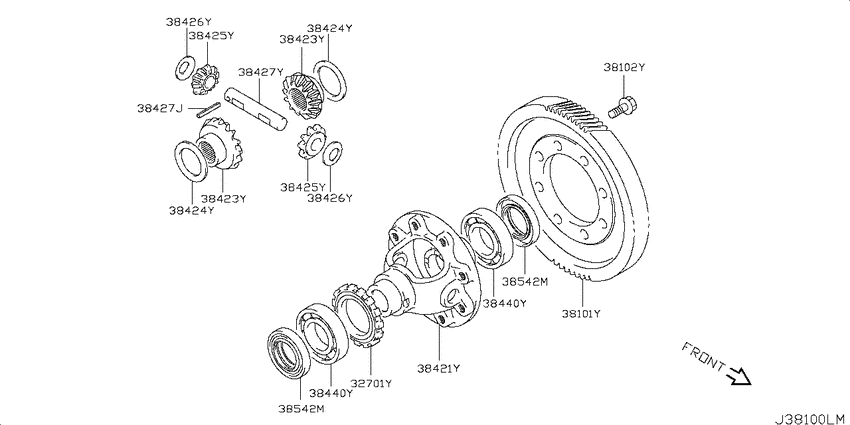

Front final drive (2007-01-01 ~ ; 2WD.K6A.5MT) Diagram Nissan PINO
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- 5MT
- grade
- S
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-4A00A
ｷﾞﾔ,ﾄﾞﾗｲﾌﾞ ｽﾋﾟ-ﾄﾞﾒ-ﾀ-
0701--01 ~ ; 2WD.K6A.5MT |
32701-4A00A |
— | ||
|
38101Y
|
38101Y
38101-4A00B
ｷﾞﾔ,ﾌｱｲﾅﾙ ﾄﾞﾗｲﾌﾞ
0701--01 ~ ; 2WD.K6A.5MT |
38101-4A00B |
— | ||
|
38102Y
|
38102Y
01125-4A0B2 Bolt-Drive Gear0701--01 ~ ; K6A.5MT |
01125-4A0B2 |
US $2.30 |
||
|
38421Y
|
38421Y
38421-4A00B
ｹ-ｽ,ﾃﾞｲﾌｱﾚﾝｼﾔﾙ
0701--01 ~ ; 2WD.K6A.5MT |
38421-4A00B |
— | ||
|
38423Y
|
38423Y
38422-4A00A
ｷﾞﾔ,ｻｲﾄﾞ
0701--01 ~ ; 2WD.K6A.5MT |
38422-4A00A |
— | ||
|
38423Y
|
38423Y
38422-4A00A
ｷﾞﾔ,ｻｲﾄﾞ
0701--01 ~ ; 2WD.K6A.5MT |
38422-4A00A |
— | ||
|
38424Y
|
38424Y
H0679-4A0A1 Washer-Thrust, Side Gear0701--01 ~ ; 2WD.K6A.5MT; ｾﾝﾀｸ ｼﾖｳ T=1.0 |
H0679-4A0A1 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0A2 Washer-Thrust, Side Gear0701--01 ~ ; 2WD.K6A.5MT; ｾﾝﾀｸ ｼﾖｳ T=0.9 |
H0679-4A0A2 |
US $1.73 |
||
|
38424Y
|
38424Y
H0679-4A0A3 Washer-Thrust, Side Gear0701--01 ~ ; 2WD.K6A.5MT; ｾﾝﾀｸ ｼﾖｳ T=1.1 |
H0679-4A0A3 |
US $1.73 |
||
|
38424Y
|
38424Y
H0679-4A0A1 Washer-Thrust, Side Gear0701--01 ~ ; 2WD.K6A.5MT; ｾﾝﾀｸ ｼﾖｳ T=1.0 |
H0679-4A0A1 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0A2 Washer-Thrust, Side Gear0701--01 ~ ; 2WD.K6A.5MT; ｾﾝﾀｸ ｼﾖｳ T=0.9 |
H0679-4A0A2 |
US $1.73 |
||
|
38424Y
|
38424Y
H0679-4A0A3 Washer-Thrust, Side Gear0701--01 ~ ; 2WD.K6A.5MT; ｾﾝﾀｸ ｼﾖｳ T=1.1 |
H0679-4A0A3 |
US $1.73 |
||
|
38425Y
|
38425Y
38425-4A0A0 Pinion-Mate0701--01 ~ ; 2WD.K6A.5MT |
38425-4A0A0 |
US $51.84 |
||
|
38425Y
|
38425Y
38425-4A0A0 Pinion-Mate0701--01 ~ ; 2WD.K6A.5MT |
38425-4A0A0 |
US $51.84 |
||
|
38426Y
|
38426Y
01311-4A0A2 Washer-Thrust, Pinion Mate0701--01 ~ ; 2WD.K6A.5MT |
01311-4A0A2 |
US $1.44 |
||
|
38426Y
|
38426Y
01311-4A0A2 Washer-Thrust, Pinion Mate0701--01 ~ ; 2WD.K6A.5MT |
01311-4A0A2 |
US $1.44 |
||
|
38427J
|
38427J
18463-4A0A0 Pin-Lock, Pinion Shaft0701--01 ~ ; 2WD.K6A.5MT |
18463-4A0A0 |
US $1.73 |
||
|
38427Y
|
38427Y
38427-4A0A0 Shaft-Pinion Mate0701--01 ~ ; 2WD.K6A.5MT |
38427-4A0A0 |
US $17.28 |
||
|
38440Y
|
38440Y
40210-4A00A
ﾍﾞｱﾘﾝｸﾞ,ﾃﾞｲﾌｱﾚﾝｼﾔﾙ ｻｲﾄﾞ
0701--01 ~ ; 2WD.K6A.5MT |
40210-4A00A |
— | ||
|
38440Y
|
38440Y
40210-4A00A
ﾍﾞｱﾘﾝｸﾞ,ﾃﾞｲﾌｱﾚﾝｼﾔﾙ ｻｲﾄﾞ
0701--01 ~ ; 2WD.K6A.5MT |
40210-4A00A |
— | ||
|
38542M
|
38542M
38342-4A00B
ｼ-ﾙ,ｵｲﾙ ｻｲﾄﾞ ﾍﾞｱﾘﾝｸﾞ ﾘﾃ-ﾅ-
0701--01 ~ ; 2WD.K6A.5MT |
38342-4A00B |
— | ||
|
38542M
|
38542M
38342-4A00B
ｼ-ﾙ,ｵｲﾙ ｻｲﾄﾞ ﾍﾞｱﾘﾝｸﾞ ﾘﾃ-ﾅ-
0701--01 ~ ; 2WD.K6A.5MT |
38342-4A00B |
— |
