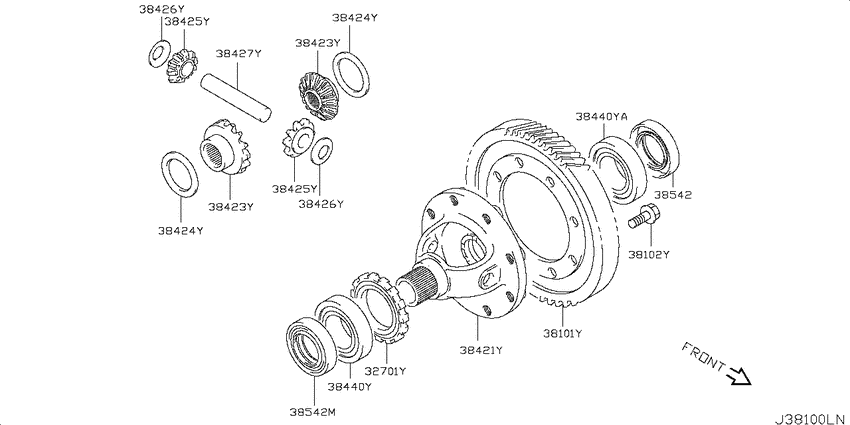

Front final drive (2007-01-01 ~ ; 4WD.K6A.5MT) Diagram Nissan PINO
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- K6A
- drive
- 4WD
- transmission
- 5MT
- grade
- S/FOUR
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-4A00B
ｷﾞﾔ,ﾄﾞﾗｲﾌﾞ ｽﾋﾟ-ﾄﾞﾒ-ﾀ-
0701--01 ~ ; 4WD.K6A.5MT |
32701-4A00B |
— | ||
|
38101Y
|
38101Y
38101-4A00C
ｷﾞﾔ,ﾌｱｲﾅﾙ ﾄﾞﾗｲﾌﾞ
0701--01 ~ ; 4WD.K6A.5MT |
38101-4A00C |
— | ||
|
38102Y
|
38102Y
01125-4A0B2 Bolt-Drive Gear0701--01 ~ ; K6A.5MT |
01125-4A0B2 |
US $2.30 |
||
|
38421Y
|
38421Y
38421-4A00D
ｹ-ｽ,ﾃﾞｲﾌｱﾚﾝｼﾔﾙ
0701--01 ~ ; 4WD.K6A.5MT |
38421-4A00D |
— | ||
|
38423Y
|
38423Y
38422-4A00B
ｷﾞﾔ,ｻｲﾄﾞ
0701--01 ~ ; 4WD.K6A.5MT |
38422-4A00B |
— | ||
|
38423Y
|
38423Y
38422-4A00B
ｷﾞﾔ,ｻｲﾄﾞ
0701--01 ~ ; 4WD.K6A.5MT |
38422-4A00B |
— | ||
|
38424Y
|
38424Y
H0679-4A0A4 Washer-Thrust, Side Gear0701--01 ~ ; 4WD.K6A.5MT; ｾﾝﾀｸ ｼﾖｳ T=1.0 |
H0679-4A0A4 |
US $1.87 |
||
|
38424Y
|
38424Y
H0679-4A0A5 Washer-Thrust, Side Gear0701--01 ~ ; 4WD.K6A.5MT; ｾﾝﾀｸ ｼﾖｳ T=1.1 |
H0679-4A0A5 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0A7 Washer-Thrust, Side Gear0701--01 ~ ; 4WD.K6A.5MT; ｾﾝﾀｸ ｼﾖｳ T=0.9 |
H0679-4A0A7 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0A4 Washer-Thrust, Side Gear0701--01 ~ ; 4WD.K6A.5MT; ｾﾝﾀｸ ｼﾖｳ T=1.0 |
H0679-4A0A4 |
US $1.87 |
||
|
38424Y
|
38424Y
H0679-4A0A5 Washer-Thrust, Side Gear0701--01 ~ ; 4WD.K6A.5MT; ｾﾝﾀｸ ｼﾖｳ T=1.1 |
H0679-4A0A5 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0A7 Washer-Thrust, Side Gear0701--01 ~ ; 4WD.K6A.5MT; ｾﾝﾀｸ ｼﾖｳ T=0.9 |
H0679-4A0A7 |
US $2.16 |
||
|
38425Y
|
38425Y
38425-4A00A Pinion-Mate0701--01 ~ ; 4WD.K6A.5MT |
38425-4A00A |
US $48.82 |
||
|
38425Y
|
38425Y
38425-4A00A Pinion-Mate0701--01 ~ ; 4WD.K6A.5MT |
38425-4A00A |
US $48.82 |
||
|
38426Y
|
38426Y
38426-4A00A Washer-Thrust, Pinion Mate0701--01 ~ ; 4WD.K6A.5MT |
38426-4A00A |
US $1.73 |
||
|
38426Y
|
38426Y
38426-4A00A Washer-Thrust, Pinion Mate0701--01 ~ ; 4WD.K6A.5MT |
38426-4A00A |
US $1.73 |
||
|
38427Y
|
38427Y
38427-4A00A
ｼﾔﾌﾄ,ﾋﾟﾆｵﾝ ﾒ-ﾄ
0701--01 ~ ; 4WD.K6A.5MT |
38427-4A00A |
— | ||
|
38440Y
|
38440Y
40210-4A00C
ﾍﾞｱﾘﾝｸﾞ,ﾃﾞｲﾌｱﾚﾝｼﾔﾙ ｻｲﾄﾞ
0701--01 ~ ; 4WD.K6A.5MT |
40210-4A00C |
— | ||
|
38440Y
|
38440Y
40210-4A0A0
ﾍﾞｱﾘﾝｸﾞ,ﾃﾞｲﾌｱﾚﾝｼﾔﾙ ｻｲﾄﾞ
0701--01 ~ ; 4WD.K6A.5MT |
40210-4A0A0 |
— | ||
|
38440YA
|
38440YA
40210-4A0A0
ﾍﾞｱﾘﾝｸﾞ,ﾃﾞｲﾌｱﾚﾝｼﾔﾙ ｻｲﾄﾞ
0701--01 ~ ; 4WD.K6A.5MT |
40210-4A0A0 |
— | ||
|
38542
|
38542
38342-4A00A 383424A00A0701--01 ~ ; 4WD.K6A.5MT |
38342-4A00A |
US $73.35 |
||
|
38542
|
38542
193884A0A1 Seal-Oil, Oil Pump0701--01 ~ ; 4WD.K6A.5MT |
193884A0A1 |
US $8.64 |
||
|
38542M
|
38542M
193884A0A1 Seal-Oil, Oil Pump0701--01 ~ ; 4WD.K6A.5MT |
193884A0A1 |
US $8.64 |
