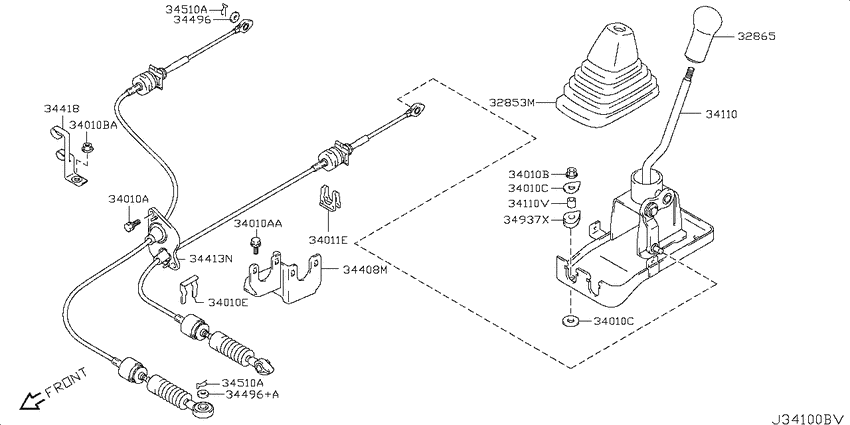

Transmission control & linkage (2007-01-01 ~ 2007-03-01; 4WD.K6A.5MT) Diagram Nissan PINO
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- K6A
- drive
- 4WD
- transmission
- 5MT
- grade
- S/FOUR
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32853M
|
32853M
328534A00C
ﾌﾞ-ﾂ,ｺﾝﾄﾛ-ﾙ ﾚﾊﾞ
0701--01 ~ ; 4WD.K6A.5MT |
328534A00C |
— | ||
|
32865
|
32865
32865-4A00A
ﾉﾌﾞ,ｺﾝﾄﾛ-ﾙ ﾚﾊﾞ-
0701--01 ~ 0703--01; 4WD.K6A.5MT; TO HC24S-240633,HC24S-536864 |
32865-4A00A |
— | ||
|
32865
|
32865
328654A00B ｺﾝﾄﾛ-ﾙﾚﾊﾞ- ﾉﾌﾞ0703--01 ~ ; 4WD.K6A.5MT; FROM HC24S-240634,HC24S-536865 |
328654A00B |
US $32.40 |
||
|
34010A
|
34010A
014664A00C Bolt0701--01 ~ ; 4WD.K6A.5MT |
014664A00C |
US $0.72 |
||
|
34010A
|
34010A
011254A00B Bolt0701--01 ~ ; 4WD.K6A.5MT |
011254A00B |
US $0.86 |
||
|
34010AA
|
34010AA
011254A00B Bolt0701--01 ~ ; 4WD.K6A.5MT |
011254A00B |
US $0.86 |
||
|
34010B
|
34010B
012254A0A2 Nut0701--01 ~ ; 4WD.K6A.5MT |
012254A0A2 |
US $0.72 |
||
|
34010B
|
34010B
01225-4A00B Nut-Hex0701--01 ~ ; 4WD.K6A.5MT |
01225-4A00B |
US $0.72 |
||
|
34010BA
|
34010BA
01225-4A00B Nut-Hex0701--01 ~ ; 4WD.K6A.5MT |
01225-4A00B |
US $0.72 |
||
|
34010C
|
34010C
32563-4A00E
ﾜﾂｼﾔ-
0701--01 ~ ; 4WD.K6A.5MT |
32563-4A00E |
— | ||
|
34010C
|
34010C
32563-4A00E
ﾜﾂｼﾔ-
0701--01 ~ ; 4WD.K6A.5MT |
32563-4A00E |
— | ||
|
34010E
|
34010E
01551-4A00B
ｸﾘﾂﾌﾟ
0701--01 ~ ; 4WD.K6A.5MT |
01551-4A00B |
— | ||
|
34011E
|
34011E
36457-4A00A Clip-Cable0701--01 ~ ; 4WD.K6A.5MT |
36457-4A00A |
US $2.02 |
||
|
34110
|
34110
34110-4A00C
ﾚﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｺﾝﾄﾛ-ﾙ
0701--01 ~ 0703--01; 4WD.K6A.5MT; TO HC24S-240633,HC24S-536864 |
34110-4A00C |
— | ||
|
34110
|
34110
34110-4A00D
ﾚﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｺﾝﾄﾛ-ﾙ
0703--01 ~ ; 4WD.K6A.5MT; FROM HC24S-240634,HC24S-536865 |
34110-4A00D |
— | ||
|
34110
|
34110
34117-4A00B
ｶﾗ-
0701--01 ~ ; 4WD.K6A.5MT |
34117-4A00B |
— | ||
|
34110V
|
34110V
34117-4A00B
ｶﾗ-
0701--01 ~ ; 4WD.K6A.5MT |
34117-4A00B |
— | ||
|
34408M
|
34408M
34408-4A00A
ﾌﾞﾗｹﾂﾄ,ｹｰﾌﾞﾙ ﾏｳﾝﾃﾝｸﾞ
0701--01 ~ ; 4WD.K6A.5MT |
34408-4A00A |
— | ||
|
34413N
|
34413N
34415-4A00A
ｹ-ﾌﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ｺﾝﾄﾛ-ﾙ
0701--01 ~ ; 4WD.K6A.5MT |
34415-4A00A |
— | ||
|
34418
|
34418
34418-4A00A
ｸﾗﾝﾌﾟ,ｹ-ﾌﾞﾙ
0701--01 ~ ; 4WD.K6A.5MT |
34418-4A00A |
— | ||
|
34496
|
34496
32563-4A00C Washer0701--01 ~ ; 4WD.K6A.5MT |
32563-4A00C |
US $0.72 |
||
|
34496
|
34496
34496-4A00A
ﾜﾂｼﾔ-
0701--01 ~ ; 4WD.K6A.5MT |
34496-4A00A |
— | ||
|
34496+A
|
34496+A
34496-4A00A
ﾜﾂｼﾔ-
0701--01 ~ ; 4WD.K6A.5MT |
34496-4A00A |
— | ||
|
34510A
|
34510A
34932-4A0A0 Pin0701--01 ~ ; 4WD.K6A.5MT |
34932-4A0A0 |
US $1.15 |
||
|
34510A
|
34510A
34932-4A0A0 Pin0701--01 ~ ; 4WD.K6A.5MT |
34932-4A0A0 |
US $1.15 |
||
|
34937X
|
34937X
34937-4A00A ｸﾞﾛﾒﾂﾄ0701--01 ~ ; 4WD.K6A.5MT |
34937-4A00A |
US $1.87 |
