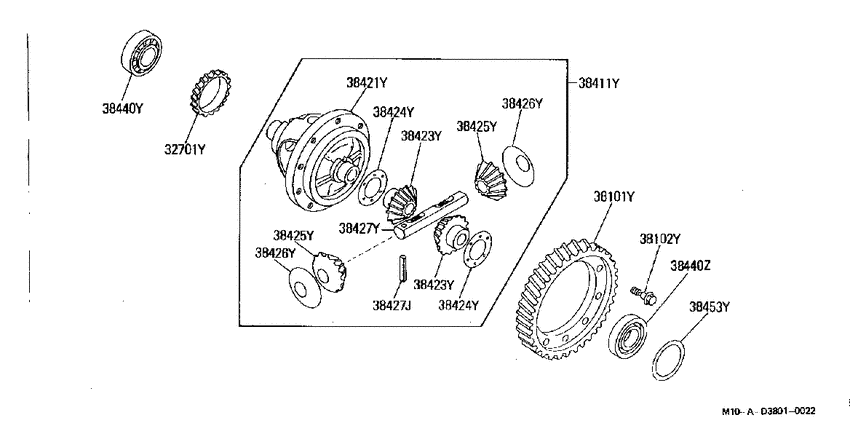

Front final drive (1985-10-01 ~ ; RS5F50A(CA20S)) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1985 - 2012
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- F5
- grade
- JWL
- body
- S
- capacity
- 7
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38101Y
|
38101Y
38101-05E15 GEAR-FINAL DRIVE8510--01 ~ ; CA20S.MT |
38101-05E15 |
US $208.80 |
||
| replacement | |||||
|
38101Y
|
38101Y
38101-0E901 Gear-Final Drive8510--01 ~ ; CA20S.MT |
38101-0E901 |
US $260.64 |
||
|
38102Y
|
38102Y
38102N3100 Bolt-Drive Gear8510--01 ~ ; CA20S.MT |
38102N3100 |
US $4.16 |
||
|
38411Y
|
38411Y
38411-06R00 Case Compl-Differential8510--01 ~ ; CA20S.MT |
38411-06R00 |
US $921.82 |
||
|
38421Y
|
38421Y
38421-06R00
Case-Differential
8510--01 ~ ; CA20S.MT |
38421-06R00 |
— | ||
|
38423Y
|
38423Y
38423-03E00 GEAR-SIDE8510--01 ~ ; CA20S.MT |
38423-03E00 |
US $41.76 |
||
|
38423Y
|
38423Y
38423-03E00 GEAR-SIDE8510--01 ~ ; CA20S.MT |
38423-03E00 |
US $41.76 |
||
|
38424Y
|
38424Y
38424-E3000 Washer-Thrust, Side Gear8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.75-0.80 |
38424-E3000 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3001 Washer-Thrust, Side Gear8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.80-0.85 |
38424-E3001 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3002 Washer-Thrust, Side Gear8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.85-0.90 |
38424-E3002 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3003 Washer-Thrust, Side Gear8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.90-0.95 |
38424-E3003 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3000 Washer-Thrust, Side Gear8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.75-0.80 |
38424-E3000 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3001 Washer-Thrust, Side Gear8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.80-0.85 |
38424-E3001 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3002 Washer-Thrust, Side Gear8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.85-0.90 |
38424-E3002 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3003 Washer-Thrust, Side Gear8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.90-0.95 |
38424-E3003 |
US $4.03 |
||
|
38425Y
|
38425Y
38425-B4000 Pinion-Mate8510--01 ~ ; CA20S.MT |
38425-B4000 |
US $41.47 |
||
|
38425Y
|
38425Y
38425-B4000 Pinion-Mate8510--01 ~ ; CA20S.MT |
38425-B4000 |
US $41.47 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE8510--01 ~ ; CA20S.MT |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE8510--01 ~ ; CA20S.MT |
38426-03E00 |
US $4.18 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft8510--01 ~ ; CA20S.MT |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-03E00 SHAFT-PINION MATE8510--01 ~ ; CA20S.MT |
38427-03E00 |
US $28.01 |
||
|
38440Y
|
38440Y
38440-06R00 Bearing-Differential Side8510--01 ~ ; CA20S.MT |
38440-06R00 |
US $139.97 |
||
|
38440Z
|
38440Z
38440-03E00 BEARING-DIFFERENTIAL SIDE8510--01 ~ ; CA20S.MT |
38440-03E00 |
from US $26.21 |
||
|
38453Y
|
38453Y
38453-03E00 SHIM-ADJUST,SIDE BEARING8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.44 |
38453-03E00 |
US $4.75 |
||
|
38453Y
|
38453Y
38453-03E01 SHIM-ADJUST,SIDE BEARING8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.48 |
38453-03E01 |
US $4.75 |
||
|
38453Y
|
38453Y
38453-03E02 SHIM-ADJUST,SIDE BEARING8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.56 |
38453-03E02 |
US $4.75 |
||
|
38453Y
|
38453Y
38453-03E03 SHIM-ADJUST,SIDE BEARING8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.60 |
38453-03E03 |
US $4.75 |
||
|
38453Y
|
38453Y
38453-03E04 SHIM-ADJUST,SIDE BEARING8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.64 |
38453-03E04 |
US $4.75 |
||
|
38453Y
|
38453Y
38453-03E05 SHIM-ADJUST,SIDE BEARING8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.68 |
38453-03E05 |
US $4.75 |
||
|
38453Y
|
38453Y
38453-03E06 SHIM-ADJUST,SIDE BEARING8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.72 |
38453-03E06 |
US $4.75 |
||
|
38453Y
|
38453Y
38453-03E07 SHIM-ADJUST,SIDE BEARING8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.76 |
38453-03E07 |
US $4.75 |
||
|
38453Y
|
38453Y
38453-03E08 SHIM-ADJUST,SIDE BEARING8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.80 |
38453-03E08 |
US $4.75 |
||
|
38453Y
|
38453Y
38453-03E11 SHIM-ADJUST,SIDE BEARING8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.40 |
38453-03E11 |
US $4.75 |
||
|
38453Y
|
38453Y
38453-03E12 SHIM-ADJUST,SIDE BEARING8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=0.52 |
38453-03E12 |
US $4.75 |
||
|
38453Y
|
38453Y
38453-03E13 SHIM-ADJUST,SIDE BEARING8510--01 ~ ; CA20S.MT; ｾﾝﾀｸ T=1.20 |
38453-03E13 |
US $6.34 |
||
