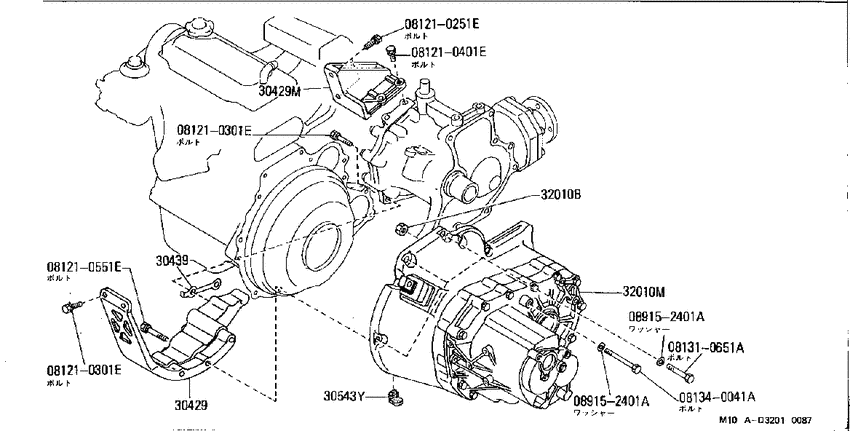

Transmission & transaxle assembly (1985-10-01 ~ ; "RS5F50A フィッテングパーツ; CA20S.4WD.F5) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1985 - 2012
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- F5
- grade
- JWL
- body
- S
- capacity
- 7
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210251E
|
081210251E
081210251E Bolt-hexagon |
081210251E |
from US $1.15 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
081210401E
|
081210401E
081210401E Bolt-hexagon |
081210401E |
US $1.11 |
||
|
081210551E
|
081210551E
081210551E
Bolt-hexagon
|
081210551E |
— | ||
|
081310651A
|
081310651A
08131-0651A
Bolt-hexagon
|
08131-0651A |
— | ||
|
081340041A
|
081340041A
08134-0041A
Bolt-hexagon
|
08134-0041A |
— | ||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
30429
|
30429
30431-06R00
Gusset-Transmission To Engine
8510--01 ~ ; MT.4WD; ﾌﾛﾝﾄﾖｳ |
30431-06R00 |
— | ||
|
30429
|
30429
30450-06R00
Gusset-Transmission To Engine
8510--01 ~ ; MT.4WD; ﾄﾗﾝｽﾌｱ-ﾖｳ |
30450-06R00 |
— | ||
|
30429M
|
30429M
30450-06R00
Gusset-Transmission To Engine
8510--01 ~ ; MT.4WD; ﾄﾗﾝｽﾌｱ-ﾖｳ |
30450-06R00 |
— | ||
|
30439
|
30439
30439-06R00 Shim-Adjust, Gusset8510--01 ~ ; MT.4WD; ｾﾝﾀｸ T=0.69 |
30439-06R00 |
US $20.74 |
||
|
30439
|
30439
30439-06R01 Shim-Adjust, Gusset8510--01 ~ ; MT.4WD; ｾﾝﾀｸ T=0.79 |
30439-06R01 |
US $20.74 |
||
|
30439
|
30439
30439-06R02 Shim-Adjust, Gusset8510--01 ~ ; MT.4WD; ｾﾝﾀｸ T=0.89 |
30439-06R02 |
US $20.74 |
||
|
30439
|
30439
30439-06R03 Shim-Adjust, Gusset8510--01 ~ ; MT.4WD; ｾﾝﾀｸ T=0.99 |
30439-06R03 |
US $20.74 |
||
|
30439
|
30439
30439-06R04 Shim-Adjust, Gusset8510--01 ~ ; MT.4WD; ｾﾝﾀｸ T=1.09 |
30439-06R04 |
US $20.74 |
||
|
30439
|
30439
30439-06R05 Shim-Adjust, Gusset8510--01 ~ ; MT.4WD; ｾﾝﾀｸ T=1.19 |
30439-06R05 |
US $20.74 |
||
|
30543Y
|
30543Y
30543-06R00 Grommet-Clutch Housing8510--01 ~ ; MT.4WD |
30543-06R00 |
US $6.34 |
||
|
32010B
|
32010B
089112401A Nut8608--01 ~ ; MT.4WD |
089112401A |
from US $0.54 |
||
|
32010B
|
32010B
32133-06E00
NUT
8510--01 ~ 8608--01; MT.4WD |
32133-06E00 |
— | ||
|
32010M
|
32010M
32010-06R05 Transaxle Assy-Manual8510--01 ~ ; CA20S.F5.4WD; RS5F50A |
32010-06R05 |
US $2,408 |
