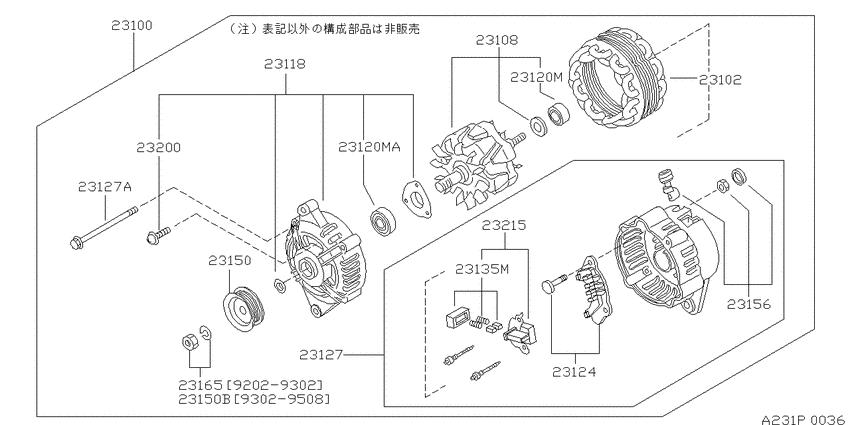

Alternator (1992-02-01 ~ 1995-08-01; 三菱; KA24E) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1992 - 1995
- Sales region
- Japan
- Engine
- KA24E
- drive
- 2WD
- transmission
- F5
- grade
- G
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-47R10 Alternator Assy9202--01 ~ 9302--01; KA24E; ﾐﾂﾋﾞｼ |
23100-47R10 |
US $1,610 |
||
|
23100
|
23100
23100-47R11 Alternator Assy9302--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23100-47R11 |
US $1,610 |
||
|
23100
|
23100
1192812G01 Bolt9202--01 ~ 9508--01; KA24E |
1192812G01 |
US $2.45 |
||
|
23100
|
23100
01221-00241 NUT9202--01 ~ 9508--01; KA24E |
01221-00241 |
US $1.73 |
||
|
23100
|
23100
11058H1001 Washer-Plain9202--01 ~ 9508--01; KA24E |
11058H1001 |
from US $2.07 |
||
|
23102
|
23102
23102-85L10 Stator Assy9202--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23102-85L10 |
US $311.52 |
||
|
23108
|
23108
23108-0P010 Rotor Assy9202--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23108-0P010 |
US $480.02 |
||
|
23118
|
23118
23118-47R10 Cover Assy-Front9202--01 ~ 9302--01; KA24E; ﾐﾂﾋﾞｼ |
23118-47R10 |
US $177.12 |
||
|
23118
|
23118
23118-47R11 Cover Assy-Front9302--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23118-47R11 |
US $177.12 |
||
|
23120M
|
23120M
23120-30R10
Bearing-Ball
9202--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23120-30R10 |
— | ||
| replacement | |||||
|
23120M
|
23120M
2312051E10 BEARING-BALL9202--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
2312051E10 |
from US $34.67 |
||
|
23120M
|
23120M
23120-22J20 Bearing-Ball9302--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23120-22J20 |
from US $22.31 |
||
|
23120M
|
23120M
23120-47R10 Bearing-Ball9202--01 ~ 9302--01; KA24E; ﾐﾂﾋﾞｼ |
23120-47R10 |
US $36.43 |
||
|
23120MA
|
23120MA
23120-22J20 Bearing-Ball9302--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23120-22J20 |
from US $22.31 |
||
|
23120MA
|
23120MA
23120-47R10 Bearing-Ball9202--01 ~ 9302--01; KA24E; ﾐﾂﾋﾞｼ |
23120-47R10 |
US $36.43 |
||
|
23124
|
23124
23124-47R10 Rectifier Assy9202--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23124-47R10 |
US $270.72 |
||
|
23127
|
23127
23127-47R10 Cover Assy-Rear9202--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23127-47R10 |
US $988.37 |
||
|
23127
|
23127
23131-20P10 Bolt-Through9202--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23131-20P10 |
US $5.04 |
||
|
23127A
|
23127A
23131-20P10 Bolt-Through9202--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23131-20P10 |
US $5.04 |
||
|
23135M
|
23135M
231420B000 Brush-F9202--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
231420B000 |
from US $13.54 |
||
|
23150
|
23150
23150-47R10 Pulley Assy9202--01 ~ 9302--01; KA24E; ﾐﾂﾋﾞｼ |
23150-47R10 |
US $81.79 |
||
|
23150
|
23150
23150-47R11 Pulley Assy9302--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23150-47R11 |
US $159.84 |
||
|
23150
|
23150
231530P610 Nut Assy-Pulley9302--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
231530P610 |
US $5.90 |
||
|
23150B
|
23150B
231530P610 Nut Assy-Pulley9302--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
231530P610 |
US $5.90 |
||
|
23156
|
23156
23156-64J10 Terminal Assy-B9202--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23156-64J10 |
US $14.26 |
||
|
23165
|
23165
23165-0P610 Plate-Terminal9202--01 ~ 9302--01; KA24E; ﾐﾂﾋﾞｼ |
23165-0P610 |
US $7.49 |
||
| replacement | |||||
|
23165
|
23165
231530P610 Nut Assy-Pulley9202--01 ~ 9302--01; KA24E; ﾐﾂﾋﾞｼ |
231530P610 |
US $5.90 |
||
|
23200
|
23200
23115-20P10 Screw Set9202--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23115-20P10 |
US $5.04 |
||
|
23215
|
23215
23215-47R10 Regulator Assy-Ic9202--01 ~ 9508--01; KA24E; ﾐﾂﾋﾞｼ |
23215-47R10 |
US $450.29 |
||
