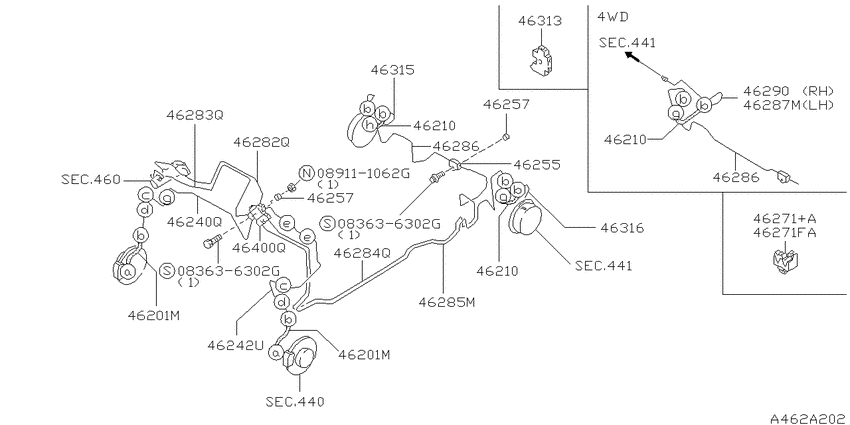

Brake piping & control (1992-02-01 ~ 1995-08-01; $パイピング(アンチ スキッド 無し); S.KA24E) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1992 - 1995
- Sales region
- Japan
- Engine
- KA24E
- drive
- 2WD
- transmission
- F5
- grade
- G
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636302G
|
083636302G
08363-6302G ｽｸﾘﾕ-,ﾏｼﾝ |
08363-6302G |
US $2.36 |
||
|
083636302G
|
083636302G
08363-6302G ｽｸﾘﾕ-,ﾏｼﾝ |
08363-6302G |
US $2.36 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.56 |
||
|
440
|
Front brake
440
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
46201M
|
46201M
4621030R00 Hose Assy-Brake, Front9202--01 ~ 9508--01; S; ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
4621030R00 |
US $42.19 |
||
|
46201M
|
46201M
46210-30R10 Hose Assy-Brake, Front9202--01 ~ 9508--01; S; ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ |
46210-30R10 |
from US $42.19 |
||
|
46201M
|
46201M
4621030R00 Hose Assy-Brake, Front9202--01 ~ 9508--01; S; ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
4621030R00 |
US $42.19 |
||
|
46201M
|
46201M
46210-30R10 Hose Assy-Brake, Front9202--01 ~ 9508--01; S; ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ |
46210-30R10 |
from US $42.19 |
||
|
46210
|
46210
46214-01A15 Hose Assy-Brake9202--01 ~ 9508--01; S.(2WD.5P+2WD.7P+2WD.8P); ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ |
46214-01A15 |
US $20.88 |
||
|
46210
|
46210
46214-79915 Hose Assy-Brake9202--01 ~ 9508--01; S.(2WD.5P+2WD.7P+2WD.8P); ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
46214-79915 |
US $20.88 |
||
|
46210
|
46210
46214-01A15 Hose Assy-Brake9202--01 ~ 9508--01; S.(2WD.5P+2WD.7P+2WD.8P); ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ |
46214-01A15 |
US $20.88 |
||
|
46210
|
46210
46214-79915 Hose Assy-Brake9202--01 ~ 9508--01; S.(2WD.5P+2WD.7P+2WD.8P); ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
46214-79915 |
US $20.88 |
||
|
46210
|
46210
46214-01A15 Hose Assy-Brake9202--01 ~ 9508--01; S.(2WD.5P+2WD.7P+2WD.8P); ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ |
46214-01A15 |
US $20.88 |
||
|
46210
|
46210
46214-79915 Hose Assy-Brake9202--01 ~ 9508--01; S.(2WD.5P+2WD.7P+2WD.8P); ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
46214-79915 |
US $20.88 |
||
|
46240Q
|
46240Q
46240-46R00 Tube Assy-Brake, M/cylinder To Front Rh9202--01 ~ 9508--01; S.KA24E |
46240-46R00 |
US $21.89 |
||
|
46242U
|
46242U
46242-46R00 Tube Assy-Brake, Connector To Front Lh9202--01 ~ 9508--01; S.KA24E |
46242-46R00 |
US $21.89 |
||
|
46255
|
46255
0246364000 CONNECTOR-BRAKE TUBE9202--01 ~ 9508--01; S |
0246364000 |
from US $8.87 |
||
|
46257
|
46257
46257-N4200 Spacer-Brake Tube Connector9202--01 ~ 9508--01; S |
46257-N4200 |
US $4.03 |
||
|
46257
|
46257
46257-N4200 Spacer-Brake Tube Connector9202--01 ~ 9508--01; S |
46257-N4200 |
US $4.03 |
||
|
46271+A
|
46271+A
46271-32R00 Clip-Tube, Brake9202--01 ~ 9508--01; S |
46271-32R00 |
US $4.30 |
||
|
46282Q
|
46282Q
46282-47R00 Tube Assy-Brake, Master Cylinder To Rear9202--01 ~ 9508--01; S.KA24E |
46282-47R00 |
US $17.71 |
||
|
46283Q
|
46283Q
46283-47R00 Tube Assy-Brake, Master Cylinder To Rear9202--01 ~ 9508--01; S.KA24E |
46283-47R00 |
US $17.71 |
||
|
46284Q
|
46284Q
46284-46R00 Tube Assy-Brake, Dpv To Rear Rh9202--01 ~ 9508--01; S.(2WD.5P+2WD.7P).KA24E |
46284-46R00 |
US $19.01 |
||
|
46285M
|
46285M
46285-46R00 Tube Assy-Brake, Rear9202--01 ~ 9508--01; S.(2WD.5P+2WD.7P).KA24E |
46285-46R00 |
US $17.57 |
||
|
46286
|
46286
46286-30R00 Tube-Brake Connector To Rear9202--01 ~ 9508--01; S.(2WD.5P+2WD.7P+2WD.8P) |
46286-30R00 |
US $34.13 |
||
|
46286
|
46286
46286-30R00 Tube-Brake Connector To Rear9202--01 ~ 9508--01; S.(2WD.5P+2WD.7P+2WD.8P) |
46286-30R00 |
US $34.13 |
||
|
46315
|
46315
46315-32R00 Tube Assy-Brake Rear, Rh9202--01 ~ 9508--01; S.(2WD.5P+2WD.7P+2WD.8P) |
46315-32R00 |
US $14.26 |
||
|
46316
|
46316
46316-32R00 Tube Assy-Brake Rear, Lh9202--01 ~ 9508--01; S.(2WD.5P+2WD.7P+2WD.8P) |
46316-32R00 |
US $14.26 |
||
|
46400Q
|
46400Q
46400-59E00 VALVE ASSY-DUAL PROPORTIONING9202--01 ~ 9508--01; S.KA24E; ｾﾝﾀｸ ｼﾖｳ ﾘｽﾞﾑ |
46400-59E00 |
US $341.26 |
||
|
46400Q
|
46400Q
46400-60Y01 Valve Assy-Dual Proportioning9501--01 ~ 9508--01; S.KA24E; ｾﾝﾀｸ ｼﾖｳ ﾅﾌﾞｺ |
46400-60Y01 |
US $284.62 |
||
