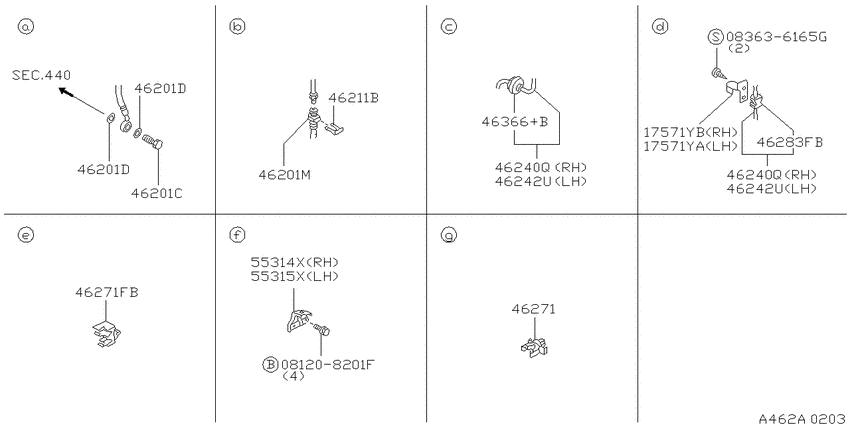

Brake piping & control (1992-02-01 ~ 1995-08-01; "クリップ(アンチ スキッド 無し); S.KA24E) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1992 - 1995
- Sales region
- Japan
- Engine
- KA24E
- drive
- 2WD
- transmission
- F5
- grade
- G
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201F
|
081208201F
081208201F
Bolt-hexagon
|
081208201F |
— | ||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
17571YA
|
17571YA
17571-30R10 Clip9202--01 ~ 9508--01; CA20S +KA24E |
17571-30R10 |
US $5.47 |
||
|
17571YB
|
17571YB
17571-30R11 Clip9202--01 ~ 9508--01; CA20S +KA24E |
17571-30R11 |
US $12.82 |
||
|
46201C
|
46201C
46356-01E01
BOLT-UNION,FRONT BRAKE HOSE
9202--01 ~ 9409--01; CA20S +KA24E |
46356-01E01 |
— | ||
| replacement | |||||
|
46201C
|
46201C
463560E00A Bolt-Union, Front Brake Hose9202--01 ~ 9409--01; CA20S +KA24E |
463560E00A |
from US $1.52 |
||
|
46201C
|
46201C
46356-0E000
BOLT-UNION,FRONT BRAKE HOSE
9409--01 ~ 9508--01; CA20S +KA24E |
46356-0E000 |
— | ||
| replacement | |||||
|
46201C
|
46201C
463560E00A Bolt-Union, Front Brake Hose9409--01 ~ 9508--01; CA20S +KA24E |
463560E00A |
from US $1.52 |
||
|
46201D
|
46201D
46237A4600 Gasket-Clutch Hose9202--01 ~ 9508--01; CA20S +KA24E |
46237A4600 |
from US $0.37 |
||
|
46201D
|
46201D
46237A4600 Gasket-Clutch Hose9202--01 ~ 9508--01; CA20S +KA24E |
46237A4600 |
from US $0.37 |
||
|
46201M
|
46201M
4621030R00 Hose Assy-Brake, Front9202--01 ~ 9508--01; S; ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
4621030R00 |
US $42.19 |
||
|
46201M
|
46201M
46210-30R10 Hose Assy-Brake, Front9202--01 ~ 9508--01; S; ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ |
46210-30R10 |
from US $42.19 |
||
|
46211B
|
46211B
46206M0200 Spring-Lock9202--01 ~ 9508--01; CA20S +KA24E |
46206M0200 |
from US $0.74 |
||
|
46240Q
|
46240Q
46240-46R00 Tube Assy-Brake, M/cylinder To Front Rh9202--01 ~ 9508--01; S.KA24E |
46240-46R00 |
US $21.89 |
||
|
46240Q
|
46240Q
46240-46R00 Tube Assy-Brake, M/cylinder To Front Rh9202--01 ~ 9508--01; S.KA24E |
46240-46R00 |
US $21.89 |
||
|
46242U
|
46242U
46242-46R00 Tube Assy-Brake, Connector To Front Lh9202--01 ~ 9508--01; S.KA24E |
46242-46R00 |
US $21.89 |
||
|
46242U
|
46242U
46242-46R00 Tube Assy-Brake, Connector To Front Lh9202--01 ~ 9508--01; S.KA24E |
46242-46R00 |
US $21.89 |
||
|
46271
|
46271
46271W1601 Clip-Tube, Clutch9202--01 ~ 9508--01; S |
46271W1601 |
from US $3.63 |
||
|
46271
|
46271
46271-32R00 Clip-Tube, Brake9202--01 ~ 9508--01; S |
46271-32R00 |
US $4.30 |
||
|
46271
|
46271
46271-01B00
Clamp
9202--01 ~ 9508--01; 3(2WD.5P+2WD.7P+2WD.8P).CA20S +(2WD.5P+2WD.7P).KA24E |
46271-01B00 |
— | ||
| replacement | |||||
|
46271
|
46271
46271W1601 Clip-Tube, Clutch9202--01 ~ 9508--01; 3(2WD.5P+2WD.7P+2WD.8P).CA20S +(2WD.5P+2WD.7P).KA24E |
46271W1601 |
from US $3.63 |
||
|
46271
|
46271
46271-08W10 Clamp-Brake Tube9202--01 ~ 9508--01; 3(2WD.5P+2WD.7P+2WD.8P).CA20S +(2WD.5P+2WD.7P).KA24E |
46271-08W10 |
US $1.67 |
||
|
46271
|
46271
46271-D0300 Insulator-Fuel Tube, No 79202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
46271-D0300 |
US $1.67 |
||
|
46271
|
46271
46271-50A00
Insulator
9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E; ﾋﾀﾞﾘ |
46271-50A00 |
— | ||
| replacement | |||||
|
46271
|
46271
4627101E01 CLAMP-BRAKE TUBE9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E; ﾋﾀﾞﾘ |
4627101E01 |
US $2.91 |
||
|
46271
|
46271
46271-01E00 CLAMP-BRAKE TUBE9202--01 ~ 9508--01; S |
46271-01E00 |
from US $1.67 |
||
|
46271FB
|
46271FB
46271-01E00 CLAMP-BRAKE TUBE9202--01 ~ 9508--01; S |
46271-01E00 |
from US $1.67 |
||
|
55314X
|
55314X
55314-32R10 Bracket-Brake Hose, Rear Rh9202--01 ~ 9508--01; S |
55314-32R10 |
US $10.80 |
||
|
55315X
|
55315X
55315-32R10 Bracket-Brake Hose, Rear Lh9202--01 ~ 9508--01; S |
55315-32R10 |
US $10.80 |
||
