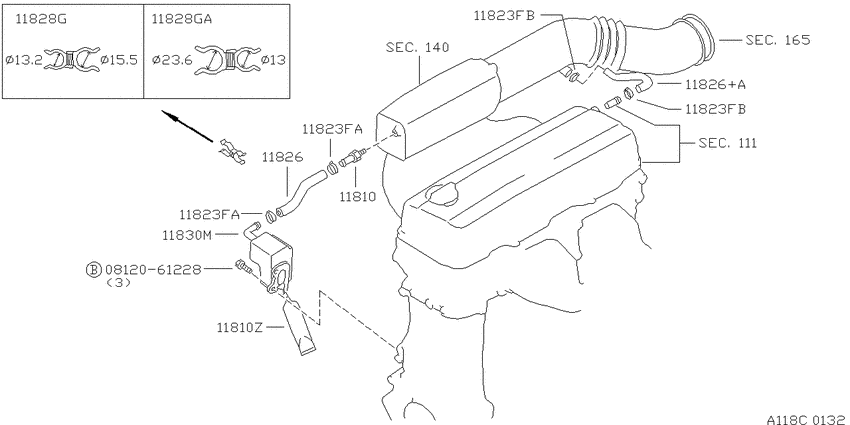

Crankcase ventilation (1992-02-01 ~ 1995-08-01; KA24E) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1992 - 1995
- Sales region
- Japan
- Engine
- KA24E
- drive
- 2WD
- transmission
- F5
- grade
- G
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
11810
|
11810
11810-P7901 Valve Assy-Control Blowby9202--01 ~ 9508--01; KA24E |
11810-P7901 |
US $20.88 |
||
|
11810
|
11810
KP510-00150 Gasket-Liquid9202--01 ~ 9508--01; KA24E; [K504] |
KP510-00150 |
US $29.51 |
||
|
11810Z
|
11810Z
KP510-00150 Gasket-Liquid9202--01 ~ 9508--01; KA24E; [K504] |
KP510-00150 |
US $29.51 |
||
|
11823FA
|
11823FA
16439-42L00
Clamp-Hose, A
9202--01 ~ 9508--01; KA24E |
16439-42L00 |
— | ||
| replacements | |||||
|
11823FA
|
11823FA
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
9202--01 ~ 9508--01; KA24E |
164394L0A |
— | ||
|
11823FA
|
11823FA
1643942L0A Clamp-Hose A9202--01 ~ 9508--01; KA24E |
1643942L0A |
from US $4.68 |
||
|
11823FA
|
11823FA
16439-42L00
Clamp-Hose, A
9202--01 ~ 9508--01; KA24E |
16439-42L00 |
— | ||
| replacements | |||||
|
11823FA
|
11823FA
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
9202--01 ~ 9508--01; KA24E |
164394L0A |
— | ||
|
11823FA
|
11823FA
1643942L0A Clamp-Hose A9202--01 ~ 9508--01; KA24E |
1643942L0A |
from US $4.68 |
||
|
11823FB
|
11823FB
16439-V5001
Clamp-Hose, A
9202--01 ~ 9508--01; KA24E |
16439-V5001 |
— | ||
| replacement | |||||
|
11823FB
|
11823FB
16439V500C Clamp-Hose9202--01 ~ 9508--01; KA24E |
16439V500C |
from US $2.76 |
||
|
11823FB
|
11823FB
16439-V5001
Clamp-Hose, A
9202--01 ~ 9508--01; KA24E |
16439-V5001 |
— | ||
| replacement | |||||
|
11823FB
|
11823FB
16439V500C Clamp-Hose9202--01 ~ 9508--01; KA24E |
16439V500C |
from US $2.76 |
||
|
11826
|
11826
11826-65E00 HOSE-BLOW BY,A9202--01 ~ 9508--01; KA24E |
11826-65E00 |
US $29.38 |
||
|
11826
|
11826
11826-65E01 HOSE-BLOW BY,A9202--01 ~ 9508--01; KA24E |
11826-65E01 |
US $29.95 |
||
|
11826+A
|
11826+A
11826-65E01 HOSE-BLOW BY,A9202--01 ~ 9508--01; KA24E |
11826-65E01 |
US $29.95 |
||
|
11828G
|
11828G
24220-79960 Clip9202--01 ~ 9508--01; KA24E |
24220-79960 |
US $5.04 |
||
|
11830M
|
11830M
11830-30R00 Separator Assy-Breather9202--01 ~ 9508--01; KA24E |
11830-30R00 |
US $112.03 |
||
