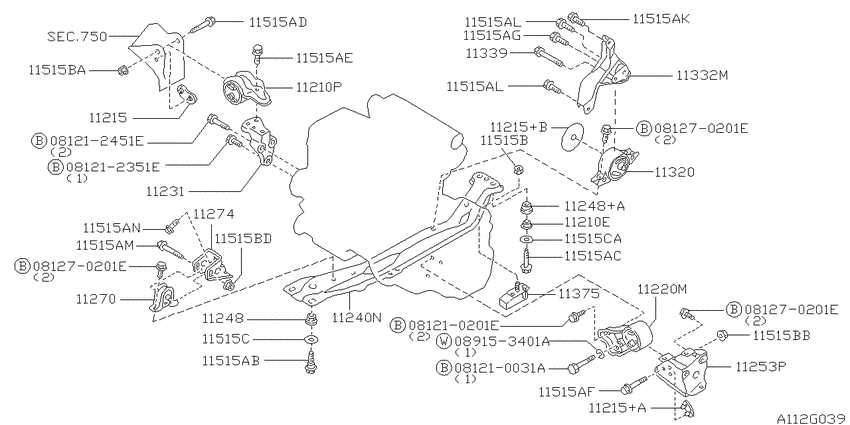

Engine & transmission mounting (1992-02-01 ~ 1995-08-01; 2WD.KA24E.F5) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1992 - 1995
- Sales region
- Japan
- Engine
- KA24E
- drive
- 2WD
- transmission
- F5
- grade
- G
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210031A
|
081210031A
08121-0031A
Bolt-hexagon
|
08121-0031A |
— | ||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.04 |
||
|
081212351E
|
081212351E
08121-2351E
Bolt-hexagon
|
08121-2351E |
— | ||
|
081212451E
|
081212451E
08121-2451E
Bolt-hexagon
|
08121-2451E |
— | ||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
089153401A
|
089153401A
089153401A Washer-Spring |
089153401A |
US $0.63 |
||
|
11210E
|
11210E
11249-51E05 PIN-MOUNTING9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
11249-51E05 |
US $8.21 |
||
|
11210P
|
11210P
1121030R01 Insulator Assy-Engine Mounting, Front Rh9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
1121030R01 |
US $208.80 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
1121550A00 Stopper-Engine Mounting9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
1121550A00 |
US $11.38 |
||
|
11215+A
|
11215+A
1121554E00 STOPPER-ENGINE MOUNTING9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
1121554E00 |
US $17.57 |
||
|
11215+B
|
11215+B
1121550A00 Stopper-Engine Mounting9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
1121550A00 |
US $11.38 |
||
|
11220M
|
11220M
11220-30R00 Insulator Assy-Engine Mounting, Front Lh9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
11220-30R00 |
US $185.76 |
||
|
11231
|
11231
11231-30R00 Bracket-Engine Mounting9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
11231-30R00 |
US $96.77 |
||
|
11240N
|
11240N
11240-65E01 MEMBER ASSY-FRONT,CENTER9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
11240-65E01 |
US $247.68 |
||
|
11248
|
11248
1124851E01 PAD-ENGINE MOUNTING MEMBER9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
1124851E01 |
US $9.02 |
||
|
11248
|
11248
1124851E09 PAD-ENGINE MOUNTING MEMBER9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
1124851E09 |
from US $7.44 |
||
|
11248+A
|
11248+A
1124851E09 PAD-ENGINE MOUNTING MEMBER9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
1124851E09 |
from US $7.44 |
||
|
11253P
|
11253P
11253-30R00 Support-Engine Mounting, Lh9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
11253-30R00 |
US $134.35 |
||
|
11270
|
11270
11270-30R00 Insulator Assy-Engine Mounting, Center9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
11270-30R00 |
US $89.42 |
||
|
11274
|
11274
11274-30R01 Bracket-Engine Mounting Block, Center9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
11274-30R01 |
US $35.28 |
||
|
11320
|
11320
11320-30R00 Insulator-Engine Mounting, Rear9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
11320-30R00 |
US $99.36 |
||
| replacement | |||||
|
11320
|
11320
1132055E21 INSULATOR-ENGINE MOUNTING,REAR9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
1132055E21 |
US $98.50 |
||
|
11332M
|
11332M
11332-30R00 Bracket-Engine Mounting, Rear9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
11332-30R00 |
US $106.42 |
||
|
11339
|
11339
11339-30R00 Bolt9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
11339-30R00 |
US $2.45 |
||
|
11375
|
11375
1137570N15 Damper Assy-Dynamic9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
1137570N15 |
US $164.16 |
||
|
11515AB
|
11515AB
01125-02401 BOLT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
01125-02401 |
US $3.06 |
||
|
11515AC
|
11515AC
01125-00093 BOLT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
01125-00093 |
US $1.73 |
||
|
11515AD
|
11515AD
01125-00641 BOLT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
01125-00641 |
US $3.46 |
||
|
11515AE
|
11515AE
01125-01211 BOLT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
01125-01211 |
US $4.18 |
||
|
11515AF
|
11515AF
01125-00661 BOLT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
01125-00661 |
US $4.18 |
||
|
11515AG
|
11515AG
01125-00233 BOLT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
01125-00233 |
US $2.45 |
||
|
11515AK
|
11515AK
01125-00103 BOLT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
01125-00103 |
US $2.45 |
||
|
11515AL
|
11515AL
01125-01361 BOLT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
01125-01361 |
US $2.45 |
||
|
11515AL
|
11515AL
01125-01361 BOLT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
01125-01361 |
US $2.45 |
||
|
11515AM
|
11515AM
01125-00233 BOLT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
01125-00233 |
US $2.45 |
||
|
11515AN
|
11515AN
0112101111 BOLT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
0112101111 |
US $1.73 |
||
|
11515B
|
11515B
0122500062 NUT9202--01 ~ 9408--01; (2WD.5P+2WD.7P).KA24E.F5 |
0122500062 |
from US $1.67 |
||
|
11515B
|
11515B
0122500082 NUT9408--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
0122500082 |
from US $0.61 |
||
|
11515B
|
11515B
0122500062 NUT9202--01 ~ 9408--01; (2WD.5P+2WD.7P).KA24E.F5 |
0122500062 |
from US $1.67 |
||
|
11515B
|
11515B
0122500082 NUT9408--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
0122500082 |
from US $0.61 |
||
|
11515B
|
11515B
0122500082 NUT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
0122500082 |
from US $0.61 |
||
|
11515B
|
11515B
0122500082 NUT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
0122500082 |
from US $0.61 |
||
|
11515BA
|
11515BA
0122500062 NUT9202--01 ~ 9408--01; (2WD.5P+2WD.7P).KA24E.F5 |
0122500062 |
from US $1.67 |
||
|
11515BA
|
11515BA
0122500082 NUT9408--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
0122500082 |
from US $0.61 |
||
|
11515BB
|
11515BB
0122500082 NUT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
0122500082 |
from US $0.61 |
||
|
11515BD
|
11515BD
0122500082 NUT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
0122500082 |
from US $0.61 |
||
|
11515C
|
11515C
01311-01171 WASHER9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
01311-01171 |
US $3.06 |
||
|
11515C
|
11515C
01311-01181 WASHER9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
01311-01181 |
US $2.45 |
||
|
11515CA
|
11515CA
01311-01181 WASHER9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
01311-01181 |
US $2.45 |
||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
