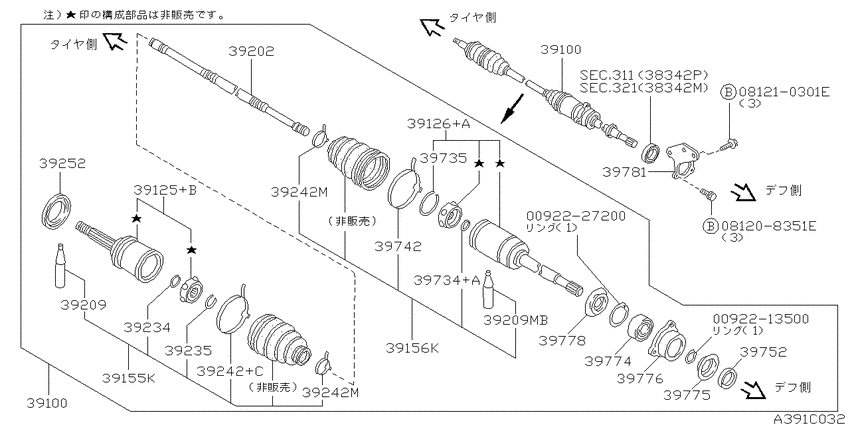

Front drive shaft (ff) (1992-02-01 ~ 1995-08-01; 右側; 2WD.KA24E) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1992 - 1995
- Sales region
- Japan
- Engine
- KA24E
- drive
- 2WD
- transmission
- F5
- grade
- G
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092213500
|
0092213500
00922-13500
RING-SNAP
|
00922-13500 |
— | ||
|
0092227200
|
0092227200
00922-27200 RINGSNAP |
00922-27200 |
US $4.13 |
||
|
081208351E
|
081208351E
081208351E Bolt-hexagon |
081208351E |
US $0.52 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
39100
|
39100
39100-30R00 Shaft Assy-Front Drive9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39100-30R00 |
US $1,142.71 |
||
|
39100
|
39100
39100-30R00 Shaft Assy-Front Drive9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39100-30R00 |
US $1,142.71 |
||
|
39125+B
|
39125+B
39211-29R00 Joint Assy-Outer9202--01 ~ 9402--01; (2WD.5P+2WD.7P).KA24E |
39211-29R00 |
US $339.84 |
||
|
39125+B
|
39125+B
39211-29R02 Joint Assy-Outer9402--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39211-29R02 |
US $542.33 |
||
|
39126+A
|
39126+A
39771-30R00 Joint Assy-Inner9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39771-30R00 |
US $342.67 |
||
|
39155K
|
39155K
39241-17R28 Repair Kit-Dust Boot, Outer9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39241-17R28 |
US $65.66 |
||
|
39155K
|
39155K
39241-17R87 Repair Kit-Dust Boot, Outer9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39241-17R87 |
US $97.63 |
||
| replacement | |||||
|
39155K
|
39155K
3924153J28 Repair Kit-Dust Boot, Outer9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
3924153J28 |
US $79 |
||
|
39156K
|
39156K
39741-29R86 Repair Kit-Dust B00T, Inner9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39741-29R86 |
US $97.63 |
||
|
39156K
|
39156K
39741-29R87 Repair Kit-Dust B00T, Inner9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39741-29R87 |
US $97.63 |
||
|
39202
|
39202
39204-30R00 Shaft Sub Assy-Front Drive9202--01 ~ 9402--01; (2WD.5P+2WD.7P).KA24E |
39204-30R00 |
US $231.84 |
||
|
39202
|
39202
39204-30R02 Shaft Sub Assy-Front Drive9402--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39204-30R02 |
US $231.84 |
||
|
39202
|
39202
39205-30R00 Shaft-Front Drive, Lh9202--01 ~ 9402--01; (2WD.5P+2WD.7P).KA24E |
39205-30R00 |
US $231.84 |
||
|
39202
|
39202
39205-30R02 Shaft-Front Drive, Lh9402--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39205-30R02 |
US $231.84 |
||
|
39234
|
39234
3923417R00 Ring-Snap, A9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
3923417R00 |
US $5.47 |
||
|
39234
|
39234
3923417R00 Ring-Snap, A9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
3923417R00 |
US $5.47 |
||
|
39235
|
39235
3923517R00 Ring-Stopper9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
3923517R00 |
US $3.46 |
||
|
39235
|
39235
3923517R00 Ring-Stopper9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
3923517R00 |
US $3.46 |
||
|
39242+C
|
39242+C
39242-17R00 Band-Dust Cover, Outer9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39242-17R00 |
US $7.92 |
||
|
39242M
|
39242M
39242-17R05 Band-Dust Cover, Shaft9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39242-17R05 |
US $7.63 |
||
|
39242M
|
39242M
39242-17R05 Band-Dust Cover, Shaft9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39242-17R05 |
US $7.63 |
||
|
39252
|
39252
3925206R06 Seal-Dust9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
3925206R06 |
US $39.74 |
||
|
39252
|
39252
3925206R06 Seal-Dust9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
3925206R06 |
US $39.74 |
||
|
39734+A
|
39734+A
39734-29R00 Ring-Snap, B9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39734-29R00 |
US $6.34 |
||
|
39735
|
39735
39735-29R00 Ring-Snap, C9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39735-29R00 |
from US $4.18 |
||
|
39735
|
39735
39735-29R00 Ring-Snap, C9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39735-29R00 |
from US $4.18 |
||
|
39742
|
39742
39742-29R00 Band-Dust Cover, Shaft9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39742-29R00 |
US $5.47 |
||
|
39742
|
39742
39742-29R00 Band-Dust Cover, Shaft9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39742-29R00 |
US $5.47 |
||
|
39742
|
39742
39242-17R05 Band-Dust Cover, Shaft9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39242-17R05 |
US $7.63 |
||
|
39752
|
39752
39752-10E02 SHIELD-DUST9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39752-10E02 |
US $4.03 |
||
|
39752
|
39752
39752-10E12
SHIELD-DUST
9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39752-10E12 |
— | ||
|
39774
|
39774
39774-80E00
BEARING-SUPPORT
9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39774-80E00 |
— | ||
| replacement | |||||
|
39774
|
39774
39774-5Y70E Bearing-Support9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39774-5Y70E |
from US $46.57 |
||
|
39775
|
39775
39775-10E03 SHIELD-DUST9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39775-10E03 |
US $4.03 |
||
|
39776
|
39776
3977610E03 RETAINER-BEARING,FRONT DRIVE SHAFT9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
3977610E03 |
US $46.37 |
||
|
39778
|
39778
39778-10E03 SHIELD-DUST9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E |
39778-10E03 |
US $4.75 |
||
|
39781
|
39781
39780-30R00 Bracket-Bearing Support, Fr Drive Shaft9202--01 ~ 9508--01; (2WD.5P+2WD.7P).KA24E.F5 |
39780-30R00 |
US $169.92 |
||
