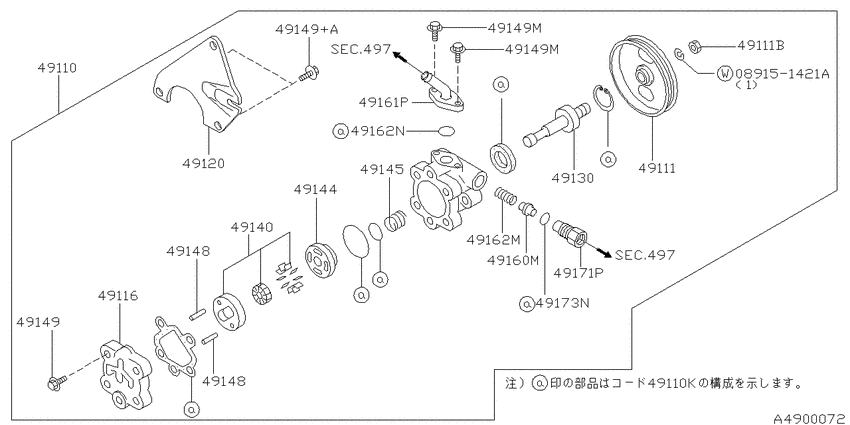

Power steering pump (1992-02-01 ~ 1995-08-01; KA24E) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1992 - 1995
- Sales region
- Japan
- Engine
- KA24E
- drive
- 2WD
- transmission
- F5
- grade
- G
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
49110
|
49110
49110-30R00 Pump Assy-Power Steering9202--01 ~ 9508--01; KA24E |
49110-30R00 |
US $1,404.67 |
||
|
49110
|
49110
49591-81T25 Seal Kit-Power Steering Pump9202--01 ~ 9508--01; KA24E |
49591-81T25 |
US $14.40 |
||
|
49110K
|
49110K
49591-81T25 Seal Kit-Power Steering Pump9202--01 ~ 9508--01; KA24E |
49591-81T25 |
US $14.40 |
||
|
49111
|
49111
49132-30R00 Pulley-Power Steering Pump9202--01 ~ 9508--01; KA24E |
49132-30R00 |
US $118.22 |
||
|
49111
|
49111
49133-50L00 Nut-Pulley, Power Steering Pump9202--01 ~ 9508--01; CA20S +KA24E |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111
|
49111
4913350L0A Nut-Pulley, Power Steering Pump9202--01 ~ 9508--01; CA20S +KA24E |
4913350L0A |
US $1.73 |
||
|
49111B
|
49111B
49133-50L00 Nut-Pulley, Power Steering Pump9202--01 ~ 9508--01; CA20S +KA24E |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111B
|
49111B
4913350L0A Nut-Pulley, Power Steering Pump9202--01 ~ 9508--01; CA20S +KA24E |
4913350L0A |
US $1.73 |
||
|
49116
|
49116
49116-15V00 Cover-Rear, Power Steering Pump9202--01 ~ 9401--01; KA24E |
49116-15V00 |
US $31.68 |
||
|
49116
|
49116
49116-15V01 Cover-Rear, Power Steering Pump9401--01 ~ 9508--01; KA24E |
49116-15V01 |
US $34.70 |
||
|
49120
|
49120
49120-30R00 Bracket Assy-Hose, Power Steering9202--01 ~ 9508--01; KA24E |
49120-30R00 |
US $112.18 |
||
|
49130
|
49130
49130-30R00 Shaft-Drive, Power Steering Pump9202--01 ~ 9401--01; KA24E |
49130-30R00 |
US $44.50 |
||
|
49130
|
49130
49130-30R02 Shaft-Drive, Power Steering Pump9401--01 ~ 9508--01; KA24E |
49130-30R02 |
US $44.50 |
||
|
49144
|
49144
49144-15V00 Plate-Side, Power Steering Pump9202--01 ~ 9508--01; CA20S +KA24E |
49144-15V00 |
US $31.68 |
||
|
49145
|
49145
49145-19V00 Spring-Side Plate9202--01 ~ 9508--01; CA20S +KA24E |
49145-19V00 |
US $11.09 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump9202--01 ~ 9508--01; CA20S +KA24E |
49148-15V00 |
US $2.49 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump9202--01 ~ 9508--01; CA20S +KA24E |
49148-15V00 |
US $2.49 |
||
|
49149
|
49149
49149-F6601 Bolt-Bracket, Power Steering Pump9202--01 ~ 9508--01; CA20S +KA24E |
49149-F6601 |
US $4.32 |
||
|
49149
|
49149
49149-15V00 Bolt-Bracket, Power Steering Pump9202--01 ~ 9508--01; KA24E |
49149-15V00 |
US $6.19 |
||
|
49149
|
49149
49164-16V00 Bolt-Power Steering Pump9202--01 ~ 9508--01; CA20S +KA24E |
49164-16V00 |
US $4.90 |
||
|
49149+A
|
49149+A
49149-15V00 Bolt-Bracket, Power Steering Pump9202--01 ~ 9508--01; KA24E |
49149-15V00 |
US $6.19 |
||
|
49149M
|
49149M
49164-16V00 Bolt-Power Steering Pump9202--01 ~ 9508--01; CA20S +KA24E |
49164-16V00 |
US $4.90 |
||
|
49149M
|
49149M
49164-16V00 Bolt-Power Steering Pump9202--01 ~ 9508--01; CA20S +KA24E |
49164-16V00 |
US $4.90 |
||
|
49160M
|
49160M
49165-F6400 Valve Assy-Flow Control9202--01 ~ 9508--01; CA20S +KA24E |
49165-F6400 |
US $44.50 |
||
|
49161P
|
49161P
49161-30R00 Connector-Inlet9202--01 ~ 9508--01; KA24E |
49161-30R00 |
US $32.69 |
||
|
49162M
|
49162M
4916719V00 Spring-Flow Control Valve9202--01 ~ 9508--01; CA20S +KA24E |
4916719V00 |
US $10.94 |
||
|
49162N
|
49162N
4916226E00 SEAL-INLET CONNECTOR9202--01 ~ 9508--01; KA24E |
4916226E00 |
from US $1.65 |
||
|
49171P
|
49171P
49170-35F00 Joint-Outlet, Power Steering Pump9202--01 ~ 9508--01; KA24E |
49170-35F00 |
US $44.50 |
||
|
49173N
|
49173N
49173-50L00 Seal-Outlet Connector9202--01 ~ 9508--01; KA24E |
49173-50L00 |
US $5.04 |
||
|
