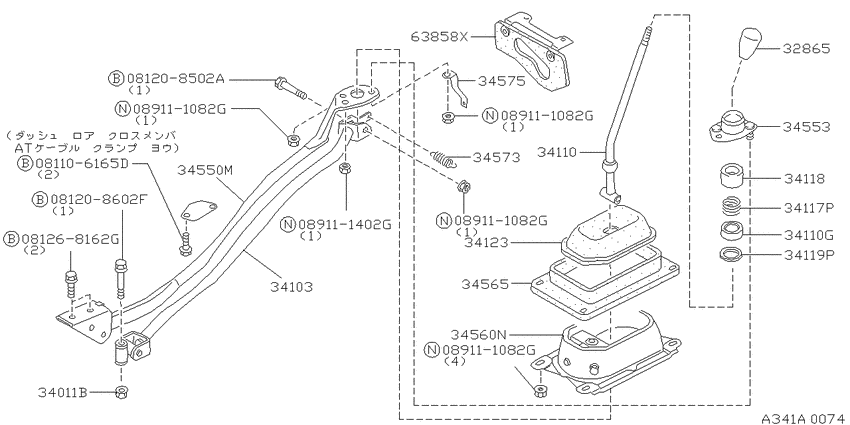

Transmission control & linkage (1992-02-01 ~ 1995-08-01; 62WD.7P.CA20S.F5 +2WD.CA20S.M.F5 +2WD.KA24E.F5 +CA20S.D) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1992 - 1995
- Sales region
- Japan
- Engine
- KA24E
- drive
- 2WD
- transmission
- F5
- grade
- G
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081106165D
|
081106165D
081106165D
Bolt-hexagon
|
081106165D |
— | ||
|
081208502A
|
081208502A
08120-8502A
Bolt-hexagon
|
08120-8502A |
— | ||
|
081208602F
|
081208602F
08120-8602F
Bolt-hexagon
|
08120-8602F |
— | ||
|
081268162G
|
081268162G
08126-8162G
Bolt-hexagon
|
08126-8162G |
— | ||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111402G
|
089111402G
089111402G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111402G |
— | ||
|
32865
|
32865
3286555J00 Knob-Control Lever9202--01 ~ 9508--01; 2WD.KA24E.MT |
3286555J00 |
US $87.55 |
||
|
34011B
|
34011B
0122500102 NUT9202--01 ~ 9508--01; 2WD.MT |
0122500102 |
from US $1.89 |
||
|
34103
|
34103
34103-30R00 Rod Assy-Control9202--01 ~ 9508--01; 2WD.MT |
34103-30R00 |
US $185.76 |
||
|
34110
|
34110
34110-40R00 Lever Assy-Control9202--01 ~ 9508--01; 2WD.KA24E.MT |
34110-40R00 |
US $88.56 |
||
|
34110
|
34110
34116-01E02
BEARING-HAND LEVER
9202--01 ~ 9508--01; 2WD.MT |
34116-01E02 |
— | ||
|
34110G
|
34110G
34116-01E02
BEARING-HAND LEVER
9202--01 ~ 9508--01; 2WD.MT |
34116-01E02 |
— | ||
|
34117P
|
34117P
34117-D4000
Spring-Bearing Set
9202--01 ~ 9508--01; 2WD.MT |
34117-D4000 |
— | ||
|
34118
|
34118
34118-D4000 Seat-Spring9202--01 ~ 9508--01; 2WD.MT |
34118-D4000 |
US $40.75 |
||
|
34119P
|
34119P
34119-56E05 RUBBER-SEAT,HAND LEVER9202--01 ~ 9508--01; 2WD.MT |
34119-56E05 |
US $22.18 |
||
|
34123
|
34123
34123-D4000 Boot-Dust, Hand Lever9202--01 ~ 9508--01; 2WD.MT |
34123-D4000 |
US $13.86 |
||
|
34550M
|
34550M
34550-47R00 Support Assy-Control Rod9202--01 ~ 9508--01; 2WD.KA24E.MT |
34550-47R00 |
US $109.73 |
||
|
34553
|
34553
34553-D4001 Socket Assy-Hand Lever9202--01 ~ 9508--01; 2WD.MT |
34553-D4001 |
US $48.75 |
||
|
34560N
|
34560N
34560-51E05 BRACKET ASSY-HOLDER RUBBER9202--01 ~ 9508--01; 2WD.MT |
34560-51E05 |
US $42.50 |
||
|
34565
|
34565
34565-50A00
Seal-Rubber, Transmission Hole
9202--01 ~ 9508--01; 2WD.MT |
34565-50A00 |
— | ||
|
34573
|
34573
34573-30R00 Spring-Return, Lever9202--01 ~ 9508--01; 2WD.MT |
34573-30R00 |
US $8.78 |
||
|
34575
|
34575
34575-50A00
Bracket-Return Spring
9202--01 ~ 9508--01; 2WD.MT |
34575-50A00 |
— | ||
|
63858X
|
63858X
63858-32R00 Guard-Splash, Transmission Control9202--01 ~ 9508--01; 2WD.MT; ｶﾝﾚｲﾁ ｼﾖｳ |
63858-32R00 |
US $36.72 |
