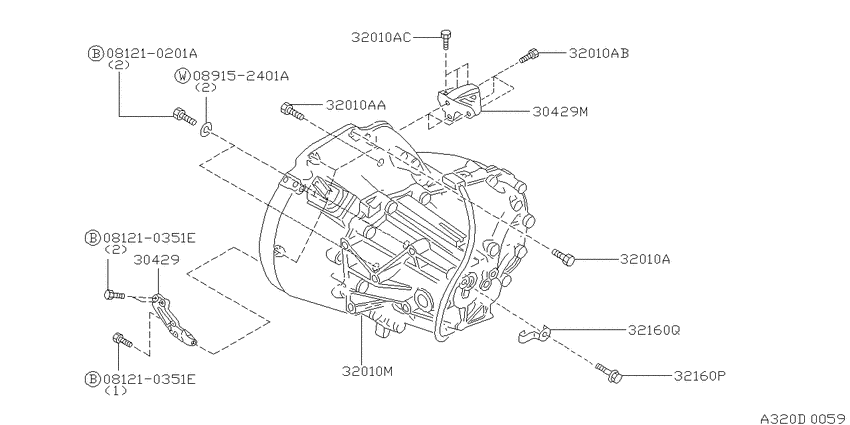

Manual transmission, transaxle & fitting (1992-02-01 ~ 1995-08-01; 4WD.KA24E.F5) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1992 - 1995
- Sales region
- Japan
- Engine
- KA24E
- drive
- 4WD
- transmission
- F5
- grade
- G
- body
- S
- capacity
- 5P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210201A
|
081210201A
08121-0201A
Bolt-hexagon
|
08121-0201A |
— | ||
|
081210351E
|
081210351E
081210351E Bolt-hexagon |
081210351E |
US $1.13 |
||
|
081210351E
|
081210351E
081210351E Bolt-hexagon |
081210351E |
US $1.13 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
US $2.21 |
||
|
30429
|
30429
30431-40R00
Gusset-Transmission To Engine
9202--01 ~ 9508--01; 4WD.KA24E.MT; ﾌﾛﾝﾄ ﾖｳ |
30431-40R00 |
— | ||
|
30429
|
30429
30441-40R02
Gusset-Transmission To Engine
9202--01 ~ 9508--01; 4WD.KA24E.MT; ﾄﾗﾝｽﾌｱ- ﾖｳ |
30441-40R02 |
— | ||
|
30429M
|
30429M
30441-40R02
Gusset-Transmission To Engine
9202--01 ~ 9508--01; 4WD.KA24E.MT; ﾄﾗﾝｽﾌｱ- ﾖｳ |
30441-40R02 |
— | ||
|
32010A
|
32010A
31377-0E012 BOLT9202--01 ~ 9508--01; 4WD.KA24E.MT |
31377-0E012 |
US $2.45 |
||
|
32010A
|
32010A
01121-03841 BOLT9202--01 ~ 9508--01; 4WD.KA24E.MT |
01121-03841 |
US $4.18 |
||
|
32010A
|
32010A
01121-03831 BOLT-GUSSET9202--01 ~ 9508--01; 4WD.KA24E.MT |
01121-03831 |
US $4.18 |
||
|
32010A
|
32010A
01121-03841 BOLT9202--01 ~ 9508--01; 4WD.KA24E.MT |
01121-03841 |
US $4.18 |
||
|
32010AA
|
32010AA
01121-03841 BOLT9202--01 ~ 9508--01; 4WD.KA24E.MT |
01121-03841 |
US $4.18 |
||
|
32010AB
|
32010AB
01121-03831 BOLT-GUSSET9202--01 ~ 9508--01; 4WD.KA24E.MT |
01121-03831 |
US $4.18 |
||
|
32010AC
|
32010AC
01121-03841 BOLT9202--01 ~ 9508--01; 4WD.KA24E.MT |
01121-03841 |
US $4.18 |
||
|
32010M
|
32010M
32010-47R04 Transaxle Assy-Manual9202--01 ~ 9508--01; 4WD.KA24E.MT; RS5F50A |
32010-47R04 |
US $2,408 |
||
|
32160P
|
32160P
01121-03341 BOLT9202--01 ~ 9508--01; 4WD.KA24E.MT |
01121-03341 |
US $2.91 |
||
|
32160Q
|
32160Q
24210-30R00 Clip9202--01 ~ 9508--01; 4WD.KA24E.MT |
24210-30R00 |
US $5.33 |
