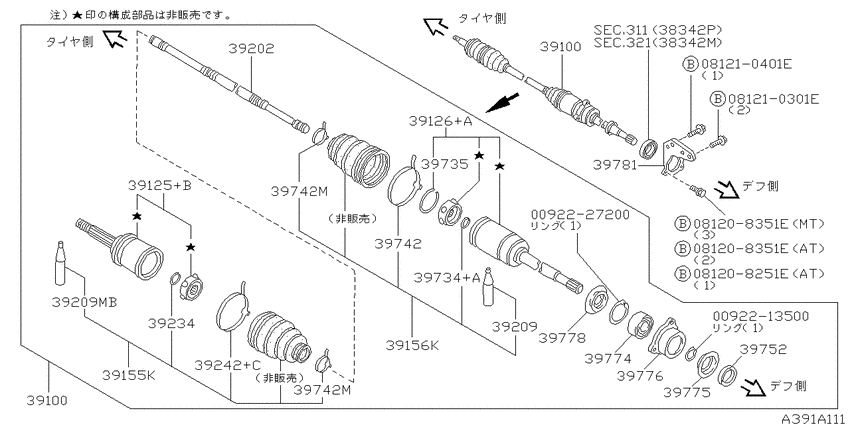

Front drive shaft (ff) (1988-09-01 ~ 1990-09-01; 右側; H2WD.5P.CA20S.M.F5 +2WD.(6P+7P).CA20S.F5 +2WD.CA20S.FA +CA20S.D +CA20S.RA) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- CA20S
- drive
- 2WD
- transmission
- FA
- grade
- M
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092213500
|
0092213500
00922-13500
RING-SNAP
|
00922-13500 |
— | ||
|
0092227200
|
0092227200
00922-27200 RINGSNAP |
00922-27200 |
US $4.13 |
||
|
081208251E
|
081208251E
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
081208351E
|
081208351E
081208351E Bolt-hexagon |
081208351E |
US $0.52 |
||
|
081208351E
|
081208351E
081208351E Bolt-hexagon |
081208351E |
US $0.52 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
081210401E
|
081210401E
081210401E Bolt-hexagon |
081210401E |
US $1.13 |
||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
39100
|
39100
39100-32R00 Shaft Assy-Front Drive8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39100-32R00 |
US $1,142.71 |
||
|
39100
|
39100
39100-32R00 Shaft Assy-Front Drive8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39100-32R00 |
US $1,142.71 |
||
|
39125+B
|
39125+B
39211-32R00 Joint Assy-Outer8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39211-32R00 |
US $502.68 |
||
|
39126+A
|
39126+A
39771-32R00 Joint Assy-Inner8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾐｷﾞ ﾖｳ |
39771-32R00 |
US $342.67 |
||
|
39155K
|
39155K
39241-16R25 Repair Kit-Dust Boot, Outer8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39241-16R25 |
US $82.08 |
||
|
39155K
|
39155K
39241-16R25 Repair Kit-Dust Boot, Outer8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39241-16R25 |
US $82.08 |
||
|
39156K
|
39156K
39741-70A25 Repair Kit-Dust B00T, Inner8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39741-70A25 |
US $82.08 |
||
| replacement | |||||
|
39156K
|
39156K
3974170A26 Repair Kit-Dust B00T, Inner8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
3974170A26 |
US $97.63 |
||
|
39156K
|
39156K
39741-70A25 Repair Kit-Dust B00T, Inner8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39741-70A25 |
US $82.08 |
||
| replacement | |||||
|
39156K
|
39156K
3974170A26 Repair Kit-Dust B00T, Inner8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
3974170A26 |
US $97.63 |
||
|
39202
|
39202
39204-32R00 Shaft Sub Assy-Front Drive8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39204-32R00 |
US $231.84 |
||
|
39202
|
39202
39205-32R00 Shaft-Front Drive, Lh8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39205-32R00 |
US $231.84 |
||
|
39209
|
39209
39709-16E25 GREASE-INNER8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39709-16E25 |
US $26.21 |
||
| replacement | |||||
|
39209
|
39209
C97092U618 Grease-Inner8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
C97092U618 |
US $23.33 |
||
|
39209
|
39209
40099M0825 Grease-Outer8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
40099M0825 |
US $47.23 |
||
|
39209MB
|
39209MB
40099M0825 Grease-Outer8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
40099M0825 |
US $47.23 |
||
|
39234
|
39234
39234-16R00 Ring-Stopper8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39234-16R00 |
US $6.77 |
||
|
39234
|
39234
39234-16R00 Ring-Stopper8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39234-16R00 |
US $6.77 |
||
|
39242+C
|
39242+C
39242-16R00 Band-Dust Cover, Outer8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39242-16R00 |
US $4.18 |
||
|
39734+A
|
39734+A
39734-16R00 Ring-Snap, C8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39734-16R00 |
US $2.45 |
||
|
39735
|
39735
39735-16R00 Ring-Snap, B8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39735-16R00 |
US $3.02 |
||
|
39735
|
39735
39735-16R00 Ring-Snap, B8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39735-16R00 |
US $3.02 |
||
|
39742
|
39742
39742-16R00 Band-Dust Cover, Inner8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39742-16R00 |
US $9.07 |
||
|
39742
|
39742
39742-16R00 Band-Dust Cover, Inner8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39742-16R00 |
US $9.07 |
||
|
39742
|
39742
39242-16R05 Band-Dust Cover, Shaft8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39242-16R05 |
US $9.22 |
||
|
39742
|
39742
39242-16R05 Band-Dust Cover, Shaft8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39242-16R05 |
US $9.22 |
||
|
39742M
|
39742M
39242-16R05 Band-Dust Cover, Shaft8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39242-16R05 |
US $9.22 |
||
|
39742M
|
39742M
39242-16R05 Band-Dust Cover, Shaft8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39242-16R05 |
US $9.22 |
||
|
39742M
|
39742M
39242-16R05 Band-Dust Cover, Shaft8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39242-16R05 |
US $9.22 |
||
|
39742M
|
39742M
39242-16R05 Band-Dust Cover, Shaft8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39242-16R05 |
US $9.22 |
||
|
39752
|
39752
39752-10E02 SHIELD-DUST8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39752-10E02 |
US $4.03 |
||
|
39752
|
39752
39752-10E12
SHIELD-DUST
8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39752-10E12 |
— | ||
|
39774
|
39774
39774-10E02 BEARING-SUPPORT8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39774-10E02 |
US $45.22 |
||
|
39775
|
39775
39775-10E03 SHIELD-DUST8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39775-10E03 |
US $4.03 |
||
|
39776
|
39776
3977610E03 RETAINER-BEARING,FRONT DRIVE SHAFT8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
3977610E03 |
US $46.37 |
||
|
39778
|
39778
39778-10E03 SHIELD-DUST8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
39778-10E03 |
US $4.75 |
||
|
39781
|
39781
39780-10E14 BRACKET-BEARING SUPPORT,FR DRIVE SHAFT8809--01 ~ 9009--01; )(2WD.5P+2WD.6P+2WD.7P).CA20S.FA +CA20S.RA |
39780-10E14 |
US $187.20 |
||
