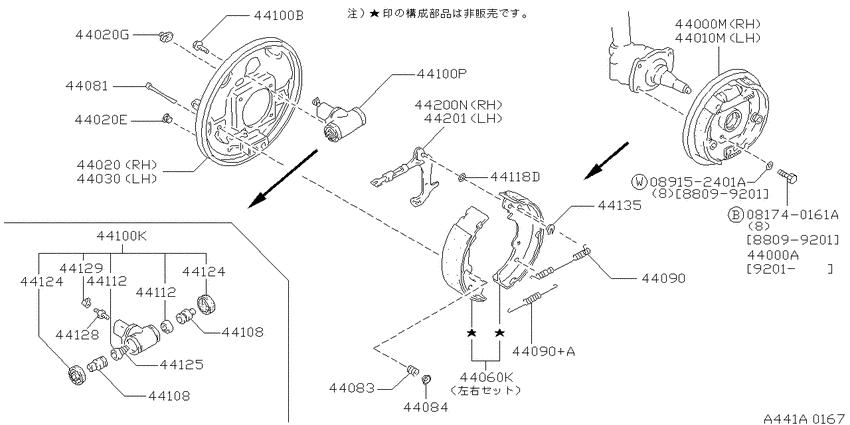

Rear brake (1988-09-01 ~ 1990-09-01; ドラムブレーキ ハ゜ート1; H2WD.5P.CA20S.M.F5 +2WD.(6P+7P).CA20S.F5 +2WD.CA20S.FA +CA20S.D +CA20S.RA) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- CA20S
- drive
- 2WD
- transmission
- FA
- grade
- M
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081740161A
|
081740161A
08174-0161A
Bolt-hexagon
|
08174-0161A |
— | ||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
44000M
|
44000M
44000-32R10 Brake Assy-Drum, Rear Rh8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
44000-32R10 |
US $312.94 |
||
|
44010M
|
44010M
44010-32R10 Brake Assy-Drum, Rear Lh8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
44010-32R10 |
US $312.94 |
||
|
44020
|
44020
44020-32R10 Plate Assy-Back, Rear Brake Rh8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
44020-32R10 |
US $103.25 |
||
|
44020
|
44020
4109808G10 Plug8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
4109808G10 |
from US $1.81 |
||
|
44020
|
44020
4109870A10 Plug8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
4109870A10 |
US $4.42 |
||
|
44020E
|
44020E
4109808G10 Plug8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
4109808G10 |
from US $1.81 |
||
|
44020G
|
44020G
4109870A10 Plug8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
4109870A10 |
US $4.42 |
||
|
44030
|
44030
44030-32R10 Plate Assy-Back, Rear Brake Lh8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
44030-32R10 |
US $103.25 |
||
|
44060K
|
44060K
44060-56L27 Shoe Set-Rear Brake8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾐｷﾞ&ﾋﾀﾞﾘ ﾖｳ[B102] |
44060-56L27 |
US $89.86 |
||
| replacement | |||||
|
44060K
|
44060K
44060-6H085 Shoe Set-Rear Brake8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾐｷﾞ&ﾋﾀﾞﾘ ﾖｳ[B102] |
44060-6H085 |
from US $82.08 |
||
|
44081
|
44081
44081-U9201 Pin-Anti Shoe Rattle8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
44081-U9201 |
US $0.86 |
||
|
44083
|
44083
44083-56E10 SPRING-ANTI SHOE RATTLE8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
44083-56E10 |
US $1.67 |
||
|
44084
|
44084
44084-U9200
Retainer-Spring, Anti Shoe Rattle
8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
44084-U9200 |
— | ||
| replacement | |||||
|
44084
|
44084
44084U920A Retainer-Spring, Anti Shoe Rattle8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
44084U920A |
from US $1.67 |
||
|
44090
|
44090
4409047L10 Spring-Return, Rear Brake Shoe8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
4409047L10 |
from US $3.33 |
||
|
44090
|
44090
44091-47L10 Spring-Return, Rear Brake Shoe8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
44091-47L10 |
from US $2.11 |
||
|
44090+A
|
44090+A
44091-47L10 Spring-Return, Rear Brake Shoe8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
44091-47L10 |
from US $2.11 |
||
|
44100B
|
44100B
0143600052 BOLT8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
0143600052 |
US $2.91 |
||
|
44100K
|
44100K
AY220NN010 Cup Kit-Brake Wheel Cylinder, Rear8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾅﾌﾞｺ 3/4 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY220NN010 |
US $21.60 |
||
|
44100K
|
44100K
AY220NT008 Cup Kit-Brake Wheel Cylinder, Rear8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾄｷｺ 3/4 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY220NT008 |
US $21.60 |
||
|
44100P
|
44100P
44100-D5510 Cylinder Assy-Rear Wheel8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾅﾌﾞｺ,ﾄｷｺ 3/4 |
44100-D5510 |
US $65.38 |
||
| replacement | |||||
|
44100P
|
44100P
44100D5512 Cylinder Assy-Rear Wheel8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾅﾌﾞｺ,ﾄｷｺ 3/4 |
44100D5512 |
US $65.38 |
||
|
44108
|
44108
44108-D0101 Piston-Cylinder8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-D0101 |
US $15.12 |
||
| replacement | |||||
|
44108
|
44108
44108-D0104 Piston-Cylinder8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-D0104 |
US $20.45 |
||
|
44108
|
44108
44108-G2810 Piston-Cylinder8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-G2810 |
US $27.94 |
||
|
44108
|
44108
44108-D0101 Piston-Cylinder8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-D0101 |
US $15.12 |
||
| replacement | |||||
|
44108
|
44108
44108-D0104 Piston-Cylinder8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-D0104 |
US $20.45 |
||
|
44108
|
44108
44108-G2810 Piston-Cylinder8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44108-G2810 |
US $27.94 |
||
|
44112
|
44112
AY260NN004 Cup-Piston8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY260NN004 |
US $3.89 |
||
|
44112
|
44112
AY260NT004 Cup-Piston8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY260NT004 |
US $3.89 |
||
|
44112
|
44112
AY260NN004 Cup-Piston8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY260NN004 |
US $3.89 |
||
|
44112
|
44112
AY260NT004 Cup-Piston8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
AY260NT004 |
US $3.89 |
||
|
44118D
|
44118D
44085U8700 Washer-Lock8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
44085U8700 |
US $4.03 |
||
|
44124
|
44124
44124-17C10 Cover-Dust8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44124-17C10 |
US $2.45 |
||
|
44124
|
44124
44124-D5500 Cover-Dust8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44124-D5500 |
US $2.45 |
||
|
44124
|
44124
44124-17C10 Cover-Dust8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44124-17C10 |
US $2.45 |
||
|
44124
|
44124
44124-D5500 Cover-Dust8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44124-D5500 |
US $2.45 |
||
|
44125
|
44125
44125-M7010 Spring8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44125-M7010 |
US $4.03 |
||
|
44125
|
44125
44125-U9200 Spring8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
44125-U9200 |
US $4.61 |
||
|
44128
|
44128
41128-B5012 Screw-Bleeder8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41128-B5012 |
US $6.91 |
||
|
44128
|
44128
41128-U5200 Screw-Bleeder, Clutch Damper8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41128-U5200 |
US $9.02 |
||
|
44129
|
44129
41129-A2410
Cap-Bleeder Screw
8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41129-A2410 |
— | ||
| replacement | |||||
|
44129
|
44129
4112940F00 Cap-Bleeder Screw8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
4112940F00 |
from US $1.07 |
||
|
44129
|
44129
41129U0201 Cap-Bleeder8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41129U0201 |
US $1.07 |
||
|
44135
|
44135
44082-U8700
Ring-Snap
8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
44082-U8700 |
— | ||
| replacement | |||||
|
44135
|
44135
4422237G1A Ring-Retaining8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
4422237G1A |
US $2.78 |
||
|
44200N
|
44200N
44200-56E11 ADJUSTER ASSY-REAR BRAKE,RH8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
44200-56E11 |
US $54.58 |
||
|
44201
|
44201
4420156E11 ADJUSTER ASSY-REAR BRAKE,LH8809--01 ~ 9009--01; &(2WD.5P+2WD.6P+2WD.7P).CA20S +CA20S.RA |
4420156E11 |
US $54.58 |
||
