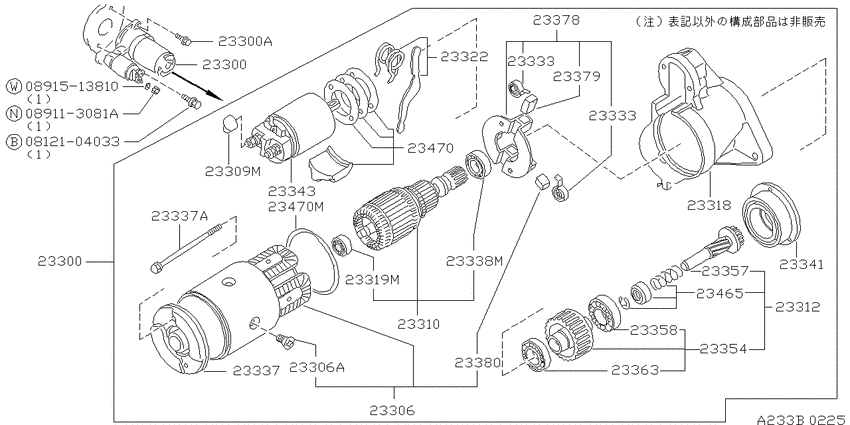

Starter motor (1988-09-01 ~ 1990-09-01; 日立; *2WD.CA20S.FA +*CA20S.RA) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- CA20S
- drive
- 2WD
- transmission
- FA
- grade
- M
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812104033
|
0812104033
08121-04033 Bolt-hexagon |
08121-04033 |
US $2.45 |
||
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
23300
|
23300
23300-03E10 MOTOR ASSY-STARTER8809--01 ~ 9009--01; 2WD.CA20S; ﾐﾂﾋﾞｼ M3T33981 |
23300-03E10 |
US $828.36 |
||
|
23300
|
23300
23300-04E01 MOTOR ASSY-STARTER8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ S114-393 ｶﾝﾚｲﾁ ｼﾖｳ |
23300-04E01 |
US $943.06 |
||
|
23300
|
23300
01121-01441 BOLT8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); M10 X 52 ｶﾝﾚｲﾁ ｼﾖｳ |
01121-01441 |
US $2.45 |
||
|
23300
|
23300
23300-03E10 MOTOR ASSY-STARTER8809--01 ~ 9009--01; 2WD.CA20S; ﾐﾂﾋﾞｼ M3T33981 |
23300-03E10 |
US $828.36 |
||
|
23300
|
23300
23300-04E01 MOTOR ASSY-STARTER8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ S114-393 ｶﾝﾚｲﾁ ｼﾖｳ |
23300-04E01 |
US $943.06 |
||
|
23300
|
23300
01121-01441 BOLT8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); M10 X 52 ｶﾝﾚｲﾁ ｼﾖｳ |
01121-01441 |
US $2.45 |
||
|
23300A
|
23300A
01121-01441 BOLT8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); M10 X 52 ｶﾝﾚｲﾁ ｼﾖｳ |
01121-01441 |
US $2.45 |
||
|
23306
|
23306
23306-M4900 Coil Assy-Field8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23306-M4900 |
US $120.53 |
||
|
23306
|
23306
23305-09500 Screw-Pole Core Set8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23305-09500 |
US $1.11 |
||
|
23306A
|
23306A
23305-09500 Screw-Pole Core Set8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23305-09500 |
US $1.11 |
||
|
23309M
|
23309M
23348-D0300 Cover-Terminal8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23348-D0300 |
US $5.04 |
||
|
23310
|
23310
23310-42L10 Armature Assy8809--01 ~ 9009--01; 2WD.CA20S; ﾐﾂﾋﾞｼ |
23310-42L10 |
US $325.68 |
||
|
23310
|
23310
23310-M4900 Armature Assy8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23310-M4900 |
US $611.71 |
||
|
23312
|
23312
23312-M4902 Pinion Assy8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23312-M4902 |
US $382.32 |
||
|
23318
|
23318
23318-03E10 CASE ASSY-GEAR8809--01 ~ 9009--01; 2WD.CA20S; ﾐﾂﾋﾞｼ |
23318-03E10 |
US $128.45 |
||
|
23318
|
23318
23318-04E00 CASE ASSY-GEAR8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23318-04E00 |
US $127.87 |
||
|
23319M
|
23319M
23319-M4900 Metal-Gear Case8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23319-M4900 |
US $21.46 |
||
|
23322
|
23322
23322-42L10 Lever Set-Shift8809--01 ~ 9009--01; CA20S; ﾐﾂﾋﾞｼ |
23322-42L10 |
US $13.10 |
||
|
23322
|
23322
23322-H9100 Lever Set-Shift8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23322-H9100 |
US $8.64 |
||
|
23333
|
23333
23333M1510 Spring-Brush8809--01 ~ 9009--01; CA20S; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23333
|
23333
23333-M4901 Spring-Brush8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-M4901 |
US $8.78 |
||
|
23333
|
23333
23333M1510 Spring-Brush8809--01 ~ 9009--01; CA20S; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23333
|
23333
23333-M4901 Spring-Brush8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-M4901 |
US $8.78 |
||
|
23337
|
23337
23337-42L10 Cover Assy-Rear8809--01 ~ 9009--01; CA20S; ﾐﾂﾋﾞｼ |
23337-42L10 |
US $33.55 |
||
|
23337
|
23337
23337-M4901 Cover Assy-Rear8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23337-M4901 |
US $11.38 |
||
|
23337
|
23337
23340-M4900 Bolt-Through8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-M4900 |
US $4.18 |
||
|
23337
|
23337
23340-M8010 Bolt-Through8809--01 ~ 9009--01; CA20S; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340-M8010 Bolt-Through8809--01 ~ 9009--01; CA20S; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23338M
|
23338M
23338-M4900 Metal-Rear Cover8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23338-M4900 |
from US $52.13 |
||
|
23341
|
23341
23341-N5900 Retainer-Bearing8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23341-N5900 |
US $36.86 |
||
|
23343
|
23343
23343-04E01 SWITCH ASSY-MAGNETIC8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23343-04E01 |
US $154.08 |
||
| replacement | |||||
|
23343
|
23343
B3343-H9100
Switch assy-magnetic
8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
B3343-H9100 |
— | ||
|
23343
|
23343
23343M8011 Switch Assy-Magnetic8809--01 ~ 9009--01; CA20S; ﾐﾂﾋﾞｼ |
23343M8011 |
US $126.43 |
||
|
23354
|
23354
23354-11M00 Shaft-Pinion8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23354-11M00 |
US $156.96 |
||
|
23354
|
23354
23354-42L10 Clutch Assy8809--01 ~ 9009--01; 2WD.CA20S; ﾐﾂﾋﾞｼ |
23354-42L10 |
US $101.19 |
||
|
23357
|
23357
23357-M4901 Shaft-Pinion8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23357-M4901 |
US $119.38 |
||
|
23358
|
23358
23358-M4900 Bearing8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23358-M4900 |
US $38.88 |
||
|
23363
|
23363
23363-M4900 Bearing8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23363-M4900 |
US $17.57 |
||
|
23378
|
23378
23378M4901 Holder Assy-Brush8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23378M4901 |
US $47.81 |
||
|
23378
|
23378
23378-M8011 Holder Assy-Brush8809--01 ~ 9009--01; CA20S; ﾐﾂﾋﾞｼ |
23378-M8011 |
from US $37.87 |
||
|
23379
|
23379
23379-M4900 Brush-Minus8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23379-M4900 |
US $10.08 |
||
|
23379
|
23379
23380M8311 Brush-Minus8809--01 ~ 9009--01; CA20S; ﾐﾂﾋﾞｼ |
23380M8311 |
US $11.09 |
||
|
23380
|
23380
23380-M4900 Brush-Plus8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23380-M4900 |
US $10.37 |
||
|
23380
|
23380
23380M8310 Brush-Plus8809--01 ~ 9009--01; CA20S; ﾐﾂﾋﾞｼ |
23380M8310 |
US $9.36 |
||
|
23465
|
23465
23465-42L10 Stopper Set-Pinion8809--01 ~ 9009--01; CA20S; ﾐﾂﾋﾞｼ |
23465-42L10 |
US $11.09 |
||
|
23465
|
23465
23465-M4900 Stopper Set-Pinion8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23465-M4900 |
US $9.50 |
||
|
23470
|
23470
23470-D0300 Cover Set-Dust8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23470-D0300 |
US $12.24 |
||
| replacement | |||||
|
23470
|
23470
23470-D0301 Cover Set-Dust8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23470-D0301 |
US $14.69 |
||
|
23470
|
23470
23324-N5900 Plate-Center8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23324-N5900 |
US $6.34 |
||
|
23470M
|
23470M
23324-N5900 Plate-Center8809--01 ~ 9009--01; *2WD.CA20S.(RA+FA); ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23324-N5900 |
US $6.34 |
||
