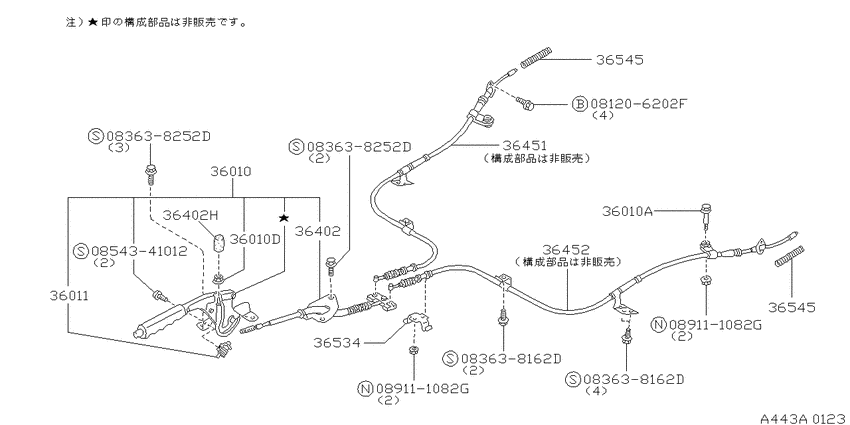

Parking brake control (1990-09-01 ~ 1992-02-01; センターレバー式; ~2WD.7P.CA20S.F5 +2WD.CA20S.M +CA20S.D) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 2WD
- transmission
- F5
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081206202F
|
081206202F
081206202F
Bolt-hexagon
|
081206202F |
— | ||
|
083638162D
|
083638162D
08363-8162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8162D |
— | ||
|
083638162D
|
083638162D
08363-8162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8162D |
— | ||
|
083638252D
|
083638252D
08363-8252D SCREWMACHINE |
08363-8252D |
US $3.39 |
||
|
083638252D
|
083638252D
08363-8252D SCREWMACHINE |
08363-8252D |
US $3.39 |
||
|
0854341012
|
0854341012
08543-41012
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-41012 |
— | ||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
36010
|
36010
36010-30R00 Device Assy-Parking Brake Control8809--01 ~ 9009--01; 92WD.5P.CA20S +(2WD.6P+2WD.7P).CA20S.F5 +2WD.7P.CA20S.M.FA |
36010-30R00 |
US $158.40 |
||
|
36010
|
36010
36107-30R00 Bolt8809--01 ~ 9009--01; 92WD.5P.CA20S +(2WD.6P+2WD.7P).CA20S.F5 +2WD.7P.CA20S.M.FA |
36107-30R00 |
US $4.03 |
||
|
36010
|
36010
01225-00511 NUT8809--01 ~ 9009--01; 92WD.5P.CA20S +(2WD.6P+2WD.7P).CA20S.F5 +2WD.7P.CA20S.M.FA |
01225-00511 |
US $3.46 |
||
|
36010
|
36010
74810-30R00 Bracket-Parking Brake Mounting8809--01 ~ 9009--01; 0S.2WD.5P +S.2WD.6P.F5 +S.2WD.7P.M +S.2WD.7P.J.F5 |
74810-30R00 |
US $97.49 |
||
|
36010A
|
36010A
36107-30R00 Bolt8809--01 ~ 9009--01; 92WD.5P.CA20S +(2WD.6P+2WD.7P).CA20S.F5 +2WD.7P.CA20S.M.FA |
36107-30R00 |
US $4.03 |
||
|
36010D
|
36010D
01225-00511 NUT8809--01 ~ 9009--01; 92WD.5P.CA20S +(2WD.6P+2WD.7P).CA20S.F5 +2WD.7P.CA20S.M.FA |
01225-00511 |
US $3.46 |
||
|
36011
|
36011
3601130R00 Switch Assy-Parking Brake Lamp8809--01 ~ 9009--01; 92WD.5P.CA20S +(2WD.6P+2WD.7P).CA20S.F5 +2WD.7P.CA20S.M.FA |
3601130R00 |
US $8.64 |
||
|
36402
|
36402
36402-30R00 Cable Assy-Parking Brake, Front8809--01 ~ 9009--01; 92WD.5P.CA20S +(2WD.6P+2WD.7P).CA20S.F5 +2WD.7P.CA20S.M.FA |
36402-30R00 |
US $108.58 |
||
|
36402
|
36402
36184-28E01 CAP-ADJUST8809--01 ~ 9009--01; 92WD.5P.CA20S +(2WD.6P+2WD.7P).CA20S.F5 +2WD.7P.CA20S.M.FA |
36184-28E01 |
US $4.90 |
||
|
36402H
|
36402H
36184-28E01 CAP-ADJUST8809--01 ~ 9009--01; 92WD.5P.CA20S +(2WD.6P+2WD.7P).CA20S.F5 +2WD.7P.CA20S.M.FA |
36184-28E01 |
US $4.90 |
||
|
36451
|
36451
36530-30R00 Cable Assy-Brake, Rear Rh8809--01 ~ 9009--01; 92WD.5P.CA20S +(2WD.6P+2WD.7P).CA20S.F5 +2WD.7P.CA20S.M.FA |
36530-30R00 |
US $83.66 |
||
|
36452
|
36452
36531-30R00 Cable Assy-Brake, Rear Lh8809--01 ~ 9009--01; 92WD.5P.CA20S +(2WD.6P+2WD.7P).CA20S.F5 +2WD.7P.CA20S.M.FA |
36531-30R00 |
US $83.66 |
||
|
36534
|
36534
36521-D4000 Bracket Assy-Parking Brake Wire8809--01 ~ 9009--01; 92WD.5P.CA20S +(2WD.6P+2WD.7P).CA20S.F5 +2WD.7P.CA20S.M.FA |
36521-D4000 |
US $5.47 |
||
|
36545
|
36545
36545-U8702 Spring8809--01 ~ 9009--01; 92WD.5P.CA20S +(2WD.6P+2WD.7P).CA20S.F5 +2WD.7P.CA20S.M.FA |
36545-U8702 |
US $4.90 |
||
|
36545
|
36545
36545-U8702 Spring8809--01 ~ 9009--01; 92WD.5P.CA20S +(2WD.6P+2WD.7P).CA20S.F5 +2WD.7P.CA20S.M.FA |
36545-U8702 |
US $4.90 |
