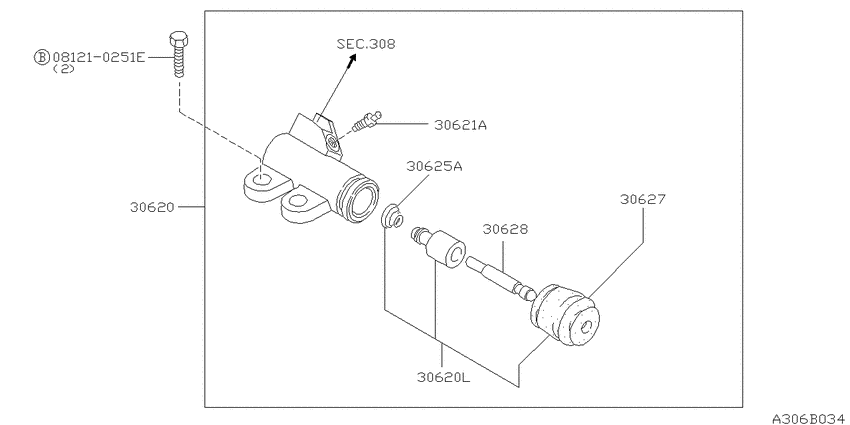

Clutch operating cylinder (1992-02-01 ~ 1995-08-01; CA20S.F5 +KA24E.F5) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- F5
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210251E
|
081210251E
081210251E Bolt-hexagon |
081210251E |
from US $1.15 |
||
|
30620
|
30620
30620-56E01 CYLINDER ASSY-CLUTCH OPERATING8809--01 ~ 9009--01; CA20S.F5; ﾅﾌﾞｺ 3/4 |
30620-56E01 |
US $90.43 |
||
| replacement | |||||
|
30620
|
30620
30620-56E60
Cylinder assy-clutch operating
8809--01 ~ 9009--01; CA20S.F5; ﾅﾌﾞｺ 3/4 |
30620-56E60 |
— | ||
|
30620
|
30620
30620-56E11 CYLINDER ASSY-CLUTCH OPERATING9202--01 ~ 9508--01; CA20S.F5 +KA24E.F5; ﾅﾌﾞｺ 3/4 |
30620-56E11 |
US $98.64 |
||
|
30620
|
30620
3062216E25 CUP KIT-CLUTCH OPERATING CYLINDER8809--01 ~ 9009--01; CA20S.F5; ﾅﾌﾞｺ 3/4 |
3062216E25 |
US $8.68 |
||
|
30620
|
30620
30621-0H627
Piston Kit-Clutch Operating Cylinder
9202--01 ~ 9508--01; CA20S.F5 +KA24E.F5; ﾅﾌﾞｺ 3/4 |
30621-0H627 |
— | ||
| replacement | |||||
|
30620
|
30620
306210W025 Piston Kit-Clutch Operating Cylinder9202--01 ~ 9508--01; CA20S.F5 +KA24E.F5; ﾅﾌﾞｺ 3/4 |
306210W025 |
US $10.04 |
||
|
30620
|
30620
3062126E25 PISTON KIT-CLUTCH OPERATING CYLINDER8809--01 ~ 9009--01; CA20S.F5; ﾅﾌﾞｺ 3/4 |
3062126E25 |
US $16.42 |
||
|
30620L
|
30620L
30621-0H627
Piston Kit-Clutch Operating Cylinder
9202--01 ~ 9508--01; CA20S.F5 +KA24E.F5; ﾅﾌﾞｺ 3/4 |
30621-0H627 |
— | ||
| replacement | |||||
|
30620L
|
30620L
306210W025 Piston Kit-Clutch Operating Cylinder9202--01 ~ 9508--01; CA20S.F5 +KA24E.F5; ﾅﾌﾞｺ 3/4 |
306210W025 |
US $10.04 |
||
|
30620L
|
30620L
3062126E25 PISTON KIT-CLUTCH OPERATING CYLINDER8809--01 ~ 9009--01; CA20S.F5; ﾅﾌﾞｺ 3/4 |
3062126E25 |
US $16.42 |
||
|
30621A
|
30621A
30623-56E01 SCREW-BLEEDER8809--01 ~ 8906--01; CA20S.F5; ﾅﾌﾞｺ |
30623-56E01 |
US $4.18 |
||
|
30621A
|
30621A
30623-80E00 SCREW-BLEEDER8906--01 ~ 9009--01; CA20S.F5; ﾅﾌﾞｺ |
30623-80E00 |
US $4.18 |
||
|
30625A
|
30625A
30622-E3400 Spring-Piston9202--01 ~ 9508--01; CA20S.F5 +KA24E.F5; ﾅﾌﾞｺ |
30622-E3400 |
US $2.74 |
||
|
30625A
|
30625A
30622W7000 Spring-Piston8809--01 ~ 9009--01; CA20S.F5; ﾅﾌﾞｺ |
30622W7000 |
US $1.58 |
||
|
30627
|
30627
30627-16E00 COVER-DUST8809--01 ~ 9009--01; CA20S.F5; ﾅﾌﾞｺ |
30627-16E00 |
from US $3.20 |
||
|
30628
|
30628
30628-56E00 ROD-PUSH8809--01 ~ 9009--01; CA20S.F5; ﾅﾌﾞｺ |
30628-56E00 |
US $9.22 |
||
|
30628
|
30628
30628-56E11 ROD-PUSH9202--01 ~ 9508--01; CA20S.F5 +KA24E.F5; ﾅﾌﾞｺ |
30628-56E11 |
US $10.66 |
||
|
