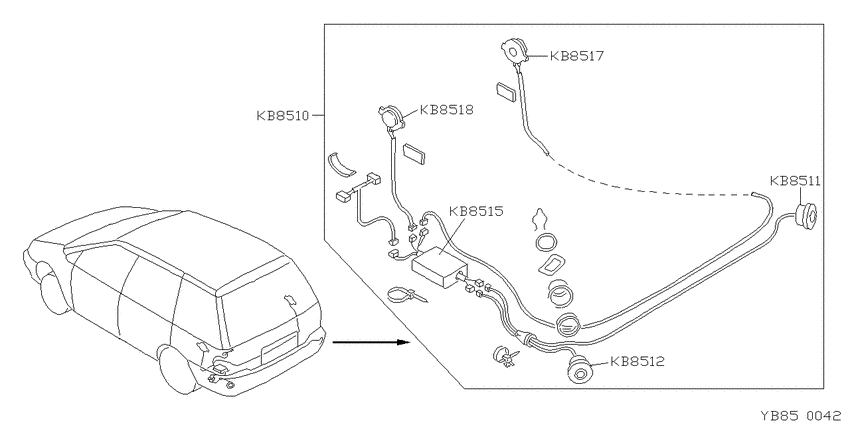

corner sensor (1988-09-01 ~ ; リヤ 左右セット; S) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- F5
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
KB8510
|
KB8510
B9810-47R30 ｺｰﾅｰ ｾﾝｻｰ ﾘﾔ9202--01 ~ 9508--01; S; ﾋﾀﾞﾘｶﾞﾜﾖｳ[K504] |
B9810-47R30 |
US $339.84 |
||
|
KB8510
|
KB8510
B9810-47R90 ｺｰﾅｰ ｾﾝｻｰ ﾘﾔ9202--01 ~ 9508--01; S; ｻﾕｳｾｯﾄ[K504] |
B9810-47R90 |
US $665.52 |
||
|
KB8511
|
KB8511
B98110E085 Sen-Corner Rr Rh9202--01 ~ 9508--01; S; #ｻﾕｳｾｯﾄ,RH / LH,ｼｬｼｭﾆﾖﾘ ﾂｶｲﾜｹﾙ[K504] |
B98110E085 |
US $129.60 |
||
|
KB8512
|
KB8512
B9811-0E025 Sen-Corner Rr Lh9202--01 ~ 9508--01; S; #ｻﾕｳｾｯﾄ,RH / LH,ｼｬｼｭﾆﾖﾘ ﾂｶｲﾜｹﾙ[K504] |
B9811-0E025 |
US $129.60 |
||
|
KB8515
|
KB8515
B9812-0P030 Cont-Sen Rr9202--01 ~ 9508--01; S; ｻﾕｳｾｯﾄ[K504] |
B9812-0P030 |
US $187.20 |
||
|
KB8517
|
KB8517
B9814-50F25 Buzzer-Sen Rr Rh9202--01 ~ 9705--01; S; ｻﾕｳｾｯﾄ,L=2650mm､ｸﾛｲﾛ[K504] |
B9814-50F25 |
US $14.40 |
||
|
KB8518
|
KB8518
B9814-50F85
Buzzer-Sen Rr Lh
9202--01 ~ 9508--01; S; ﾋﾀﾞﾘｶﾞﾜﾖｳ[K504] |
B9814-50F85 |
— |
