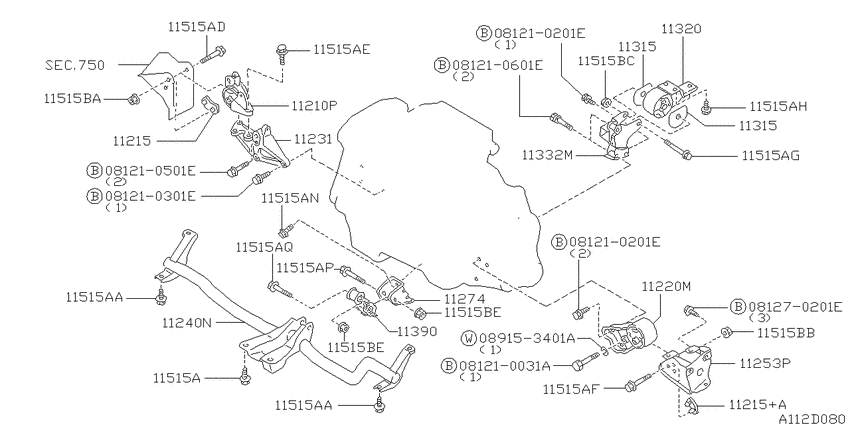

Engine & transmission mounting (1988-09-01 ~ 1990-09-01; 4WD.CA20S.F5) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- F5
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210031A
|
081210031A
08121-0031A
Bolt-hexagon
|
08121-0031A |
— | ||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.04 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.04 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $1.13 |
||
|
081210501E
|
081210501E
08121-0501E
Bolt-hexagon
|
08121-0501E |
— | ||
|
081210601E
|
081210601E
08121-0601E
Bolt-hexagon
|
08121-0601E |
— | ||
| replacement | |||||
|
081210601E
|
081210601E
08121-0602E Bolt-hexagon |
08121-0602E |
US $3.06 |
||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
089153401A
|
089153401A
089153401A Washer-Spring |
089153401A |
US $0.63 |
||
|
11210P
|
11210P
11210-40R00 Insulator Assy-Engine Mounting, Front Rh8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
11210-40R00 |
US $85.54 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
1121554E00 |
US $17.57 |
||
|
11215+A
|
11215+A
1121554E00 STOPPER-ENGINE MOUNTING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
1121554E00 |
US $17.57 |
||
|
11220M
|
11220M
11220-40R00 Insulator Assy-Engine Mounting, Front Lh8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
11220-40R00 |
US $185.76 |
||
|
11231
|
11231
11231-51E00 BRACKET-ENGINE MOUNTING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
11231-51E00 |
US $122.69 |
||
|
11240N
|
11240N
11240-40R00 Member Assy-Front, Center8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
11240-40R00 |
US $440.38 |
||
| replacement | |||||
|
11240N
|
11240N
1124075N01 Member Assy-Front, Center8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
1124075N01 |
US $535.25 |
||
|
11240N
|
11240N
1124075N01 Member Assy-Front, Center9304--01 ~ 9508--01; (4WD.5P+4WD.7P).CA20S.F5 |
1124075N01 |
US $535.25 |
||
|
11253P
|
11253P
11253-51E01 SUPPORT-ENGINE MOUNTING,LH8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
11253-51E01 |
US $70.99 |
||
|
11274
|
11274
11274-58E00 BRACKET-ENGINE MOUNTING BLOCK,CENTER8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
11274-58E00 |
US $22.61 |
||
|
11315
|
11315
11315-16E00 STOPPER-ENGINE MOUNTING,LH REAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
11315-16E00 |
US $17.14 |
||
|
11315
|
11315
11315-16E00 STOPPER-ENGINE MOUNTING,LH REAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
11315-16E00 |
US $17.14 |
||
|
11320
|
11320
1132040R00 Insulator-Engine Mounting, Rear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
1132040R00 |
US $99.36 |
||
|
11332M
|
11332M
11332-40R00 Bracket-Engine Mounting, Rear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
11332-40R00 |
US $116.06 |
||
|
11390
|
11390
1135001E02
BUFFER ASSY-ENGINE MOUNTING,REAR
8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
1135001E02 |
— | ||
|
11515A
|
11515A
01125-01221 BOLT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-01221 |
US $2.45 |
||
|
11515A
|
11515A
01125-00161 BOLT9009--01 ~ 9409--01; (4WD.5P+4WD.7P).CA20S.F5 |
01125-00161 |
US $2.45 |
||
|
11515A
|
11515A
01125-01061 BOLT-INSULATOR MOUNTING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-01061 |
US $2.45 |
||
|
11515A
|
11515A
0112501411 BOLT9409--01 ~ 9508--01; (4WD.5P+4WD.7P).CA20S.F5 |
0112501411 |
US $2.68 |
||
|
11515A
|
11515A
01125-00641 BOLT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-00641 |
US $3.46 |
||
|
11515A
|
11515A
01125-01211 BOLT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-01211 |
US $4.18 |
||
|
11515A
|
11515A
01125-00661 BOLT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-00661 |
US $4.18 |
||
|
11515A
|
11515A
01125-00641 BOLT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-00641 |
US $3.46 |
||
|
11515A
|
11515A
01121-00613 BOLT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01121-00613 |
US $4.18 |
||
|
11515A
|
11515A
0112101111 BOLT8812--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
0112101111 |
US $1.73 |
||
|
11515A
|
11515A
01125-01111 BOLT8809--01 ~ 8812--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-01111 |
US $1.73 |
||
|
11515A
|
11515A
01125-01031 BOLT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-01031 |
US $3.06 |
||
|
11515A
|
11515A
01125-00881
BOLT
8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-00881 |
— | ||
|
11515AA
|
11515AA
01125-00161 BOLT9009--01 ~ 9409--01; (4WD.5P+4WD.7P).CA20S.F5 |
01125-00161 |
US $2.45 |
||
|
11515AA
|
11515AA
01125-01061 BOLT-INSULATOR MOUNTING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-01061 |
US $2.45 |
||
|
11515AA
|
11515AA
0112501411 BOLT9409--01 ~ 9508--01; (4WD.5P+4WD.7P).CA20S.F5 |
0112501411 |
US $2.68 |
||
|
11515AA
|
11515AA
01125-00161 BOLT9009--01 ~ 9409--01; (4WD.5P+4WD.7P).CA20S.F5 |
01125-00161 |
US $2.45 |
||
|
11515AA
|
11515AA
01125-01061 BOLT-INSULATOR MOUNTING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-01061 |
US $2.45 |
||
|
11515AA
|
11515AA
0112501411 BOLT9409--01 ~ 9508--01; (4WD.5P+4WD.7P).CA20S.F5 |
0112501411 |
US $2.68 |
||
|
11515AD
|
11515AD
01125-00641 BOLT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-00641 |
US $3.46 |
||
|
11515AE
|
11515AE
01125-01211 BOLT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-01211 |
US $4.18 |
||
|
11515AF
|
11515AF
01125-00661 BOLT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-00661 |
US $4.18 |
||
|
11515AG
|
11515AG
01125-00641 BOLT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-00641 |
US $3.46 |
||
|
11515AH
|
11515AH
01121-00613 BOLT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01121-00613 |
US $4.18 |
||
|
11515AN
|
11515AN
0112101111 BOLT8812--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
0112101111 |
US $1.73 |
||
|
11515AN
|
11515AN
01125-01111 BOLT8809--01 ~ 8812--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-01111 |
US $1.73 |
||
|
11515AP
|
11515AP
01125-01031 BOLT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-01031 |
US $3.06 |
||
|
11515AQ
|
11515AQ
01125-00881
BOLT
8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
01125-00881 |
— | ||
|
11515BA
|
11515BA
0122500062 NUT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
0122500062 |
from US $1.67 |
||
|
11515BA
|
11515BA
0122500082 NUT9408--01 ~ 9508--01; (4WD.5P+4WD.7P).CA20S.F5 |
0122500082 |
from US $0.61 |
||
|
11515BB
|
11515BB
0122500082 NUT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
0122500082 |
from US $0.61 |
||
|
11515BC
|
11515BC
0122500062 NUT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
0122500062 |
from US $1.67 |
||
|
11515BC
|
11515BC
0122500082 NUT9408--01 ~ 9508--01; (4WD.5P+4WD.7P).CA20S.F5 |
0122500082 |
from US $0.61 |
||
|
11515BE
|
11515BE
0122500062 NUT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
0122500062 |
from US $1.67 |
||
|
11515BE
|
11515BE
0122500082 NUT9408--01 ~ 9508--01; (4WD.5P+4WD.7P).CA20S.F5 |
0122500082 |
from US $0.61 |
||
|
11515BE
|
11515BE
0122500062 NUT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
0122500062 |
from US $1.67 |
||
|
11515BE
|
11515BE
0122500082 NUT9408--01 ~ 9508--01; (4WD.5P+4WD.7P).CA20S.F5 |
0122500082 |
from US $0.61 |
||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
