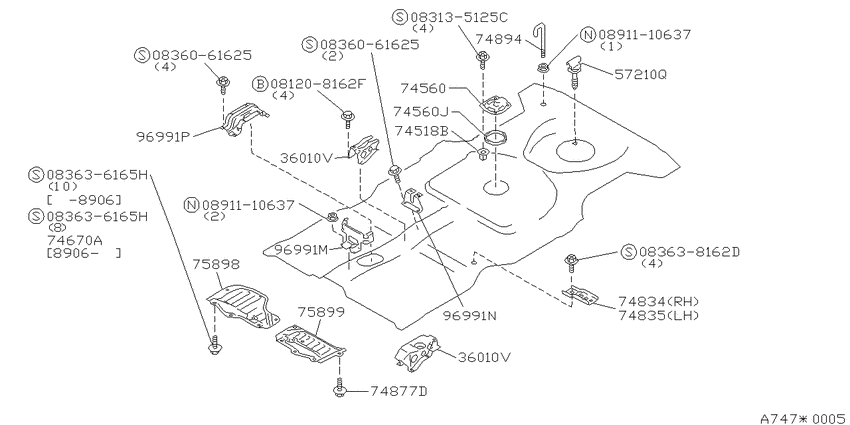

Floor fitting (1988-09-01 ~ 1990-09-01; S) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- F5
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208162F
|
081208162F
08120-8162F
Bolt-hexagon
|
08120-8162F |
— | ||
|
083135125C
|
083135125C
08313-5125C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08313-5125C |
— | ||
|
0836061625
|
0836061625
08360-61625
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61625 |
— | ||
|
0836061625
|
0836061625
08360-61625
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61625 |
— | ||
|
083636165H
|
083636165H
083636165H SCREWMACHINE |
083636165H |
from US $0.48 |
||
|
083636165H
|
083636165H
083636165H SCREWMACHINE |
083636165H |
from US $0.48 |
||
|
083638162D
|
083638162D
08363-8162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8162D |
— | ||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
36010V
|
36010V
74810-40R00 Bracket-Parking Brake Mounting8809--01 ~ 9009--01; 0S.4WD.5P +S.4WD.6P.F5 +S.4WD.7P.M +S.4WD.7P.J.F5 |
74810-40R00 |
US $97.49 |
||
|
36010V
|
36010V
74810-40R00 Bracket-Parking Brake Mounting8809--01 ~ 9009--01; 0S.4WD.5P +S.4WD.6P.F5 +S.4WD.7P.M +S.4WD.7P.J.F5 |
74810-40R00 |
US $97.49 |
||
|
57210Q
|
57210Q
57230-30R00 Clamp-Spare Tire8809--01 ~ 9009--01; S |
57230-30R00 |
US $11.38 |
||
|
74518B
|
74518B
01236-00051 NUT8809--01 ~ 8912--01; S.(4WD.5P+4WD.6P+4WD.7P) |
01236-00051 |
US $2.74 |
||
|
74518B
|
74518B
01236-00093 NUT8912--01 ~ 9009--01; S.(4WD.5P+4WD.6P+4WD.7P) |
01236-00093 |
US $1.01 |
||
|
74560
|
74560
74825-01E31 COVER-INSPECTION HOLE8809--01 ~ 9009--01; S.(4WD.5P+4WD.6P+4WD.7P) |
74825-01E31 |
US $24.05 |
||
|
74560
|
74560
74847-30P00 Seal-Inspection Hole Cover9401--01 ~ 9508--01; S.(4WD.5P+4WD.7P+4WD.8P) |
74847-30P00 |
US $20.88 |
||
|
74560
|
74560
74847-50A00 Seal-Inspection Hole Cover8809--01 ~ 9009--01; S.(4WD.5P+4WD.6P+4WD.7P) |
74847-50A00 |
US $23.04 |
||
|
74560J
|
74560J
74847-30P00 Seal-Inspection Hole Cover9401--01 ~ 9508--01; S.(4WD.5P+4WD.7P+4WD.8P) |
74847-30P00 |
US $20.88 |
||
|
74560J
|
74560J
74847-50A00 Seal-Inspection Hole Cover8809--01 ~ 9009--01; S.(4WD.5P+4WD.6P+4WD.7P) |
74847-50A00 |
US $23.04 |
||
|
74834
|
74834
74834-30R00 Bracket-Front Seat Mounting Rh8809--01 ~ 9009--01; -S.(2WD.5P+2WD.6P+2WD.7P+4WD.5P+4WD.6P+4WD.7P) |
74834-30R00 |
US $15.84 |
||
|
74835
|
74835
74835-30R00 Bracket-Front Seat Mounting Lh8809--01 ~ 9009--01; -S.(2WD.5P+2WD.6P+2WD.7P+4WD.5P+4WD.6P+4WD.7P) |
74835-30R00 |
US $15.84 |
||
|
74877D
|
74877D
6686001W01 Clip8809--01 ~ 9009--01; S |
6686001W01 |
US $0.97 |
||
|
74894
|
74894
74893-30R00 Hook-Jack Mounting8809--01 ~ 9009--01; S |
74893-30R00 |
US $8.35 |
||
|
75898
|
75898
75898-40R00 Cover-Front Under, Rh8809--01 ~ 9009--01; S.(4WD.5P+4WD.6P+4WD.7P) |
75898-40R00 |
US $58.32 |
||
|
75899
|
75899
75899-40R00 Cover-Front Under, Lh8809--01 ~ 9009--01; S.(4WD.5P+4WD.6P+4WD.7P) |
75899-40R00 |
US $54.29 |
||
|
96991M
|
96991M
96990-30R00 ﾌﾞﾗｹﾂﾄ,ｺﾝｿ-ﾙ8809--01 ~ 9009--01; =S.2WD.5P.M.F5 +S.(2WD.6P+2WD.7P+4WD.5P+4WD.6P+4WD.7P).F5 +S.D |
96990-30R00 |
US $38.45 |
