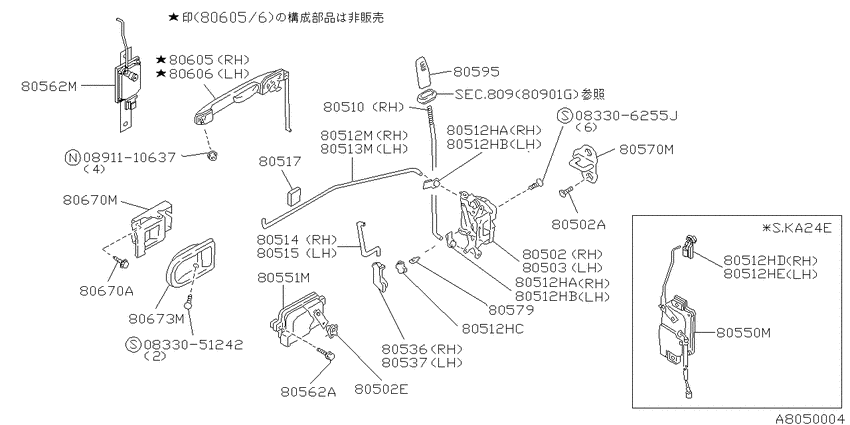

Front door lock & handle (1988-09-01 ~ 1990-09-01; S) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- F5
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0833051242
|
0833051242
08330-51242
SCREWMACHINE
|
08330-51242 |
— | ||
|
083306255J
|
083306255J
08330-6255J
ｽｸﾘﾕ-,ﾏｼﾝ
|
08330-6255J |
— | ||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
80502
|
80502
80502-32R00 ﾛﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ rh8809--01 ~ 9009--01; S |
80502-32R00 |
US $118.08 |
||
|
80502
|
80502
01432-00051 SCREW8809--01 ~ 9009--01; S |
01432-00051 |
from US $0.80 |
||
|
80502
|
80502
01433-00043 SCREW9312--01 ~ 9508--01; S |
01433-00043 |
US $2.45 |
||
|
80502
|
80502
80516-01M00 Bushing-Knob Rod8809--01 ~ 8812--01; S |
80516-01M00 |
US $1.73 |
||
|
80502
|
80502
8051685E00 BUSHING-KNOB ROD8812--01 ~ 9009--01; S |
8051685E00 |
US $1.93 |
||
|
80502A
|
80502A
01432-00051 SCREW8809--01 ~ 9009--01; S |
01432-00051 |
from US $0.80 |
||
|
80502A
|
80502A
01433-00043 SCREW9312--01 ~ 9508--01; S |
01433-00043 |
US $2.45 |
||
|
80502E
|
80502E
80516-01M00 Bushing-Knob Rod8809--01 ~ 8812--01; S |
80516-01M00 |
US $1.73 |
||
|
80502E
|
80502E
8051685E00 BUSHING-KNOB ROD8812--01 ~ 9009--01; S |
8051685E00 |
US $1.93 |
||
|
80503
|
80503
80503-32R00
ﾛﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ lh
8809--01 ~ 9009--01; S |
80503-32R00 |
— | ||
|
80510
|
80510
80512-30R00 ﾛﾂﾄﾞ,ﾛﾂｸ ﾉﾌﾞ rh8809--01 ~ 9009--01; S; RH/LH |
80512-30R00 |
US $13.82 |
||
|
80512HA
|
80512HA
80532-85E00 HOLDER-ROD8812--01 ~ 9009--01; S |
80532-85E00 |
US $1.73 |
||
|
80512HA
|
80512HA
80532-85E00 HOLDER-ROD8812--01 ~ 9009--01; S |
80532-85E00 |
US $1.73 |
||
|
80512HB
|
80512HB
8053385E00
HOLDER-ROD
8812--01 ~ 9009--01; S |
8053385E00 |
— | ||
| replacement | |||||
|
80512HB
|
80512HB
8053389900 Holder-Rod8812--01 ~ 9009--01; S |
8053389900 |
US $1.82 |
||
|
80512HB
|
80512HB
8053385E00
HOLDER-ROD
8812--01 ~ 9009--01; S |
8053385E00 |
— | ||
| replacement | |||||
|
80512HB
|
80512HB
8053389900 Holder-Rod8812--01 ~ 9009--01; S |
8053389900 |
US $1.82 |
||
|
80512HC
|
80512HC
8055234A00 Grommet8809--01 ~ 9009--01; S |
8055234A00 |
from US $3.02 |
||
|
80512HD
|
80512HD
80532Q0100 Holder-Rod, Rh8809--01 ~ 8812--01; S |
80532Q0100 |
US $1.73 |
||
|
80512HE
|
80512HE
80533-Q0100 Holder-Rod, Lh8809--01 ~ 8812--01; S |
80533-Q0100 |
US $2.74 |
||
|
80512M
|
80512M
80506-30R00 ﾛﾂﾄﾞ,ﾌﾛﾝﾄ ﾄﾞｱ ｲﾝｻｲﾄﾞ ﾊﾝﾄﾞﾙ rh8809--01 ~ 9009--01; S |
80506-30R00 |
US $9.36 |
||
|
80513M
|
80513M
80507-30R00 ﾛﾂﾄﾞ,ﾌﾛﾝﾄ ﾄﾞｱ ｲﾝｻｲﾄﾞ ﾊﾝﾄﾞﾙ lh8809--01 ~ 9009--01; S |
80507-30R00 |
US $9.36 |
||
|
80514
|
80514
80514-30R00 ﾛﾂﾄﾞ,ｷ- ﾛﾂｸ rh8809--01 ~ 9009--01; S |
80514-30R00 |
US $7.06 |
||
|
80515
|
80515
80515-30R00 ﾛﾂﾄﾞ,ｷ- ﾛﾂｸ lh8809--01 ~ 9009--01; S |
80515-30R00 |
US $7.06 |
||
|
80517
|
80517
80886-21P01 Shield-Inside Handle8809--01 ~ 9009--01; S |
80886-21P01 |
US $2.74 |
||
|
80536
|
80536
80522-34A00 Reinforce-Front Door Lock8809--01 ~ 9009--01; S |
80522-34A00 |
US $8.18 |
||
|
80537
|
80537
80523-34A00 Reinforce-Front Door Lock8809--01 ~ 9009--01; S |
80523-34A00 |
US $8.18 |
||
|
80550M
|
80550M
80550-46R00 ｱｸﾁﾕｴ-ﾀ-,ｵ-ﾄ ﾄﾞｱ ﾛﾂｸ ﾌﾛﾝﾄ rh9202--01 ~ 9508--01; 6*S.(2WD.7P+4WD.7P).CA20S +*S.(2WD.8P+4WD.8P) +*S.KA24E; ｷ-ﾚｽ ｴﾝﾄﾘ- ｼﾖｳ |
80550-46R00 |
US $158.40 |
||
|
80551M
|
80551M
80551-30R00 ｱｸﾁﾕｴ-ﾀ-,ｵ-ﾄ ﾄﾞｱ ﾛﾂｸ ﾌﾛﾝﾄ lh8809--01 ~ 9009--01; -S.(2WD.6P+2WD.8P+4WD.6P) +S.(2WD.7P+4WD.7P).J |
80551-30R00 |
US $158.40 |
||
|
80551M
|
80551M
80551-30R60 ｱｸﾁﾕｴ-ﾀ-,ｵ-ﾄ ﾄﾞｱ ﾛﾂｸ ﾌﾛﾝﾄ lh9409--01 ~ 9508--01; 3S.(2WD.7P+4WD.7P).CA20S +S.(2WD.8P+4WD.8P) +S.KA24E |
80551-30R60 |
US $158.40 |
||
|
80562A
|
80562A
01125-00092 SCREW8809--01 ~ 9009--01; -S.(2WD.6P+2WD.8P+4WD.6P) +S.(2WD.7P+4WD.7P).J |
01125-00092 |
US $1.73 |
||
|
80562M
|
80562M
80580-32R00 ｽｲﾂﾁ,ｵ-ﾄ ﾄﾞｱ ﾛﾂｸ rh8809--01 ~ 9009--01; -S.(2WD.6P+2WD.8P+4WD.6P) +S.(2WD.7P+4WD.7P).J |
80580-32R00 |
US $181.44 |
||
|
80562M
|
80562M
80580-46R00 ｽｲﾂﾁ,ｵ-ﾄ ﾄﾞｱ ﾛﾂｸ rh9009--01 ~ 9202--01; 3S.(2WD.7P+4WD.7P).CA20S +S.(2WD.8P+4WD.8P) +S.KA24E |
80580-46R00 |
US $181.44 |
||
|
80570M
|
80570M
80570D0100
Striker Assy-Front Door Lock, Rh
8809--01 ~ 9009--01; S |
80570D0100 |
— | ||
| replacement | |||||
|
80570M
|
80570M
80570-01G00 Striker Assy-Front Door Lock8809--01 ~ 9009--01; S |
80570-01G00 |
from US $24.35 |
||
|
80579
|
80579
8053434A05 Spacer8809--01 ~ 9009--01; S |
8053434A05 |
from US $1.91 |
||
|
80595
|
80595
80595-W1020 Knob-Door Lock8809--01 ~ 9009--01; S |
80595-W1020 |
US $4.32 |
||
|
80605
|
80605
80606-30R00
ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh
8809--01 ~ 9008--01; S |
80606-30R00 |
— | ||
|
80605
|
80605
80606-30R10 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh9008--01 ~ 9009--01; S |
80606-30R10 |
US $102.82 |
||
| replacement | |||||
|
80605
|
80605
80606-30R22 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh9008--01 ~ 9009--01; S |
80606-30R22 |
US $102.82 |
||
|
80605
|
80605
80606-30R20 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh9012--01 ~ 9106--01; S |
80606-30R20 |
US $102.82 |
||
| replacement | |||||
|
80605
|
80605
80606-30R22 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh9012--01 ~ 9106--01; S |
80606-30R22 |
US $102.82 |
||
|
80605
|
80605
80606-30R21 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh9106--01 ~ 9202--01; S |
80606-30R21 |
US $102.82 |
||
| replacement | |||||
|
80605
|
80605
80606-30R22 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh9106--01 ~ 9202--01; S |
80606-30R22 |
US $102.82 |
||
|
80606
|
80606
80607-30R00
ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh
8809--01 ~ 9008--01; S |
80607-30R00 |
— | ||
|
80606
|
80606
80607-30R10
ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh
9008--01 ~ 9009--01; S |
80607-30R10 |
— | ||
|
80606
|
80606
80607-30R20 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh9012--01 ~ 9106--01; S |
80607-30R20 |
US $102.82 |
||
| replacement | |||||
|
80606
|
80606
80607-30R22 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh9012--01 ~ 9106--01; S |
80607-30R22 |
US $102.82 |
||
|
80606
|
80606
80607-30R21 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh9106--01 ~ 9202--01; S |
80607-30R21 |
US $102.82 |
||
| replacement | |||||
|
80606
|
80606
80607-30R22 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh9106--01 ~ 9202--01; S |
80607-30R22 |
US $102.82 |
||
|
80670A
|
80670A
01461-00061 SCREW8809--01 ~ 9009--01; S |
01461-00061 |
US $2.21 |
||
|
80670M
|
80670M
80670-30R00 Handle Assy-Door Inside8809--01 ~ 9009--01; S |
80670-30R00 |
US $27.50 |
||
|
80670M
|
80670M
80670-30R01 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞｱ ｲﾝｻｲﾄﾞ8809--01 ~ 9009--01; S |
80670-30R01 |
US $35.71 |
||
|
80673M
|
80673M
80682-30R00 ｴｽｶﾂｼﾖﾝ,ｲﾝｻｲﾄﾞ ﾊﾝﾄﾞﾙ8809--01 ~ 9009--01; S |
80682-30R00 |
US $13.82 |
||
|
80673M
|
80673M
80682-30R01 ｴｽｶﾂｼﾖﾝ,ｲﾝｻｲﾄﾞ ﾊﾝﾄﾞﾙ8809--01 ~ 9009--01; S |
80682-30R01 |
US $13.82 |
||
|
809
|
Front door trimming
809
|
||||
|
809
|
Front door trimming
809
|
||||
|
809
|
Front door trimming
809
|
||||
