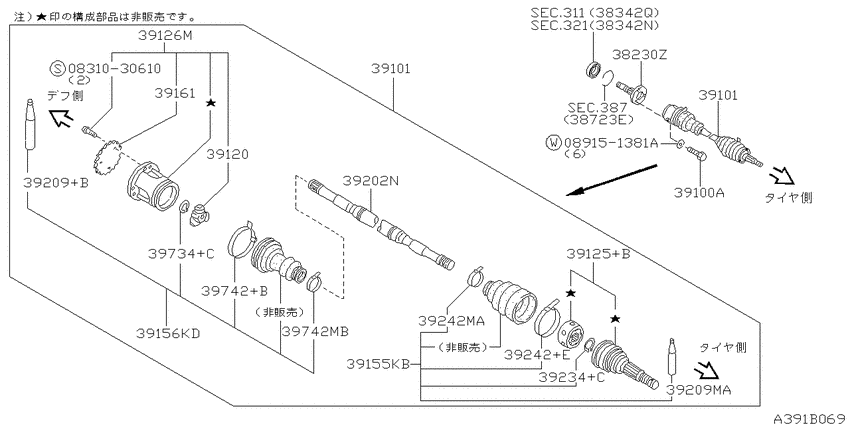

Front drive shaft (ff) (1990-09-01 ~ 1992-02-01; 左側; 4WD.CA20S +4WD.KA24E) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- F5
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831030610
|
0831030610
08310-30610
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-30610 |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
38230Z
|
38230Z
38230-64E00 SHAFT ASSY-SIDE,DIFFERENTIAL8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
38230-64E00 |
US $234.72 |
||
|
387
|
Front differential (transfer)
387
|
||||
|
387
|
Front differential (transfer)
387
|
||||
|
387
|
Front differential (transfer)
387
|
||||
|
39100A
|
39100A
39106-64E00 BOLT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39106-64E00 |
US $2.45 |
||
| replacement | |||||
|
39100A
|
39100A
39106-64E0A Bolt8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39106-64E0A |
US $2.45 |
||
|
39101
|
39101
39101-64E00 SHAFT ASSY-FRONT DRIVE,LH8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39101-64E00 |
US $1,152.62 |
||
|
39101
|
39101
39101-64E10 SHAFT ASSY-FRONT DRIVE,LH8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
39101-64E10 |
US $1,049.26 |
||
|
39101
|
39101
39101-64E00 SHAFT ASSY-FRONT DRIVE,LH8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39101-64E00 |
US $1,152.62 |
||
|
39101
|
39101
39101-64E10 SHAFT ASSY-FRONT DRIVE,LH8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
39101-64E10 |
US $1,049.26 |
||
|
39120
|
39120
39720-10V10 Spider Assy-Slide Joint8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｺｸｲﾝ 0 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
39720-10V10 |
US $78.19 |
||
|
39120
|
39120
39720-10V11 Spider Assy-Slide Joint8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｺｸｲﾝ 1 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
39720-10V11 |
US $76.46 |
||
|
39120
|
39120
39720-10V12 Spider Assy-Slide Joint8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｺｸｲﾝ 2 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
39720-10V12 |
US $76.46 |
||
|
39125+B
|
39125+B
39211-61E00 HOUSING-SLIDE JOINT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39211-61E00 |
US $533.83 |
||
| replacement | |||||
|
39125+B
|
39125+B
39211-61E06 JOINT ASSY-OUTER8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39211-61E06 |
US $407.81 |
||
|
39125+B
|
39125+B
39211-61E06 JOINT ASSY-OUTER9412--01 ~ 9508--01; (4WD.5P+4WD.7P+4WD.8P).CA20S |
39211-61E06 |
US $407.81 |
||
|
39125+B
|
39125+B
39211-61E10 JOINT ASSY-OUTER8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
39211-61E10 |
US $545.16 |
||
|
39126M
|
39126M
39711-64E00 JOINT ASSY-INNER9009--01 ~ 9202--01; 3(4WD.5P+4WD.7P+4WD.8P).CA20S +(4WD.5P+4WD.7P).KA24E |
39711-64E00 |
US $259.20 |
||
|
39126M
|
39126M
39712-64E10 JOINT ASSY-INNER8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39712-64E10 |
US $266.40 |
||
| replacement | |||||
|
39126M
|
39126M
39711-64E10 JOINT ASSY-INNER8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39711-64E10 |
US $342.67 |
||
|
39155KB
|
39155KB
39241-01E29 REPAIR KIT-DUST BOOT,OUTER8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39241-01E29 |
US $57.89 |
||
| replacement | |||||
|
39155KB
|
39155KB
39241-64J29 Repair Kit-Dust Boot, Outer8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39241-64J29 |
US $82.08 |
||
|
39155KB
|
39155KB
392410M625
Repair Kit-Dust Boot, Outer
9507--01 ~ 9508--01; (4WD.5P+4WD.7P+4WD.8P).CA20S |
392410M625 |
— | ||
| replacement | |||||
|
39155KB
|
39155KB
C9BDA-0M62H C9BDA0M62H9507--01 ~ 9508--01; (4WD.5P+4WD.7P+4WD.8P).CA20S |
C9BDA-0M62H |
US $91.35 |
||
|
39156KD
|
39156KD
39741-04F25 Repair Kit-Seal, Outer8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39741-04F25 |
US $67.37 |
||
|
39161
|
39161
39715-64E00 PLUG8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39715-64E00 |
US $9.65 |
||
|
39202N
|
39202N
39205-64E00 SHAFT-FRONT DRIVE,LH8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39205-64E00 |
US $283.68 |
||
|
39209+B
|
39209+B
39709-55E25 GREASE-INNER9009--01 ~ 9202--01; 3(4WD.5P+4WD.7P+4WD.8P).CA20S +(4WD.5P+4WD.7P).KA24E |
39709-55E25 |
US $30.96 |
||
| replacement | |||||
|
39209+B
|
39209+B
C97092U618 Grease-Inner9009--01 ~ 9202--01; 3(4WD.5P+4WD.7P+4WD.8P).CA20S +(4WD.5P+4WD.7P).KA24E |
C97092U618 |
US $23.33 |
||
|
39209+B
|
39209+B
39709-W1525 Grease-Inner8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39709-W1525 |
US $14.98 |
||
|
39209MA
|
39209MA
39209-01A26
Grease-Outer
8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ﾋﾀﾞﾘ ﾖｳ |
39209-01A26 |
— | ||
| replacement | |||||
|
39209MA
|
39209MA
C9BDA-0M62H C9BDA0M62H8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ﾋﾀﾞﾘ ﾖｳ |
C9BDA-0M62H |
US $91.35 |
||
|
39234+C
|
39234+C
3923401E00 RING-SNAP,BEARING RACE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
3923401E00 |
from US $1.22 |
||
|
39242+E
|
39242+E
3924201E00 BAND-BOOT,DRIVE SHAFT INNER8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
3924201E00 |
US $4.25 |
||
|
39242MA
|
39242MA
39242-01E12 BAND-RUBBER BOOT,SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39242-01E12 |
US $4.61 |
||
|
39734+C
|
39734+C
3970841W00 Ring-Snap, C8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
3970841W00 |
US $0.92 |
||
|
39742+B
|
39742+B
39742-W1200 Band-Dust Cover, Inner8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39742-W1200 |
US $4.03 |
||
|
39742MB
|
39742MB
39742W1205 Band-Dust Cover, Shaft8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
39742W1205 |
US $8.90 |
||
