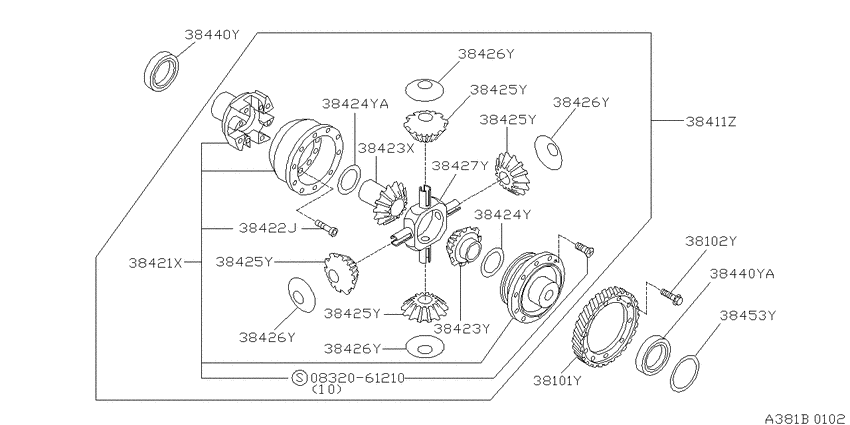

Front final drive (1990-09-01 ~ 1992-02-01; 4WD(センターデフ); CA20S.F5) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- F5
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0832061210
|
0832061210
08320-61210
New Genuine Part
|
08320-61210 |
— | ||
|
38101Y
|
38101Y
38101-0E911 Gear-Final Drive9202--01 ~ 9506--01; 4WD.CA20S.MT |
38101-0E911 |
US $198.72 |
||
|
38101Y
|
38101Y
38101-0E913 Gear-Final Drive9506--01 ~ 9508--01; (4WD.5P+4WD.7P).CA20S.F5 |
38101-0E913 |
US $167.04 |
||
|
38101Y
|
38101Y
38101-56E02 GEAR-FINAL DRIVE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38101-56E02 |
US $165.60 |
||
|
38102Y
|
38102Y
38102-56E00 BOLT-DRIVE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38102-56E00 |
US $2.91 |
||
|
38411Z
|
38411Z
38711-56E02 CASE COMPL-DIFFERENTIAL,VISCOUS8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38711-56E02 |
US $1,346.62 |
||
|
38411Z
|
38411Z
38711-56E06 CASE COMPL-DIFFERENTIAL,VISCOUS9202--01 ~ 9508--01; 4WD.MT |
38711-56E06 |
US $1,932 |
||
|
38421X
|
38421X
38720-56E02 CASE ASSY-DIFFERENTIAL,VISCOUS8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38720-56E02 |
US $954.38 |
||
|
38421X
|
38421X
38720-56E06 CASE ASSY-DIFFERENTIAL,VISCOUS9202--01 ~ 9508--01; 4WD.MT |
38720-56E06 |
US $1,383.43 |
||
|
38422J
|
38422J
38734-56E00 BOLT-COUPLING,DIFFERENTIAL CASE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38734-56E00 |
US $4.32 |
||
|
38423X
|
38423X
38723-56E01 GEAR-SIDE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38723-56E01 |
US $38.88 |
||
|
38423Y
|
38423Y
38729-56E01 GEAR-SIDE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38729-56E01 |
US $108.72 |
||
|
38424Y
|
38424Y
38424-56E00 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.63 |
38424-56E00 |
US $5.04 |
||
|
38424Y
|
38424Y
38424-56E01 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.72 |
38424-56E01 |
US $5.04 |
||
|
38424Y
|
38424Y
38424-56E02 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.81 |
38424-56E02 |
US $5.04 |
||
|
38424Y
|
38424Y
38424-56E03 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.90 |
38424-56E03 |
US $5.04 |
||
|
38424Y
|
38424Y
38724-56E00 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.75-0.80 |
38724-56E00 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E01 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.80-0.85 |
38724-56E01 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E02 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.85-0.90 |
38724-56E02 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E03 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.90-0.95 |
38724-56E03 |
US $4.03 |
||
|
38424YA
|
38424YA
38724-56E00 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.75-0.80 |
38724-56E00 |
US $4.03 |
||
|
38424YA
|
38424YA
38724-56E01 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.80-0.85 |
38724-56E01 |
US $4.03 |
||
|
38424YA
|
38424YA
38724-56E02 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.85-0.90 |
38724-56E02 |
US $4.03 |
||
|
38424YA
|
38424YA
38724-56E03 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.90-0.95 |
38724-56E03 |
US $4.03 |
||
|
38425Y
|
38425Y
38725-56E01 PINION-MATE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38725-56E01 |
US $54 |
||
|
38425Y
|
38425Y
38725-56E01 PINION-MATE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38725-56E01 |
US $54 |
||
|
38425Y
|
38425Y
38725-56E01 PINION-MATE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38725-56E01 |
US $54 |
||
|
38425Y
|
38425Y
38725-56E01 PINION-MATE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38725-56E01 |
US $54 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38426-03E00 |
US $4.18 |
||
|
38427Y
|
38427Y
38727-56E00 SHAFT-PINION MATE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38727-56E00 |
US $69.55 |
||
|
38440Y
|
38440Y
38440-01X00 Bearing-Differential Side8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38440-01X00 |
US $104.83 |
||
| replacement | |||||
|
38440Y
|
38440Y
38440-AD301 Bearing-Ring Gear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38440-AD301 |
US $69.70 |
||
|
38440Y
|
38440Y
38440-79E10 BEARING-DIFFERENTIAL SIDE9401--01 ~ 9508--01; 2(4WD.5P+4WD.7P).CA20S.F5 +(4WD.5P+4WD.7P).KA24E.F5 |
38440-79E10 |
US $130.18 |
||
|
38440Y
|
38440Y
38440-06R10 Bearing-Differential Side8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38440-06R10 |
US $91.58 |
||
|
38440YA
|
38440YA
38440-06R10 Bearing-Differential Side8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5 |
38440-06R10 |
US $91.58 |
||
|
38453Y
|
38453Y
38753-56E00 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.36 |
38753-56E00 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E01 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.40 |
38753-56E01 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E02 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.44 |
38753-56E02 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E03 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.48 |
38753-56E03 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E04 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.52 |
38753-56E04 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E05 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.56 |
38753-56E05 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E06 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.60 |
38753-56E06 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E07 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.64 |
38753-56E07 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E08 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.68 |
38753-56E08 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E09 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.72 |
38753-56E09 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E10 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.76 |
38753-56E10 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E11 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.80 |
38753-56E11 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E12 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.84 |
38753-56E12 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E13 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.88 |
38753-56E13 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E14 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.F5; ｾﾝﾀｸ T=0.92 |
38753-56E14 |
US $10.51 |
||
