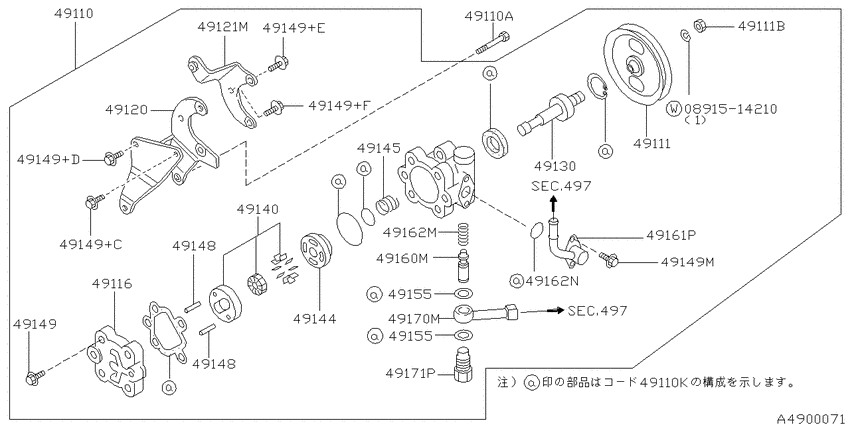

Power steering pump (1990-09-01 ~ 1995-08-01; CA20S) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- F5
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891514210
|
0891514210
08915-14210 WASHER-LOCK |
08915-14210 |
US $1.73 |
||
|
49110
|
49110
49110-32R00 Pump Assy-Power Steering8809--01 ~ 9009--01; CA20S |
49110-32R00 |
US $1,404.67 |
||
|
49110
|
49110
48361-60S00 Bolt8809--01 ~ 9009--01; CA20S |
48361-60S00 |
US $5.04 |
||
|
49110
|
49110
49591-2S525 Seal Kit-Power Steering Pump8809--01 ~ 9009--01; CA20S |
49591-2S525 |
from US $14.83 |
||
|
49110A
|
49110A
48361-60S00 Bolt8809--01 ~ 9009--01; CA20S |
48361-60S00 |
US $5.04 |
||
|
49110K
|
49110K
49591-2S525 Seal Kit-Power Steering Pump8809--01 ~ 9009--01; CA20S |
49591-2S525 |
from US $14.83 |
||
|
49111
|
49111
49132-D4005 Pulley-Power Steering Pump8809--01 ~ 9009--01; CA20S |
49132-D4005 |
US $130.03 |
||
|
49111
|
49111
49133-50L00 Nut-Pulley, Power Steering Pump8809--01 ~ 9009--01; CA20S |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111
|
49111
4913350L0A Nut-Pulley, Power Steering Pump8809--01 ~ 9009--01; CA20S |
4913350L0A |
US $1.73 |
||
|
49111B
|
49111B
49133-50L00 Nut-Pulley, Power Steering Pump8809--01 ~ 9009--01; CA20S |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111B
|
49111B
4913350L0A Nut-Pulley, Power Steering Pump8809--01 ~ 9009--01; CA20S |
4913350L0A |
US $1.73 |
||
|
49116
|
49116
49116-51E00 COVER-REAR,POWER STEERING PUMP8809--01 ~ 9009--01; CA20S |
49116-51E00 |
US $33.70 |
||
|
49120
|
49120
49120-51E01 BRACKET ASSY-HOSE,POWER STEERING8809--01 ~ 9009--01; CA20S |
49120-51E01 |
US $61.92 |
||
|
49121M
|
49121M
49124-D4005 Bracket Assy-Power Steering Pump8809--01 ~ 9009--01; CA20S |
49124-D4005 |
US $33.41 |
||
|
49130
|
49130
49130-19V00 Shaft-Drive, Power Steering Pump8809--01 ~ 9009--01; CA20S |
49130-19V00 |
US $40.75 |
||
|
49130
|
49130
49130-29C00 Shaft-Drive, Power Steering Pump9009--01 ~ 9508--01; CA20S |
49130-29C00 |
US $45.05 |
||
|
49140
|
49140
49140-15V00 Rotor & Camring Set-Power Steering Pump8812--01 ~ 9009--01; CA20S |
49140-15V00 |
from US $116.21 |
||
|
49140
|
49140
49140-51E00 ROTOR & CAMRING SET-POWER STEERING PUMP8809--01 ~ 8812--01; CA20S |
49140-51E00 |
US $143.57 |
||
|
49144
|
49144
49144-15V00 Plate-Side, Power Steering Pump8809--01 ~ 9009--01; CA20S |
49144-15V00 |
US $31.68 |
||
|
49145
|
49145
49145-19V00 Spring-Side Plate8809--01 ~ 9009--01; CA20S |
49145-19V00 |
US $11.09 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump8809--01 ~ 9009--01; CA20S |
49148-15V00 |
US $2.49 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump8809--01 ~ 9009--01; CA20S |
49148-15V00 |
US $2.49 |
||
|
49149
|
49149
49149-F6601 Bolt-Bracket, Power Steering Pump8809--01 ~ 9009--01; CA20S |
49149-F6601 |
US $4.32 |
||
|
49149
|
49149
49149-15V00 Bolt-Bracket, Power Steering Pump8809--01 ~ 9009--01; CA20S |
49149-15V00 |
US $6.19 |
||
|
49149
|
49149
49149-60U00 Bolt-Bracket, Power Steering Pump8809--01 ~ 9009--01; CA20S |
49149-60U00 |
US $4.32 |
||
|
49149
|
49149
49149-51E00 BOLT-BRACKET,POWER STEERING PUMP8809--01 ~ 9009--01; CA20S |
49149-51E00 |
US $3.46 |
||
|
49149
|
49149
49149-F6601 Bolt-Bracket, Power Steering Pump8809--01 ~ 9009--01; CA20S |
49149-F6601 |
US $4.32 |
||
|
49149
|
49149
49149-51E01 BOLT-BRACKET,POWER STEERING PUMP8809--01 ~ 9009--01; CA20S |
49149-51E01 |
US $3.46 |
||
|
49149
|
49149
49164-16V00 Bolt-Power Steering Pump8809--01 ~ 9009--01; CA20S |
49164-16V00 |
US $4.90 |
||
|
49149+C
|
49149+C
49149-60U00 Bolt-Bracket, Power Steering Pump8809--01 ~ 9009--01; CA20S |
49149-60U00 |
US $4.32 |
||
|
49149+D
|
49149+D
49149-51E00 BOLT-BRACKET,POWER STEERING PUMP8809--01 ~ 9009--01; CA20S |
49149-51E00 |
US $3.46 |
||
|
49149+E
|
49149+E
49149-F6601 Bolt-Bracket, Power Steering Pump8809--01 ~ 9009--01; CA20S |
49149-F6601 |
US $4.32 |
||
|
49149+F
|
49149+F
49149-51E01 BOLT-BRACKET,POWER STEERING PUMP8809--01 ~ 9009--01; CA20S |
49149-51E01 |
US $3.46 |
||
|
49149M
|
49149M
49164-16V00 Bolt-Power Steering Pump8809--01 ~ 9009--01; CA20S |
49164-16V00 |
US $4.90 |
||
|
49155
|
49155
4958926E00 WASHER-COPPER8809--01 ~ 9009--01; CA20S |
4958926E00 |
from US $4.63 |
||
|
49155
|
49155
4958926E00 WASHER-COPPER8809--01 ~ 9009--01; CA20S |
4958926E00 |
from US $4.63 |
||
|
49160M
|
49160M
49165-19V00 Valve Assy-Flow Control8809--01 ~ 8911--01; CA20S |
49165-19V00 |
US $42.19 |
||
|
49160M
|
49160M
49165-F6400 Valve Assy-Flow Control8911--01 ~ 9009--01; CA20S |
49165-F6400 |
US $44.50 |
||
|
49161P
|
49161P
49160-32R00 Connector-Inlet8809--01 ~ 9009--01; CA20S |
49160-32R00 |
US $32.69 |
||
|
49161P
|
49161P
49161-32R00 Connector-Inlet9202--01 ~ 9508--01; CA20S |
49161-32R00 |
US $72.14 |
||
|
49162M
|
49162M
4916719V00 Spring-Flow Control Valve8809--01 ~ 9009--01; CA20S |
4916719V00 |
US $10.94 |
||
|
49162N
|
49162N
4916226E00 SEAL-INLET CONNECTOR8809--01 ~ 9009--01; CA20S |
4916226E00 |
from US $1.65 |
||
|
49170M
|
49170M
49171-32R00 Connector Assy-Power Steering Pump8809--01 ~ 9009--01; CA20S |
49171-32R00 |
US $72.14 |
||
|
49171P
|
49171P
49170-51E00 CONNECTOR-OUTLET8809--01 ~ 9009--01; CA20S |
49170-51E00 |
US $66.10 |
||
|
