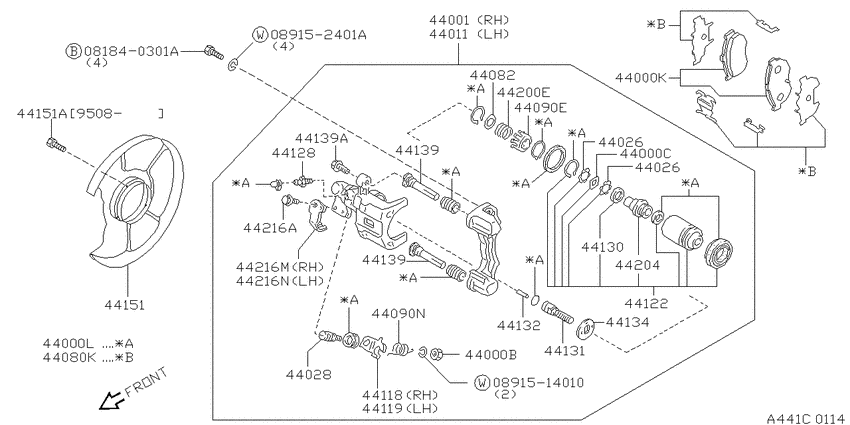

Rear brake (1992-02-01 ~ 1995-08-01; "ディスクフ゛レ-キアンチスキッド付; *4WD.CA20S +*4WD.KA24E) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- F5
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081840301A
|
081840301A
081840301A Bolt-hexagon |
081840301A |
from US $0.76 |
||
|
0891514010
|
0891514010
08915-14010
WASHER-LOCK
|
08915-14010 |
— | ||
| replacement | |||||
|
0891514010
|
0891514010
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
44000B
|
44000B
44149-P6500
Nut
8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44149-P6500 |
— | ||
| replacement | |||||
|
44000B
|
44000B
44149-AW70A Nut8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44149-AW70A |
US $4.71 |
||
|
44000C
|
44000C
44139-P6500 Washer8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44139-P6500 |
US $2.45 |
||
|
44000K
|
44000K
AY060NS903 Pad Kit-Disc Brake8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ﾐｷﾞ&ﾋﾀﾞﾘ ﾖｳ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
AY060NS903 |
US $142.56 |
||
|
44000L
|
44000L
AY620NS004 Seal Kit-Disc Brake8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
AY620NS004 |
US $61.78 |
||
|
44001
|
44001
44001-71E00 CALIPER ASSY-REAR RH,W/O PADS OR SHIMS8809--01 ~ 8905--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44001-71E00 |
US $502.68 |
||
|
44001
|
44001
44001-71E01 CALIPER ASSY-REAR RH,W/O PADS OR SHIMS8905--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44001-71E01 |
US $502.68 |
||
|
44011
|
44011
44011-71E00 CALIPER ASSY-REAR LH,W/O PADS OR SHIMS8809--01 ~ 8905--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44011-71E00 |
US $502.68 |
||
|
44011
|
44011
44011-71E01 CALIPER ASSY-REAR LH,W/O PADS OR SHIMS8905--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44011-71E01 |
US $502.68 |
||
|
44026
|
44026
44133-61E00 SPACER-ADJUSTING8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44133-61E00 |
US $5.04 |
||
|
44026
|
44026
44133-61E00 SPACER-ADJUSTING8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44133-61E00 |
US $5.04 |
||
|
44028
|
44028
44142-44B00 Cam-Adjusting, Rear Brake9107--01 ~ 9202--01; 5*(4WD.5P+4WD.7P+4WD.8P).CA20S +*(4WD.5P+4WD.7P).KA24E; ﾐｷﾞ ﾖｳ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44142-44B00 |
US $36.03 |
||
|
44028
|
44028
44142-N9502
Cam-Adjusting, Rear Brake
8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ﾐｷﾞ ﾖｳ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44142-N9502 |
— | ||
| replacement | |||||
|
44028
|
44028
44142-44B00 Cam-Adjusting, Rear Brake8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ﾐｷﾞ ﾖｳ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44142-44B00 |
US $36.03 |
||
|
44028
|
44028
44143-44B00 Cam-Adjusting, Rear Brake9107--01 ~ 9202--01; 5*(4WD.5P+4WD.7P+4WD.8P).CA20S +*(4WD.5P+4WD.7P).KA24E; ﾋﾀﾞﾘ ﾖｳ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44143-44B00 |
US $36.03 |
||
|
44028
|
44028
44143-N9502
Cam-Adjusting, Rear Brake
8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ﾋﾀﾞﾘ ﾖｳ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44143-N9502 |
— | ||
| replacement | |||||
|
44028
|
44028
44143-44B00 Cam-Adjusting, Rear Brake8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ﾋﾀﾞﾘ ﾖｳ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44143-44B00 |
US $36.03 |
||
|
44080K
|
44080K
44080-61E25 HARDWARE KIT-REAR DISC BRAKE PAD8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44080-61E25 |
US $65.09 |
||
|
44080K
|
44080K
44080-65E27 HARDWARE KIT-REAR DISC BRAKE PAD9009--01 ~ 9202--01; 5*(4WD.5P+4WD.7P+4WD.8P).CA20S +*(4WD.5P+4WD.7P).KA24E; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44080-65E27 |
US $76.75 |
||
|
44082
|
44082
44146N9500 Seat-Spring8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44146N9500 |
US $5.04 |
||
|
44090E
|
44090E
44081-35F00 Cover-Spring8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44081-35F00 |
US $4.18 |
||
|
44090N
|
44090N
44090-01P04 Spring8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ﾐｷﾞ ﾖｳ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44090-01P04 |
US $10.80 |
||
|
44090N
|
44090N
44091-01P04 Spring8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ﾋﾀﾞﾘ ﾖｳ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44091-01P04 |
US $10.80 |
||
|
44118
|
44118
44095-71E00 LEVER ASSY-RH8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44095-71E00 |
US $27.07 |
||
|
44118
|
44118
44085U8700 Washer-Lock8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
44085U8700 |
US $4.03 |
||
|
44119
|
44119
44096-71E00 LEVER ASSY-LH8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44096-71E00 |
US $27.65 |
||
|
44122
|
44122
4412361E00 PISTON8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
4412361E00 |
US $78.19 |
||
|
44128
|
44128
41128-21010
Screw-Bleeder
8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
41128-21010 |
— | ||
|
44128
|
44128
4112888E01
SCREW-BLEEDER
9105--01 ~ 9202--01; 5*(4WD.5P+4WD.7P+4WD.8P).CA20S +*(4WD.5P+4WD.7P).KA24E; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
4112888E01 |
— | ||
| replacement | |||||
|
44128
|
44128
41128AW70A Screw-Bleeder9105--01 ~ 9202--01; 5*(4WD.5P+4WD.7P+4WD.8P).CA20S +*(4WD.5P+4WD.7P).KA24E; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
41128AW70A |
from US $7.63 |
||
|
44128
|
44128
41128-B5012 Screw-Bleeder8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41128-B5012 |
US $6.91 |
||
|
44128
|
44128
41128-U5200 Screw-Bleeder, Clutch Damper8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
41128-U5200 |
US $9.02 |
||
|
44130
|
44130
44130-P6500 Bearing8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44130-P6500 |
US $11.09 |
||
|
44131
|
44131
4413461E00 ROD-PUSH9009--01 ~ 9202--01; 5*(4WD.5P+4WD.7P+4WD.8P).CA20S +*(4WD.5P+4WD.7P).KA24E; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
4413461E00 |
US $15.41 |
||
|
44131
|
44131
44134-N9500 Rod-Push8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44134-N9500 |
US $15.98 |
||
|
44132
|
44132
44132N9500 Strut8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44132N9500 |
US $9.15 |
||
|
44134
|
44134
44131-N9500 Plate8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44131-N9500 |
US $2.45 |
||
|
44139
|
44139
44140N9500 Pin-Lock8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44140N9500 |
from US $8.45 |
||
|
44139
|
44139
44141-N9500
Pin-Bolt
8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44141-N9500 |
— | ||
| replacement | |||||
|
44139
|
44139
44141AW70A Pin-Bolt8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44141AW70A |
from US $3.35 |
||
|
44139
|
44139
44140N9500 Pin-Lock8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44140N9500 |
from US $8.45 |
||
|
44139
|
44139
44141-N9500
Pin-Bolt
8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44141-N9500 |
— | ||
| replacement | |||||
|
44139
|
44139
44141AW70A Pin-Bolt8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44141AW70A |
from US $3.35 |
||
|
44139A
|
44139A
44141-N9500
Pin-Bolt
8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44141-N9500 |
— | ||
| replacement | |||||
|
44139A
|
44139A
44141AW70A Pin-Bolt8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44141AW70A |
from US $3.35 |
||
|
44151
|
44151
44151-71E01 PLATE-BAFFLE8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ﾐｷﾞ&ﾋﾀﾞﾘ ﾖｳ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44151-71E01 |
US $33.26 |
||
|
44200E
|
44200E
44147-61E00 SPRING8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44147-61E00 |
US $4.18 |
||
|
44204
|
44204
44128-61E00 NUT-ADJUSTER8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44128-61E00 |
US $11.66 |
||
|
44216A
|
44216A
44252-01P04 Bolt8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44252-01P04 |
US $5.76 |
||
|
44216M
|
44216M
44195-71E01 GUIDE-ADJUST CABLE,RH8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44195-71E01 |
US $27.36 |
||
|
44216N
|
44216N
44196-71E01 GUIDE-ADJUST CABLE,LH8809--01 ~ 9009--01; *(4WD.5P+4WD.6P+4WD.7P).CA20S; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
44196-71E01 |
US $27.36 |
||
