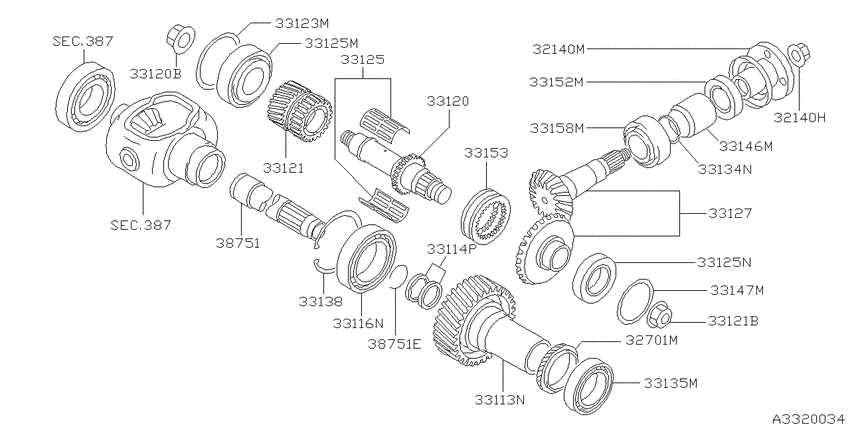

Transfer gear (1990-09-01 ~ 1992-02-01; 4WD.CA20S +4WD.KA24E) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- F5
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32140H
|
32140H
38216-U3000
Nut
8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
38216-U3000 |
— | ||
| replacement | |||||
|
32140H
|
32140H
38216-U301A Nut-Drive Pinion8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
38216-U301A |
from US $4.99 |
||
|
32140M
|
32140M
38210-10R00 Flange Assy-Companion8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
38210-10R00 |
US $91.58 |
||
| replacement | |||||
|
32140M
|
32140M
38210-78N01 Flange Assy-Companion8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
38210-78N01 |
US $103.68 |
||
|
32140M
|
32140M
38210-78N01 Flange Assy-Companion9009--01 ~ 9202--01; 3(4WD.5P+4WD.7P+4WD.8P).CA20S +(4WD.5P+4WD.7P).KA24E |
38210-78N01 |
US $103.68 |
||
|
32701M
|
32701M
32701-06R00 Gear-Drive, Speedometer8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
32701-06R00 |
US $8.06 |
||
|
33113N
|
33113N
33113-56E00 GEAR-RING,TRANSFER8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
33113-56E00 |
US $285.12 |
||
|
33114P
|
33114P
3311456E00 SEAL-OIL,DRIVE SHAFT RH8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
3311456E00 |
US $10.08 |
||
|
33116N
|
33116N
33116-56E00 BEARING-BALL,RING GEAR RH8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
33116-56E00 |
US $82.94 |
||
|
33120
|
33120
33120-56E01 SHAFT-COUNTER,TRANSFER8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
33120-56E01 |
US $85.97 |
||
|
33120
|
33120
3314306R00 Nut8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
3314306R00 |
US $7.63 |
||
|
33120B
|
33120B
3314306R00 Nut8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
3314306R00 |
US $7.63 |
||
|
33121
|
33121
33124-56E01 GEAR-COUNTER,TRANSFER8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
33124-56E01 |
US $397.90 |
||
|
33121
|
33121
33124-56E02 GEAR-COUNTER,TRANSFER9009--01 ~ 9202--01; 3(4WD.5P+4WD.7P+4WD.8P).CA20S +(4WD.5P+4WD.7P).KA24E |
33124-56E02 |
US $397.90 |
||
|
33121
|
33121
33115-06R00 Nut-Hypoid Gear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
33115-06R00 |
US $9.94 |
||
|
33121B
|
33121B
33115-06R00 Nut-Hypoid Gear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
33115-06R00 |
US $9.94 |
||
|
33123M
|
33123M
33123-56E00 SHIM-ADJUST,COUNTER SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.40 |
33123-56E00 |
US $5.18 |
||
|
33123M
|
33123M
33123-56E01 SHIM-ADJUST,COUNTER SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.44 |
33123-56E01 |
US $5.18 |
||
|
33123M
|
33123M
33123-56E02 SHIM-ADJUST,COUNTER SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.48 |
33123-56E02 |
US $5.18 |
||
|
33123M
|
33123M
33123-56E03 SHIM-ADJUST,COUNTER SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.52 |
33123-56E03 |
US $5.18 |
||
|
33123M
|
33123M
33123-56E04 SHIM-ADJUST,COUNTER SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.56 |
33123-56E04 |
US $5.18 |
||
|
33123M
|
33123M
33123-56E05 SHIM-ADJUST,COUNTER SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.60 |
33123-56E05 |
US $5.18 |
||
|
33123M
|
33123M
33123-56E06 SHIM-ADJUST,COUNTER SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.64 |
33123-56E06 |
US $5.18 |
||
|
33123M
|
33123M
33123-56E07 SHIM-ADJUST,COUNTER SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.68 |
33123-56E07 |
US $5.18 |
||
|
33123M
|
33123M
33123-56E08 SHIM-ADJUST,COUNTER SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.72 |
33123-56E08 |
US $5.18 |
||
|
33123M
|
33123M
33123-56E09 SHIM-ADJUST,COUNTER SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.76 |
33123-56E09 |
US $5.18 |
||
|
33123M
|
33123M
33123-56E10 SHIM-ADJUST,COUNTER SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.92 |
33123-56E10 |
US $5.18 |
||
|
33123M
|
33123M
33123-56E11 SHIM-ADJUST,COUNTER SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=1.32 |
33123-56E11 |
US $5.18 |
||
|
33125
|
33125
33125-10R00 Bearing-Counter Gear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
33125-10R00 |
US $85.10 |
||
|
33125
|
33125
33136-56E01 BEARING-COUNTER SHAFT,RH8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
33136-56E01 |
US $79.06 |
||
|
33125
|
33125
38440-D2100 Bearing-Counter Shaft, Lh8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
38440-D2100 |
US $35.14 |
||
|
33125M
|
33125M
33136-56E01 BEARING-COUNTER SHAFT,RH8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
33136-56E01 |
US $79.06 |
||
|
33125N
|
33125N
38440-D2100 Bearing-Counter Shaft, Lh8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
38440-D2100 |
US $35.14 |
||
|
33127
|
33127
33127-58M00 Gear Set-Hypoid, Transfer8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
33127-58M00 |
US $214.56 |
||
|
33134N
|
33134N
38125-P0102 Washer-Adjust, Drive Pinion Bearing8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
38125-P0102 |
US $5.55 |
||
|
33135M
|
33135M
33135-06R01 Bearing-Ball, Ring Gear Lh8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
33135-06R01 |
US $85.10 |
||
|
33138
|
33138
33138-56E00 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.00 |
33138-56E00 |
US $28.22 |
||
|
33138
|
33138
33138-56E01 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.04 |
33138-56E01 |
US $28.22 |
||
|
33138
|
33138
33138-56E02 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.08 |
33138-56E02 |
US $28.22 |
||
|
33138
|
33138
33138-56E03 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.12 |
33138-56E03 |
US $28.22 |
||
|
33138
|
33138
33138-56E04 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.16 |
33138-56E04 |
US $28.22 |
||
|
33138
|
33138
33138-56E05 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.20 |
33138-56E05 |
US $28.22 |
||
|
33138
|
33138
33138-56E06 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.24 |
33138-56E06 |
US $28.22 |
||
|
33138
|
33138
33138-56E07 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.28 |
33138-56E07 |
US $28.22 |
||
|
33138
|
33138
33138-56E08 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.32 |
33138-56E08 |
US $28.22 |
||
|
33138
|
33138
33138-56E09 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.36 |
33138-56E09 |
US $28.22 |
||
|
33138
|
33138
33138-56E10 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.40 |
33138-56E10 |
US $28.22 |
||
|
33138
|
33138
33138-56E11 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.44 |
33138-56E11 |
US $28.22 |
||
|
33138
|
33138
33138-56E12 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.48 |
33138-56E12 |
US $28.22 |
||
|
33138
|
33138
33138-56E13 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.52 |
33138-56E13 |
US $28.22 |
||
|
33138
|
33138
33138-56E14 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.56 |
33138-56E14 |
US $28.22 |
||
|
33138
|
33138
33138-56E15 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.60 |
33138-56E15 |
US $28.22 |
||
|
33138
|
33138
33138-56E16 RING-SNAP,RING GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=4.64 |
33138-56E16 |
US $28.22 |
||
|
33146M
|
33146M
38165P0102 Spacer-Drive Pinion Bearing8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
38165P0102 |
from US $14 |
||
|
33147M
|
33147M
33147-06R00 Shim-Adjust, Hypoid Gear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.40 |
33147-06R00 |
US $4.18 |
||
|
33147M
|
33147M
33147-06R01 Shim-Adjust, Hypoid Gear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.44 |
33147-06R01 |
US $4.18 |
||
|
33147M
|
33147M
33147-06R02 Shim-Adjust, Hypoid Gear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.48 |
33147-06R02 |
US $4.18 |
||
|
33147M
|
33147M
33147-06R03 Shim-Adjust, Hypoid Gear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.60 |
33147-06R03 |
US $4.18 |
||
|
33147M
|
33147M
33147-06R04 Shim-Adjust, Hypoid Gear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.64 |
33147-06R04 |
US $4.18 |
||
|
33147M
|
33147M
33147-06R05 Shim-Adjust, Hypoid Gear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.76 |
33147-06R05 |
US $4.18 |
||
|
33147M
|
33147M
33147-06R06 Shim-Adjust, Hypoid Gear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.68 |
33147-06R06 |
US $4.18 |
||
|
33147M
|
33147M
33147-06R07 Shim-Adjust, Hypoid Gear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S; ｾﾝﾀｸ T=0.72 |
33147-06R07 |
US $4.18 |
||
|
33152M
|
33152M
38140-61000 Bearing-Drive Pinion, Front8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
38140-61000 |
US $26.85 |
||
|
33153
|
33153
33153-10R00 Sleeve-Coupling8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
33153-10R00 |
US $73.58 |
||
|
33158M
|
33158M
3812061000 Bearing-Drive Pinion, Rear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
3812061000 |
from US $32.66 |
||
|
387
|
Front differential (transfer)
387
|
||||
|
387
|
Front differential (transfer)
387
|
||||
|
387
|
Front differential (transfer)
387
|
||||
|
387
|
Front differential (transfer)
387
|
||||
|
387
|
Front differential (transfer)
387
|
||||
|
387
|
Front differential (transfer)
387
|
||||
|
38751
|
38751
38751-56E00 SHAFT-CONNECT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
38751-56E00 |
US $195.84 |
||
|
38751
|
38751
38752-56E00 CIRCLIP-CONNECT SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
38752-56E00 |
US $3.74 |
||
|
38751E
|
38751E
38752-56E00 CIRCLIP-CONNECT SHAFT8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S |
38752-56E00 |
US $3.74 |
||
