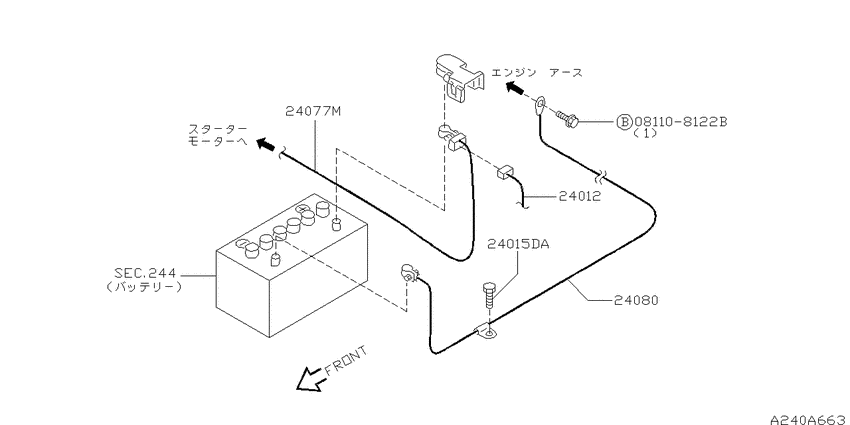

Wiring (1990-09-01 ~ 1992-02-01; バッテリー マワリ; S) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- F5
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081108122B
|
081108122B
08110-8122B
Bolt-hexagon
|
08110-8122B |
— | ||
|
24012
|
24012
24012-32R01 Harness Assy-Engine Room8809--01 ~ 9009--01; S.(4WD.5P+4WD.6P+4WD.7P).F5 |
24012-32R01 |
US $1,386.26 |
||
|
24012
|
24012
24012-42R00
Harness Assy-Engine Room
8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P).F5; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
24012-42R00 |
— | ||
|
24012
|
24012
24012-46R60 Harness Assy-Engine Room9009--01 ~ 9202--01; /S.2WD.5P.M.F5 +S.(2WD.7P+4WD.5P+4WD.7P).F5 +S.D |
24012-46R60 |
US $1,386.26 |
||
|
24012
|
24012
24012-46R61 Harness Assy-Engine Room9009--01 ~ 9202--01; 2*S.2WD.5P.M.F5 +*S.(2WD.7P+4WD.5P+4WD.7P).F5 +*S.D; ﾍﾂﾄﾞﾗﾝﾌﾟ ｸﾘ-ﾅ- ｼﾖｳ |
24012-46R61 |
US $1,325.38 |
||
|
24012
|
24012
24012-46R66 Harness Assy-Engine Room9009--01 ~ 9202--01; *S.(4WD.5P+4WD.7P).F5; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
24012-46R66 |
US $1,386.26 |
||
|
24012
|
24012
24012-47R60 Harness Assy-Engine Room9202--01 ~ 9508--01; S.(M+J).F5 +S.D |
24012-47R60 |
US $1,386.26 |
||
|
24012
|
24012
24012-47R61 Harness Assy-Engine Room9202--01 ~ 9508--01; *S.(4WD.5P+4WD.7P).CA20S.F5; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
24012-47R61 |
US $1,386.26 |
||
|
24012
|
24012
01466-00151 SCREW9202--01 ~ 9508--01; S |
01466-00151 |
US $1.93 |
||
|
24015DA
|
24015DA
0145600411 SCREW8809--01 ~ 9009--01; S |
0145600411 |
US $1.67 |
||
|
24077M
|
24077M
24077-42R00 Harness Assy-Engine8809--01 ~ 9009--01; S.(4WD.5P+4WD.6P+4WD.7P).F5; ﾊﾞﾂﾃﾘ-ｹ-ﾌﾞﾙ ﾂｷ |
24077-42R00 |
US $351.17 |
||
|
24077M
|
24077M
24077-42R01 Harness Assy-Engine8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P).F5; ﾊﾞﾂﾃﾘ-ｹ-ﾌﾞﾙ ﾂｷ ｶﾝﾚｲﾁ ｼﾖｳ |
24077-42R01 |
US $351.17 |
||
|
24077M
|
24077M
24077-46R60 Harness Assy-Engine9009--01 ~ 9202--01; /S.2WD.5P.M.F5 +S.(2WD.7P+4WD.5P+4WD.7P).F5 +S.D; ﾊﾞﾂﾃﾘ-ｹ-ﾌﾞﾙ ﾂｷ |
24077-46R60 |
US $351.17 |
||
|
24077M
|
24077M
24077-46R61 Harness Assy-Engine9009--01 ~ 9202--01; 2*S.2WD.5P.M.F5 +*S.(2WD.7P+4WD.5P+4WD.7P).F5 +*S.D; ﾊﾞﾂﾃﾘ-ｹ-ﾌﾞﾙ ﾂｷ ｶﾝﾚｲﾁ ｼﾖｳ |
24077-46R61 |
US $351.17 |
||
|
24080
|
24080
24080-30R01 Cable Assy-Battery Earth8809--01 ~ 9009--01; >*S.(2WD.5P+2WD.6P+2WD.7P+2WD.8P) +*S.(4WD.5P+4WD.6P+4WD.7P).F5; ｶﾝﾚｲﾁ ｼﾖｳ |
24080-30R01 |
US $89.71 |
||
|
24080
|
24080
24080-32R01 Cable Assy-Battery Earth8809--01 ~ 9009--01; <S.(2WD.5P+2WD.6P+2WD.7P+2WD.8P) +S.(4WD.5P+4WD.6P+4WD.7P).F5 |
24080-32R01 |
US $89.71 |
||
|
