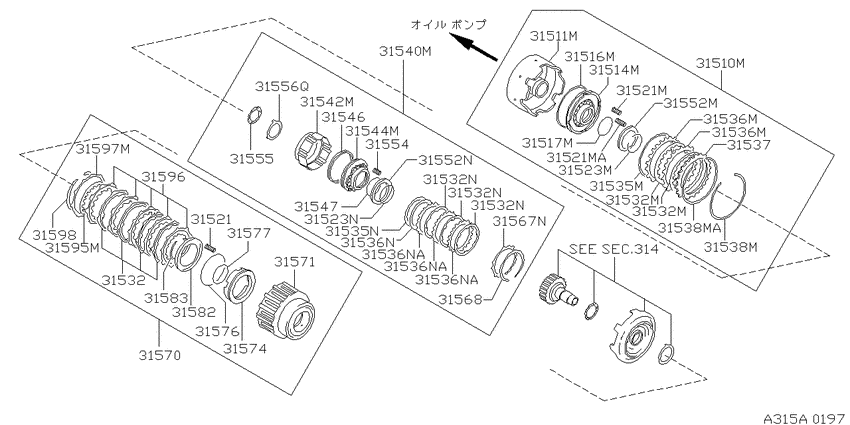

Clutch & band servo (1990-09-01 ~ 1992-02-01; クラッチ; RA +FA) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- FA
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31510M
|
31510M
31510-21X06 Clutch Assy-Reverse8809--01 ~ 9009--01; RA +FA |
31510-21X06 |
US $298.78 |
||
|
31511M
|
31511M
31511-21X00 Drum-Reverse Clutch8809--01 ~ 9009--01; RA +FA |
31511-21X00 |
US $161.28 |
||
|
31514M
|
31514M
31514-21X01 Piston Assy-Clutch8809--01 ~ 9009--01; RA +FA |
31514-21X01 |
US $25.49 |
||
|
31516M
|
31516M
31516-21X01
Seal-Lip
8809--01 ~ 9009--01; RA +FA |
31516-21X01 |
— | ||
| replacement | |||||
|
31516M
|
31516M
C1516-21X01 Seal-lip8809--01 ~ 9009--01; RA +FA |
C1516-21X01 |
US $11.79 |
||
|
31517M
|
31517M
31517-21X00 Seal-Lathe Cut Ring8809--01 ~ 9009--01; RA +FA |
31517-21X00 |
US $6.77 |
||
|
31521
|
31521
3152121X00 Spring-Piston Return8809--01 ~ 9009--01; RA +FA |
3152121X00 |
US $1.73 |
||
|
31521
|
31521
3152121X00 Spring-Piston Return8809--01 ~ 9009--01; RA +FA |
3152121X00 |
US $1.73 |
||
|
31521
|
31521
31521-21X01 Spring-Piston Return8809--01 ~ 9009--01; RA +FA |
31521-21X01 |
US $1.73 |
||
|
31521M
|
31521M
3152121X00 Spring-Piston Return8809--01 ~ 9009--01; RA +FA |
3152121X00 |
US $1.73 |
||
|
31521M
|
31521M
31521-21X01 Spring-Piston Return8809--01 ~ 9009--01; RA +FA |
31521-21X01 |
US $1.73 |
||
|
31521MA
|
31521MA
31521-21X01 Spring-Piston Return8809--01 ~ 9009--01; RA +FA |
31521-21X01 |
US $1.73 |
||
|
31523M
|
31523M
31523-21X00 Ring-Snap8809--01 ~ 9009--01; RA +FA |
31523-21X00 |
US $2.45 |
||
|
31523N
|
31523N
31553-21X00 Ring-Snap8809--01 ~ 9009--01; RA +FA |
31553-21X00 |
US $4.03 |
||
|
31532
|
31532
31532-21X09 Plate Assy-Drive8811--01 ~ 9009--01; RA +FA |
31532-21X09 |
US $12.53 |
||
|
31532
|
31532
31592-21X00 Plate Assy-Drive8809--01 ~ 8811--01; RA +FA |
31592-21X00 |
US $14.40 |
||
|
31532
|
31532
31532-21X00 Plate Assy-Drive8809--01 ~ 9009--01; RA +FA |
31532-21X00 |
US $18.58 |
||
|
31532
|
31532
31532-21X02 Plate Assy-Drive8809--01 ~ 9009--01; RA +FA |
31532-21X02 |
US $15.55 |
||
|
31532M
|
31532M
31532-21X00 Plate Assy-Drive8809--01 ~ 9009--01; RA +FA |
31532-21X00 |
US $18.58 |
||
|
31532M
|
31532M
31532-21X00 Plate Assy-Drive8809--01 ~ 9009--01; RA +FA |
31532-21X00 |
US $18.58 |
||
|
31532N
|
31532N
31532-21X02 Plate Assy-Drive8809--01 ~ 9009--01; RA +FA |
31532-21X02 |
US $15.55 |
||
|
31532N
|
31532N
31532-21X02 Plate Assy-Drive8809--01 ~ 9009--01; RA +FA |
31532-21X02 |
US $15.55 |
||
|
31532N
|
31532N
31532-21X02 Plate Assy-Drive8809--01 ~ 9009--01; RA +FA |
31532-21X02 |
US $15.55 |
||
|
31535M
|
31535M
31535-21X04 Plate-Dished8809--01 ~ 9009--01; RA +FA |
31535-21X04 |
US $15.98 |
||
|
31535N
|
31535N
31535-21X03 Plate-Dished8809--01 ~ 9009--01; RA +FA |
31535-21X03 |
US $15.98 |
||
|
31536M
|
31536M
31536-21X00 Plate-Driven8809--01 ~ 9009--01; RA +FA |
31536-21X00 |
US $13.39 |
||
|
31536M
|
31536M
31536-21X00 Plate-Driven8809--01 ~ 9009--01; RA +FA |
31536-21X00 |
US $13.39 |
||
|
31536N
|
31536N
31566-21X00 Plate-Driven8809--01 ~ 9009--01; RA +FA |
31566-21X00 |
US $6.48 |
||
|
31536N
|
31536N
31566-21X02 Plate-Driven8809--01 ~ 9009--01; RA +FA |
31566-21X02 |
US $15.55 |
||
|
31536NA
|
31536NA
31566-21X02 Plate-Driven8809--01 ~ 9009--01; RA +FA |
31566-21X02 |
US $15.55 |
||
|
31536NA
|
31536NA
31566-21X02 Plate-Driven8809--01 ~ 9009--01; RA +FA |
31566-21X02 |
US $15.55 |
||
|
31536NA
|
31536NA
31566-21X02 Plate-Driven8809--01 ~ 9009--01; RA +FA |
31566-21X02 |
US $15.55 |
||
|
31537
|
31537
31537-21X00 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=4.6 |
31537-21X00 |
US $55.58 |
||
|
31537
|
31537
31537-21X01 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=4.8 |
31537-21X01 |
US $55.58 |
||
|
31537
|
31537
31537-21X02 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=5.0 |
31537-21X02 |
US $55.58 |
||
|
31537
|
31537
31537-21X03 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=5.2 |
31537-21X03 |
US $55.58 |
||
|
31537
|
31537
31537-21X04 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=5.4 |
31537-21X04 |
US $54.43 |
||
|
31537
|
31537
31567-21X13 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=5.6 |
31567-21X13 |
US $53.42 |
||
|
31537
|
31537
31567-21X14 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=5.8 |
31567-21X14 |
US $53.42 |
||
|
31537
|
31537
31567-21X15 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=6.0 |
31567-21X15 |
US $54.43 |
||
|
31538M
|
31538M
31538-21X00 Ring-Snap8809--01 ~ 9009--01; RA +FA |
31538-21X00 |
US $4.03 |
||
|
31538MA
|
31538MA
31538-21X00 Ring-Snap8809--01 ~ 9009--01; RA +FA |
31538-21X00 |
US $4.03 |
||
|
31540M
|
31540M
31540-21X22 Clutch Assy-High8809--01 ~ 9009--01; RA +FA |
31540-21X22 |
US $379.49 |
||
|
31542M
|
31542M
31541-21X01 Drum-High Clutch8809--01 ~ 9009--01; RA +FA |
31541-21X01 |
US $178.56 |
||
|
31544M
|
31544M
31544-21X03 Piston Assy-High Clutch8809--01 ~ 9009--01; RA +FA |
31544-21X03 |
US $82.80 |
||
|
31546
|
31546
31528-21X09 Seal-Lip8809--01 ~ 9009--01; RA +FA |
31528-21X09 |
US $11.52 |
||
|
31547
|
31547
3154721X00 Seal-Lathe Cut Ring8809--01 ~ 9009--01; RA +FA |
3154721X00 |
from US $5.76 |
||
|
31552M
|
31552M
31522-21X00 Retainer-Spring8809--01 ~ 9009--01; RA +FA |
31522-21X00 |
US $4.03 |
||
|
31552N
|
31552N
31552-21X01 Retainer-Spring8809--01 ~ 9009--01; RA +FA |
31552-21X01 |
US $5.18 |
||
|
31554
|
31554
31505-21X02 Spring-Return, Piston8809--01 ~ 9009--01; RA +FA |
31505-21X02 |
US $0.86 |
||
|
31555
|
31555
31407-21X00 Bearing-Needle, Thrust8809--01 ~ 9009--01; RA +FA |
31407-21X00 |
US $10.80 |
||
|
31556Q
|
31556Q
31429-21X00 Race-Bearing8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=0.8 |
31429-21X00 |
US $5.18 |
||
|
31556Q
|
31556Q
31429-21X01 Race-Bearing8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=1.0 |
31429-21X01 |
US $5.18 |
||
|
31556Q
|
31556Q
31429-21X02 Race-Bearing8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=1.2 |
31429-21X02 |
US $5.18 |
||
|
31556Q
|
31556Q
31429-21X03 Race-Bearing8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=1.4 |
31429-21X03 |
US $5.18 |
||
|
31556Q
|
31556Q
31429-21X04 Race-Bearing8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=1.6 |
31429-21X04 |
US $5.18 |
||
|
31556Q
|
31556Q
31429-21X05 Race-Bearing8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=1.8 |
31429-21X05 |
US $5.18 |
||
|
31556Q
|
31556Q
31429-21X06 Race-Bearing8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=2.0 |
31429-21X06 |
US $5.18 |
||
|
31567N
|
31567N
31567-21X00 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=3.6 |
31567-21X00 |
US $40.61 |
||
|
31567N
|
31567N
31567-21X01 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=3.8 |
31567-21X01 |
US $40.61 |
||
|
31567N
|
31567N
31567-21X02 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=4.0 |
31567-21X02 |
US $40.61 |
||
|
31567N
|
31567N
31567-21X03 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=4.2 |
31567-21X03 |
US $40.61 |
||
|
31567N
|
31567N
31567-21X04 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=4.4 |
31567-21X04 |
US $40.61 |
||
|
31567N
|
31567N
31567-21X05 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=4.6 |
31567-21X05 |
US $40.61 |
||
|
31567N
|
31567N
31567-21X06 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=4.8 |
31567-21X06 |
US $40.61 |
||
|
31568
|
31568
31568-21X00 Ring-Snap, Transfer Clutch Drum8809--01 ~ 9009--01; RA +FA |
31568-21X00 |
US $4.18 |
||
|
31570
|
31570
31570-21X01 Clutch Assy-Low8809--01 ~ 9009--01; RA +FA |
31570-21X01 |
US $399.31 |
||
|
31571
|
31571
31571-21X04 Drum Assy-Low Clutch8809--01 ~ 9009--01; RA +FA |
31571-21X04 |
US $78.91 |
||
|
31574
|
31574
31574-21X02 Piston Assy-Low Clutch8809--01 ~ 9009--01; RA +FA |
31574-21X02 |
US $34.85 |
||
|
31576
|
31576
31576-21X00 Seal-Lathe Cut Ring8809--01 ~ 9009--01; RA +FA |
31576-21X00 |
US $8.93 |
||
|
31577
|
31577
31577-21X00 Seal-O Ring, Low Clutch8809--01 ~ 9009--01; RA +FA |
31577-21X00 |
US $5.90 |
||
|
31582
|
31582
31582-21X00 Retainer-Spring, Low Clutch8809--01 ~ 9009--01; RA +FA |
31582-21X00 |
US $5.18 |
||
|
31583
|
31583
31583-21X00 Ring-Snap, Low Clutch8809--01 ~ 9009--01; RA +FA |
31583-21X00 |
US $1.73 |
||
|
31595M
|
31595M
31578-21X01 Plate-Dished8809--01 ~ 9009--01; RA +FA |
31578-21X01 |
US $15.55 |
||
|
31596
|
31596
31596-21X00 Plate-Driven8809--01 ~ 9009--01; RA +FA |
31596-21X00 |
US $8.21 |
||
|
31597M
|
31597M
31597-21X00 Plate-Retaining Clutch8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=4.8 |
31597-21X00 |
US $35.42 |
||
|
31597M
|
31597M
31597-21X01 Plate-Retaining Clutch8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=5.0 |
31597-21X01 |
US $35.42 |
||
|
31597M
|
31597M
31597-21X02 Plate-Retaining Clutch8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=5.2 |
31597-21X02 |
US $36.14 |
||
|
31597M
|
31597M
31597-21X03 Plate-Retaining Clutch8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=5.4 |
31597-21X03 |
US $35.42 |
||
|
31597M
|
31597M
31597-21X04 Plate-Retaining Clutch8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=5.6 |
31597-21X04 |
US $47.81 |
||
|
31597M
|
31597M
31597-21X05 Plate-Retaining Clutch8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=5.8 |
31597-21X05 |
US $48.96 |
||
|
31597M
|
31597M
31597-21X06 Plate-Retaining Clutch8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=6.0 |
31597-21X06 |
US $47.81 |
||
|
31598
|
31598
31598-21X00 Ring-Snap, Clutch Drum8809--01 ~ 9009--01; RA +FA |
31598-21X00 |
US $2.45 |
||
