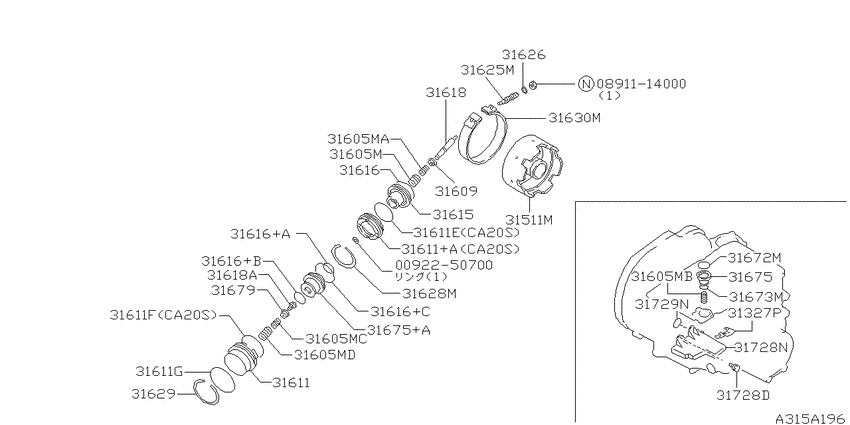

Clutch & band servo (1988-09-01 ~ 1990-09-01; ブレーキバンド; RA +FA) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- FA
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250700
|
0092250700
00922-50700
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-50700 |
— | ||
|
0891114000
|
0891114000
08911-14000
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-14000 |
— | ||
|
31327P
|
31327P
31327-21X00 Plate-Baffle8809--01 ~ 9009--01; RA +FA |
31327-21X00 |
US $4.18 |
||
|
31511M
|
31511M
31511-21X00 Drum-Reverse Clutch8809--01 ~ 9009--01; RA +FA |
31511-21X00 |
US $161.28 |
||
|
31605M
|
31605M
31621-21X02 Spring-Piston Return8809--01 ~ 9009--01; RA +FA |
31621-21X02 |
US $4.18 |
||
|
31605M
|
31605M
31605-21X08 Spring-Servo Cushion8809--01 ~ 9009--01; RA +FA |
31605-21X08 |
US $4.18 |
||
|
31605M
|
31605M
31674-01X02 Spring-Accumulator Servo8809--01 ~ 9009--01; RA +FA |
31674-01X02 |
US $2.45 |
||
|
31605M
|
31605M
31678-21X15 Spring-Accumulator Servo8809--01 ~ 9009--01; RA +FA |
31678-21X15 |
US $4.18 |
||
|
31605M
|
31605M
31605-21X02 Spring-Accumulator Servo8809--01 ~ 9009--01; RA +FA |
31605-21X02 |
US $4.18 |
||
|
31605MA
|
31605MA
31605-21X08 Spring-Servo Cushion8809--01 ~ 9009--01; RA +FA |
31605-21X08 |
US $4.18 |
||
|
31605MB
|
31605MB
31674-01X02 Spring-Accumulator Servo8809--01 ~ 9009--01; RA +FA |
31674-01X02 |
US $2.45 |
||
|
31605MC
|
31605MC
31678-21X15 Spring-Accumulator Servo8809--01 ~ 9009--01; RA +FA |
31678-21X15 |
US $4.18 |
||
|
31605MD
|
31605MD
31605-21X02 Spring-Accumulator Servo8809--01 ~ 9009--01; RA +FA |
31605-21X02 |
US $4.18 |
||
|
31609
|
31609
31609-21X60 Retainer-Return Spring Servo8809--01 ~ 9009--01; RA +FA |
31609-21X60 |
US $6.19 |
||
|
31611
|
31611
31613-21X62 Retainer-Servo Piston8809--01 ~ 9009--01; RA +FA; 61-35 |
31613-21X62 |
US $70.85 |
||
|
31611
|
31611
31611-21X66 Retainer-Servo Piston8809--01 ~ 9009--01; RA +FA |
31611-21X66 |
US $50.40 |
||
|
31611
|
31611
31612-21X01 Seal-O Ring, Band Servo8809--01 ~ 9009--01; RA +FA |
31612-21X01 |
US $5.18 |
||
|
31611
|
31611
31613-21X10 Seal-O Ring, Band Servo8809--01 ~ 9009--01; RA +FA |
31613-21X10 |
US $5.18 |
||
|
31611
|
31611
31614-21X10 Seal-O Ring, Band Servo8809--01 ~ 9009--01; RA +FA |
31614-21X10 |
US $5.18 |
||
|
31611+A
|
31611+A
31611-21X66 Retainer-Servo Piston8809--01 ~ 9009--01; RA +FA |
31611-21X66 |
US $50.40 |
||
|
31611E
|
31611E
31612-21X01 Seal-O Ring, Band Servo8809--01 ~ 9009--01; RA +FA |
31612-21X01 |
US $5.18 |
||
|
31611F
|
31611F
31613-21X10 Seal-O Ring, Band Servo8809--01 ~ 9009--01; RA +FA |
31613-21X10 |
US $5.18 |
||
|
31611G
|
31611G
31614-21X10 Seal-O Ring, Band Servo8809--01 ~ 9009--01; RA +FA |
31614-21X10 |
US $5.18 |
||
|
31615
|
31615
31615-21X70 Piston-Band Servo8809--01 ~ 9009--01; RA +FA; 61-35 |
31615-21X70 |
US $22.18 |
||
|
31616
|
31616
31527-21X17 Seal-Lathe Cut Ring8809--01 ~ 8906--01; RA +FA; 61 |
31527-21X17 |
US $4.75 |
||
|
31616
|
31616
31527-21X67 Seal-Lathe Cut Ring8906--01 ~ 9009--01; RA +FA; 61 |
31527-21X67 |
US $4.75 |
||
|
31616
|
31616
31527-21X61 Seal-Lathe Cut Ring8906--01 ~ 9009--01; RA +FA; 35 |
31527-21X61 |
US $4.75 |
||
|
31616
|
31616
31617-21X17 Seal-Lathe Cut Ring8809--01 ~ 8906--01; RA +FA; 42 |
31617-21X17 |
US $4.75 |
||
|
31616
|
31616
31527-21X64 Seal-Lathe Cut Ring8906--01 ~ 9009--01; RA +FA; 43 |
31527-21X64 |
US $4.75 |
||
|
31616
|
31616
31617-21X20 Seal-Lathe Cut Ring8809--01 ~ 8906--01; RA +FA; 50 |
31617-21X20 |
US $4.75 |
||
|
31616
|
31616
31527-21X18 Seal-Lathe Cut Ring8809--01 ~ 8906--01; RA +FA; 63 |
31527-21X18 |
US $4.18 |
||
|
31616
|
31616
31527-21X68 Seal-Lathe Cut Ring8906--01 ~ 9009--01; RA +FA; 63 |
31527-21X68 |
US $4.18 |
||
|
31616+A
|
31616+A
31527-21X61 Seal-Lathe Cut Ring8906--01 ~ 9009--01; RA +FA; 35 |
31527-21X61 |
US $4.75 |
||
|
31616+A
|
31616+A
31617-21X17 Seal-Lathe Cut Ring8809--01 ~ 8906--01; RA +FA; 42 |
31617-21X17 |
US $4.75 |
||
|
31616+B
|
31616+B
31527-21X64 Seal-Lathe Cut Ring8906--01 ~ 9009--01; RA +FA; 43 |
31527-21X64 |
US $4.75 |
||
|
31616+B
|
31616+B
31617-21X20 Seal-Lathe Cut Ring8809--01 ~ 8906--01; RA +FA; 50 |
31617-21X20 |
US $4.75 |
||
|
31616+C
|
31616+C
31527-21X18 Seal-Lathe Cut Ring8809--01 ~ 8906--01; RA +FA; 63 |
31527-21X18 |
US $4.18 |
||
|
31616+C
|
31616+C
31527-21X68 Seal-Lathe Cut Ring8906--01 ~ 9009--01; RA +FA; 63 |
31527-21X68 |
US $4.18 |
||
|
31618
|
31618
31618-21X62 Stem-Band Servo Piston8809--01 ~ 9009--01; RA +FA |
31618-21X62 |
US $12.96 |
||
|
31618
|
31618
01416-00031 BOLT8809--01 ~ 9009--01; RA +FA |
01416-00031 |
US $1.73 |
||
|
31618A
|
31618A
01416-00031 BOLT8809--01 ~ 9009--01; RA +FA |
01416-00031 |
US $1.73 |
||
|
31625M
|
31625M
31625-21X00 Pin-Anchor End8809--01 ~ 9009--01; RA +FA |
31625-21X00 |
US $6.05 |
||
|
31626
|
31626
31626-21X00 Washer-Anchor End Pin8809--01 ~ 9009--01; RA +FA |
31626-21X00 |
US $0.86 |
||
|
31629
|
31629
31629-21X00 Ring-Snap, Stem Band8809--01 ~ 9009--01; RA +FA |
31629-21X00 |
US $4.18 |
||
|
31630M
|
31630M
31630-21X00 Band Assy-Brake8809--01 ~ 9009--01; RA +FA |
31630-21X00 |
US $82.66 |
||
|
31672M
|
31672M
3167221X00 Seal-O Ring, Accumulator8809--01 ~ 9009--01; RA +FA |
3167221X00 |
US $4.99 |
||
|
31673M
|
31673M
3167321X00 Seal-O Ring, Accumulator8809--01 ~ 9009--01; RA +FA |
3167321X00 |
US $4.85 |
||
|
31675
|
31675
31671-21X01 Piston-Accumulator8809--01 ~ 9009--01; RA +FA |
31671-21X01 |
US $14.40 |
||
|
31675
|
31675
31675-21X68 Piston-Accumulator Servo8809--01 ~ 9009--01; RA +FA; 61-35 |
31675-21X68 |
US $70.85 |
||
|
31675+A
|
31675+A
31675-21X68 Piston-Accumulator Servo8809--01 ~ 9009--01; RA +FA; 61-35 |
31675-21X68 |
US $70.85 |
||
|
31679
|
31679
31679-21X60 Retainer-Spring, Accumulator Servo8809--01 ~ 9009--01; RA +FA |
31679-21X60 |
US $5.62 |
||
|
31728D
|
31728D
31377-21X04 Bolt8812--01 ~ 9009--01; RA +FA |
31377-21X04 |
US $1.73 |
||
|
31728N
|
31728N
31728-21X01 Strainer Assy-Oil8809--01 ~ 8812--01; RA +FA |
31728-21X01 |
US $30.24 |
||
|
31728N
|
31728N
31728-21X02 Strainer Assy-Oil8812--01 ~ 9009--01; RA +FA |
31728-21X02 |
US $30.24 |
||
|
31729N
|
31729N
31729-21X01 Seal-O Ring8809--01 ~ 9009--01; RA +FA |
31729-21X01 |
US $4.18 |
