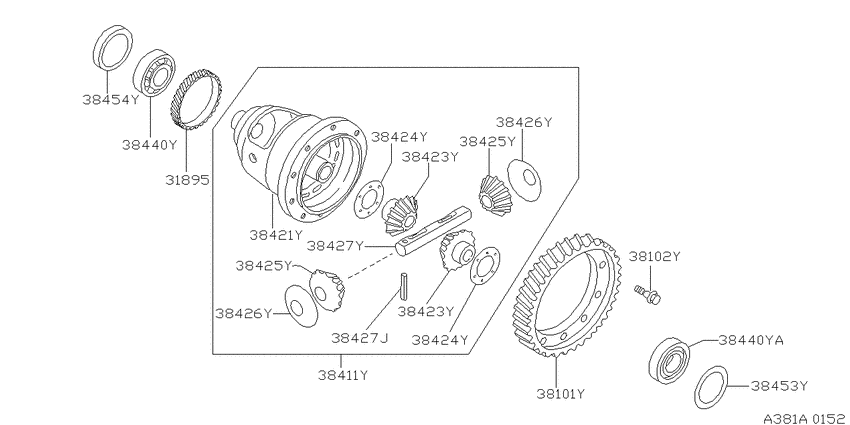

Front final drive (1988-09-01 ~ 1990-09-01; 2WD; CA20S.(RA+FA)) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- FA
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31895
|
31895
31895-21X04 Gear-Drive, Governor8809--01 ~ 9009--01; CA20S.(RA+FA) |
31895-21X04 |
US $17.71 |
||
|
38101Y
|
38101Y
38101-21X75 Gear-Final Drive8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
38101-21X75 |
US $198.72 |
||
|
38102Y
|
38102Y
38102-56E01 BOLT-DRIVE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
38102-56E01 |
US $2.45 |
||
|
38423Y
|
38423Y
38729-56E01 GEAR-SIDE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
38729-56E01 |
US $108.72 |
||
|
38423Y
|
38423Y
38729-56E01 GEAR-SIDE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
38729-56E01 |
US $108.72 |
||
|
38424Y
|
38424Y
38424-56E00 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.63 |
38424-56E00 |
US $5.04 |
||
|
38424Y
|
38424Y
38424-56E01 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.72 |
38424-56E01 |
US $5.04 |
||
|
38424Y
|
38424Y
38424-56E02 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.81 |
38424-56E02 |
US $5.04 |
||
|
38424Y
|
38424Y
38424-56E03 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.90 |
38424-56E03 |
US $5.04 |
||
|
38424Y
|
38424Y
38724-56E00 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.75-0.80 |
38724-56E00 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E01 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.80-0.85 |
38724-56E01 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E02 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.85-0.90 |
38724-56E02 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E03 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.90-0.95 |
38724-56E03 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-56E00 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.63 |
38424-56E00 |
US $5.04 |
||
|
38424Y
|
38424Y
38424-56E01 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.72 |
38424-56E01 |
US $5.04 |
||
|
38424Y
|
38424Y
38424-56E02 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.81 |
38424-56E02 |
US $5.04 |
||
|
38424Y
|
38424Y
38424-56E03 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.90 |
38424-56E03 |
US $5.04 |
||
|
38424Y
|
38424Y
38724-56E00 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.75-0.80 |
38724-56E00 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E01 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.80-0.85 |
38724-56E01 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E02 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.85-0.90 |
38724-56E02 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E03 WASHER-THRUST,SIDE GEAR8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.90-0.95 |
38724-56E03 |
US $4.03 |
||
|
38425Y
|
38425Y
38725-56E01 PINION-MATE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
38725-56E01 |
US $54 |
||
|
38425Y
|
38425Y
38725-56E01 PINION-MATE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
38725-56E01 |
US $54 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
38426-03E00 |
US $4.18 |
||
|
38427Y
|
38427Y
38727-56E00 SHAFT-PINION MATE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
38727-56E00 |
US $69.55 |
||
|
38440Y
|
38440Y
38440-06R10 Bearing-Differential Side8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
38440-06R10 |
US $91.58 |
||
|
38440Y
|
38440Y
38440-01X00 Bearing-Differential Side8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
38440-01X00 |
US $104.83 |
||
| replacement | |||||
|
38440Y
|
38440Y
38440-AD301 Bearing-Ring Gear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
38440-AD301 |
US $69.70 |
||
|
38440YA
|
38440YA
38440-01X00 Bearing-Differential Side8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
38440-01X00 |
US $104.83 |
||
| replacement | |||||
|
38440YA
|
38440YA
38440-AD301 Bearing-Ring Gear8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
38440-AD301 |
US $69.70 |
||
|
38453Y
|
38453Y
38753-56E00 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.36 |
38753-56E00 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E01 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.40 |
38753-56E01 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E02 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.44 |
38753-56E02 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E03 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.48 |
38753-56E03 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E04 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.52 |
38753-56E04 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E05 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.56 |
38753-56E05 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E06 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.60 |
38753-56E06 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E07 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.64 |
38753-56E07 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E08 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.68 |
38753-56E08 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E09 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.72 |
38753-56E09 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E10 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.76 |
38753-56E10 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E11 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.80 |
38753-56E11 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E12 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.84 |
38753-56E12 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E13 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.88 |
38753-56E13 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E14 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.92 |
38753-56E14 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E15 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.12 |
38753-56E15 |
US $10.22 |
||
|
38453Y
|
38453Y
38753-56E16 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.16 |
38753-56E16 |
US $10.22 |
||
|
38453Y
|
38453Y
38753-56E17 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.20 |
38753-56E17 |
US $10.22 |
||
|
38453Y
|
38453Y
38753-56E18 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.24 |
38753-56E18 |
US $10.22 |
||
|
38453Y
|
38453Y
38753-56E19 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.28 |
38753-56E19 |
US $10.22 |
||
|
38453Y
|
38453Y
38753-56E20 SHIM-ADJUST,SIDE BEARING8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA; ｾﾝﾀｸ T=0.32 |
38753-56E20 |
US $10.22 |
||
|
38454Y
|
38454Y
31437-21X00 Spacer-Differential Side8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).CA20S.FA |
31437-21X00 |
US $14.98 |
||
