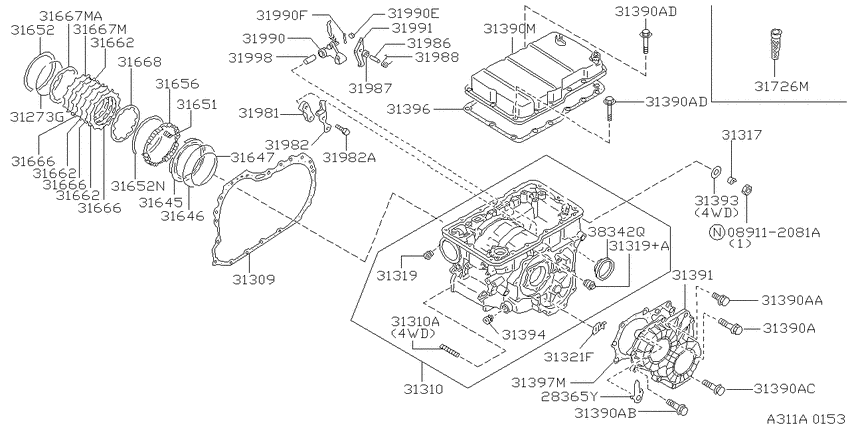

Torque converter,housing & case (1988-09-01 ~ 1990-09-01; トランスミッション ケース; RA +FA) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- FA
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
28365Y
|
28365Y
28365-51E00 TERMINAL-EARTH8809--01 ~ 9009--01; RA +FA |
28365-51E00 |
US $0.86 |
||
|
31273G
|
31273G
31474-21X00 Ring-Snap8809--01 ~ 9009--01; RA +FA |
31474-21X00 |
US $2.45 |
||
|
31309
|
31309
31309-21X04 Gasket-Converter Housing8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).FA |
31309-21X04 |
US $15.41 |
||
| replacement | |||||
|
31309
|
31309
31309-21X08
Gasket-converter housing
8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).FA |
31309-21X08 |
— | ||
|
31309
|
31309
31309-21X11 Gasket-Converter Housing9102--01 ~ 9202--01; 4WD.8P.RA +(4WD.5P+4WD.7P).FA |
31309-21X11 |
US $15.70 |
||
|
31310
|
31310
31310-21X18 Case Assy-Automatic Transmission8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).FA |
31310-21X18 |
US $549.41 |
||
|
31310
|
31310
0115100271 STUD8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).FA |
0115100271 |
from US $0.65 |
||
|
31310A
|
31310A
0115100271 STUD8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).FA |
0115100271 |
from US $0.65 |
||
|
31317
|
31317
31317-21X00 Washer-Plain, Transmission Case8809--01 ~ 9009--01; RA +FA |
31317-21X00 |
US $1.73 |
||
|
31319
|
31319
31345-X6101 Plug8809--01 ~ 9009--01; RA +FA |
31345-X6101 |
US $2.45 |
||
|
31319
|
31319
31305-31X01 Plug-Thread9503--01 ~ 9508--01; RA +FA |
31305-31X01 |
US $2.45 |
||
|
31319
|
31319
31319-X0100 Plug-Thread, Square Head8809--01 ~ 9009--01; RA +FA |
31319-X0100 |
US $2.45 |
||
|
31319
|
31319
31322-21X01 Plug-Thread8809--01 ~ 9009--01; RA +FA |
31322-21X01 |
US $1.73 |
||
|
31319
|
31319
31319-X0100 Plug-Thread, Square Head8809--01 ~ 9009--01; RA +FA |
31319-X0100 |
US $2.45 |
||
|
31319
|
31319
31319-X0100 Plug-Thread, Square Head8809--01 ~ 9009--01; RA +FA |
31319-X0100 |
US $2.45 |
||
|
31319+A
|
31319+A
31305-31X01 Plug-Thread9503--01 ~ 9508--01; RA +FA |
31305-31X01 |
US $2.45 |
||
|
31319+A
|
31319+A
31319-X0100 Plug-Thread, Square Head8809--01 ~ 9009--01; RA +FA |
31319-X0100 |
US $2.45 |
||
|
31321F
|
31321F
31295-21X00 Valve Assy-One Way Overdrive Case8809--01 ~ 9009--01; RA +FA |
31295-21X00 |
US $5.62 |
||
|
31390A
|
31390A
01121-03021 BOLT8809--01 ~ 9009--01; RA +FA |
01121-03021 |
US $3.46 |
||
|
31390A
|
31390A
01121-02441 BOLT8809--01 ~ 9009--01; RA +FA |
01121-02441 |
US $1.73 |
||
|
31390A
|
31390A
01121-03011 BOLT8809--01 ~ 9009--01; RA +FA |
01121-03011 |
US $1.73 |
||
|
31390A
|
31390A
01121-02471 BOLT8809--01 ~ 9009--01; RA +FA |
01121-02471 |
US $1.73 |
||
|
31390A
|
31390A
01125-00541 BOLT8809--01 ~ 9009--01; RA +FA |
01125-00541 |
US $1.73 |
||
|
31390AA
|
31390AA
01121-02441 BOLT8809--01 ~ 9009--01; RA +FA |
01121-02441 |
US $1.73 |
||
|
31390AB
|
31390AB
01121-03011 BOLT8809--01 ~ 9009--01; RA +FA |
01121-03011 |
US $1.73 |
||
|
31390AC
|
31390AC
01121-02471 BOLT8809--01 ~ 9009--01; RA +FA |
01121-02471 |
US $1.73 |
||
|
31390AD
|
31390AD
01125-00541 BOLT8809--01 ~ 9009--01; RA +FA |
01125-00541 |
US $1.73 |
||
|
31390AD
|
31390AD
01125-00541 BOLT8809--01 ~ 9009--01; RA +FA |
01125-00541 |
US $1.73 |
||
|
31390M
|
31390M
31390-21X07 Cover-Upper, Transmission Case8809--01 ~ 9009--01; RA +FA |
31390-21X07 |
US $97.78 |
||
|
31391
|
31391
31395-21X05 Cover-Side, Transmission Case8809--01 ~ 9009--01; RA +FA |
31395-21X05 |
US $104.69 |
||
|
31393
|
31393
31393-21X00 Washer-Plain, Converter Housing8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).FA |
31393-21X00 |
US $0.86 |
||
|
31394
|
31394
32103-01A01
Plug-Drain
8809--01 ~ 9009--01; RA +FA |
32103-01A01 |
— | ||
| replacements | |||||
|
31394
|
31394
3210301A0A
Plug-Drain
8809--01 ~ 9009--01; RA +FA |
3210301A0A |
— | ||
|
31394
|
31394
32103-01A02 Plug-Drain8809--01 ~ 9009--01; RA +FA |
32103-01A02 |
US $6.79 |
||
|
31396
|
31396
31396-21X01
Gasket-Upper Cover
8809--01 ~ 9009--01; RA +FA |
31396-21X01 |
— | ||
|
31397M
|
31397M
31397-21X00
Gasket-Side Cover
8809--01 ~ 9009--01; RA +FA |
31397-21X00 |
— | ||
|
31645
|
31645
31645-21X01 Piston Assy-Low & Reverse Brake8809--01 ~ 9009--01; RA +FA |
31645-21X01 |
US $56.16 |
||
|
31646
|
31646
31646-21X00 Seal-Lathe Cut Ring8809--01 ~ 9009--01; RA +FA |
31646-21X00 |
US $11.95 |
||
|
31647
|
31647
31647-21X00 Seal-O Ring8809--01 ~ 9009--01; RA +FA |
31647-21X00 |
US $10.08 |
||
|
31651
|
31651
31651-21X01 Spring-Piston Return8809--01 ~ 9009--01; RA +FA |
31651-21X01 |
US $0.86 |
||
|
31652
|
31652
31653-21X00 Ring-Snap8809--01 ~ 9009--01; RA +FA |
31653-21X00 |
US $4.18 |
||
|
31652
|
31652
31654-21X00 Ring-Snap8809--01 ~ 9009--01; RA +FA |
31654-21X00 |
US $4.18 |
||
|
31652N
|
31652N
31654-21X00 Ring-Snap8809--01 ~ 9009--01; RA +FA |
31654-21X00 |
US $4.18 |
||
|
31656
|
31656
31656-21X02 Retainer-Spring, Low & Reverse8809--01 ~ 9009--01; RA +FA |
31656-21X02 |
US $22.32 |
||
| replacement | |||||
|
31656
|
31656
31655-21X01 Retainer-Spring, Low & Reverse8809--01 ~ 9009--01; RA +FA |
31655-21X01 |
US $23.18 |
||
|
31662
|
31662
31662-21X01 Plate Assy-Drive8809--01 ~ 9009--01; RA +FA |
31662-21X01 |
US $35.42 |
||
|
31662
|
31662
31662-21X01 Plate Assy-Drive8809--01 ~ 9009--01; RA +FA |
31662-21X01 |
US $35.42 |
||
|
31662
|
31662
31662-21X01 Plate Assy-Drive8809--01 ~ 9009--01; RA +FA |
31662-21X01 |
US $35.42 |
||
|
31666
|
31666
31666-23X00 Plate-Driven8809--01 ~ 9009--01; RA +FA |
31666-23X00 |
US $20.30 |
||
|
31666
|
31666
31666-23X00 Plate-Driven8809--01 ~ 9009--01; RA +FA |
31666-23X00 |
US $20.30 |
||
|
31666
|
31666
31666-23X00 Plate-Driven8809--01 ~ 9009--01; RA +FA |
31666-23X00 |
US $20.30 |
||
|
31667M
|
31667M
31667-23X13 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=12.4 |
31667-23X13 |
US $28.08 |
||
|
31667M
|
31667M
31667-23X14 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=12.6 |
31667-23X14 |
US $28.08 |
||
|
31667M
|
31667M
31667-23X15 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=12.8 |
31667-23X15 |
US $28.08 |
||
|
31667M
|
31667M
31667-23X16 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=13.0 |
31667-23X16 |
US $28.08 |
||
|
31667M
|
31667M
31667-23X71 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=13.2 |
31667-23X71 |
US $17.71 |
||
|
31667M
|
31667M
31667-23X72 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=13.4 |
31667-23X72 |
US $17.71 |
||
|
31667M
|
31667M
31667-23X73 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=13.6 |
31667-23X73 |
US $17.71 |
||
|
31667M
|
31667M
31667-23X74 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=13.8 |
31667-23X74 |
US $17.71 |
||
|
31667M
|
31667M
31667-23X75 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=14.0 |
31667-23X75 |
US $17.71 |
||
|
31667MA
|
31667MA
31667-23X13 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=12.4 |
31667-23X13 |
US $28.08 |
||
|
31667MA
|
31667MA
31667-23X14 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=12.6 |
31667-23X14 |
US $28.08 |
||
|
31667MA
|
31667MA
31667-23X15 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=12.8 |
31667-23X15 |
US $28.08 |
||
|
31667MA
|
31667MA
31667-23X16 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=13.0 |
31667-23X16 |
US $28.08 |
||
|
31667MA
|
31667MA
31667-23X71 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=13.2 |
31667-23X71 |
US $17.71 |
||
|
31667MA
|
31667MA
31667-23X72 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=13.4 |
31667-23X72 |
US $17.71 |
||
|
31667MA
|
31667MA
31667-23X73 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=13.6 |
31667-23X73 |
US $17.71 |
||
|
31667MA
|
31667MA
31667-23X74 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=13.8 |
31667-23X74 |
US $17.71 |
||
|
31667MA
|
31667MA
31667-23X75 Plate-Retaining8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ T=14.0 |
31667-23X75 |
US $17.71 |
||
|
31668
|
31668
31665-21X01 Plate-Dished8809--01 ~ 9009--01; RA +FA |
31665-21X01 |
US $29.81 |
||
|
31726M
|
31726M
31726-21X00 Filter Assy-Oil, Control Valve8809--01 ~ 9009--01; RA +FA |
31726-21X00 |
US $6.19 |
||
|
31981
|
31981
31981-21X03 Support-Parking Actuator8809--01 ~ 9009--01; RA +FA |
31981-21X03 |
US $30.38 |
||
|
31982
|
31982
31982-21X01 Stopper-Actuator, Parking8809--01 ~ 9009--01; RA +FA |
31982-21X01 |
US $5.18 |
||
|
31982
|
31982
01125-00591 BOLT8809--01 ~ 9009--01; RA +FA |
01125-00591 |
US $1.73 |
||
|
31982A
|
31982A
01125-00591 BOLT8809--01 ~ 9009--01; RA +FA |
01125-00591 |
US $1.73 |
||
|
31986
|
31986
31986-21X02 Shaft-Parking Pawl8809--01 ~ 9009--01; RA +FA |
31986-21X02 |
US $5.18 |
||
|
31987
|
31987
31992-21X01 Spacer-Parking Pawl8809--01 ~ 9009--01; RA +FA |
31992-21X01 |
US $1.73 |
||
|
31988
|
31988
31988-21X06 Spring-Return Pawl8809--01 ~ 9009--01; RA +FA |
31988-21X06 |
US $1.73 |
||
|
31990
|
31990
31990-21X03 Actuator-Parking8809--01 ~ 9009--01; RA +FA |
31990-21X03 |
US $110.88 |
||
|
31990
|
31990
32139-M7000 Plug-Parking Actuator8809--01 ~ 9009--01; RA +FA |
32139-M7000 |
US $1.73 |
||
|
31990
|
31990
01523-00061 PIN-SPRING8809--01 ~ 9009--01; RA +FA |
01523-00061 |
US $1.73 |
||
|
31990E
|
31990E
32139-M7000 Plug-Parking Actuator8809--01 ~ 9009--01; RA +FA |
32139-M7000 |
US $1.73 |
||
|
31990F
|
31990F
01523-00061 PIN-SPRING8809--01 ~ 9009--01; RA +FA |
01523-00061 |
US $1.73 |
||
|
31991
|
31991
31989-21X00 Pawl-Parking8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ (D) |
31989-21X00 |
US $40.61 |
||
|
31991
|
31991
31989-21X01 Pawl-Parking8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ (E) |
31989-21X01 |
US $40.61 |
||
|
31991
|
31991
31989-21X02 Pawl-Parking8809--01 ~ 9009--01; RA +FA; ｾﾝﾀｸ (F) |
31989-21X02 |
US $40.61 |
||
|
31998
|
31998
31998-21X02 Shaft-Parking Actuator8809--01 ~ 9009--01; RA +FA |
31998-21X02 |
US $5.18 |
||
|
38342Q
|
38342Q
3834256E00 SEAL-OIL,DIFFERENTIAL TRANSMISSION CASE8809--01 ~ 9009--01; (4WD.5P+4WD.6P+4WD.7P).FA |
3834256E00 |
US $15.26 |
||
