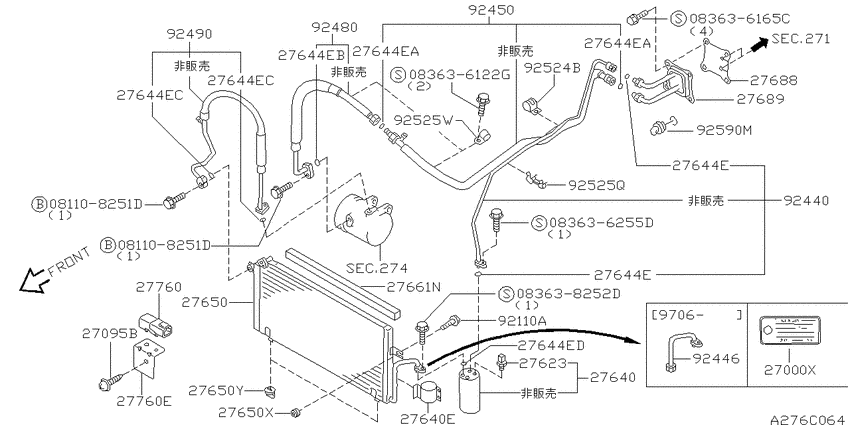

air conditioner (engine room) (1995-08-01 ~ ; S) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1995 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- FA
- grade
- JOY/L
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081108251D
|
081108251D
081108251D
Bolt-hexagon
|
081108251D |
— | ||
|
081108251D
|
081108251D
081108251D
Bolt-hexagon
|
081108251D |
— | ||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
083636165C
|
083636165C
08363-6165C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6165C |
— | ||
| replacement | |||||
|
083636165C
|
083636165C
08360-6165C ｽｸﾘﾕ-,ﾏｼﾝ |
08360-6165C |
US $2.36 |
||
|
083636255D
|
083636255D
08363-6255D
Screw
|
08363-6255D |
— | ||
| replacement | |||||
|
083636255D
|
083636255D
08360-6255D SCREWMACHINE |
08360-6255D |
US $1.93 |
||
|
083638252D
|
083638252D
08363-8252D SCREWMACHINE |
08363-8252D |
US $3.39 |
||
|
27000X
|
27000X
27090-80J01 Label-Air Con9508--01 ~ 9603--01; S |
27090-80J01 |
US $2.45 |
||
|
27000X
|
27000X
27090-80J02 Label-Air Con9603--01 ~ ; S |
27090-80J02 |
US $2.74 |
||
|
27095B
|
27095B
01461-00221
SCREW
9508--01 ~ 9705--01; S |
01461-00221 |
— | ||
| replacement | |||||
|
27095B
|
27095B
01461-00061 SCREW9508--01 ~ 9705--01; S |
01461-00061 |
US $2.21 |
||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
274
|
Compressor
274
|
||||
|
274
|
Compressor
274
|
||||
|
27623
|
27623
92137-3J100 Switch Assy-Pressure9705--01 ~ ; S |
92137-3J100 |
US $45.22 |
||
|
27623
|
27623
92137-70T00 Switch Assy-Pressure9508--01 ~ 9705--01; S |
92137-70T00 |
US $79.63 |
||
|
27640
|
27640
92131-2J900 Tank Assy-Liquid9705--01 ~ ; S; [B517] |
92131-2J900 |
US $114.19 |
||
|
27640
|
27640
92131-50C60 Tank Assy-Liquid9508--01 ~ 9605--01; S; [B517] |
92131-50C60 |
US $114.19 |
||
|
27640
|
27640
92131-90N05
Tank Assy-Liquid
9605--01 ~ 9705--01; S; [B517] |
92131-90N05 |
— | ||
|
27640
|
27640
92135-30R00 Bracket-Liquid Tank9508--01 ~ 9706--01; S |
92135-30R00 |
US $19.30 |
||
|
27640E
|
27640E
92135-30R00 Bracket-Liquid Tank9508--01 ~ 9706--01; S |
92135-30R00 |
US $19.30 |
||
|
27644E
|
27644E
92470N8210 O Ring9508--01 ~ 9705--01; S; D=8 |
92470N8210 |
from US $0.98 |
||
|
27644E
|
27644E
92471-N8210
O Ring
9705--01 ~ ; S |
92471-N8210 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470HC050 O Ring9705--01 ~ ; S |
92470HC050 |
from US $0.85 |
||
|
27644E
|
27644E
92473-N8200
O Ring
9508--01 ~ 9705--01; S; D=16 |
92473-N8200 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92477AX005 Seal-O Ring9508--01 ~ 9705--01; S; D=16 |
92477AX005 |
from US $0.85 |
||
|
27644E
|
27644E
92473N8210 O Ring9705--01 ~ ; S |
92473N8210 |
from US $1.41 |
||
|
27644E
|
27644E
92473-N8200
O Ring
9508--01 ~ 9705--01; S; D=16 |
92473-N8200 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92477AX005 Seal-O Ring9508--01 ~ 9705--01; S; D=16 |
92477AX005 |
from US $0.85 |
||
|
27644E
|
27644E
92473N8210 O Ring9705--01 ~ ; S |
92473N8210 |
from US $1.41 |
||
|
27644E
|
27644E
92471N8200 O Ring9508--01 ~ 9705--01; S; D=12 |
92471N8200 |
from US $1.13 |
||
|
27644E
|
27644E
92472N8210 O Ring9705--01 ~ ; S |
92472N8210 |
from US $0.98 |
||
|
27644E
|
27644E
92470-N8200
O Ring
9508--01 ~ 9705--01; S; D=12[B421] |
92470-N8200 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470N8210 O Ring9508--01 ~ 9705--01; S; D=12[B421] |
92470N8210 |
from US $0.98 |
||
|
27644E
|
27644E
92471-N8210
O Ring
9705--01 ~ ; S |
92471-N8210 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470HC050 O Ring9705--01 ~ ; S |
92470HC050 |
from US $0.85 |
||
|
27644E
|
27644E
92470N8210 O Ring9508--01 ~ 9705--01; S; D=8 |
92470N8210 |
from US $0.98 |
||
|
27644E
|
27644E
92471-N8210
O Ring
9705--01 ~ ; S |
92471-N8210 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470HC050 O Ring9705--01 ~ ; S |
92470HC050 |
from US $0.85 |
||
|
27644E
|
27644E
92473-N8200
O Ring
9508--01 ~ 9705--01; S; D=16 |
92473-N8200 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92477AX005 Seal-O Ring9508--01 ~ 9705--01; S; D=16 |
92477AX005 |
from US $0.85 |
||
|
27644E
|
27644E
92473N8210 O Ring9705--01 ~ ; S |
92473N8210 |
from US $1.41 |
||
|
27644E
|
27644E
92473-N8200
O Ring
9508--01 ~ 9705--01; S; D=16 |
92473-N8200 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92477AX005 Seal-O Ring9508--01 ~ 9705--01; S; D=16 |
92477AX005 |
from US $0.85 |
||
|
27644E
|
27644E
92473N8210 O Ring9705--01 ~ ; S |
92473N8210 |
from US $1.41 |
||
|
27644E
|
27644E
92471N8200 O Ring9508--01 ~ 9705--01; S; D=12 |
92471N8200 |
from US $1.13 |
||
|
27644E
|
27644E
92472N8210 O Ring9705--01 ~ ; S |
92472N8210 |
from US $0.98 |
||
|
27644E
|
27644E
92470-N8200
O Ring
9508--01 ~ 9705--01; S; D=12[B421] |
92470-N8200 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470N8210 O Ring9508--01 ~ 9705--01; S; D=12[B421] |
92470N8210 |
from US $0.98 |
||
|
27644E
|
27644E
92471-N8210
O Ring
9705--01 ~ ; S |
92471-N8210 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470HC050 O Ring9705--01 ~ ; S |
92470HC050 |
from US $0.85 |
||
|
27644EA
|
27644EA
92473-N8200
O Ring
9508--01 ~ 9705--01; S; D=16 |
92473-N8200 |
— | ||
| replacement | |||||
|
27644EA
|
27644EA
92477AX005 Seal-O Ring9508--01 ~ 9705--01; S; D=16 |
92477AX005 |
from US $0.85 |
||
|
27644EA
|
27644EA
92473N8210 O Ring9705--01 ~ ; S |
92473N8210 |
from US $1.41 |
||
|
27644EA
|
27644EA
92473-N8200
O Ring
9508--01 ~ 9705--01; S; D=16 |
92473-N8200 |
— | ||
| replacement | |||||
|
27644EA
|
27644EA
92477AX005 Seal-O Ring9508--01 ~ 9705--01; S; D=16 |
92477AX005 |
from US $0.85 |
||
|
27644EA
|
27644EA
92473N8210 O Ring9705--01 ~ ; S |
92473N8210 |
from US $1.41 |
||
|
27644EB
|
27644EB
92473-N8200
O Ring
9508--01 ~ 9705--01; S; D=16 |
92473-N8200 |
— | ||
| replacement | |||||
|
27644EB
|
27644EB
92477AX005 Seal-O Ring9508--01 ~ 9705--01; S; D=16 |
92477AX005 |
from US $0.85 |
||
|
27644EB
|
27644EB
92473N8210 O Ring9705--01 ~ ; S |
92473N8210 |
from US $1.41 |
||
|
27644EC
|
27644EC
92471N8200 O Ring9508--01 ~ 9705--01; S; D=12 |
92471N8200 |
from US $1.13 |
||
|
27644EC
|
27644EC
92472N8210 O Ring9705--01 ~ ; S |
92472N8210 |
from US $0.98 |
||
|
27644EC
|
27644EC
92471N8200 O Ring9508--01 ~ 9705--01; S; D=12 |
92471N8200 |
from US $1.13 |
||
|
27644EC
|
27644EC
92472N8210 O Ring9705--01 ~ ; S |
92472N8210 |
from US $0.98 |
||
|
27644ED
|
27644ED
92470-N8200
O Ring
9508--01 ~ 9705--01; S; D=12[B421] |
92470-N8200 |
— | ||
| replacement | |||||
|
27644ED
|
27644ED
92470N8210 O Ring9508--01 ~ 9705--01; S; D=12[B421] |
92470N8210 |
from US $0.98 |
||
|
27644ED
|
27644ED
92471-N8210
O Ring
9705--01 ~ ; S |
92471-N8210 |
— | ||
| replacement | |||||
|
27644ED
|
27644ED
92470HC050 O Ring9705--01 ~ ; S |
92470HC050 |
from US $0.85 |
||
|
27650
|
27650
92110-50R01
Condenser Assy
9508--01 ~ 9605--01; S; [B517] |
92110-50R01 |
— | ||
|
27650
|
27650
9211050R05
Condenser Assy
9605--01 ~ 9706--01; S; [B517] |
9211050R05 |
— | ||
|
27650
|
27650
92110-WF001
Condenser Assy
9706--01 ~ ; S |
92110-WF001 |
— | ||
|
27650
|
27650
92118-41L00 Mounting Rubber9508--01 ~ 9705--01; S |
92118-41L00 |
US $5.62 |
||
|
27650
|
27650
9211951E00 MOUNTING RUBBER-CONDENSER,LOWER9508--01 ~ ; S |
9211951E00 |
from US $4.66 |
||
|
27650X
|
27650X
92118-41L00 Mounting Rubber9508--01 ~ 9705--01; S |
92118-41L00 |
US $5.62 |
||
|
27650Y
|
27650Y
9211951E00 MOUNTING RUBBER-CONDENSER,LOWER9508--01 ~ ; S |
9211951E00 |
from US $4.66 |
||
|
27661N
|
27661N
9218250R00 Seal-Rubber9508--01 ~ ; S |
9218250R00 |
US $6.34 |
||
|
27688
|
27688
92560-32R10 Grommet-Dash9508--01 ~ ; S |
92560-32R10 |
US $16.85 |
||
|
27689
|
27689
92565-30R00 Cover-Grommet, Dash9508--01 ~ ; S |
92565-30R00 |
US $4.32 |
||
|
27760
|
27760
27722-0E000
SENSOR ASSY-AMBIENT
9508--01 ~ ; S.JOY/L |
27722-0E000 |
— | ||
|
27760
|
27760
27715-50R00 Bracket-Ambient Sensor9508--01 ~ ; S.JOY/L |
27715-50R00 |
US $8.93 |
||
|
27760E
|
27760E
27715-50R00 Bracket-Ambient Sensor9508--01 ~ ; S.JOY/L |
27715-50R00 |
US $8.93 |
||
|
92110A
|
92110A
0143600511 BOLT9508--01 ~ ; S |
0143600511 |
US $1.93 |
||
|
92440
|
92440
92440-50R01 ﾊﾟｲﾌﾟ,ﾌﾛﾝﾄ ｸ-ﾗ- ﾊｲ9508--01 ~ 9605--01; S |
92440-50R01 |
US $40.32 |
||
|
92440
|
92440
92440-50R05 ﾊﾟｲﾌﾟ,ﾌﾛﾝﾄ ｸ-ﾗ- ﾊｲ9605--01 ~ 9705--01; S |
92440-50R05 |
US $40.32 |
||
|
92440
|
92440
92440-50R06 ﾊﾟｲﾌﾟ,ﾌﾛﾝﾄ ｸ-ﾗ- ﾊｲ9705--01 ~ ; S |
92440-50R06 |
US $33.84 |
||
|
92446
|
92446
92446-WF001
ﾊﾟｲﾌﾟ,ｸ-ﾗ- ｺﾝﾃﾞﾝｻ- ﾂ- ﾀﾝｸ
9706--01 ~ ; S |
92446-WF001 |
— | ||
|
92450
|
92450
92450-50R02 ﾊﾟｲﾌﾟ,ﾌﾛﾝﾄ ｸ-ﾗ- ﾛｳ9508--01 ~ 9605--01; S |
92450-50R02 |
US $148.32 |
||
|
92450
|
92450
92450-50R05 ﾊﾟｲﾌﾟ,ﾌﾛﾝﾄ ｸ-ﾗ- ﾛｳ9605--01 ~ ; S |
92450-50R05 |
US $148.32 |
||
|
92480
|
92480
92480-50R02 ﾎ-ｽ,ﾌﾚｷｼﾌﾞﾙ ﾛｳ9508--01 ~ 9605--01; S |
92480-50R02 |
US $201.60 |
||
|
92480
|
92480
92480-50R05 ﾎ-ｽ,ﾌﾚｷｼﾌﾞﾙ ﾛｳ9605--01 ~ ; S |
92480-50R05 |
US $201.60 |
||
|
92490
|
92490
92490-50R02 ﾎ-ｽ,ﾌﾚｷｼﾌﾞﾙ ﾊｲ9508--01 ~ 9605--01; S |
92490-50R02 |
US $247.68 |
||
|
92490
|
92490
92490-50R05 ﾎ-ｽ,ﾌﾚｷｼﾌﾞﾙ ﾊｲ9605--01 ~ 9706--01; S |
92490-50R05 |
US $247.68 |
||
|
92490
|
92490
92490-WF001 ﾎ-ｽ,ﾌﾚｷｼﾌﾞﾙ ﾊｲ9706--01 ~ ; S |
92490-WF001 |
US $252 |
||
|
92524B
|
92524B
01552-00033 CLIP-HARNESS9508--01 ~ ; S |
01552-00033 |
US $4.85 |
||
|
92525Q
|
92525Q
92551-64Y00 Clip9508--01 ~ ; S |
92551-64Y00 |
US $1.73 |
||
| replacement | |||||
|
92525Q
|
92525Q
92551-1N300
Clip
9508--01 ~ ; S |
92551-1N300 |
— | ||
|
92525W
|
92525W
92555-51E00 CLIP9508--01 ~ 9705--01; S |
92555-51E00 |
US $6.34 |
||
|
92590M
|
92590M
92590-50R00 ﾎ-ｽ,ﾄﾞﾚ-ﾝ9705--01 ~ ; S |
92590-50R00 |
US $10.94 |
||
|
92590M
|
92590M
92590-51E00 HOSE-DRAIN9508--01 ~ 9705--01; S |
92590-51E00 |
US $7.20 |
||
