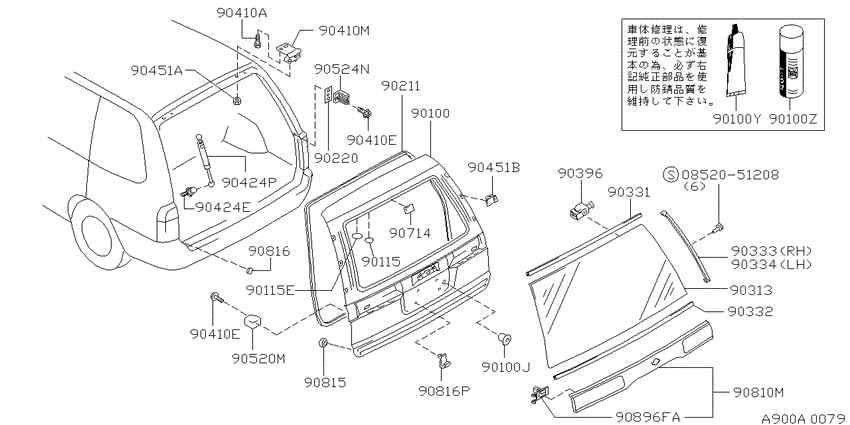

Back door panel & fitting (1995-08-01 ~ 1997-05-01; ガラスハッチ 無し車; S) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1995 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- FA
- grade
- JOY/L
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0852051208
|
0852051208
08520-51208
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08520-51208 |
— | ||
|
90100
|
90100
90100-50R00 ﾄﾞｱ,ﾊﾞﾂｸ9508--01 ~ 9511--01; S |
90100-50R00 |
US $986.95 |
||
|
90100
|
90100
90100-50R10 ﾄﾞｱ,ﾊﾞﾂｸ9508--01 ~ 9705--01; *S; ﾘﾔ ｱﾝﾀﾞ- ﾐﾗ- ｼﾖｳ |
90100-50R10 |
US $1,006.78 |
||
|
90100
|
90100
90100-50R20 ﾄﾞｱ,ﾊﾞﾂｸ9511--01 ~ 9705--01; S |
90100-50R20 |
US $1,006.78 |
||
|
90100
|
90100
90100-WF000 ﾄﾞｱ,ﾊﾞﾂｸ9705--01 ~ ; S |
90100-WF000 |
US $1,006.78 |
||
|
90100
|
90100
90879-68R00 ﾌﾟﾗｸﾞ9705--01 ~ ; S |
90879-68R00 |
US $5.90 |
||
|
90100
|
90100
90879-WF060 ﾌﾟﾗｸﾞ9705--01 ~ ; S |
90879-WF060 |
US $7.06 |
||
|
90100
|
90100
8481450C00 Plug9508--01 ~ ; S |
8481450C00 |
US $1.93 |
||
|
90100
|
90100
KA360-16570
Paint Sealer
9508--01 ~ ; S; [K504] |
KA360-16570 |
— | ||
|
90100
|
90100
KA390-18090
Metal Keep Wax
9508--01 ~ ; S; [K504] |
KA390-18090 |
— | ||
|
90100J
|
90100J
8481450C00 Plug9508--01 ~ ; S |
8481450C00 |
US $1.93 |
||
|
90100Y
|
90100Y
KA360-16570
Paint Sealer
9508--01 ~ ; S; [K504] |
KA360-16570 |
— | ||
|
90100Z
|
90100Z
KA390-18090
Metal Keep Wax
9508--01 ~ ; S; [K504] |
KA390-18090 |
— | ||
|
90115
|
90115
64891W5000 Plug-Rubber9508--01 ~ 9705--01; S.JOY/L |
64891W5000 |
from US $0.80 |
||
|
90115
|
90115
64899-3J102 Cover-Hole, Front Door Inside9705--01 ~ ; S; D=33 ｼﾙﾊﾞ- |
64899-3J102 |
US $2.16 |
||
|
90115
|
90115
64892W5000 Unit Assy-Divider Tachometer9508--01 ~ 9705--01; S.JOY/L |
64892W5000 |
US $0.97 |
||
|
90115E
|
90115E
64892W5000 Unit Assy-Divider Tachometer9508--01 ~ 9705--01; S.JOY/L |
64892W5000 |
US $0.97 |
||
|
90211
|
90211
90832-50R00 ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾊﾞﾂｸ ﾄﾞｱ ｵ-ﾌﾟﾆﾝｸﾞ9508--01 ~ ; S |
90832-50R00 |
US $116.64 |
||
|
90220
|
90220
9052770N00 Shim-Adjusting9508--01 ~ ; S |
9052770N00 |
US $4.32 |
||
|
90313
|
90313
90312-50R10 ｶﾞﾗｽ,ﾊﾞﾂｸ ﾄﾞｱ ｳｲﾝﾄﾞｳ9508--01 ~ 9705--01; S.JOY/L; [D608] |
90312-50R10 |
US $1,012.44 |
||
|
90313
|
90313
90312WF025 ﾊﾞﾂｸ ﾄﾞｱ ｶﾞﾗｽ9705--01 ~ ; S; [D608] |
90312WF025 |
US $855.26 |
||
|
90331
|
90331
90352-50R00 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾂｸ ﾄﾞｱ ｱﾂﾊﾟ-9508--01 ~ 9705--01; S |
90352-50R00 |
US $38.16 |
||
|
90331
|
90331
90330-WF000 ﾛﾂｸ,ﾊﾞﾂｸ ﾄﾞｱ ｳｲﾝﾄﾞｳ9705--01 ~ 9804--01; S |
90330-WF000 |
US $172.80 |
||
|
90331
|
90331
90330-WF001 ﾛﾂｸ,ﾊﾞﾂｸ ﾄﾞｱ ｳｲﾝﾄﾞｳ9804--01 ~ ; S |
90330-WF001 |
US $138.53 |
||
|
90332
|
90332
90372-50R00 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾂｸ ﾄﾞｱ ﾛｱ9508--01 ~ 9705--01; S |
90372-50R00 |
US $44.50 |
||
|
90333
|
90333
90362-50R00 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾂｸ ﾄﾞｱ ｻｲﾄﾞ rh9508--01 ~ 9705--01; S |
90362-50R00 |
US $38.16 |
||
|
90334
|
90334
90363-50R00 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾂｸ ﾄﾞｱ ｻｲﾄﾞ lh9508--01 ~ 9705--01; S |
90363-50R00 |
US $38.16 |
||
|
90396
|
90396
90396-50P00 Cap-Antenna9508--01 ~ 9705--01; S.JOY/L |
90396-50P00 |
US $2.16 |
||
|
90410A
|
90410A
01125-00333 BOLT9508--01 ~ ; S |
01125-00333 |
US $1.73 |
||
|
90410E
|
90410E
0112100743 Bolt9508--01 ~ ; S |
0112100743 |
from US $0.83 |
||
|
90410E
|
90410E
0112100743 Bolt9508--01 ~ ; S |
0112100743 |
from US $0.83 |
||
|
90410M
|
90410M
90400-70N00 ﾋﾝｼﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ9508--01 ~ ; S |
90400-70N00 |
US $27.94 |
||
|
90424E
|
90424E
90456-01P00 Stud-Ball, Back Door Stay9508--01 ~ ; S |
90456-01P00 |
US $7.35 |
||
|
90424P
|
90424P
90450-50R00 ｽﾃ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ9508--01 ~ 9705--01; S |
90450-50R00 |
US $208.80 |
||
|
90424P
|
90424P
90450-WF000 ｽﾃ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ9705--01 ~ ; S; RH&LH ｷﾖｳﾖｳ |
90450-WF000 |
US $208.80 |
||
|
90451A
|
90451A
01217-00031 SCREW9508--01 ~ ; S |
01217-00031 |
US $1.93 |
||
|
90451B
|
90451B
90388-70N00 ｸﾞﾛﾒﾂﾄ,ｽｸﾘﾕ-9508--01 ~ 9705--01; S |
90388-70N00 |
US $4.61 |
||
|
90520M
|
90520M
9052070N00 Dovetail-Striker9508--01 ~ ; S |
9052070N00 |
US $17.71 |
||
|
90524N
|
90524N
90524-0W000
Striker-Dovetail Lower
9508--01 ~ 9710--01; S |
90524-0W000 |
— | ||
| replacement | |||||
|
90524N
|
90524N
90524-0W001 Striker-Dovetail Lower9508--01 ~ 9710--01; S |
90524-0W001 |
US $9.66 |
||
|
90524N
|
90524N
90524-0W001 Striker-Dovetail Lower9710--01 ~ ; S |
90524-0W001 |
US $9.66 |
||
|
90714
|
90714
8527470N00 Spacer-Glass9508--01 ~ 9705--01; S |
8527470N00 |
US $1.73 |
||
|
90714
|
90714
90356-WF000 ｽﾍﾟ-ｻ-,ｶﾞﾗｽ a9705--01 ~ ; S |
90356-WF000 |
US $4.61 |
||
|
90810M
|
90810M
90810-50R00 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ9508--01 ~ 9705--01; S |
90810-50R00 |
US $380.90 |
||
|
90810M
|
90810M
90810-WF000 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ9705--01 ~ ; S |
90810-WF000 |
US $686.76 |
||
|
90815
|
90815
848400M000 Bumper-Trunk Lid9508--01 ~ 9705--01; S |
848400M000 |
from US $3.92 |
||
|
90815
|
90815
9087861Y00 STOPPER RUBBER9705--01 ~ ; S |
9087861Y00 |
US $5.18 |
||
|
90815
|
90815
90878WF000 Bumper Rubber9705--01 ~ ; S; ﾐｷﾞｶﾞﾜ |
90878WF000 |
US $6.05 |
||
|
90815
|
90815
90879WF000 Bumper Rubber9705--01 ~ ; S; ﾋﾀﾞﾘ |
90879WF000 |
US $6.05 |
||
|
90816
|
90816
6089530R00 Seal-Rubber9508--01 ~ ; S |
6089530R00 |
US $0.86 |
||
|
90816
|
90816
9622970N00 Holder9508--01 ~ 9705--01; S |
9622970N00 |
from US $4.71 |
||
|
90816P
|
90816P
9622970N00 Holder9508--01 ~ 9705--01; S |
9622970N00 |
from US $4.71 |
||
|
90896FA
|
90896FA
K9004-31460 ｸﾘﾂﾌﾟ9508--01 ~ 9705--01; S |
K9004-31460 |
US $1.15 |
||
