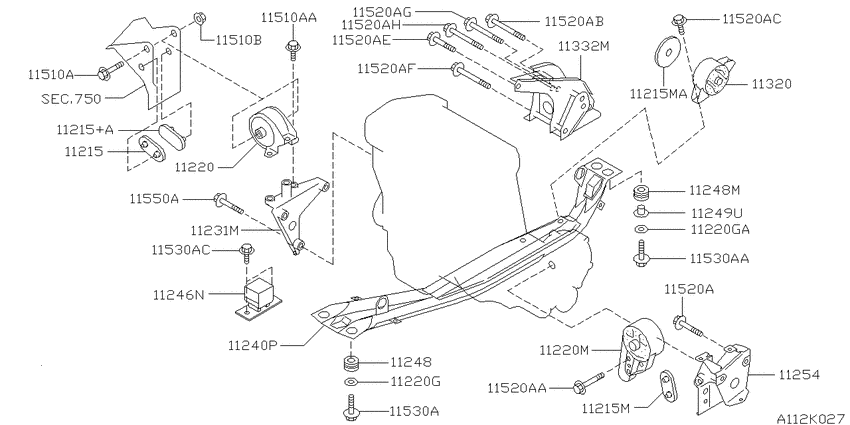

Engine & transmission mounting (1995-08-01 ~ ; 2WD.SR20DE) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1995 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- FA
- grade
- JOY/L
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
1121551E00 STOPPER-ENGINE MOUNTING9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
1121551E00 |
US $14.40 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
1121550A00 Stopper-Engine Mounting9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
1121550A00 |
US $11.38 |
||
|
11215+A
|
11215+A
1121551E00 STOPPER-ENGINE MOUNTING9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
1121551E00 |
US $14.40 |
||
|
11215M
|
11215M
1121554E00 STOPPER-ENGINE MOUNTING9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
1121554E00 |
US $17.57 |
||
|
11215M
|
11215M
1121550A00 Stopper-Engine Mounting9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
1121550A00 |
US $11.38 |
||
|
11215MA
|
11215MA
1121550A00 Stopper-Engine Mounting9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
1121550A00 |
US $11.38 |
||
|
11220
|
11220
1121076N06 Insulator-Engine Mounting, Front9602--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
1121076N06 |
US $149.76 |
||
|
11220
|
11220
11210-87N22 Insulator-Engine Mounting, Front9508--01 ~ 9602--01; (2WD.5P+2WD.7P).SR20DE |
11210-87N22 |
US $168.48 |
||
|
11220
|
11220
01311-01171 WASHER9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01311-01171 |
US $3.06 |
||
|
11220
|
11220
01311-01181 WASHER9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01311-01181 |
US $2.45 |
||
|
11220
|
11220
11220-0E410 Insulator Assy-Engine Mounting, Front Lh9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
11220-0E410 |
US $126.72 |
||
|
11220G
|
11220G
01311-01171 WASHER9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01311-01171 |
US $3.06 |
||
|
11220G
|
11220G
01311-01181 WASHER9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01311-01181 |
US $2.45 |
||
|
11220GA
|
11220GA
01311-01181 WASHER9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01311-01181 |
US $2.45 |
||
|
11220M
|
11220M
11220-0E410 Insulator Assy-Engine Mounting, Front Lh9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
11220-0E410 |
US $126.72 |
||
|
11231M
|
11231M
11231-70E02
BRACKET-ENGINE MOUNTING
9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
11231-70E02 |
— | ||
|
11240P
|
11240P
11240-65E01 MEMBER ASSY-FRONT,CENTER9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
11240-65E01 |
US $247.68 |
||
|
11246N
|
11246N
11246-50R10 Damper Assy9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
11246-50R10 |
US $91.73 |
||
|
11248
|
11248
1124851E01 PAD-ENGINE MOUNTING MEMBER9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
1124851E01 |
US $9.02 |
||
|
11248
|
11248
1124851E09 PAD-ENGINE MOUNTING MEMBER9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
1124851E09 |
from US $7.44 |
||
|
11248M
|
11248M
1124851E09 PAD-ENGINE MOUNTING MEMBER9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
1124851E09 |
from US $7.44 |
||
|
11249U
|
11249U
11249-51E05 PIN-MOUNTING9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
11249-51E05 |
US $8.21 |
||
|
11254
|
11254
11253-52R00 Support-Engine Mounting, Lh9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
11253-52R00 |
US $134.35 |
||
|
11320
|
11320
1132070N10 Insulator-Engine Mounting, Rear9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
1132070N10 |
US $75.02 |
||
|
11332M
|
11332M
11332-76N01 Bracket-Engine Mounting, Rear9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
11332-76N01 |
US $102.38 |
||
|
11510A
|
11510A
0112500413 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
0112500413 |
US $3.46 |
||
|
11510A
|
11510A
01121-05571 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01121-05571 |
US $4.03 |
||
|
11510AA
|
11510AA
01121-05571 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01121-05571 |
US $4.03 |
||
|
11510B
|
11510B
0122500082 NUT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
0122500082 |
from US $0.61 |
||
|
11520A
|
11520A
01125-00661 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-00661 |
US $4.18 |
||
|
11520A
|
11520A
01125-01811 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-01811 |
US $3.46 |
||
|
11520A
|
11520A
01125-00831 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-00831 |
US $3.31 |
||
|
11520A
|
11520A
01121-04861 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01121-04861 |
US $4.18 |
||
|
11520A
|
11520A
01125-01711 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-01711 |
US $2.45 |
||
|
11520A
|
11520A
01125-01731 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-01731 |
US $4.03 |
||
|
11520A
|
11520A
01125-02111 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-02111 |
US $2.45 |
||
|
11520A
|
11520A
01125-01751 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-01751 |
US $2.45 |
||
|
11520AA
|
11520AA
01125-01811 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-01811 |
US $3.46 |
||
|
11520AB
|
11520AB
01125-00831 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-00831 |
US $3.31 |
||
|
11520AC
|
11520AC
01121-04861 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01121-04861 |
US $4.18 |
||
|
11520AE
|
11520AE
01125-01711 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-01711 |
US $2.45 |
||
|
11520AF
|
11520AF
01125-01731 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-01731 |
US $4.03 |
||
|
11520AG
|
11520AG
01125-02111 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-02111 |
US $2.45 |
||
|
11520AH
|
11520AH
01125-01751 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-01751 |
US $2.45 |
||
|
11530A
|
11530A
1129852R00 Bolt9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
1129852R00 |
US $3.46 |
||
|
11530A
|
11530A
01125-00093 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-00093 |
US $1.73 |
||
|
11530A
|
11530A
01121-04861 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01121-04861 |
US $4.18 |
||
|
11530AA
|
11530AA
01125-00093 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01125-00093 |
US $1.73 |
||
|
11530AC
|
11530AC
01121-04861 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01121-04861 |
US $4.18 |
||
|
11550A
|
11550A
01121-04251 BOLT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01121-04251 |
US $2.45 |
||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
