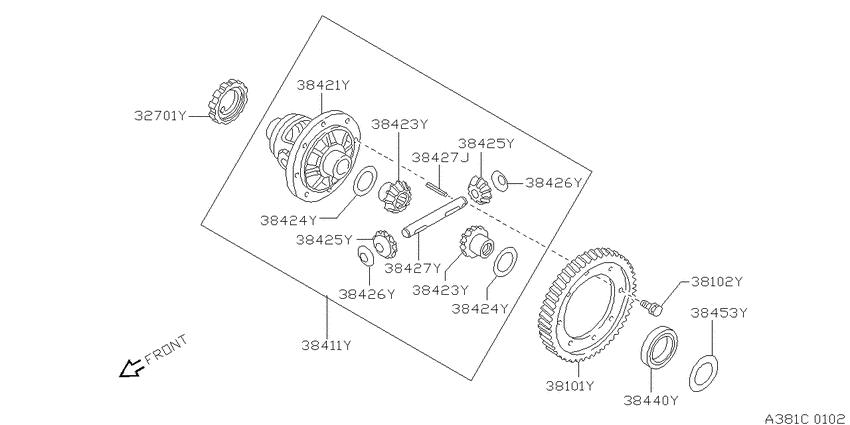

Front final drive (1995-08-01 ~ ; 標準 タイプ; 2WD.SR20DE) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1995 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- FA
- grade
- JOY/L
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-31X00 Gear-Drive, Speedometer9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
32701-31X00 |
from US $11.95 |
||
|
38101Y
|
38101Y
38101-31X03 Gear-Final Drive9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
38101-31X03 |
US $138.96 |
||
|
38101Y
|
38101Y
38101-31X62 Gear-Final Drive9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ﾋﾞｽｶｽLSD ｼﾖｳ |
38101-31X62 |
US $164.16 |
||
|
38102Y
|
38102Y
38102-31X60 Bolt-Drive Gear9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ﾋﾞｽｶｽLSD ｼﾖｳ |
38102-31X60 |
US $2.45 |
||
|
38102Y
|
38102Y
38102-M8001 Bolt-Drive Gear9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
38102-M8001 |
US $2.45 |
||
|
38411Y
|
38411Y
38411-31X72 Case Compl-Differential9508--01 ~ 9605--01; (2WD.5P+2WD.7P).SR20DE |
38411-31X72 |
US $1,101.65 |
||
|
38411Y
|
38411Y
38411-31X73 Case Compl-Differential9605--01 ~ 9705--01; (2WD.5P+2WD.7P).SR20DE |
38411-31X73 |
US $938.81 |
||
|
38421Y
|
38421Y
38421-31X70 Case-Differential9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
38421-31X70 |
US $448.87 |
||
|
38423Y
|
38423Y
38423-31X02 Gear-Side9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
38423-31X02 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-31X02 Gear-Side9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
38423-31X02 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-31X02 Pinion-Mate9508--01 ~ 9605--01; (2WD.5P+2WD.7P).SR20DE |
38425-31X02 |
US $57.74 |
||
|
38425Y
|
38425Y
38425-31X07 Pinion-Mate9605--01 ~ 9705--01; (2WD.5P+2WD.7P).SR20DE |
38425-31X07 |
US $64.22 |
||
|
38425Y
|
38425Y
38425-31X02 Pinion-Mate9508--01 ~ 9605--01; (2WD.5P+2WD.7P).SR20DE |
38425-31X02 |
US $57.74 |
||
|
38425Y
|
38425Y
38425-31X07 Pinion-Mate9605--01 ~ 9705--01; (2WD.5P+2WD.7P).SR20DE |
38425-31X07 |
US $64.22 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
38426-31X02 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
38426-31X02 |
US $4.18 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-31X04 Shaft-Pinion Mate9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
38427-31X04 |
US $63.22 |
||
|
38440Y
|
38440Y
31408-31X07 Bearing-Differential Side9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
31408-31X07 |
US $46.80 |
||
| replacement | |||||
|
38440Y
|
38440Y
31408-31X23 Bearing-Differential Side9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
31408-31X23 |
US $42.48 |
||
|
38440Y
|
38440Y
31408-31X08 Bearing-Differential Side9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ﾋﾞｽｶｽLSD ｼﾖｳ |
31408-31X08 |
from US $90.41 |
||
|
38453Y
|
38453Y
31439-31X00 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.28 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X00 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X01 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.32 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X01 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X02 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.36 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X02 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X03 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.40 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X03 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X04 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.44 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X04 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X05 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.48 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X05 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X06 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.52 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X06 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X07 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.56 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X07 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X08 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.60 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X08 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X09 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.64 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X09 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X10 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.68 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X10 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X11 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.72 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X11 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X12 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.76 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X12 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X13 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.80 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X13 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X14 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.84 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X14 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X15 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.88 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X15 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X16 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.92 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X16 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X17 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.96 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X17 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X18 Shim-Adjust, Side Bearing9705--01 ~ ; *(2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=1.44 ﾋﾞｽｶｽLSD ｼﾖｳ |
31439-31X18 |
US $7.20 |
||
|
38453Y
|
38453Y
31499-21X07 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.40 |
31499-21X07 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X08 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.44 |
31499-21X08 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X09 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.48 |
31499-21X09 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X10 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.52 |
31499-21X10 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X11 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.56 |
31499-21X11 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X12 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.60 |
31499-21X12 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X13 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.64 |
31499-21X13 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X14 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.68 |
31499-21X14 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X15 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.72 |
31499-21X15 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X16 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.76 |
31499-21X16 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X17 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.80 |
31499-21X17 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X18 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.84 |
31499-21X18 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X19 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.88 |
31499-21X19 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X20 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=0.92 |
31499-21X20 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X21 Shim-Adjust, Output Shaft9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE; ｾﾝﾀｸ T=1.44 |
31499-21X21 |
US $8.06 |
||
