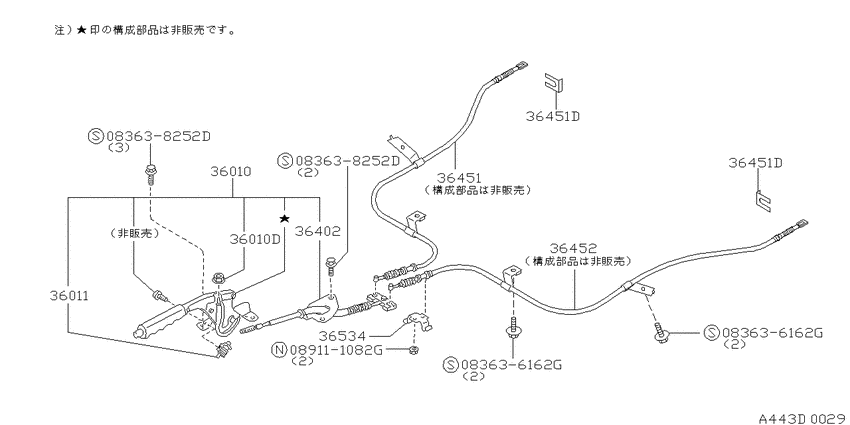

Parking brake control (1997-05-01 ~ ; 2WD.SR20DE) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1995 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- FA
- grade
- JOY/L
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
083638252D
|
083638252D
08363-8252D SCREWMACHINE |
08363-8252D |
US $3.39 |
||
|
083638252D
|
083638252D
08363-8252D SCREWMACHINE |
08363-8252D |
US $3.39 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
36010
|
36010
36010-51R10 Device Assy-Parking Brake Control9508--01 ~ 9705--01; (2WD.5P+2WD.7P).SR20DE |
36010-51R10 |
US $158.40 |
||
|
36010
|
36010
36010-WF000 Device Assy-Parking Brake Control9705--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
36010-WF000 |
US $158.40 |
||
|
36010
|
36010
01225-00511 NUT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01225-00511 |
US $3.46 |
||
|
36010
|
36010
74810-30R00 Bracket-Parking Brake Mounting9508--01 ~ ; S |
74810-30R00 |
US $97.49 |
||
|
36010D
|
36010D
01225-00511 NUT9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
01225-00511 |
US $3.46 |
||
|
36011
|
36011
36011-41F00 Switch Assy-Parking Brake Lamp9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
36011-41F00 |
US $8.64 |
||
|
36011
|
36011
01436-00303 SCREW9508--01 ~ 9705--01; (2WD.5P+2WD.7P).SR20DE |
01436-00303 |
US $1.73 |
||
|
36402
|
36402
36402-50R00 Cable Assy-Parking Brake, Front9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
36402-50R00 |
US $108.58 |
||
|
36451
|
36451
36530-50R00 Cable Assy-Brake, Rear Rh9508--01 ~ 9705--01; (2WD.5P+2WD.7P).SR20DE |
36530-50R00 |
US $83.66 |
||
|
36451
|
36451
36530-50R10 Cable Assy-Brake, Rear Rh9508--01 ~ 9705--01; *(2WD.5P+2WD.7P).SR20DE; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
36530-50R10 |
US $83.66 |
||
|
36451
|
36451
36406-01P00 Plate-Cable Lock9508--01 ~ 9705--01; *(2WD.5P+2WD.7P).SR20DE; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
36406-01P00 |
US $0.86 |
||
| replacement | |||||
|
36451
|
36451
3640601P0A Plate-Cable Lock9508--01 ~ 9705--01; *(2WD.5P+2WD.7P).SR20DE; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
3640601P0A |
from US $1.07 |
||
|
36451D
|
36451D
36406-01P00 Plate-Cable Lock9508--01 ~ 9705--01; *(2WD.5P+2WD.7P).SR20DE; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
36406-01P00 |
US $0.86 |
||
| replacement | |||||
|
36451D
|
36451D
3640601P0A Plate-Cable Lock9508--01 ~ 9705--01; *(2WD.5P+2WD.7P).SR20DE; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
3640601P0A |
from US $1.07 |
||
|
36451D
|
36451D
36406-01P00 Plate-Cable Lock9508--01 ~ 9705--01; *(2WD.5P+2WD.7P).SR20DE; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
36406-01P00 |
US $0.86 |
||
| replacement | |||||
|
36451D
|
36451D
3640601P0A Plate-Cable Lock9508--01 ~ 9705--01; *(2WD.5P+2WD.7P).SR20DE; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
3640601P0A |
from US $1.07 |
||
|
36452
|
36452
36531-50R00 Cable Assy-Brake, Rear Lh9508--01 ~ 9705--01; (2WD.5P+2WD.7P).SR20DE |
36531-50R00 |
US $83.66 |
||
|
36452
|
36452
36531-50R10 Cable Assy-Brake, Rear Lh9508--01 ~ 9705--01; *(2WD.5P+2WD.7P).SR20DE; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
36531-50R10 |
US $83.66 |
||
|
36534
|
36534
36521-D4000 Bracket Assy-Parking Brake Wire9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
36521-D4000 |
US $5.47 |
||
