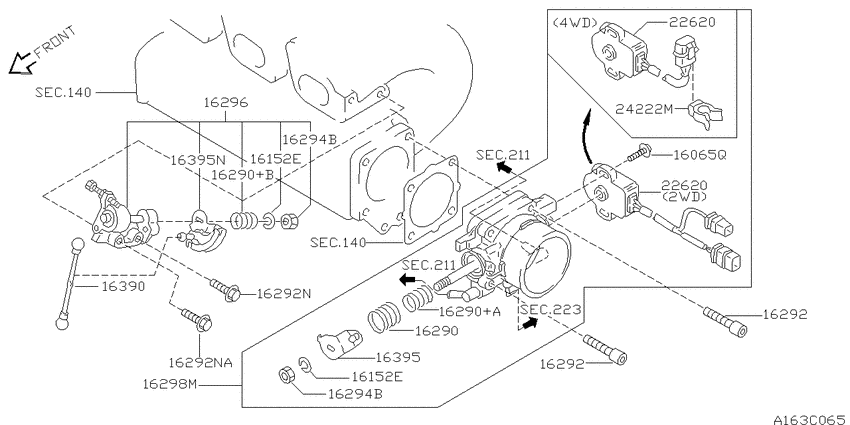

Throttle chamber (1995-08-01 ~ ; SR20DE) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1995 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- FA
- grade
- JOY/L
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
16065Q
|
16065Q
16065-1B000
Screw
9508--01 ~ ; SR20DE |
16065-1B000 |
— | ||
| replacement | |||||
|
16065Q
|
16065Q
16065-4M800 Screw9508--01 ~ ; SR20DE |
16065-4M800 |
US $4.16 |
||
|
16152E
|
16152E
16152-97E15 WASHER9508--01 ~ ; SR20DE |
16152-97E15 |
US $0.86 |
||
|
16152E
|
16152E
16152-97E15 WASHER9508--01 ~ ; SR20DE |
16152-97E15 |
US $0.86 |
||
|
16290
|
16290
16160-64Y01 Spring-Throttle Return9508--01 ~ ; SR20DE |
16160-64Y01 |
US $10.37 |
||
|
16290
|
16290
16160-64Y01 Spring-Throttle Return9508--01 ~ ; SR20DE |
16160-64Y01 |
US $10.37 |
||
|
16290
|
16290
16160-53J01 Spring-Throttle Return9508--01 ~ ; SR20DE |
16160-53J01 |
US $10.51 |
||
|
16290+A
|
16290+A
16160-64Y01 Spring-Throttle Return9508--01 ~ ; SR20DE |
16160-64Y01 |
US $10.37 |
||
|
16290+B
|
16290+B
16160-53J01 Spring-Throttle Return9508--01 ~ ; SR20DE |
16160-53J01 |
US $10.51 |
||
|
16292
|
16292
16122V5200 Bolt-Chamber9508--01 ~ ; SR20DE |
16122V5200 |
US $3.46 |
||
|
16292
|
16292
16163-58Y01 Bolt-Chamber9508--01 ~ ; SR20DE |
16163-58Y01 |
US $2.45 |
||
|
16292
|
16292
16163-58Y00 Bolt-Chamber9508--01 ~ ; SR20DE |
16163-58Y00 |
US $2.74 |
||
|
16292
|
16292
16122V5200 Bolt-Chamber9508--01 ~ ; SR20DE |
16122V5200 |
US $3.46 |
||
|
16292
|
16292
16163-58Y01 Bolt-Chamber9508--01 ~ ; SR20DE |
16163-58Y01 |
US $2.45 |
||
|
16292
|
16292
16163-58Y00 Bolt-Chamber9508--01 ~ ; SR20DE |
16163-58Y00 |
US $2.74 |
||
|
16292N
|
16292N
16163-58Y01 Bolt-Chamber9508--01 ~ ; SR20DE |
16163-58Y01 |
US $2.45 |
||
|
16292N
|
16292N
16163-58Y00 Bolt-Chamber9508--01 ~ ; SR20DE |
16163-58Y00 |
US $2.74 |
||
|
16292NA
|
16292NA
16163-58Y00 Bolt-Chamber9508--01 ~ ; SR20DE |
16163-58Y00 |
US $2.74 |
||
|
16294B
|
16294B
1607495E15 NUT9508--01 ~ ; SR20DE |
1607495E15 |
US $2.45 |
||
|
16294B
|
16294B
1607495E15 NUT9508--01 ~ ; SR20DE |
1607495E15 |
US $2.45 |
||
|
16296
|
16296
18919-70Y01 Drum-Accelerator9508--01 ~ ; SR20DE |
18919-70Y01 |
US $123.12 |
||
|
16298M
|
16298M
16119-38Y01 Chamber Assy-Throttle9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
16119-38Y01 |
US $564.98 |
||
|
16390
|
16390
1637053J10 Rod-Connecting, Accelerator9508--01 ~ ; SR20DE |
1637053J10 |
US $29.40 |
||
|
16395
|
16395
16134-78E00 LEVER-THROTTLE9508--01 ~ ; SR20DE |
16134-78E00 |
US $26.06 |
||
|
16395
|
16395
16134-70Y01 Lever-Throttle9508--01 ~ ; SR20DE |
16134-70Y01 |
US $23.04 |
||
|
16395N
|
16395N
16134-70Y01 Lever-Throttle9508--01 ~ ; SR20DE |
16134-70Y01 |
US $23.04 |
||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
223
|
Vacuum piping
223
|
||||
|
22620
|
22620
22620-64Y05 Throttle Position Switch9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
22620-64Y05 |
US $158.40 |
||
|
22620
|
22620
22620-64Y05 Throttle Position Switch9508--01 ~ ; (2WD.5P+2WD.7P).SR20DE |
22620-64Y05 |
US $158.40 |
||
