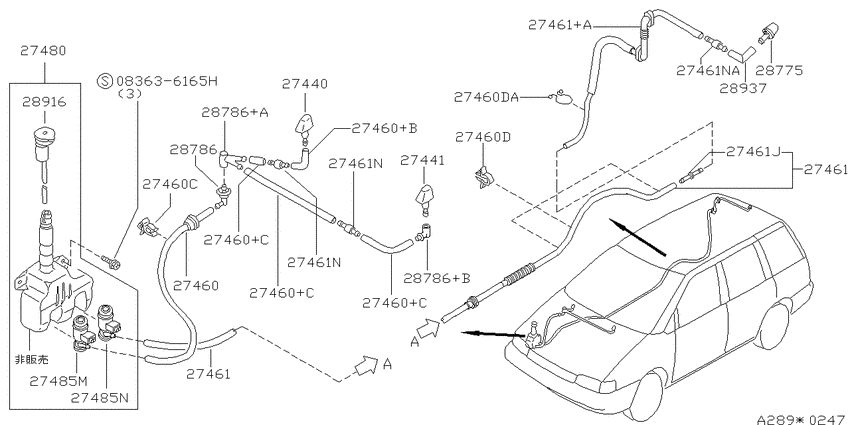

Windshield washer (1995-08-01 ~ ; S) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1995 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- FA
- grade
- JOY/L
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636165H
|
083636165H
083636165H SCREWMACHINE |
083636165H |
from US $0.48 |
||
|
27440
|
27440
28930-35R10
Nozzle Assy-Washer, No 1
9508--01 ~ ; S |
28930-35R10 |
— | ||
|
27441
|
27441
28931-35R10
Nozzle Assy-Washer, No 2
9508--01 ~ ; S |
28931-35R10 |
— | ||
|
27460
|
27460
28935-30R00 Hose-Washer9508--01 ~ ; S |
28935-30R00 |
US $54.43 |
||
|
27460
|
27460
B8935-30R10 Hose-Washer9508--01 ~ ; S |
B8935-30R10 |
US $10.37 |
||
|
27460
|
27460
B746189910 Hose-Washer9508--01 ~ ; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460
|
27460
2894551S00 Clip-Hose9508--01 ~ ; S |
2894551S00 |
US $3.31 |
||
|
27460
|
27460
28945-50R00 Clip9508--01 ~ ; S.JOY/L |
28945-50R00 |
US $5.47 |
||
|
27460
|
27460
24220-89985 Clip-Wiring Harness9508--01 ~ 9705--01; S |
24220-89985 |
US $0.81 |
||
|
27460+B
|
27460+B
B8935-30R10 Hose-Washer9508--01 ~ ; S |
B8935-30R10 |
US $10.37 |
||
|
27460+C
|
27460+C
B746189910 Hose-Washer9508--01 ~ ; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460+C
|
27460+C
B746189910 Hose-Washer9508--01 ~ ; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460+C
|
27460+C
B746189910 Hose-Washer9508--01 ~ ; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460C
|
27460C
2894551S00 Clip-Hose9508--01 ~ ; S |
2894551S00 |
US $3.31 |
||
|
27460D
|
27460D
28945-50R00 Clip9508--01 ~ ; S.JOY/L |
28945-50R00 |
US $5.47 |
||
|
27460D
|
27460D
24220-89985 Clip-Wiring Harness9508--01 ~ 9705--01; S |
24220-89985 |
US $0.81 |
||
|
27460DA
|
27460DA
24220-89985 Clip-Wiring Harness9508--01 ~ 9705--01; S |
24220-89985 |
US $0.81 |
||
|
27461
|
27461
28975-50R10 Hose-Washer9508--01 ~ ; S |
28975-50R10 |
US $10.37 |
||
|
27461
|
27461
28940-50R00 Hose-Washer9508--01 ~ 9705--01; S.JOY/L |
28940-50R00 |
US $9.94 |
||
|
27461
|
27461
28975-WF000 Hose-Washer9705--01 ~ ; S |
28975-WF000 |
US $10.37 |
||
|
27461
|
27461
27416H8700
Joint-Washer Tube
9508--01 ~ ; S |
27416H8700 |
— | ||
| replacement | |||||
|
27461
|
27461
28937AR000 Connector-Hose9508--01 ~ ; S |
28937AR000 |
US $1.39 |
||
|
27461
|
27461
2893850A00 Valve-Check9508--01 ~ ; S |
2893850A00 |
US $6.34 |
||
|
27461
|
27461
2893805J00 Valve-Check9508--01 ~ ; S |
2893805J00 |
US $14.42 |
||
|
27461
|
27461
28975-50R10 Hose-Washer9508--01 ~ ; S |
28975-50R10 |
US $10.37 |
||
|
27461
|
27461
28940-50R00 Hose-Washer9508--01 ~ 9705--01; S.JOY/L |
28940-50R00 |
US $9.94 |
||
|
27461
|
27461
28975-WF000 Hose-Washer9705--01 ~ ; S |
28975-WF000 |
US $10.37 |
||
|
27461
|
27461
27416H8700
Joint-Washer Tube
9508--01 ~ ; S |
27416H8700 |
— | ||
| replacement | |||||
|
27461
|
27461
28937AR000 Connector-Hose9508--01 ~ ; S |
28937AR000 |
US $1.39 |
||
|
27461
|
27461
2893850A00 Valve-Check9508--01 ~ ; S |
2893850A00 |
US $6.34 |
||
|
27461
|
27461
2893805J00 Valve-Check9508--01 ~ ; S |
2893805J00 |
US $14.42 |
||
|
27461+A
|
27461+A
28940-50R00 Hose-Washer9508--01 ~ 9705--01; S.JOY/L |
28940-50R00 |
US $9.94 |
||
|
27461+A
|
27461+A
28975-WF000 Hose-Washer9705--01 ~ ; S |
28975-WF000 |
US $10.37 |
||
|
27461J
|
27461J
27416H8700
Joint-Washer Tube
9508--01 ~ ; S |
27416H8700 |
— | ||
| replacement | |||||
|
27461J
|
27461J
28937AR000 Connector-Hose9508--01 ~ ; S |
28937AR000 |
US $1.39 |
||
|
27461N
|
27461N
2893850A00 Valve-Check9508--01 ~ ; S |
2893850A00 |
US $6.34 |
||
|
27461N
|
27461N
2893805J00 Valve-Check9508--01 ~ ; S |
2893805J00 |
US $14.42 |
||
|
27461N
|
27461N
2893850A00 Valve-Check9508--01 ~ ; S |
2893850A00 |
US $6.34 |
||
|
27461N
|
27461N
2893805J00 Valve-Check9508--01 ~ ; S |
2893805J00 |
US $14.42 |
||
|
27461NA
|
27461NA
2893805J00 Valve-Check9508--01 ~ ; S |
2893805J00 |
US $14.42 |
||
|
27480
|
27480
28910-47R00 Tank Assy-Windshield Washer9508--01 ~ ; S |
28910-47R00 |
US $201.60 |
||
|
27485M
|
27485M
2892017V00 Motor-Washer, Front9508--01 ~ ; S |
2892017V00 |
US $37.73 |
||
|
27485N
|
27485N
28960-40F00 Pump Assy-Washer Rear9508--01 ~ ; S |
28960-40F00 |
US $47.26 |
||
|
28775
|
28775
28970-50R00 Nozzle Assy-Rear Window Washer9508--01 ~ 9705--01; S |
28970-50R00 |
US $25.78 |
||
|
28775
|
28775
28970-WF000 Nozzle Assy-Rear Window Washer9705--01 ~ ; S |
28970-WF000 |
US $25.78 |
||
|
28786
|
28786
28937-35R00 Connector-Hose9508--01 ~ ; S |
28937-35R00 |
US $4.18 |
||
|
28786
|
28786
28937-30R00 Connector-Hose9508--01 ~ ; S |
28937-30R00 |
US $7.63 |
||
|
28786
|
28786
2893715U00
Connector-Tube
9508--01 ~ ; S |
2893715U00 |
— | ||
| replacement | |||||
|
28786
|
28786
289371W300 Connector-Hose9508--01 ~ ; S |
289371W300 |
from US $5.27 |
||
|
28786+A
|
28786+A
28937-30R00 Connector-Hose9508--01 ~ ; S |
28937-30R00 |
US $7.63 |
||
|
28786+B
|
28786+B
2893715U00
Connector-Tube
9508--01 ~ ; S |
2893715U00 |
— | ||
| replacement | |||||
|
28786+B
|
28786+B
289371W300 Connector-Hose9508--01 ~ ; S |
289371W300 |
from US $5.27 |
||
|
28916
|
28916
28916-32R02 Inlet-Washer Tank9508--01 ~ ; S |
28916-32R02 |
US $13.82 |
||
| replacement | |||||
|
28916
|
28916
B8916-32R02
Inlet-washer tank
9508--01 ~ ; S |
B8916-32R02 |
— | ||
|
28937
|
28937
28937-22P00 Connector-Hose9508--01 ~ ; S |
28937-22P00 |
US $4.98 |
||
