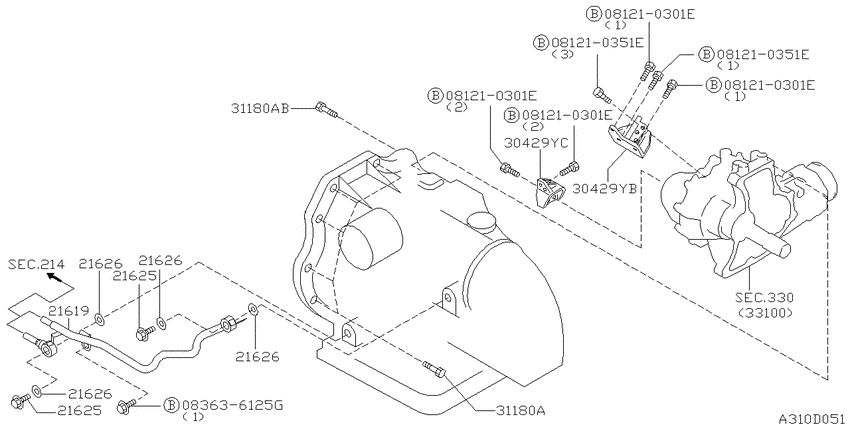

Auto transmission,transaxle & fitting (1995-08-01 ~ ; ｵｲﾙｸｰﾗｰﾊﾟｲﾋﾟﾝｸﾞ & ﾁｬｰｼﾞﾝｸﾞ ﾊﾟｲﾌﾟ; 4WD.FA) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1995 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 4WD
- transmission
- FA
- grade
- JOY
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
US $3.06 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
US $3.06 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
US $3.06 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
US $3.06 |
||
|
081210351E
|
081210351E
081210351E Bolt-hexagon |
081210351E |
US $1.13 |
||
|
081210351E
|
081210351E
081210351E Bolt-hexagon |
081210351E |
US $1.13 |
||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G
SCREWMACHINE
|
083606125G |
— | ||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
21619
|
21619
21619-0E500 Tube Assy-Oil Cooler9508--01 ~ ; (4WD.5P+4WD.7P).FA |
21619-0E500 |
US $44.35 |
||
|
21625
|
21625
21625-F6100 Bolt-Connector9508--01 ~ ; (4WD.5P+4WD.7P).FA |
21625-F6100 |
US $7.48 |
||
|
21625
|
21625
21625-F6100 Bolt-Connector9508--01 ~ ; (4WD.5P+4WD.7P).FA |
21625-F6100 |
US $7.48 |
||
|
21626
|
21626
2162632U00 Washer-Seal9601--01 ~ ; (4WD.5P+4WD.7P).FA |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162664U00 Washer-Seal9508--01 ~ 9601--01; (4WD.5P+4WD.7P).FA |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
2162632U00 Washer-Seal9601--01 ~ ; (4WD.5P+4WD.7P).FA |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162664U00 Washer-Seal9508--01 ~ 9601--01; (4WD.5P+4WD.7P).FA |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
2162632U00 Washer-Seal9601--01 ~ ; (4WD.5P+4WD.7P).FA |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162664U00 Washer-Seal9508--01 ~ 9601--01; (4WD.5P+4WD.7P).FA |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
2162632U00 Washer-Seal9601--01 ~ ; (4WD.5P+4WD.7P).FA |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162664U00 Washer-Seal9508--01 ~ 9601--01; (4WD.5P+4WD.7P).FA |
2162664U00 |
US $2.45 |
||
|
30429YB
|
30429YB
30441-79E00 Gusset-Transmission To Engine9508--01 ~ ; (4WD.5P+4WD.7P).FA |
30441-79E00 |
US $43.06 |
||
|
30429YC
|
30429YC
30441-79E02 Gusset-Transmission To Engine9508--01 ~ ; (4WD.5P+4WD.7P).FA |
30441-79E02 |
US $31.10 |
||
|
31180A
|
31180A
31377-0E003
BOLT
9508--01 ~ ; (4WD.5P+4WD.7P).FA |
31377-0E003 |
— | ||
| replacement | |||||
|
31180A
|
31180A
31377-0E00D Bolt9508--01 ~ ; (4WD.5P+4WD.7P).FA |
31377-0E00D |
from US $1.04 |
||
|
31180A
|
31180A
31377-0E004
BOLT
9508--01 ~ ; (4WD.5P+4WD.7P).FA |
31377-0E004 |
— | ||
| replacement | |||||
|
31180A
|
31180A
31377-JL00A Bolt9508--01 ~ ; (4WD.5P+4WD.7P).FA |
31377-JL00A |
from US $1.09 |
||
|
31180AB
|
31180AB
31377-0E004
BOLT
9508--01 ~ ; (4WD.5P+4WD.7P).FA |
31377-0E004 |
— | ||
| replacement | |||||
|
31180AB
|
31180AB
31377-JL00A Bolt9508--01 ~ ; (4WD.5P+4WD.7P).FA |
31377-JL00A |
from US $1.09 |
||
|
330
|
Transfer assembly & fitting
330
|
||||
