Component List PRAIRIE/LIBERTY

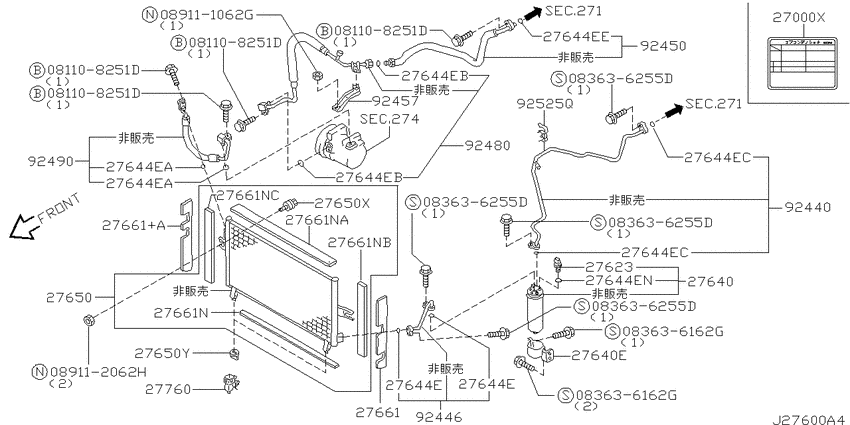

air conditioner (engine room) (2000-05-01 ~ 2001-05-01; (フロントパイピングリヤク-ラ- ナシ; W)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
081108251D	081108251D 081108251D Bolt-hexagon	081108251D	—
081108251D	081108251D 081108251D Bolt-hexagon	081108251D	—
081108251D	081108251D 081108251D Bolt-hexagon	081108251D	—
081108251D	081108251D 081108251D Bolt-hexagon	081108251D	—
083636162G	083636162G 083636162G Bolt	083636162G	US $2.34
083636162G	083636162G 083636162G Bolt	083636162G	US $2.34
083636255D	083636255D 08363-6255D Screw	08363-6255D	—
	replacement
083636255D	083636255D 08360-6255D SCREWMACHINE	08360-6255D	US $1.93
083636255D	083636255D 08363-6255D Screw	08363-6255D	—
	replacement
083636255D	083636255D 08360-6255D SCREWMACHINE	08360-6255D	US $1.93
083636255D	083636255D 08363-6255D Screw	08363-6255D	—
	replacement
083636255D	083636255D 08360-6255D SCREWMACHINE	08360-6255D	US $1.93
083636255D	083636255D 08363-6255D Screw	08363-6255D	—
	replacement
083636255D	083636255D 08360-6255D SCREWMACHINE	08360-6255D	US $1.93
089111062G	089111062G 089111062G Nut-Spring	089111062G	from US $0.52
089112062H	089112062H 089112062H NUT	089112062H	US $2.08
27000X	27000X 27090-WF100 Label-Air Con 9811--01 ~ 9910--01; W	27090-WF100	US $4.90
27000X	27000X 27090-WF501 Label-Air Con 0005--01 ~ 0105--01; W	27090-WF501	US $5.90
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
271	Cooling unit 271
274	Compressor 274
274	Compressor 274
274	Compressor 274
274	Compressor 274
274	Compressor 274
274	Compressor 274
27623	27623 92137-3J100 Switch Assy-Pressure 9811--01 ~ 9910--01; W	92137-3J100	US $45.22
27640	27640 921315V010 Tank Assy-Liquid 9910--01 ~ 0005--01; !W.SR20DE.HWS +W.SR20DET +W.(LA+X)	921315V010	US $114.19
27640	27640 92131-5V070 Tank Assy-Liquid 0012--01 ~ 0105--01; *W.LA	92131-5V070	US $114.19
27640	27640 92131-WF100 Tank Assy-Liquid 9811--01 ~ 9910--01; W.(LA+X+HWS)	92131-WF100	US $114.19
27640	27640 92135WA200 Bracket-Liquid Tank 9811--01 ~ 9910--01; W	92135WA200	US $21.46
27640	27640 92118-10V00 Mounting Rubber-Condenser, Upper 9811--01 ~ 9910--01; W.(LA+X+HWS); [B421]	92118-10V00	—
	replacement
27640	27640 9211810V0A Mounting-Rubber, Condenser Upper 9811--01 ~ 9910--01; W.(LA+X+HWS); [B421]	9211810V0A	US $1.93
27640E	27640E 92135WA200 Bracket-Liquid Tank 9811--01 ~ 9910--01; W	92135WA200	US $21.46
27644E	27644E 92471-N8210 O Ring 9811--01 ~ 9910--01; W	92471-N8210	—
	replacement
27644E	27644E 92470HC050 O Ring 9811--01 ~ 9910--01; W	92470HC050	from US $0.85
27644E	27644E 92472N8210 O Ring 9811--01 ~ 9910--01; W	92472N8210	from US $0.98
27644E	27644E 92474N8210 O Ring 9811--01 ~ 9910--01; W	92474N8210	from US $1.68
27644E	27644E 92471-N8210 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92471-N8210	—
	replacement
27644E	27644E 92470HC050 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92470HC050	from US $0.85
27644E	27644E 92473N8210 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92473N8210	from US $1.41
27644E	27644E 92473N8210 O Ring 9910--01 ~ 0005--01; W	92473N8210	from US $1.41
27644E	27644E 92471-N8210 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92471-N8210	—
	replacement
27644E	27644E 92470HC050 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92470HC050	from US $0.85
27644E	27644E 92471-N8210 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92471-N8210	—
	replacement
27644E	27644E 92470HC050 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92470HC050	from US $0.85
27644E	27644E 92472N8210 O Ring 9910--01 ~ 0005--01; !W.SR20DE.HWS +W.SR20DET +W.(LA+X)	92472N8210	from US $0.98
27644E	27644E 92473N8210 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92473N8210	from US $1.41
27644E	27644E 92471-N8210 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92471-N8210	—
	replacement
27644E	27644E 92470HC050 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92470HC050	from US $0.85
27644E	27644E 92472N8210 O Ring 9910--01 ~ 0005--01; !W.SR20DE.HWS +W.SR20DET +W.(LA+X)	92472N8210	from US $0.98
27644E	27644E 92473N8210 O Ring 9811--01 ~ 9910--01; W	92473N8210	from US $1.41
27644E	27644E 92472N8210 O Ring 9910--01 ~ 0005--01; !W.SR20DE.HWS +W.SR20DET +W.(LA+X)	92472N8210	from US $0.98
27644E	27644E 92474N8210 O Ring 9910--01 ~ 0005--01; !W.SR20DE.HWS +W.SR20DET +W.(LA+X)	92474N8210	from US $1.68
27644E	27644E J247689956 O Ring 9811--01 ~ 9910--01; W	J247689956	US $3.17
27644E	27644E 92471-N8210 O Ring 9811--01 ~ 9910--01; W	92471-N8210	—
	replacement
27644E	27644E 92470HC050 O Ring 9811--01 ~ 9910--01; W	92470HC050	from US $0.85
27644E	27644E 92472N8210 O Ring 9811--01 ~ 9910--01; W	92472N8210	from US $0.98
27644E	27644E 92474N8210 O Ring 9811--01 ~ 9910--01; W	92474N8210	from US $1.68
27644E	27644E 92471-N8210 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92471-N8210	—
	replacement
27644E	27644E 92470HC050 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92470HC050	from US $0.85
27644E	27644E 92473N8210 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92473N8210	from US $1.41
27644E	27644E 92473N8210 O Ring 9910--01 ~ 0005--01; W	92473N8210	from US $1.41
27644E	27644E 92471-N8210 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92471-N8210	—
	replacement
27644E	27644E 92470HC050 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92470HC050	from US $0.85
27644E	27644E 92471-N8210 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92471-N8210	—
	replacement
27644E	27644E 92470HC050 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92470HC050	from US $0.85
27644E	27644E 92472N8210 O Ring 9910--01 ~ 0005--01; !W.SR20DE.HWS +W.SR20DET +W.(LA+X)	92472N8210	from US $0.98
27644E	27644E 92473N8210 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92473N8210	from US $1.41
27644E	27644E 92471-N8210 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92471-N8210	—
	replacement
27644E	27644E 92470HC050 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92470HC050	from US $0.85
27644E	27644E 92472N8210 O Ring 9910--01 ~ 0005--01; !W.SR20DE.HWS +W.SR20DET +W.(LA+X)	92472N8210	from US $0.98
27644E	27644E 92473N8210 O Ring 9811--01 ~ 9910--01; W	92473N8210	from US $1.41
27644E	27644E 92472N8210 O Ring 9910--01 ~ 0005--01; !W.SR20DE.HWS +W.SR20DET +W.(LA+X)	92472N8210	from US $0.98
27644E	27644E 92474N8210 O Ring 9910--01 ~ 0005--01; !W.SR20DE.HWS +W.SR20DET +W.(LA+X)	92474N8210	from US $1.68
27644E	27644E J247689956 O Ring 9811--01 ~ 9910--01; W	J247689956	US $3.17
27644EA	27644EA 92472N8210 O Ring 9811--01 ~ 9910--01; W	92472N8210	from US $0.98
27644EA	27644EA 92472N8210 O Ring 9811--01 ~ 9910--01; W	92472N8210	from US $0.98
27644EB	27644EB 92474N8210 O Ring 9811--01 ~ 9910--01; W	92474N8210	from US $1.68
27644EB	27644EB 92474N8210 O Ring 9811--01 ~ 9910--01; W	92474N8210	from US $1.68
27644EC	27644EC 92471-N8210 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92471-N8210	—
	replacement
27644EC	27644EC 92470HC050 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92470HC050	from US $0.85
27644EC	27644EC 92471-N8210 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92471-N8210	—
	replacement
27644EC	27644EC 92470HC050 O Ring 9811--01 ~ 9910--01; W.(LA+X+HWS)	92470HC050	from US $0.85
27644EE	27644EE 92473N8210 O Ring 9910--01 ~ 0005--01; W	92473N8210	from US $1.41
27644EN	27644EN J247689956 O Ring 9811--01 ~ 9910--01; W	J247689956	US $3.17
27650	27650 92110-WF100 Condenser Assy 9811--01 ~ 9910--01; W	92110-WF100	US $474.36
27650	27650 92110WF105 Condenser Assy 0012--01 ~ 0105--01; *W.LA	92110WF105	US $474.36
27650	27650 92118-2S400 Mounting Rubber-Condenser, Upper 9811--01 ~ 9910--01; W	92118-2S400	US $4.90
27650	27650 9211951E00 MOUNTING RUBBER-CONDENSER,LOWER 9811--01 ~ 9910--01; W	9211951E00	from US $4.68
27650X	27650X 92118-2S400 Mounting Rubber-Condenser, Upper 9811--01 ~ 9910--01; W	92118-2S400	US $4.90
27650Y	27650Y 9211951E00 MOUNTING RUBBER-CONDENSER,LOWER 9811--01 ~ 9910--01; W	9211951E00	from US $4.68
27661	27661 21498WF100 Seal-Rubber 9910--01 ~ 0005--01; W.SR20DE; [K504]	21498WF100	US $19.87
27661	27661 21498-WF500 Seal-Rubber 9811--01 ~ 9910--01; W; [K504]	21498-WF500	US $19.87
27661	27661 21499WF100 Seal-Rubber 9811--01 ~ 9910--01; W; [K504]	21499WF100	US $19.87
27661	27661 92182-WF110 Seal-Rubber 9811--01 ~ 9910--01; W	92182-WF110	US $4.61
27661	27661 92182-WF100 Seal-Rubber 9811--01 ~ 9910--01; W	92182-WF100	US $6.48
27661	27661 92184-WF100 Seal-Rubber 9811--01 ~ 9910--01; W	92184-WF100	US $5.76
27661	27661 92185-WF100 Seal-Rubber 9811--01 ~ 9910--01; W	92185-WF100	US $5.76
27661+A	27661+A 21499WF100 Seal-Rubber 9811--01 ~ 9910--01; W; [K504]	21499WF100	US $19.87
27661N	27661N 92182-WF110 Seal-Rubber 9811--01 ~ 9910--01; W	92182-WF110	US $4.61
27661N	27661N 92182-WF100 Seal-Rubber 9811--01 ~ 9910--01; W	92182-WF100	US $6.48
27661N	27661N 92184-WF100 Seal-Rubber 9811--01 ~ 9910--01; W	92184-WF100	US $5.76
27661N	27661N 92185-WF100 Seal-Rubber 9811--01 ~ 9910--01; W	92185-WF100	US $5.76
27661NA	27661NA 92182-WF100 Seal-Rubber 9811--01 ~ 9910--01; W	92182-WF100	US $6.48
27661NB	27661NB 92184-WF100 Seal-Rubber 9811--01 ~ 9910--01; W	92184-WF100	US $5.76
27661NC	27661NC 92185-WF100 Seal-Rubber 9811--01 ~ 9910--01; W	92185-WF100	US $5.76
27760	27760 27722-31U00 Sensor Assy-Ambient 9811--01 ~ 9910--01; W	27722-31U00	US $38.88
92440	92440 92440-WF101 Pipe-Front Cooler, High 9811--01 ~ 9910--01; W.(LA+X+HWS)	92440-WF101	US $137.23
92440	92440 92440-WF201 Pipe-Front Cooler, High 0012--01 ~ 0105--01; *W.LA	92440-WF201	US $167.04
92446	92446 92446-WF100 Pipe-Cooler, Condenser To Tank 9811--01 ~ 9910--01; W	92446-WF100	US $39.74
92450	92450 92450-WF101 Pipe-Front Cooler, Low 9811--01 ~ 9910--01; W.(LA+X+HWS)	92450-WF101	US $549.41
92450	92450 92450-WF105 Pipe-Front Cooler, Low 9910--01 ~ 0005--01; W.SR20DE.HWS +W.(LA+X); ｺｳｼﾞｮｳｾｯﾃｲ	92450-WF105	US $416.30
92450	92450 92450-WF106 Pipe-Front Cooler, Low 0101--01 ~ 0105--01; W.SR20DE; ｺｳｼﾞｮｳｾｯﾃｲ	92450-WF106	US $621.62
92450	92450 92450-WF165 Pipe-Front Cooler, Low 9910--01 ~ 0005--01; !W.SR20DE.HWS +W.SR20DET +W.(LA+X); ｻｰﾋﾞｽﾖｳ	92450-WF165	US $563.57
92450	92450 92450-WF201 Pipe-Front Cooler, Low 0012--01 ~ 0105--01; *W.LA; ｺｳｼﾞｮｳｾｯﾃｲ	92450-WF201	US $228.96
92457	92457 92457-WF100 Bracket-Pipe 9811--01 ~ 9910--01; W	92457-WF100	US $15.26
92480	92480 92480-WF100 Hose-Flexible, Low 9811--01 ~ 9910--01; W	92480-WF100	US $327.10
92480	92480 92480-WF101 Hose-Flexible, Low 0012--01 ~ 0105--01; *W.LA	92480-WF101	US $327.10
92490	92490 92490WF100 Hose-Flexible, High 9811--01 ~ 9910--01; W	92490WF100	US $175.68
92490	92490 92490-WF101 Hose-Flexible, High 0012--01 ~ 0105--01; *W.LA	92490-WF101	US $197.28
92525Q	92525Q 92551-64Y00 Clip 9811--01 ~ 9910--01; W.(LA+X+HWS)	92551-64Y00	US $1.73
	replacement
92525Q	92525Q 92551-1N300 Clip 9811--01 ~ 9910--01; W.(LA+X+HWS)	92551-1N300	—
92525Q	92525Q 92551-51E00 CLIP 9811--01 ~ 9910--01; W.(LA+X+HWS)	92551-51E00	US $3.17
92525Q	92525Q 92551-WF600 Clip 0005--01 ~ 0105--01; *W.LA	92551-WF600	US $54
