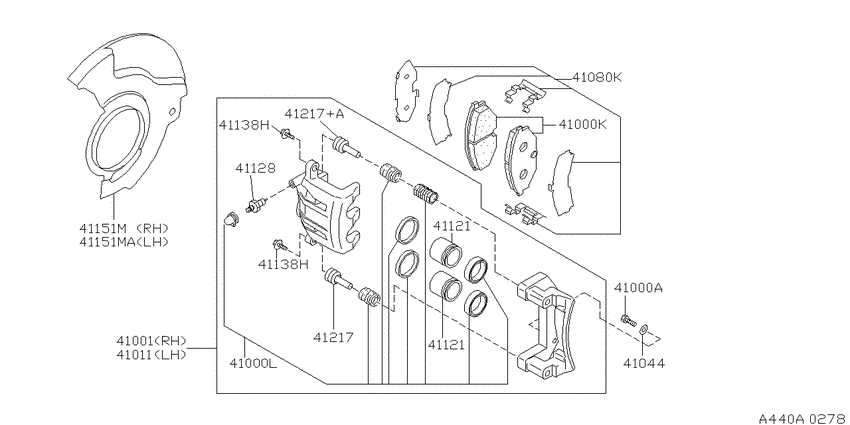

Front brake (2000-05-01 ~ 2001-05-01; SR20DE +SR20DET) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1998 - 2001
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- LA
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41000A
|
41000A
41005-6P010 Bolt9811--01 ~ 9910--01; SR20DE |
41005-6P010 |
US $3.46 |
||
|
41000K
|
41000K
AY040NS076 Pad Kit-Disc Brake9811--01 ~ 9910--01; SR20DE |
AY040NS076 |
US $144 |
||
|
41000L
|
41000L
AY600NS012 Seal Kit-Disc Brake9811--01 ~ 9910--01; SR20DE |
AY600NS012 |
from US $50.45 |
||
|
41001
|
41001
41001-WF100 Caliper Assy-Front Rh, W/o Pads Or Shims9811--01 ~ 9910--01; SR20DE |
41001-WF100 |
US $385.15 |
||
|
41011
|
41011
41011-WF100 Caliper Assy-Front Lh, W/o Pads Or Shims9811--01 ~ 9910--01; SR20DE |
41011-WF100 |
US $385.15 |
||
|
41044
|
41044
41044-6P010 Washer9811--01 ~ 9910--01; SR20DE |
41044-6P010 |
US $3.46 |
||
|
41080K
|
41080K
41080-WA225 Hardware Kit-Front Disc Brake Pad9811--01 ~ 9910--01; SR20DE |
41080-WA225 |
US $78.34 |
||
|
41121
|
41121
4112105N00 Piston-Cylinder9811--01 ~ 9910--01; SR20DE |
4112105N00 |
from US $47.14 |
||
|
41121
|
41121
4112105N00 Piston-Cylinder9811--01 ~ 9910--01; SR20DE |
4112105N00 |
from US $47.14 |
||
|
41128
|
41128
4112888E01
SCREW-BLEEDER
9811--01 ~ 9910--01; SR20DE |
4112888E01 |
— | ||
| replacement | |||||
|
41128
|
41128
41128AW70A Screw-Bleeder9811--01 ~ 9910--01; SR20DE |
41128AW70A |
from US $7.63 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9811--01 ~ 9910--01; SR20DE |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9811--01 ~ 9910--01; SR20DE |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9811--01 ~ 9910--01; SR20DE |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9811--01 ~ 9910--01; SR20DE |
44141AW70A |
from US $3.35 |
||
|
41151M
|
41151M
41151WA000 Plate-Baffle9811--01 ~ 9910--01; SR20DE; ﾐｷﾞ ﾖｳ |
41151WA000 |
US $43.06 |
||
|
41151M
|
41151M
41161WA000 Plate-Baffle9811--01 ~ 9910--01; SR20DE; ﾋﾀﾞﾘ ﾖｳ |
41161WA000 |
US $43.06 |
||
|
41151MA
|
41151MA
41161WA000 Plate-Baffle9811--01 ~ 9910--01; SR20DE; ﾋﾀﾞﾘ ﾖｳ |
41161WA000 |
US $43.06 |
||
|
41217
|
41217
44140N9500 Pin-Lock9811--01 ~ 9910--01; SR20DE |
44140N9500 |
from US $8.45 |
||
|
41217
|
41217
44139-16E01 PIN9811--01 ~ 9910--01; SR20DE |
44139-16E01 |
US $18.29 |
||
|
41217
|
41217
44139-2Y000 Pin-Slide9910--01 ~ 0005--01; SR20DE +SR20DET |
44139-2Y000 |
US $15.12 |
||
|
41217+A
|
41217+A
44139-16E01 PIN9811--01 ~ 9910--01; SR20DE |
44139-16E01 |
US $18.29 |
||
|
41217+A
|
41217+A
44139-2Y000 Pin-Slide9910--01 ~ 0005--01; SR20DE +SR20DET |
44139-2Y000 |
US $15.12 |
||
