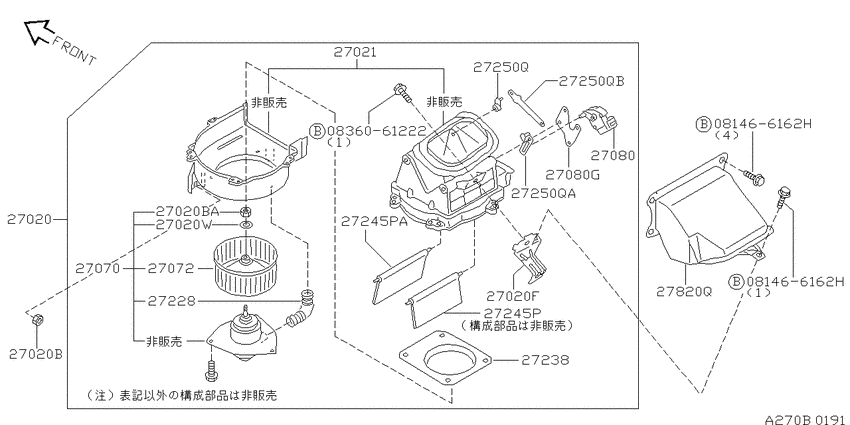

Heater & blower unit (1998-11-01 ~ 2001-05-01; "オート エアコン ブロア ユニット; *W.LA) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1998 - 2001
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- LA
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162H
|
081466162H
081466162H Bolt-hexagon |
081466162H |
from US $0.72 |
||
|
081466162H
|
081466162H
081466162H Bolt-hexagon |
081466162H |
from US $0.72 |
||
|
0836061222
|
0836061222
08360-61222
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61222 |
— | ||
|
27020
|
27020
27200-2J001 Blower Assy-Front9811--01 ~ 9908--01; W.(B+LA) |
27200-2J001 |
US $450.29 |
||
|
27020
|
27020
27200-2J501 Blower Assy-Front9811--01 ~ 0105--01; *W.LA |
27200-2J501 |
US $437.54 |
||
|
27020
|
27020
27200-WF101 Blower Assy-Front9908--01 ~ 0005--01; W.(B+LA) |
27200-WF101 |
US $546.58 |
||
|
27020
|
27020
27200-WF105 Blower Assy-Front0007--01 ~ 0105--01; *W.LA |
27200-WF105 |
US $546.58 |
||
|
27020
|
27020
0122500561 NUT9811--01 ~ 0005--01; W.(B+LA) |
0122500561 |
from US $0.57 |
||
|
27020
|
27020
21695-2Y000 Nut9811--01 ~ 0005--01; W.(B+LA) |
21695-2Y000 |
US $1.15 |
||
| replacement | |||||
|
27020
|
27020
216952Y00A
Nut
9811--01 ~ 0005--01; W.(B+LA) |
216952Y00A |
— | ||
|
27020
|
27020
92594-1M200 Nut0007--01 ~ 0105--01; W.LA |
92594-1M200 |
US $0.86 |
||
| replacement | |||||
|
27020
|
27020
925941M20A
Nut
0007--01 ~ 0105--01; W.LA |
925941M20A |
— | ||
|
27020
|
27020
27217-WF100 Bracket-Blower9811--01 ~ 0005--01; *W.LA |
27217-WF100 |
US $9.94 |
||
|
27020
|
27020
271732Y000 Washer-Plain9811--01 ~ 0005--01; *W.LA |
271732Y000 |
from US $0.86 |
||
|
27020B
|
27020B
0122500561 NUT9811--01 ~ 0005--01; W.(B+LA) |
0122500561 |
from US $0.57 |
||
|
27020B
|
27020B
21695-2Y000 Nut9811--01 ~ 0005--01; W.(B+LA) |
21695-2Y000 |
US $1.15 |
||
| replacement | |||||
|
27020B
|
27020B
216952Y00A
Nut
9811--01 ~ 0005--01; W.(B+LA) |
216952Y00A |
— | ||
|
27020B
|
27020B
92594-1M200 Nut0007--01 ~ 0105--01; W.LA |
92594-1M200 |
US $0.86 |
||
| replacement | |||||
|
27020B
|
27020B
925941M20A
Nut
0007--01 ~ 0105--01; W.LA |
925941M20A |
— | ||
|
27020BA
|
27020BA
21695-2Y000 Nut9811--01 ~ 0005--01; W.(B+LA) |
21695-2Y000 |
US $1.15 |
||
| replacement | |||||
|
27020BA
|
27020BA
216952Y00A
Nut
9811--01 ~ 0005--01; W.(B+LA) |
216952Y00A |
— | ||
|
27020BA
|
27020BA
92594-1M200 Nut0007--01 ~ 0105--01; W.LA |
92594-1M200 |
US $0.86 |
||
| replacement | |||||
|
27020BA
|
27020BA
925941M20A
Nut
0007--01 ~ 0105--01; W.LA |
925941M20A |
— | ||
|
27020F
|
27020F
27217-WF100 Bracket-Blower9811--01 ~ 0005--01; *W.LA |
27217-WF100 |
US $9.94 |
||
|
27020W
|
27020W
271732Y000 Washer-Plain9811--01 ~ 0005--01; *W.LA |
271732Y000 |
from US $0.86 |
||
|
27021
|
27021
27235-2J000 Case-Blower9811--01 ~ 0005--01; W.(B+LA) |
27235-2J000 |
US $80.93 |
||
|
27021
|
27021
27235-2J500 Case-Blower9811--01 ~ 0105--01; *W.LA |
27235-2J500 |
US $80.93 |
||
|
27070
|
27070
27220-0E004 MOTOR & FAN ASSY-BLOWER9811--01 ~ 0005--01; W.(B+LA) |
27220-0E004 |
US $234.72 |
||
|
27070
|
27070
272202J003 Motor & Fan Assy-Blower0007--01 ~ 0105--01; *W.LA |
272202J003 |
from US $332.76 |
||
|
27072
|
27072
27230-0E000 FAN-BLOWER9811--01 ~ 0005--01; *W.LA |
27230-0E000 |
US $33.26 |
||
|
27080
|
27080
27730-2J000 Actuator-Air Intake Box9811--01 ~ 0005--01; *W.LA |
27730-2J000 |
US $87.12 |
||
|
27080
|
27080
27750-2J000 Bracket-Actuator9811--01 ~ 0005--01; *W.LA |
27750-2J000 |
US $10.37 |
||
|
27080G
|
27080G
27750-2J000 Bracket-Actuator9811--01 ~ 0005--01; *W.LA |
27750-2J000 |
US $10.37 |
||
|
27228
|
27228
27228-0E002 HOSE-MOTOR9811--01 ~ 0005--01; *W.LA |
27228-0E002 |
US $12.10 |
||
|
27238
|
27238
27238-31U00 Bellmouth-Intake9811--01 ~ 0005--01; *W.LA |
27238-31U00 |
US $13.97 |
||
|
27245P
|
27245P
27245-40U00 Door-Intake Blower, Front9811--01 ~ 0005--01; *W.LA |
27245-40U00 |
US $13.54 |
||
|
27245P
|
27245P
27245-40U10 Door-Intake Blower, Front9811--01 ~ 0005--01; *W.LA |
27245-40U10 |
US $13.54 |
||
|
27245PA
|
27245PA
27245-40U10 Door-Intake Blower, Front9811--01 ~ 0005--01; *W.LA |
27245-40U10 |
US $13.54 |
||
|
27250Q
|
27250Q
27253-0E010 LEVER9811--01 ~ 0005--01; *W.LA |
27253-0E010 |
US $5.04 |
||
|
27250Q
|
27250Q
27253-2J000 Lever9811--01 ~ 0005--01; *W.LA |
27253-2J000 |
US $2.59 |
||
|
27250Q
|
27250Q
27250-0E000 LEVER9811--01 ~ 0005--01; *W.LA |
27250-0E000 |
US $3.17 |
||
|
27250QA
|
27250QA
27253-2J000 Lever9811--01 ~ 0005--01; *W.LA |
27253-2J000 |
US $2.59 |
||
|
27250QB
|
27250QB
27250-0E000 LEVER9811--01 ~ 0005--01; *W.LA |
27250-0E000 |
US $3.17 |
||
|
27820Q
|
27820Q
27845-WF100 Duct9811--01 ~ 0005--01; W.(B+LA) |
27845-WF100 |
US $45.94 |
||
