Component List PRAIRIE/LIBERTY
Rear door lock & handle (1998-11-01 ~ 1999-10-01; 標準; W)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
0831341625	0831341625 08313-41625 Болт	08313-41625	—
083606122G	083606122G 08360-6122G ｽｸﾘﾕ-,ﾏｼﾝ	08360-6122G	—
083686102G	083686102G 08368-6102G ｽｸﾘﾕ-	08368-6102G	—
0851361042	0851361042 0851361042 ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ	0851361042	US $1.87
82100E	82100E 82539-27N00 Clamp 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82539-27N00	US $0.86
82100E	82100E 82539-27N00 Clamp 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82539-27N00	US $0.86
82100EA	82100EA 82539-27N00 Clamp 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82539-27N00	US $0.86
82502	82502 82502-WF100 Lock Assy-Rear Door, Rh 9811--01 ~ 9910--01; W	82502-WF100	US $101.23
82502	82502 82502WF101 Lock Assy-Rear Door, Rh 0003--01 ~ 0005--01; W	82502WF101	from US $121.60
82502	82502 82502-WF200 Lock Assy-Rear Door, Rh 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82502-WF200	US $717.91
82502	82502 82502-WF200 Lock Assy-Rear Door, Rh 0005--01 ~ 0007--01; *W	82502-WF200	US $717.91
82502	82502 82502-WF201 Lock Assy-Rear Door, Rh 0007--01 ~ 0105--01; *W	82502-WF201	US $717.91
82502	82502 01436-00413 SCREW 9910--01 ~ 0005--01; W	01436-00413	US $1.44
82502	82502 82502-WF100 Lock Assy-Rear Door, Rh 9811--01 ~ 9910--01; W	82502-WF100	US $101.23
82502	82502 82502WF101 Lock Assy-Rear Door, Rh 0003--01 ~ 0005--01; W	82502WF101	from US $121.60
82502	82502 82502-WF200 Lock Assy-Rear Door, Rh 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82502-WF200	US $717.91
82502	82502 82502-WF200 Lock Assy-Rear Door, Rh 0005--01 ~ 0007--01; *W	82502-WF200	US $717.91
82502	82502 82502-WF201 Lock Assy-Rear Door, Rh 0007--01 ~ 0105--01; *W	82502-WF201	US $717.91
82502	82502 01436-00413 SCREW 9910--01 ~ 0005--01; W	01436-00413	US $1.44
82503	82503 82503-WF100 Lock Assy-Rear Door, Lh 9811--01 ~ 9910--01; W	82503-WF100	US $122.69
82503	82503 82503WF101 Lock Assy-Rear Door, Lh 0003--01 ~ 0005--01; W	82503WF101	US $122.69
82503	82503 82503-WF200 Lock Assy-Rear Door, Lh 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82503-WF200	US $717.91
82503	82503 82503-WF200 Lock Assy-Rear Door, Lh 0005--01 ~ 0007--01; *W	82503-WF200	US $717.91
82503	82503 82503WF201 Lock Assy-Rear Door, Lh 0007--01 ~ 0105--01; *W	82503WF201	US $717.91
82503	82503 82503WF600 Lock Assy-Rear Door, Lh 0005--01 ~ 0105--01; *W.LA	82503WF600	US $717.91
82503	82503 82503-WF100 Lock Assy-Rear Door, Lh 9811--01 ~ 9910--01; W	82503-WF100	US $122.69
82503	82503 82503WF101 Lock Assy-Rear Door, Lh 0003--01 ~ 0005--01; W	82503WF101	US $122.69
82503	82503 82503-WF200 Lock Assy-Rear Door, Lh 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82503-WF200	US $717.91
82503	82503 82503-WF200 Lock Assy-Rear Door, Lh 0005--01 ~ 0007--01; *W	82503-WF200	US $717.91
82503	82503 82503WF201 Lock Assy-Rear Door, Lh 0007--01 ~ 0105--01; *W	82503WF201	US $717.91
82503	82503 82503WF600 Lock Assy-Rear Door, Lh 0005--01 ~ 0105--01; *W.LA	82503WF600	US $717.91
82504	82504 82504-WF100 Remote Control Assy-Door Lock, Rh 9811--01 ~ 9910--01; W	82504-WF100	US $171.36
82504	82504 01456-00401 SCREW 9910--01 ~ 0005--01; !W.SR20DE.HWS +W.SR20DET +W.(LA+X)	01456-00401	US $1.73
82505	82505 82505-WF100 Remote Control Assy-Door Lock, Lh 9811--01 ~ 9910--01; W	82505-WF100	US $171.36
82520J	82520J 82596-WF100 Knob-Remote Control Door Lock 9811--01 ~ 9910--01; W	82596-WF100	US $10.94
82520J	82520J 82597-WF100 Knob-Remote Control Door Lock 9811--01 ~ 9910--01; W	82597-WF100	US $10.94
82520JA	82520JA 82597-WF100 Knob-Remote Control Door Lock 9811--01 ~ 9910--01; W	82597-WF100	US $10.94
82522	82522 82522-WF100 Cable Assy-Door Lock Body, Rh 9811--01 ~ 9910--01; W	82522-WF100	US $71.86
82522	82522 82522WF200 Cable Assy-Door Lock Body, Rh 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82522WF200	US $71.86
82522	82522 82522-WF100 Cable Assy-Door Lock Body, Rh 9811--01 ~ 9910--01; W	82522-WF100	US $71.86
82522	82522 82522WF200 Cable Assy-Door Lock Body, Rh 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82522WF200	US $71.86
82522	82522 82522WF200 Cable Assy-Door Lock Body, Rh 0005--01 ~ 0105--01; *W.LA; ﾐｷﾞｶﾞﾜ	82522WF200	US $71.86
82522	82522 82522WF200 Cable Assy-Door Lock Body, Rh 0005--01 ~ 0105--01; *W.LA; ﾋﾀﾞﾘ	82522WF200	US $71.86
82522	82522 82530-VE000 Cable Assy-Slide Door Close 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82530-VE000	US $49.68
82522	82522 82530-VE000 Cable Assy-Slide Door Close 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82530-VE000	US $49.68
82522	82522 82522-WF100 Cable Assy-Door Lock Body, Rh 9811--01 ~ 9910--01; W	82522-WF100	US $71.86
82522	82522 82522WF200 Cable Assy-Door Lock Body, Rh 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82522WF200	US $71.86
82522	82522 82522-WF100 Cable Assy-Door Lock Body, Rh 9811--01 ~ 9910--01; W	82522-WF100	US $71.86
82522	82522 82522WF200 Cable Assy-Door Lock Body, Rh 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82522WF200	US $71.86
82522	82522 82522WF200 Cable Assy-Door Lock Body, Rh 0005--01 ~ 0105--01; *W.LA; ﾐｷﾞｶﾞﾜ	82522WF200	US $71.86
82522	82522 82522WF200 Cable Assy-Door Lock Body, Rh 0005--01 ~ 0105--01; *W.LA; ﾋﾀﾞﾘ	82522WF200	US $71.86
82522	82522 82530-VE000 Cable Assy-Slide Door Close 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82530-VE000	US $49.68
82522	82522 82530-VE000 Cable Assy-Slide Door Close 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82530-VE000	US $49.68
82522+A	82522+A 82522-WF100 Cable Assy-Door Lock Body, Rh 9811--01 ~ 9910--01; W	82522-WF100	US $71.86
82522+A	82522+A 82522WF200 Cable Assy-Door Lock Body, Rh 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82522WF200	US $71.86
82522+A	82522+A 82522-WF100 Cable Assy-Door Lock Body, Rh 9811--01 ~ 9910--01; W	82522-WF100	US $71.86
82522+A	82522+A 82522WF200 Cable Assy-Door Lock Body, Rh 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82522WF200	US $71.86
82522P	82522P 82530-VE000 Cable Assy-Slide Door Close 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82530-VE000	US $49.68
82522P	82522P 82530-VE000 Cable Assy-Slide Door Close 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82530-VE000	US $49.68
82522PA	82522PA 82530-VE000 Cable Assy-Slide Door Close 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82530-VE000	US $49.68
82550B	82550B 01125-00092 SCREW 9811--01 ~ 9910--01; W	01125-00092	US $1.73
82550B	82550B 82537-0C900 Bolt 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82537-0C900	US $1.73
82550B	82550B 82537-0C900 Bolt 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82537-0C900	US $1.73
82550B	82550B 01125-00092 SCREW 9811--01 ~ 9910--01; W	01125-00092	US $1.73
82550B	82550B 82537-0C900 Bolt 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82537-0C900	US $1.73
82550B	82550B 82537-0C900 Bolt 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82537-0C900	US $1.73
82550BA	82550BA 82537-0C900 Bolt 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82537-0C900	US $1.73
82550BB	82550BB 82537-0C900 Bolt 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82537-0C900	US $1.73
82550M	82550M 82552WF100 Actuator-Auto Door Lock, Rear Rh 9811--01 ~ 9910--01; W.(LA+X+HWS)	82552WF100	US $145.44
82551M	82551M 82553WF100 Actuator-Auto Door Lock, Rear Lh 9811--01 ~ 9910--01; W.(LA+X+HWS)	82553WF100	US $145.44
82551M	82551M 97941WF600 Actuator-Auto Door Lock, Rear Lh 0005--01 ~ 0105--01; *W.LA	97941WF600	US $145.44
82570	82570 82570-VE000 Striker Assy-Rear Door Lock, Rh 9811--01 ~ 9910--01; W	82570-VE000	US $13.39
82570	82570 0112101183 SCREW 9811--01 ~ 9910--01; *W.(LA+X+HWS)	0112101183	US $1.73
82570	82570 0112100035 SCREW 9811--01 ~ 9910--01; *W.(LA+X+HWS)	0112100035	US $1.73
82570A	82570A 0112101183 SCREW 9811--01 ~ 9910--01; *W.(LA+X+HWS)	0112101183	US $1.73
82570A	82570A 0112100035 SCREW 9811--01 ~ 9910--01; *W.(LA+X+HWS)	0112100035	US $1.73
82570A	82570A 0112101183 SCREW 9811--01 ~ 9910--01; *W.(LA+X+HWS)	0112101183	US $1.73
82570A	82570A 0112100035 SCREW 9811--01 ~ 9910--01; *W.(LA+X+HWS)	0112100035	US $1.73
82570AA	82570AA 0112100035 SCREW 9811--01 ~ 9910--01; *W.(LA+X+HWS)	0112100035	US $1.73
82575	82575 82575-01N00 Shim-Striker 9811--01 ~ 9910--01; *W.(LA+X+HWS); T=2.0	82575-01N00	US $4.32
82575	82575 82575-01N01 Shim-Striker 9811--01 ~ 9910--01; *W.(LA+X+HWS); T=1.0	82575-01N01	US $4.32
82605	82605 82606-1A100 Handle Assy-Rear Door Outside, Rh 0005--01 ~ 0105--01; *W.LA; [K116]	82606-1A100	US $59.04
82605	82605 82606-WF100 Handle Assy-Rear Door Outside, Rh 9811--01 ~ 9902--01; W	82606-WF100	US $112.61
82605	82605 82606-WF101 Handle Assy-Rear Door Outside, Rh 9811--01 ~ 9902--01; W	82606-WF101	US $112.61
82605	82605 82606-WF102 Handle Assy-Rear Door Outside, Rh 9811--01 ~ 9902--01; W	82606-WF102	US $112.61
82605	82605 82606-WF103 Handle Assy-Rear Door Outside, Rh 9811--01 ~ 9902--01; W	82606-WF103	US $112.61
82605	82605 82606-WF104 Handle Assy-Rear Door Outside, Rh 9811--01 ~ 9902--01; W	82606-WF104	US $112.61
82605	82605 82606-WF105 Handle Assy-Rear Door Outside, Rh 9811--01 ~ 9902--01; W	82606-WF105	US $112.61
82605	82605 82606-WF110 Handle Assy-Rear Door Outside, Rh 9902--01 ~ 9910--01; W	82606-WF110	US $112.61
82605	82605 82606-WF111 Handle Assy-Rear Door Outside, Rh 9902--01 ~ 9910--01; W	82606-WF111	US $112.61
82605	82605 82606-WF112 Handle Assy-Rear Door Outside, Rh 9902--01 ~ 9910--01; W	82606-WF112	US $112.61
82605	82605 82606-WF113 Handle Assy-Rear Door Outside, Rh 9902--01 ~ 9910--01; W	82606-WF113	US $112.61
82605	82605 82606WF114 Handle Assy-Rear Door Outside, Rh 9902--01 ~ 9910--01; W	82606WF114	US $112.61
82605	82605 82606-WF115 Handle Assy-Rear Door Outside, Rh 9902--01 ~ 9910--01; W	82606-WF115	US $112.61
82605	82605 82606-WF116 Handle Assy-Rear Door Outside, Rh 9910--01 ~ 0005--01; W	82606-WF116	US $112.61
82605	82605 82606-WF600 Handle Assy-Rear Door Outside, Rh 0005--01 ~ 0105--01; W	82606-WF600	US $112.61
82605	82605 82606WF601 Handle Assy-Rear Door Outside, Rh 0005--01 ~ 0105--01; W	82606WF601	US $112.61
82606	82606 82607-1A100 Handle Assy-Rear Door Outside, Lh 0005--01 ~ 0105--01; *W.LA; [K116]	82607-1A100	US $64.80
82606	82606 82607-WF100 Handle Assy-Rear Door Outside, Lh 9811--01 ~ 9902--01; W	82607-WF100	US $112.61
82606	82606 82607-WF101 Handle Assy-Rear Door Outside, Lh 9811--01 ~ 9902--01; W	82607-WF101	US $112.61
82606	82606 82607-WF102 Handle Assy-Rear Door Outside, Lh 9811--01 ~ 9902--01; W	82607-WF102	US $112.61
82606	82606 82607-WF103 Handle Assy-Rear Door Outside, Lh 9811--01 ~ 9902--01; W	82607-WF103	US $112.61
82606	82606 82607-WF104 Handle Assy-Rear Door Outside, Lh 9811--01 ~ 9902--01; W	82607-WF104	US $112.61
82606	82606 82607-WF105 Handle Assy-Rear Door Outside, Lh 9811--01 ~ 9902--01; W	82607-WF105	US $112.61
82606	82606 82607WF110 Handle Assy-Rear Door Outside, Lh 9902--01 ~ 9910--01; W	82607WF110	US $112.61
82606	82606 82607-WF111 Handle Assy-Rear Door Outside, Lh 9902--01 ~ 9910--01; W	82607-WF111	US $112.61
82606	82606 82607-WF112 Handle Assy-Rear Door Outside, Lh 9902--01 ~ 9910--01; W	82607-WF112	US $112.61
82606	82606 82607WF113 Handle Assy-Rear Door Outside, Lh 9902--01 ~ 9910--01; W	82607WF113	US $112.61
82606	82606 82607-WF114 Handle Assy-Rear Door Outside, Lh 9902--01 ~ 9910--01; W	82607-WF114	US $112.61
82606	82606 82607-WF115 Handle Assy-Rear Door Outside, Lh 9902--01 ~ 9910--01; W	82607-WF115	US $112.61
82606	82606 82607-WF116 Handle Assy-Rear Door Outside, Lh 9910--01 ~ 0005--01; W	82607-WF116	US $112.61
82606	82606 82607-WF600 Handle Assy-Rear Door Outside, Lh 0005--01 ~ 0105--01; W	82607-WF600	US $112.61
82606	82606 82607-WF601 Handle Assy-Rear Door Outside, Lh 0005--01 ~ 0105--01; W	82607-WF601	US $112.61
82670	82670 82670-WF100 Handle Assy-Rear Door Inside, Rh 9811--01 ~ 9910--01; W	82670-WF100	US $49.54
82670	82670 82670-WF600 Handle Assy-Rear Door Inside, Rh 0010--01 ~ 0105--01; W	82670-WF600	US $49.54
82670	82670 825260C000 Holder 9811--01 ~ 9910--01; W	825260C000	US $4.32
82670	82670 82526WF100 Holder 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82526WF100	US $7.20
82670	82670 825260C000 Holder 9811--01 ~ 9910--01; W	825260C000	US $4.32
82670	82670 82526WF100 Holder 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82526WF100	US $7.20
82670A	82670A 825260C000 Holder 9811--01 ~ 9910--01; W	825260C000	US $4.32
82670A	82670A 82526WF100 Holder 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82526WF100	US $7.20
82670A	82670A 825260C000 Holder 9811--01 ~ 9910--01; W	825260C000	US $4.32
82670A	82670A 82526WF100 Holder 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82526WF100	US $7.20
82670A	82670A 825260C000 Holder 9811--01 ~ 9910--01; W	825260C000	US $4.32
82670A	82670A 82526WF100 Holder 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82526WF100	US $7.20
82670A	82670A 825260C000 Holder 9811--01 ~ 9910--01; W	825260C000	US $4.32
82670A	82670A 82526WF100 Holder 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82526WF100	US $7.20
82670A	82670A 825260C000 Holder 9811--01 ~ 9910--01; W	825260C000	US $4.32
82670A	82670A 82526WF100 Holder 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82526WF100	US $7.20
82670A	82670A 825260C000 Holder 9811--01 ~ 9910--01; W	825260C000	US $4.32
82670A	82670A 82526WF100 Holder 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82526WF100	US $7.20
82670A	82670A 825260C000 Holder 9811--01 ~ 9910--01; W	825260C000	US $4.32
82670A	82670A 82526WF100 Holder 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82526WF100	US $7.20
82670A	82670A 825260C000 Holder 9811--01 ~ 9910--01; W	825260C000	US $4.32
82670A	82670A 82526WF100 Holder 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82526WF100	US $7.20
82670AA	82670AA 825260C000 Holder 9811--01 ~ 9910--01; W	825260C000	US $4.32
82670AA	82670AA 82526WF100 Holder 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82526WF100	US $7.20
82670AA	82670AA 825260C000 Holder 9811--01 ~ 9910--01; W	825260C000	US $4.32
82670AA	82670AA 82526WF100 Holder 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82526WF100	US $7.20
82670AA	82670AA 825260C000 Holder 9811--01 ~ 9910--01; W	825260C000	US $4.32
82670AA	82670AA 82526WF100 Holder 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82526WF100	US $7.20
82670AA	82670AA 825260C000 Holder 9811--01 ~ 9910--01; W	825260C000	US $4.32
82670AA	82670AA 82526WF100 Holder 9811--01 ~ 9910--01; *W.(LA+X+HWS)	82526WF100	US $7.20
82671	82671 82671-WF100 Handle Assy-Rear Door Inside, Lh 9811--01 ~ 9910--01; W	82671-WF100	US $49.54
82671	82671 82671-WF600 Handle Assy-Rear Door Inside, Lh 0010--01 ~ 0105--01; W	82671-WF600	US $49.54
82676M	82676M 82676-WF100 Cap-Inside Handle 9811--01 ~ 9910--01; W	82676-WF100	US $2.59
82828P	82828P 8282841L00 Cover-Child Lock Lever 9811--01 ~ 9910--01; W	8282841L00	US $1.73

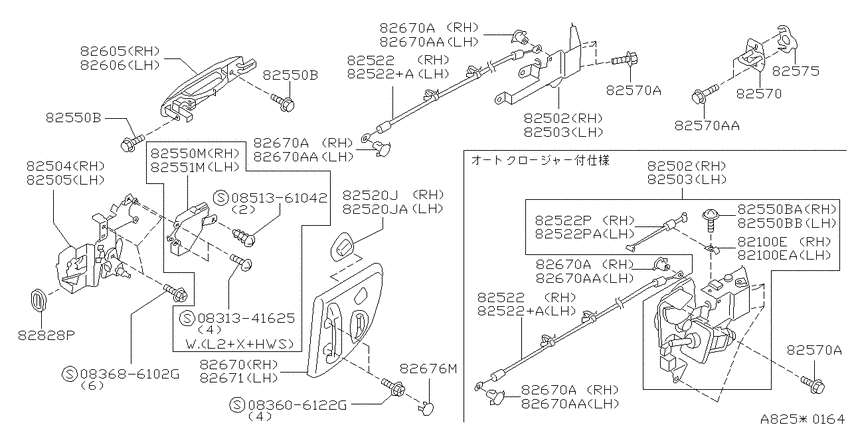

Rear door lock & handle (1998-11-01 ~ 1999-10-01; 標準; W) Diagram Nissan PRAIRIE/LIBERTY Japan 7790565-619792

Rear door lock & handle (1998-11-01 ~ 1999-10-01; 標準; W) Diagram Nissan PRAIRIE/LIBERTY Japan 7790565-619792
