Component List PRAIRIE/LIBERTY

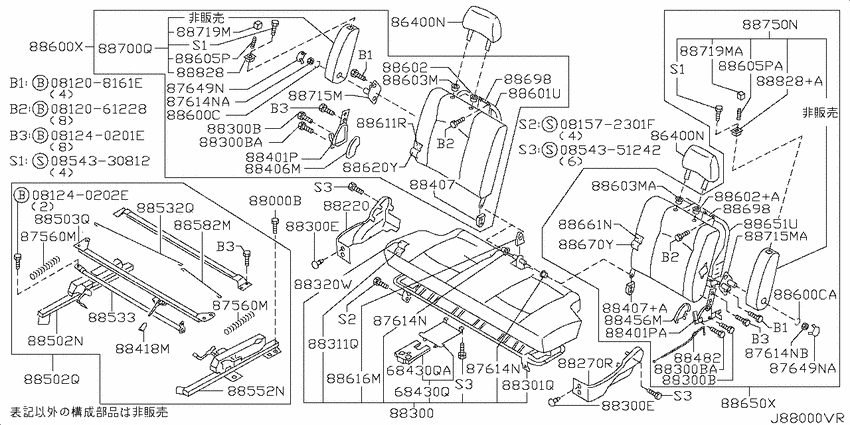

Rear seat (2000-05-01 ~ 2001-05-01; W.SR20DE.HWS +W.SR20DET +W.LA)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
0812061228	0812061228 0812061228 Bolt-hexagon	0812061228	from US $2.21
081208161E	081208161E 081208161E Bolt-hexagon	081208161E	from US $0.59
081240201E	081240201E 081240201E Bolt-hexagon	081240201E	US $1.20
081240202E	081240202E 08124-0202E Bolt-hexagon	08124-0202E	—
081572301F	081572301F 08157-2301F ﾎﾞﾙﾄ,ﾍｷｻｺﾞﾝ	08157-2301F	—
0854330812	0854330812 08543-30812 ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ	08543-30812	—
0854351242	0854351242 0854351242 SCREWTAPPING	0854351242	from US $1.83
68430Q	68430Q 88391-WF100 Holder Assy-Cup 9811--01 ~ 9910--01; W.(LA+HWS)	88391-WF100	US $88.42
68430Q	68430Q 88392-WF100 Holder Assy-Cup 9811--01 ~ 9910--01; W.(LA+HWS)	88392-WF100	US $58.90
68430QA	68430QA 88392-WF100 Holder Assy-Cup 9811--01 ~ 9910--01; W.(LA+HWS)	88392-WF100	US $58.90
86400N	86400N 86400-1A117 Head Rest Assy-Front Seat 9910--01 ~ 0005--01; *W.LA; [K116]	86400-1A117	US $152.64
86400N	86400N 86400-1A162 Head Rest Assy-Front Seat 0005--01 ~ 0105--01; *W.LA; [K116]	86400-1A162	US $139.68
86400N	86400N 86400-1A169 Head Rest Assy-Front Seat 0005--01 ~ 0105--01; *W.LA; [K116]	86400-1A169	US $152.64
86400N	86400N 86400-WF300 Head Rest Assy-Front Seat 9811--01 ~ 0105--01; W.LA	86400-WF300	US $233.28
86400N	86400N 86400-WF301 Head Rest Assy-Front Seat 9811--01 ~ 9910--01; *W.LA	86400-WF301	US $233.28
86400N	86400N 86400-WF400 Head Rest Assy-Front Seat 9811--01 ~ 9910--01; *W.LA	86400-WF400	US $233.28
86400N	86400N 86400-1A117 Head Rest Assy-Front Seat 9910--01 ~ 0005--01; *W.LA; [K116]	86400-1A117	US $152.64
86400N	86400N 86400-1A162 Head Rest Assy-Front Seat 0005--01 ~ 0105--01; *W.LA; [K116]	86400-1A162	US $139.68
86400N	86400N 86400-1A169 Head Rest Assy-Front Seat 0005--01 ~ 0105--01; *W.LA; [K116]	86400-1A169	US $152.64
86400N	86400N 86400-WF300 Head Rest Assy-Front Seat 9811--01 ~ 0105--01; W.LA	86400-WF300	US $233.28
86400N	86400N 86400-WF301 Head Rest Assy-Front Seat 9811--01 ~ 9910--01; *W.LA	86400-WF301	US $233.28
86400N	86400N 86400-WF400 Head Rest Assy-Front Seat 9811--01 ~ 9910--01; *W.LA	86400-WF400	US $233.28
87560M	87560M 87560-WF100 Spring-Helper 9811--01 ~ 9910--01; W.(B+LA+HWS)	87560-WF100	US $7.63
87560M	87560M 87560-WF100 Spring-Helper 9811--01 ~ 9910--01; W.(B+LA+HWS)	87560-WF100	US $7.63
87614N	87614N 88604-50R00 Bush-Rear Seat 9811--01 ~ 9910--01; W.(B+LA+HWS)	88604-50R00	US $2.74
87614N	87614N 87614-50R15 Bush-Front Seat 9811--01 ~ 9910--01; W.(LA+HWS)	87614-50R15	US $2.02
87614N	87614N 87614-50R15 Bush-Front Seat 9811--01 ~ 9910--01; W.(LA+HWS)	87614-50R15	US $2.02
87614N	87614N 88604-50R00 Bush-Rear Seat 9811--01 ~ 9910--01; W.(B+LA+HWS)	88604-50R00	US $2.74
87614N	87614N 87614-50R15 Bush-Front Seat 9811--01 ~ 9910--01; W.(LA+HWS)	87614-50R15	US $2.02
87614N	87614N 87614-50R15 Bush-Front Seat 9811--01 ~ 9910--01; W.(LA+HWS)	87614-50R15	US $2.02
87614NA	87614NA 87614-50R15 Bush-Front Seat 9811--01 ~ 9910--01; W.(LA+HWS)	87614-50R15	US $2.02
87614NB	87614NB 87614-50R15 Bush-Front Seat 9811--01 ~ 9910--01; W.(LA+HWS)	87614-50R15	US $2.02
87649N	87649N 87649-WF100 Cap 9811--01 ~ 9910--01; W.(LA+HWS)	87649-WF100	US $3.74
87649N	87649N 87649-WF100 Cap 9811--01 ~ 9910--01; W.(LA+HWS)	87649-WF100	US $3.74
87649NA	87649NA 87649-WF100 Cap 9811--01 ~ 9910--01; W.(LA+HWS)	87649-WF100	US $3.74
88000B	88000B 87850-VE000 Bolt-Special 9811--01 ~ 9908--01; W.(B+LA+HWS)	87850-VE000	US $3.46
88000B	88000B 87850-WF100 Bolt-Special 9908--01 ~ 9910--01; W.(B+LA+HWS)	87850-WF100	US $3.46
88220	88220 88220-WF100 Cover-Leg, 2Nd Seat 9811--01 ~ 0005--01; W.(B+LA)	88220-WF100	US $77.04
88270R	88270R 88270-WF100 Cover-Leg, 2Nd Seat Lh Outer 9811--01 ~ 0005--01; W.(B+LA)	88270-WF100	US $77.04
88300	88300 88300-1A116 Cushion Assy-Rear Seat 9910--01 ~ 0005--01; *W.LA; [K116]	88300-1A116	US $897.74
88300	88300 88300-1A117 Cushion Assy-Rear Seat 0005--01 ~ 0105--01; *W.LA; [K116]	88300-1A117	US $815.62
88300	88300 88300-1A118 Cushion Assy-Rear Seat 0005--01 ~ 0105--01; *W.LA; [K116]	88300-1A118	US $1,064.83
88300	88300 88300-1A162 Cushion Assy-Rear Seat 0005--01 ~ 0105--01; *W.LA; [K116]	88300-1A162	US $798.62
88300	88300 88300-1A163 Cushion Assy-Rear Seat 0005--01 ~ 0105--01; *W.LA; [K116]	88300-1A163	US $798.62
88300	88300 88300-1A169 Cushion Assy-Rear Seat 0005--01 ~ 0105--01; *W.LA; [K116]	88300-1A169	US $798.62
88300	88300 88300-WF300 Cushion Assy-Rear Seat 9811--01 ~ 0105--01; W.LA; [D410]	88300-WF300	US $1,356.53
88300	88300 88300-WF301 Cushion Assy-Rear Seat 9811--01 ~ 0005--01; *W.LA; [D410]	88300-WF301	US $1,356.53
88300	88300 88300-WF302 Cushion Assy-Rear Seat 9912--01 ~ 0005--01; *W.LA; [D410]	88300-WF302	US $1,356.53
88300	88300 88300-WF305 Cushion Assy-Rear Seat 0005--01 ~ 0105--01; *W.LA; [D410]	88300-WF305	US $1,356.53
88300	88300 88300-WF307 Cushion Assy-Rear Seat 0012--01 ~ 0105--01; *W.LA; [D410]	88300-WF307	US $1,356.53
88300	88300 88300-WF311 Cushion Assy-Rear Seat 0005--01 ~ 0105--01; *W.LA; [D410]	88300-WF311	US $1,356.53
88300	88300 88300-WF317 Cushion Assy-Rear Seat 0012--01 ~ 0105--01; *W.LA; [D410]	88300-WF317	US $1,356.53
88300	88300 88300-WF400 Cushion Assy-Rear Seat 9811--01 ~ 0105--01; *W.LA; [D410]	88300-WF400	US $1,356.53
88300	88300 88300-WF405 Cushion Assy-Rear Seat 0005--01 ~ 0105--01; *W.LA; [D410]	88300-WF405	US $1,356.53
88300	88300 87615-50R00 Bolt-Special 9811--01 ~ 9910--01; W.(B+LA+HWS)	87615-50R00	US $4.18
88300	88300 87615-50R05 Bolt-Special 9811--01 ~ 9910--01; W.(B+LA+HWS)	87615-50R05	US $4.18
88300	88300 01553-03863 CLIP 9811--01 ~ 0005--01; W.(B+LA)	01553-03863	US $1.15
88300B	88300B 87615-50R00 Bolt-Special 9811--01 ~ 9910--01; W.(B+LA+HWS)	87615-50R00	US $4.18
88300B	88300B 87615-50R05 Bolt-Special 9811--01 ~ 9910--01; W.(B+LA+HWS)	87615-50R05	US $4.18
88300B	88300B 87615-50R00 Bolt-Special 9811--01 ~ 9910--01; W.(B+LA+HWS)	87615-50R00	US $4.18
88300B	88300B 87615-50R05 Bolt-Special 9811--01 ~ 9910--01; W.(B+LA+HWS)	87615-50R05	US $4.18
88300BA	88300BA 87615-50R05 Bolt-Special 9811--01 ~ 9910--01; W.(B+LA+HWS)	87615-50R05	US $4.18
88300BA	88300BA 87615-50R05 Bolt-Special 9811--01 ~ 9910--01; W.(B+LA+HWS)	87615-50R05	US $4.18
88300E	88300E 01553-03863 CLIP 9811--01 ~ 0005--01; W.(B+LA)	01553-03863	US $1.15
88300E	88300E 01553-03863 CLIP 9811--01 ~ 0005--01; W.(B+LA)	01553-03863	US $1.15
88301Q	88301Q 88301-WF100 Frame Assy-Cushion, 2Nd Seat 9811--01 ~ 9910--01; W.(B+LA+HWS)	88301-WF100	US $446.04
88301Q	88301Q 88301-WF105 Frame Assy-Cushion, 2Nd Seat 0005--01 ~ 0105--01; *W.LA	88301-WF105	US $446.04
88311Q	88311Q 88311-WF100 Pad Assy-2Nd Seat Cushion 9811--01 ~ 9910--01; W.(B+LA+HWS)	88311-WF100	US $361.08
88311Q	88311Q 88311-WF105 Pad Assy-2Nd Seat Cushion 0005--01 ~ 0105--01; *W.LA	88311-WF105	US $361.08
88320W	88320W 88320-1A116 Trim Assy-2Nd Seat Cushion 9910--01 ~ 0105--01; *W.LA; [K116]	88320-1A116	US $329.93
88320W	88320W 88320-1A117 Trim Assy-2Nd Seat Cushion 0005--01 ~ 0105--01; *W.LA; [K116]	88320-1A117	US $426.22
88320W	88320W 88320-1A162 Trim Assy-2Nd Seat Cushion 0005--01 ~ 0105--01; *W.LA; [K116]	88320-1A162	US $315.77
88320W	88320W 88320-1A163 Trim Assy-2Nd Seat Cushion 0005--01 ~ 0105--01; *W.LA; [D105]	88320-1A163	—
88320W	88320W 88320-1A169 Trim Assy-2Nd Seat Cushion 0005--01 ~ 0105--01; *W.LA; [K116]	88320-1A169	US $315.77
88320W	88320W 88320-WF300 Trim Assy-2Nd Seat Cushion 9811--01 ~ 0105--01; W.LA; [D410]	88320-WF300	US $545.16
88320W	88320W 88320-WF301 Trim Assy-2Nd Seat Cushion 9811--01 ~ 0005--01; *W.LA; [D410]	88320-WF301	US $545.16
88320W	88320W 88320-WF302 Trim Assy-2Nd Seat Cushion 9912--01 ~ 0005--01; *W.LA; [D410]	88320-WF302	US $545.16
88320W	88320W 88320-WF305 Trim Assy-2Nd Seat Cushion 0005--01 ~ 0105--01; *W.LA; [D410]	88320-WF305	US $545.16
88320W	88320W 88320-WF306 Trim Assy-2Nd Seat Cushion 0005--01 ~ 0105--01; *W.LA; [D410]	88320-WF306	US $545.16
88320W	88320W 88320-WF307 Trim Assy-2Nd Seat Cushion 0012--01 ~ 0105--01; *W.LA; [D410]	88320-WF307	US $545.16
88320W	88320W 88320-WF311 Trim Assy-2Nd Seat Cushion 0005--01 ~ 0105--01; *W.LA; [D410]	88320-WF311	US $545.16
88320W	88320W 88320-WF317 Trim Assy-2Nd Seat Cushion 0012--01 ~ 0105--01; *W.LA; [D410]	88320-WF317	US $545.16
88320W	88320W 88320-WF400 Trim Assy-2Nd Seat Cushion 9811--01 ~ 0105--01; *W.LA; [D410]	88320-WF400	US $545.16
88320W	88320W 88320-WF405 Trim Assy-2Nd Seat Cushion 0005--01 ~ 0105--01; *W.LA; [D410]	88320-WF405	US $545.16
88401P	88401P 88403-WF100 Device Assy-Reclining, 2Nd Seat 9811--01 ~ 9910--01; W.(LA+HWS)	88403-WF100	US $68.83
88401P	88401P 88403-WF400 Device Assy-Reclining, 2Nd Seat 9811--01 ~ 0105--01; *W.LA	88403-WF400	US $68.83
88401P	88401P 88453-WF100 Device Assy-Reclining, 2Nd Seat 9811--01 ~ 9910--01; W.(LA+HWS)	88453-WF100	US $68.83
88401P	88401P 88453-WF400 Device Assy-Reclining, 2Nd Seat 9811--01 ~ 0105--01; *W.LA	88453-WF400	US $68.83
88401PA	88401PA 88453-WF100 Device Assy-Reclining, 2Nd Seat 9811--01 ~ 9910--01; W.(LA+HWS)	88453-WF100	US $68.83
88401PA	88401PA 88453-WF400 Device Assy-Reclining, 2Nd Seat 9811--01 ~ 0105--01; *W.LA	88453-WF400	US $68.83
88406M	88406M 88402-WF100 Cover-Reclining Device, Inner Rh 9811--01 ~ 0005--01; W.(B+LA)	88402-WF100	US $9.94
88407	88407 88407-WF100 Cover-Inner Hinge, 2Nd Rh Seat 9811--01 ~ 9910--01; W.(B+LA+HWS)	88407-WF100	US $9.07
88407	88407 88407-WF100 Cover-Inner Hinge, 2Nd Rh Seat 9811--01 ~ 9910--01; W.(B+LA+HWS)	88407-WF100	US $9.07
88407+A	88407+A 88407-WF100 Cover-Inner Hinge, 2Nd Rh Seat 9811--01 ~ 9910--01; W.(B+LA+HWS)	88407-WF100	US $9.07
88418M	88418M 8741801A13 Knob-Reclining Device Lever 9811--01 ~ 9910--01; W.(B+LA+HWS)	8741801A13	US $4.18
88456M	88456M 88452-WF100 Cover-Reclining Device, Inner Lh 9811--01 ~ 0005--01; W.(B+LA)	88452-WF100	US $9.94
88482	88482 88482-WF100 Wire Assy-Reclining Device, 2Nd Seat Lh 9811--01 ~ 0105--01; W.LA	88482-WF100	US $24.05
88502N	88502N 88502-WF100 Slide Assy-2Nd Rh Seat, Inner 9811--01 ~ 9910--01; W.(B+LA+HWS)	88502-WF100	US $379.49
88502Q	88502Q 88501-WF100 Slide Assy-2Nd Seat 9811--01 ~ 9910--01; W.(B+LA+HWS)	88501-WF100	US $924.65
88503Q	88503Q 88503-WF100 Member-2Nd Seat Slide 9811--01 ~ 9910--01; W.(B+LA+HWS)	88503-WF100	US $77.04
88532Q	88532Q 88532-WF100 Wire-Release 2Nd Seat Slide, Rh 9811--01 ~ 9910--01; W.(B+LA+HWS)	88532-WF100	US $20.88
88533	88533 88533-WF100 Rod Assy-2Nd Seat Slide 9811--01 ~ 9910--01; W.(B+LA+HWS)	88533-WF100	US $25.63
88552N	88552N 88552-WF100 Slide Assy-2Nd Lh Seat, Inner 9811--01 ~ 9910--01; W.(B+LA+HWS)	88552-WF100	US $379.49
88582M	88582M 88582-WF100 Wire-Release 2Nd Seat Slide, Lh 9811--01 ~ 9910--01; W.(B+LA+HWS)	88582-WF100	US $13.10
88600C	88600C 88614-50R10 Washer-Plain 9811--01 ~ 9910--01; W.(LA+HWS)	88614-50R10	US $1.15
88600C	88600C 88614-50R10 Washer-Plain 9811--01 ~ 9910--01; W.(LA+HWS)	88614-50R10	US $1.15
88600CA	88600CA 88614-50R10 Washer-Plain 9811--01 ~ 9910--01; W.(LA+HWS)	88614-50R10	US $1.15
88600X	88600X 88600-1A116 Back Assy-2Nd Seat, Rh 9910--01 ~ 0005--01; *W.LA; [K116]	88600-1A116	US $683.93
88600X	88600X 88600-1A117 Back Assy-2Nd Seat, Rh 0005--01 ~ 0105--01; *W.LA; [K116]	88600-1A117	US $683.93
88600X	88600X 88600-1A162 Back Assy-2Nd Seat, Rh 0005--01 ~ 0105--01; *W.LA; [K116]	88600-1A162	US $672.60
88600X	88600X 88600-1A169 Back Assy-2Nd Seat, Rh 0005--01 ~ 0105--01; *W.LA; [K116]	88600-1A169	US $722.16
88600X	88600X 88600-WF300 Back Assy-2Nd Seat, Rh 9811--01 ~ 0005--01; W.LA; [D410]	88600-WF300	US $1,141.30
88600X	88600X 88600-WF301 Back Assy-2Nd Seat, Rh 9811--01 ~ 0105--01; *W.LA; [D410]	88600-WF301	US $1,141.30
88600X	88600X 88600-WF302 Back Assy-2Nd Seat, Rh 9912--01 ~ 0005--01; *W.LA; [D410]	88600-WF302	US $1,141.30
88600X	88600X 88600-WF307 Back Assy-2Nd Seat, Rh 0012--01 ~ 0105--01; *W.LA; [D410]	88600-WF307	US $1,015.27
88600X	88600X 88600-WF310 Back Assy-2Nd Seat, Rh 0005--01 ~ 0105--01; W.LA; [D410]	88600-WF310	US $1,373.52
88600X	88600X 88600-WF400 Back Assy-2Nd Seat, Rh 9811--01 ~ 0105--01; *W.LA; [D410]	88600-WF400	US $1,015.27
88601U	88601U 88601-WF200 Frame Assy-Back, 2Nd Seat Rh 9811--01 ~ 9910--01; W.(B+LA+HWS)	88601-WF200	US $230.40
88602	88602 87602-89905 Holder Assy-Headrest, Lock 0012--01 ~ 0105--01; *W.LA	87602-89905	US $5.04
88602	88602 87602-89908 Holder Assy-Headrest, Lock 9811--01 ~ 9910--01; W.(B+LA+HWS)	87602-89908	US $5.04
88602	88602 87602-89905 Holder Assy-Headrest, Lock 0012--01 ~ 0105--01; *W.LA	87602-89905	US $5.04
88602	88602 87602-89908 Holder Assy-Headrest, Lock 9811--01 ~ 9910--01; W.(B+LA+HWS)	87602-89908	US $5.04
88602+A	88602+A 87602-89905 Holder Assy-Headrest, Lock 0012--01 ~ 0105--01; *W.LA	87602-89905	US $5.04
88602+A	88602+A 87602-89908 Holder Assy-Headrest, Lock 9811--01 ~ 9910--01; W.(B+LA+HWS)	87602-89908	US $5.04
88603M	88603M 8760389905 Holder Assy-Headrest, Free 0012--01 ~ 0105--01; *W.LA	8760389905	US $5.04
88603M	88603M 87603-89908 Holder Assy-Headrest, Free 9811--01 ~ 9910--01; W.(B+LA+HWS)	87603-89908	US $5.04
88603M	88603M 8760389905 Holder Assy-Headrest, Free 0012--01 ~ 0105--01; *W.LA	8760389905	US $5.04
88603M	88603M 87603-89908 Holder Assy-Headrest, Free 9811--01 ~ 9910--01; W.(B+LA+HWS)	87603-89908	US $5.04
88603MA	88603MA 8760389905 Holder Assy-Headrest, Free 0012--01 ~ 0105--01; *W.LA	8760389905	US $5.04
88603MA	88603MA 87603-89908 Holder Assy-Headrest, Free 9811--01 ~ 9910--01; W.(B+LA+HWS)	87603-89908	US $5.04
88605P	88605P 88713-WF100 Spring 9811--01 ~ 9910--01; W.(LA+HWS)	88713-WF100	US $3.74
88605P	88605P 88713-WF100 Spring 9811--01 ~ 9910--01; W.(LA+HWS)	88713-WF100	US $3.74
88605PA	88605PA 88713-WF100 Spring 9811--01 ~ 9910--01; W.(LA+HWS)	88713-WF100	US $3.74
88611R	88611R 88611-WF200 Pad Assy-2Nd Seat Back, Rh 9811--01 ~ 9910--01; W.(B+LA+HWS)	88611-WF200	US $184.32
88616M	88616M 88616-WF100 Cover-Hinge 9811--01 ~ 9910--01; W.(B+LA+HWS)	88616-WF100	US $9.07
88620Y	88620Y 88620-1A116 Trim Assy-2Nd Seat Back, Rh 9910--01 ~ 0005--01; *W.LA; [K116]	88620-1A116	US $254.88
88620Y	88620Y 88620-1A162 Trim Assy-2Nd Seat Back, Rh 0005--01 ~ 0105--01; *W.LA; [K116]	88620-1A162	US $315.77
88620Y	88620Y 88620-1A169 Trim Assy-2Nd Seat Back, Rh 0005--01 ~ 0105--01; *W.LA; [K116]	88620-1A169	US $315.77
88620Y	88620Y 88620-WF300 Trim Assy-2Nd Seat Back, Rh 9811--01 ~ 0105--01; W.LA; [D410]	88620-WF300	US $404.98
88620Y	88620Y 88620-WF301 Trim Assy-2Nd Seat Back, Rh 9811--01 ~ 0105--01; *W.LA; [D410]	88620-WF301	US $404.98
88620Y	88620Y 88620-WF302 Trim Assy-2Nd Seat Back, Rh 9912--01 ~ 0005--01; *W.LA; [D410]	88620-WF302	US $404.98
88620Y	88620Y 88620-WF307 Trim Assy-2Nd Seat Back, Rh 0012--01 ~ 0105--01; *W.LA; [D410]	88620-WF307	US $404.98
88620Y	88620Y 88620-WF400 Trim Assy-2Nd Seat Back, Rh 9811--01 ~ 0105--01; *W.LA; [D410]	88620-WF400	US $404.98
88650X	88650X 88650-1A116 Back Assy-2Nd Seat, Lh 9910--01 ~ 0005--01; *W.LA; [K116]	88650-1A116	US $722.16
88650X	88650X 88650-1A117 Back Assy-2Nd Seat, Lh 0005--01 ~ 0105--01; *W.LA; [K116]	88650-1A117	US $722.16
88650X	88650X 88650-1A162 Back Assy-2Nd Seat, Lh 0005--01 ~ 0105--01; *W.LA; [K116]	88650-1A162	US $672.60
88650X	88650X 88650-1A169 Back Assy-2Nd Seat, Lh 0005--01 ~ 0105--01; *W.LA	88650-1A169	—
88650X	88650X 88650-WF300 Back Assy-2Nd Seat, Lh 9811--01 ~ 0005--01; W.LA; [D410]	88650-WF300	US $1,141.30
88650X	88650X 88650-WF301 Back Assy-2Nd Seat, Lh 9811--01 ~ 0105--01; *W.LA; [D410]	88650-WF301	US $1,141.30
88650X	88650X 88650-WF302 Back Assy-2Nd Seat, Lh 9912--01 ~ 0005--01; *W.LA; [D410]	88650-WF302	US $1,141.30
88650X	88650X 88650-WF307 Back Assy-2Nd Seat, Lh 0012--01 ~ 0105--01; *W.LA; [D410]	88650-WF307	US $1,015.27
88650X	88650X 88650-WF310 Back Assy-2Nd Seat, Lh 0005--01 ~ 0105--01; W.LA; [D410]	88650-WF310	US $1,373.52
88650X	88650X 88650-WF400 Back Assy-2Nd Seat, Lh 9811--01 ~ 0105--01; *W.LA; [D410]	88650-WF400	US $1,015.27
88651U	88651U 88651-WF200 Frame Assy-Back, 2Nd Seat Lh 9811--01 ~ 9910--01; W.(B+LA+HWS)	88651-WF200	US $230.40
88661N	88661N 88661-WF200 Pad Assy-2Nd Seat Back, Lh 9811--01 ~ 9910--01; W.(B+LA+HWS)	88661-WF200	US $184.32
88670Y	88670Y 88670-1A116 Trim Assy-2Nd Seat Back, Lh 9910--01 ~ 0005--01; *W.LA; [K116]	88670-1A116	—
88670Y	88670Y 88670-1A162 Trim Assy-2Nd Seat Back, Lh 0005--01 ~ 0105--01; *W.LA; [K116]	88670-1A162	US $315.77
88670Y	88670Y 88670-1A169 Trim Assy-2Nd Seat Back, Lh 0005--01 ~ 0105--01; *W.LA; [K116]	88670-1A169	US $315.77
88670Y	88670Y 88670-WF300 Trim Assy-2Nd Seat Back, Lh 9811--01 ~ 0105--01; W.LA; [D410]	88670-WF300	US $404.98
88670Y	88670Y 88670-WF301 Trim Assy-2Nd Seat Back, Lh 9811--01 ~ 0105--01; *W.LA; [D410]	88670-WF301	US $404.98
88670Y	88670Y 88670-WF302 Trim Assy-2Nd Seat Back, Lh 9912--01 ~ 0005--01; *W.LA; [D410]	88670-WF302	US $404.98
88670Y	88670Y 88670-WF307 Trim Assy-2Nd Seat Back, Lh 0012--01 ~ 0105--01; *W.LA; [D410]	88670-WF307	US $404.98
88670Y	88670Y 88670-WF400 Trim Assy-2Nd Seat Back, Lh 9811--01 ~ 0105--01; *W.LA; [D410]	88670-WF400	US $404.98
88698	88698 88698-WF100 Damper Assy-Dynamic 9811--01 ~ 9910--01; W.(B+LA+HWS)	88698-WF100	US $89.71
88698	88698 88698-WF110 Damper Assy-Dynamic 9910--01 ~ 0005--01; !W.SR20DE.HWS +W.SR20DET +W.(B+LA)	88698-WF110	US $89.71
88698	88698 88698-WF200 Damper Assy-Dynamic 9811--01 ~ 9910--01; W.(B+LA+HWS)	88698-WF200	US $89.71
88698	88698 88698-WF100 Damper Assy-Dynamic 9811--01 ~ 9910--01; W.(B+LA+HWS)	88698-WF100	US $89.71
88698	88698 88698-WF110 Damper Assy-Dynamic 9910--01 ~ 0005--01; !W.SR20DE.HWS +W.SR20DET +W.(B+LA)	88698-WF110	US $89.71
88698	88698 88698-WF200 Damper Assy-Dynamic 9811--01 ~ 9910--01; W.(B+LA+HWS)	88698-WF200	US $89.71
88700Q	88700Q 88700-1A116 Armrest Assy-2Nd Seat, Outer Rh 9910--01 ~ 0005--01; *W.LA; [K116]	88700-1A116	—
88700Q	88700Q 88700-1A117 Armrest Assy-2Nd Seat, Outer Rh 0005--01 ~ 0105--01; *W.LA; [K116]	88700-1A117	—
88700Q	88700Q 88700-1A169 Armrest Assy-2Nd Seat, Outer Rh 0005--01 ~ 0105--01; *W.LA; [K116]	88700-1A169	US $83.52
88700Q	88700Q 88700-WF300 Armrest Assy-2Nd Seat, Outer Rh 9811--01 ~ 9907--01; W.LA	88700-WF300	US $127.87
88700Q	88700Q 88700-WF301 Armrest Assy-2Nd Seat, Outer Rh 9811--01 ~ 9907--01; *W.LA	88700-WF301	US $127.87
88700Q	88700Q 88700-WF305 Armrest Assy-2Nd Seat, Outer Rh 0005--01 ~ 0105--01; W.LA	88700-WF305	US $127.87
88700Q	88700Q 88700-WF310 Armrest Assy-2Nd Seat, Outer Rh 9907--01 ~ 0005--01; W.LA	88700-WF310	US $127.87
88700Q	88700Q 88700-WF311 Armrest Assy-2Nd Seat, Outer Rh 9907--01 ~ 0005--01; *W.LA	88700-WF311	US $127.87
88715M	88715M 88715-50R00 Bracket Assy-Armrest 9811--01 ~ 9907--01; W.(LA+HWS)	88715-50R00	US $6.34
88715M	88715M 88715-WF200 Bracket Assy-Armrest 9907--01 ~ 9910--01; W.(LA+HWS)	88715-WF200	US $7.63
88715M	88715M 88715-50R00 Bracket Assy-Armrest 9811--01 ~ 9907--01; W.(LA+HWS)	88715-50R00	US $6.34
88715M	88715M 88715-WF200 Bracket Assy-Armrest 9907--01 ~ 9910--01; W.(LA+HWS)	88715-WF200	US $7.63
88715MA	88715MA 88715-50R00 Bracket Assy-Armrest 9811--01 ~ 9907--01; W.(LA+HWS)	88715-50R00	US $6.34
88715MA	88715MA 88715-WF200 Bracket Assy-Armrest 9907--01 ~ 9910--01; W.(LA+HWS)	88715-WF200	US $7.63
88719M	88719M 88719-WF100 Knob-Armrest Lever 9811--01 ~ 9910--01; W.(LA+HWS)	88719-WF100	US $3.74
88719M	88719M 88719-WF100 Knob-Armrest Lever 9811--01 ~ 9910--01; W.(LA+HWS)	88719-WF100	US $3.74
88719MA	88719MA 88719-WF100 Knob-Armrest Lever 9811--01 ~ 9910--01; W.(LA+HWS)	88719-WF100	US $3.74
88750N	88750N 88750-1A116 Armrest Assy-2Nd Seat, Outer Lh 9910--01 ~ 0005--01; *W.LA; [K116]	88750-1A116	—
88750N	88750N 88750-1A117 Armrest Assy-2Nd Seat, Outer Lh 0005--01 ~ 0105--01; *W.LA; [K116]	88750-1A117	—
88750N	88750N 88750-1A169 Armrest Assy-2Nd Seat, Outer Lh 0005--01 ~ 0105--01; *W.LA; [K116]	88750-1A169	US $83.52
88750N	88750N 88750-WF300 Armrest Assy-2Nd Seat, Outer Lh 9811--01 ~ 9907--01; W.LA	88750-WF300	US $127.87
88750N	88750N 88750-WF301 Armrest Assy-2Nd Seat, Outer Lh 9811--01 ~ 9907--01; *W.LA	88750-WF301	US $127.87
88750N	88750N 88750-WF305 Armrest Assy-2Nd Seat, Outer Lh 0005--01 ~ 0105--01; W.LA	88750-WF305	US $127.87
88750N	88750N 88750-WF310 Armrest Assy-2Nd Seat, Outer Lh 9907--01 ~ 0005--01; W.LA	88750-WF310	US $127.87
88750N	88750N 88750-WF311 Armrest Assy-2Nd Seat, Outer Lh 9907--01 ~ 0005--01; *W.LA	88750-WF311	US $127.87
88828	88828 88705-WF100 Finisher 9811--01 ~ 9910--01; W.(LA+HWS)	88705-WF100	US $7.49
88828	88828 88705-WF100 Finisher 9811--01 ~ 9910--01; W.(LA+HWS)	88705-WF100	US $7.49
88828+A	88828+A 88705-WF100 Finisher 9811--01 ~ 9910--01; W.(LA+HWS)	88705-WF100	US $7.49

Rear seat (2000-05-01 ~ 2001-05-01; W.SR20DE.HWS +W.SR20DET +W.LA) Diagram Nissan PRAIRIE/LIBERTY Japan 7790647-619792

Rear seat (2000-05-01 ~ 2001-05-01; W.SR20DE.HWS +W.SR20DET +W.LA) Diagram Nissan PRAIRIE/LIBERTY Japan 7790647-619792

For customer

OEM Parts Catalogue
