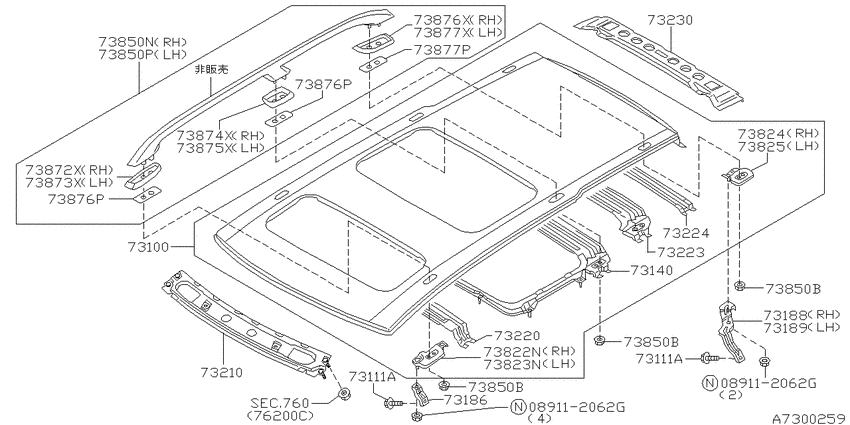

Roof panel & fitting (1999-10-01 ~ 2000-05-01; "ダブルサンルーフ ルーフレール仕様; W) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1998 - 2001
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- LA
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089112062G
|
089112062G
08911-2062G NUTHEX |
08911-2062G |
from US $0.57 |
||
|
089112062G
|
089112062G
08911-2062G NUTHEX |
08911-2062G |
from US $0.57 |
||
|
73100
|
73100
73100-WF110 Roof Assy9811--01 ~ 9910--01; *W.(LA+X+HWS) |
73100-WF110 |
US $1,029.43 |
||
|
73100
|
73100
73100-WF115 Roof Assy9811--01 ~ 9910--01; *W.(LA+X+HWS) |
73100-WF115 |
US $1,029.43 |
||
|
73111A
|
73111A
0146600051 SCREW9811--01 ~ 9910--01; *W |
0146600051 |
US $0.82 |
||
|
73111A
|
73111A
0146600051 SCREW9811--01 ~ 9910--01; *W |
0146600051 |
US $0.82 |
||
|
73140
|
73140
73288-WF110 Reinforce Assy-Sunroof, Rear9811--01 ~ 9910--01; *W.(LA+X+HWS) |
73288-WF110 |
US $198.72 |
||
|
73140
|
73140
73288-WF115 Reinforce Assy-Sunroof, Rear9811--01 ~ 9910--01; *W.(LA+X+HWS) |
73288-WF115 |
US $198.72 |
||
|
73186
|
73186
73187-WF105 Bracket-Roof Rack, Front Rh9811--01 ~ 9910--01; *W |
73187-WF105 |
US $23.62 |
||
|
73188
|
73188
73188-WF105 Bracket Roof Rack, Rear Rh9811--01 ~ 9910--01; *W |
73188-WF105 |
US $39.74 |
||
|
73189
|
73189
73189-WF105 Bracket Roof Rack, Rear Lh9811--01 ~ 9910--01; *W |
73189-WF105 |
US $39.74 |
||
|
73210
|
73210
73210-WF100 Rail-Front Roof9811--01 ~ 9910--01; W |
73210-WF100 |
US $141.70 |
||
|
73220
|
73220
73240-WF100 Bow-Roof, No 19811--01 ~ 9910--01; W |
73240-WF100 |
US $100.94 |
||
|
73220
|
73220
73242-WF100 Bow-Roof, No 19811--01 ~ 9910--01; *W.(LA+X+HWS) |
73242-WF100 |
US $100.94 |
||
|
73223
|
73223
73270-WF105 Bow-Roof, No 49811--01 ~ 9910--01; *W.(LA+X+HWS) |
73270-WF105 |
US $100.94 |
||
|
73223
|
73223
73272-WF100 Bow-Roof, No 49811--01 ~ 9910--01; *W.(LA+X+HWS) |
73272-WF100 |
US $100.94 |
||
|
73224
|
73224
73282-WF100 Bow-Roof, No 59811--01 ~ 9910--01; W |
73282-WF100 |
US $100.94 |
||
|
73230
|
73230
73230-WF100 Rail-Rear Roof9811--01 ~ 9910--01; W |
73230-WF100 |
US $154.08 |
||
|
73822N
|
73822N
73180-WF105 Reinforce-Roof Rack, Front Rh9811--01 ~ 9910--01; *W.(LA+X+HWS) |
73180-WF105 |
US $33.26 |
||
|
73823N
|
73823N
73181-WF105 Reinforce-Roof Rack, Front Lh9811--01 ~ 9910--01; *W.(LA+X+HWS) |
73181-WF105 |
US $33.26 |
||
|
73824
|
73824
73184-WF105 Reinforce-Roof Rack, Rear Rh9811--01 ~ 9910--01; *W.(LA+X+HWS) |
73184-WF105 |
US $25.34 |
||
|
73825
|
73825
73185-WF105 Reinforce-Roof Rack, Rear Lh9811--01 ~ 9910--01; *W.(LA+X+HWS) |
73185-WF105 |
US $25.34 |
||
|
73850B
|
73850B
0122500371 NUT9811--01 ~ 9910--01; *W |
0122500371 |
US $1.73 |
||
|
73850B
|
73850B
0122500371 NUT9811--01 ~ 9910--01; *W |
0122500371 |
US $1.73 |
||
|
73850B
|
73850B
0122500371 NUT9811--01 ~ 9910--01; *W |
0122500371 |
US $1.73 |
||
|
73850N
|
73850N
73820-WF100 Finisher Assy-Roof Side, Rh9811--01 ~ 9910--01; *W |
73820-WF100 |
US $678.49 |
||
|
73850P
|
73850P
73821-WF100 Finisher Assy-Roof Side, Lh9811--01 ~ 9910--01; *W |
73821-WF100 |
US $678.49 |
||
|
73872X
|
73872X
73872-WF100 Base-Roof Rack Front, Rh9811--01 ~ 9910--01; *W |
73872-WF100 |
US $50.54 |
||
|
73873X
|
73873X
73873-WF100 Base-Roof Rack Front, Lh9811--01 ~ 9910--01; *W |
73873-WF100 |
US $50.54 |
||
|
73874X
|
73874X
73874-WF100 Base-Roof Rack Center, Rh9811--01 ~ 9910--01; *W |
73874-WF100 |
US $50.54 |
||
|
73875X
|
73875X
73875-WF100 Base-Roof Rack Center, Lh9811--01 ~ 9910--01; *W |
73875-WF100 |
US $50.54 |
||
|
73876P
|
73876P
73876-4H111 Seal-Rack, Front9811--01 ~ 9906--01; *W; FR&CTR RH&LH |
73876-4H111 |
US $7.20 |
||
|
73876P
|
73876P
73876-WF100 Seal-Rack, Front9906--01 ~ 9910--01; *W; FR&CTR RH&LH |
73876-WF100 |
US $7.78 |
||
|
73876P
|
73876P
73876-4H111 Seal-Rack, Front9811--01 ~ 9906--01; *W; FR&CTR RH&LH |
73876-4H111 |
US $7.20 |
||
|
73876P
|
73876P
73876-WF100 Seal-Rack, Front9906--01 ~ 9910--01; *W; FR&CTR RH&LH |
73876-WF100 |
US $7.78 |
||
|
73876X
|
73876X
73878-WF100 Base-Roof Rack Rear, Rh9811--01 ~ 9910--01; *W |
73878-WF100 |
US $50.54 |
||
|
73877P
|
73877P
73877-WF100 Seal-Rack, Rear9811--01 ~ 9906--01; *W; RR RH&LH |
73877-WF100 |
US $8.35 |
||
|
73877P
|
73877P
73877-WF101 Seal-Rack, Rear9906--01 ~ 9910--01; *W; RR RH&LH |
73877-WF101 |
US $7.78 |
||
|
73877X
|
73877X
73879-WF100 Base-Roof Rack Rear, Lh9811--01 ~ 9910--01; *W |
73879-WF100 |
US $50.54 |
||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
|
760
|
Body side panel
760
|
||||
