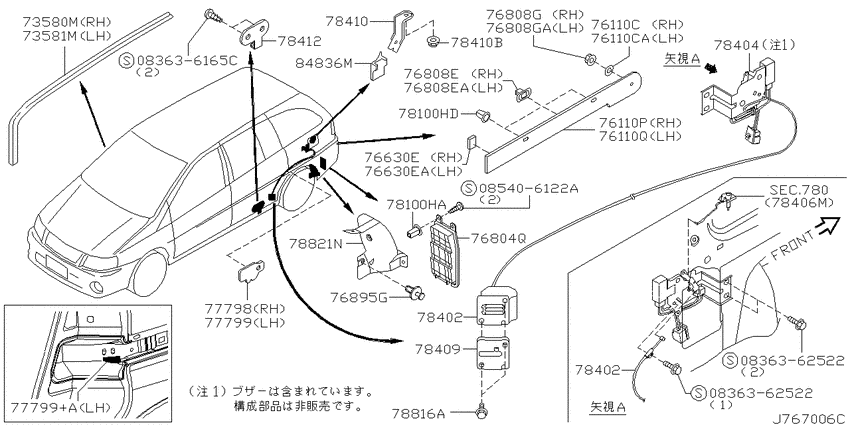

Body side fitting (2002-09-01 ~ ; フィッティングパーツ; W) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636165C
|
083636165C
08363-6165C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6165C |
— | ||
| replacement | |||||
|
083636165C
|
083636165C
08360-6165C ｽｸﾘﾕ-,ﾏｼﾝ |
08360-6165C |
US $2.36 |
||
|
0836362522
|
0836362522
08363-62522
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62522 |
— | ||
|
0836362522
|
0836362522
08363-62522
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62522 |
— | ||
|
085406122A
|
085406122A
08540-6122A
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-6122A |
— | ||
|
73580M
|
73580M
76842-WF100 Weatherstrip-Roof Drip, Rh0105--01 ~ 0209--01; W |
76842-WF100 |
US $49.68 |
||
|
73581M
|
73581M
76843-WF100 Weatherstrip-Roof Drip, Lh0105--01 ~ 0209--01; W |
76843-WF100 |
US $49.68 |
||
|
76110C
|
76110C
76829-WF100 Washer0105--01 ~ 0209--01; W |
76829-WF100 |
US $2.33 |
||
|
76110C
|
76110C
76829-WF100 Washer0105--01 ~ 0209--01; W |
76829-WF100 |
US $2.33 |
||
|
76110CA
|
76110CA
76829-WF100 Washer0105--01 ~ 0209--01; W |
76829-WF100 |
US $2.33 |
||
|
76110P
|
76110P
76826-WF110 Finisher-Slide Rail Waist Rh0105--01 ~ 0209--01; W; ﾑﾄｿｳ |
76826-WF110 |
US $230.40 |
||
|
76110Q
|
76110Q
76827WF110 Finisher-Slide Rail Waist Lh0105--01 ~ 0209--01; W; ﾑﾄｿｳ |
76827WF110 |
US $230.40 |
||
|
76630E
|
76630E
76824WF100 Spacer0105--01 ~ 0209--01; *W.2WD.G |
76824WF100 |
US $13.62 |
||
|
76630E
|
76630E
76824WF100 Spacer0105--01 ~ 0209--01; *W.2WD.G |
76824WF100 |
US $13.62 |
||
|
76630EA
|
76630EA
76824WF100 Spacer0105--01 ~ 0209--01; *W.2WD.G |
76824WF100 |
US $13.62 |
||
|
76804Q
|
76804Q
76804-WF100 Drafter-Air0105--01 ~ 0209--01; W |
76804-WF100 |
US $61.49 |
||
|
76808E
|
76808E
7999430R00
Clip
0105--01 ~ 0209--01; W |
7999430R00 |
— | ||
|
76808E
|
76808E
7999430R00
Clip
0105--01 ~ 0209--01; W |
7999430R00 |
— | ||
|
76808EA
|
76808EA
7999430R00
Clip
0105--01 ~ 0209--01; W |
7999430R00 |
— | ||
|
76808G
|
76808G
01225-00271 NUT0105--01 ~ 0209--01; W |
01225-00271 |
US $3.26 |
||
|
76808G
|
76808G
01225-00271 NUT0105--01 ~ 0209--01; W |
01225-00271 |
US $3.26 |
||
|
76808GA
|
76808GA
01225-00271 NUT0105--01 ~ 0209--01; W |
01225-00271 |
US $3.26 |
||
|
76895G
|
76895G
0155305323
CLIP
0407--01 ~ ; W |
0155305323 |
— | ||
| replacement | |||||
|
76895G
|
76895G
01553-05933 CLIP0407--01 ~ ; W |
01553-05933 |
from US $0.82 |
||
|
76895G
|
76895G
0155309321 CLIP0105--01 ~ 0209--01; W |
0155309321 |
from US $0.89 |
||
|
77798
|
77798
77756-WF100 Protector-Rear Rail Rh0105--01 ~ 0209--01; W |
77756-WF100 |
US $4.75 |
||
|
77799
|
77799
77757-WF600 Protector-Rear Rail Lh0105--01 ~ 0209--01; W |
77757-WF600 |
US $4.75 |
||
|
77799
|
77799
77759-WF600 Protector-Rear Rail Lh0105--01 ~ 0209--01; *W.2WD.(G+HWS) +*W.4WD |
77759-WF600 |
US $7.20 |
||
|
77799+A
|
77799+A
77759-WF600 Protector-Rear Rail Lh0105--01 ~ 0209--01; *W.2WD.(G+HWS) +*W.4WD |
77759-WF600 |
US $7.20 |
||
|
780
|
Rear fender & fitting
780
|
||||
|
780
|
Rear fender & fitting
780
|
||||
|
78100HA
|
78100HA
887966P000 Grommet-Screw0105--01 ~ 0209--01; W |
887966P000 |
US $2.45 |
||
|
78100HD
|
78100HD
0128100483
GROMMET
0105--01 ~ 0209--01; W |
0128100483 |
— | ||
|
78402
|
78402
78402-WF500 Stopper-Rear Door0105--01 ~ 0209--01; W |
78402-WF500 |
US $57.17 |
||
|
78402
|
78402
78402-WF500 Stopper-Rear Door0105--01 ~ 0209--01; W |
78402-WF500 |
US $57.17 |
||
|
78404
|
78404
78404-WF100 Connector Assy-Rear Door Stopper0105--01 ~ 0209--01; *W.2WD.G |
78404-WF100 |
US $82.51 |
||
|
78404
|
78404
78404-WF600 Connector Assy-Rear Door Stopper0105--01 ~ 0209--01; *W.2WD.(G+HWS) +*W.4WD |
78404-WF600 |
US $82.51 |
||
|
78409
|
78409
78409-WF100 Cover-Seal0105--01 ~ 0209--01; W |
78409-WF100 |
US $8.35 |
||
|
78410
|
78410
78410-30R01 Lever-Rear Door Stopper0105--01 ~ 0209--01; W |
78410-30R01 |
US $15.41 |
||
|
78410
|
78410
01217-00063 NUT0105--01 ~ 0209--01; W |
01217-00063 |
US $2.45 |
||
|
78410B
|
78410B
01217-00063 NUT0105--01 ~ 0209--01; W |
01217-00063 |
US $2.45 |
||
|
78412
|
78412
78412-WF100 Bracket-Rear Door Stopper0105--01 ~ 0209--01; W |
78412-WF100 |
US $10.94 |
||
|
78816A
|
78816A
01436-00343 SCREW0105--01 ~ 0209--01; W |
01436-00343 |
US $1.15 |
||
|
78816A
|
78816A
0145400025 SCREW0105--01 ~ 0209--01; *W.2WD.G |
0145400025 |
US $1.73 |
||
|
78821N
|
78821N
78821-WF101 Protector-Rear Fender, Lh0105--01 ~ 0209--01; W |
78821-WF101 |
US $71.14 |
||
|
84836M
|
84836M
78884-30R00 Grip-Hinge0105--01 ~ 0209--01; W |
78884-30R00 |
US $6.91 |
||
